Toyota Avalon
1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States
Discontinued model
Data version 2000-02

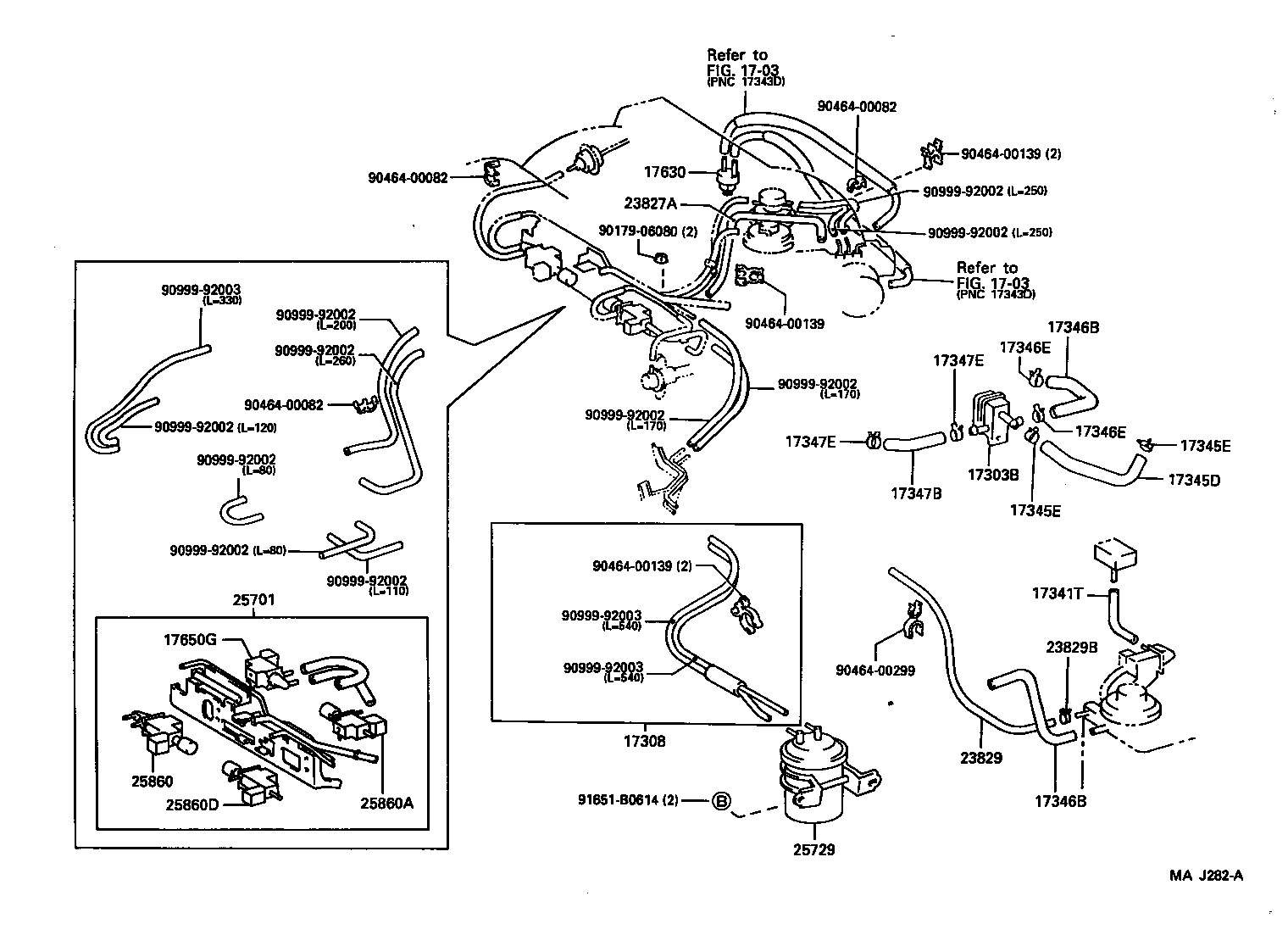

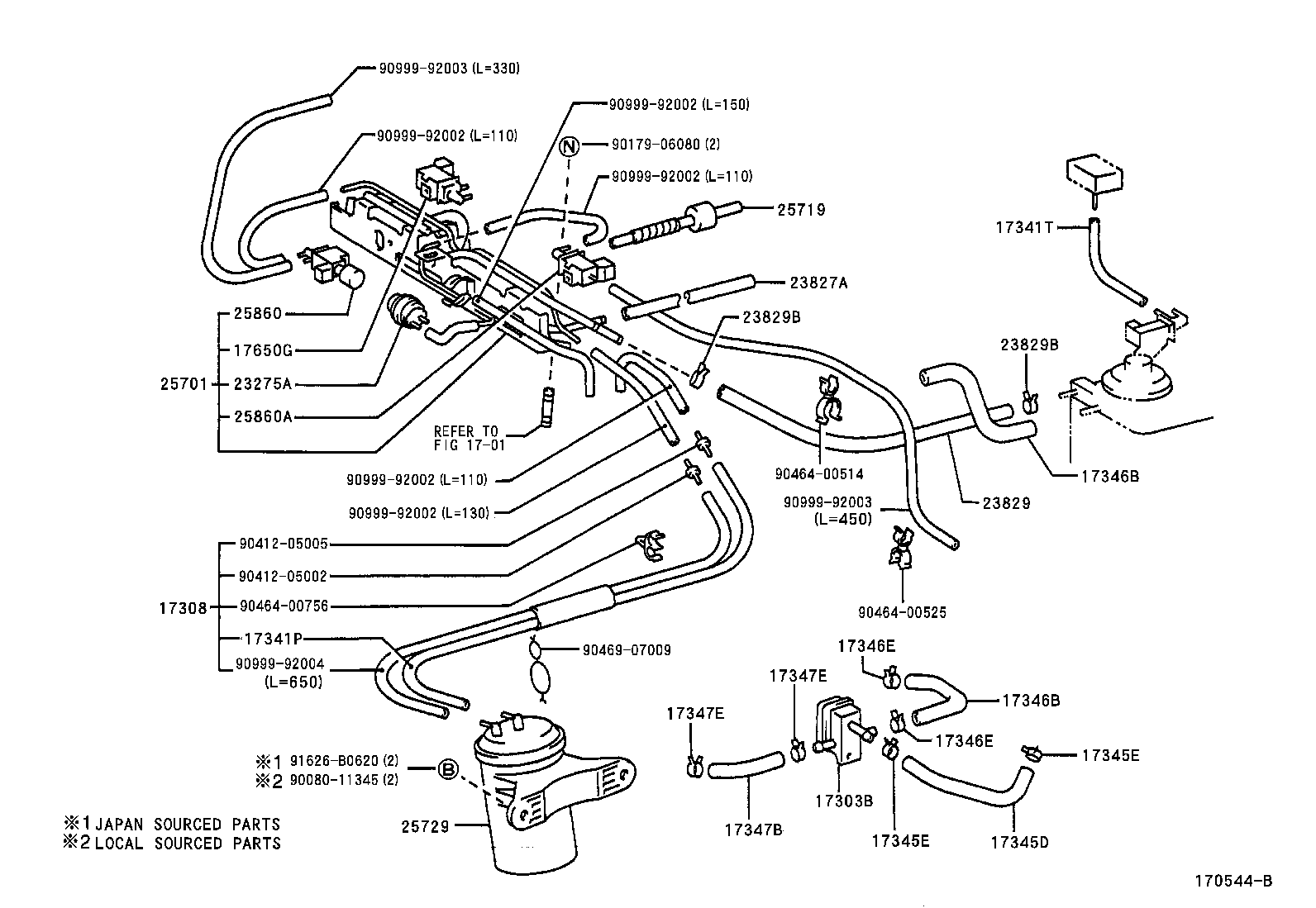

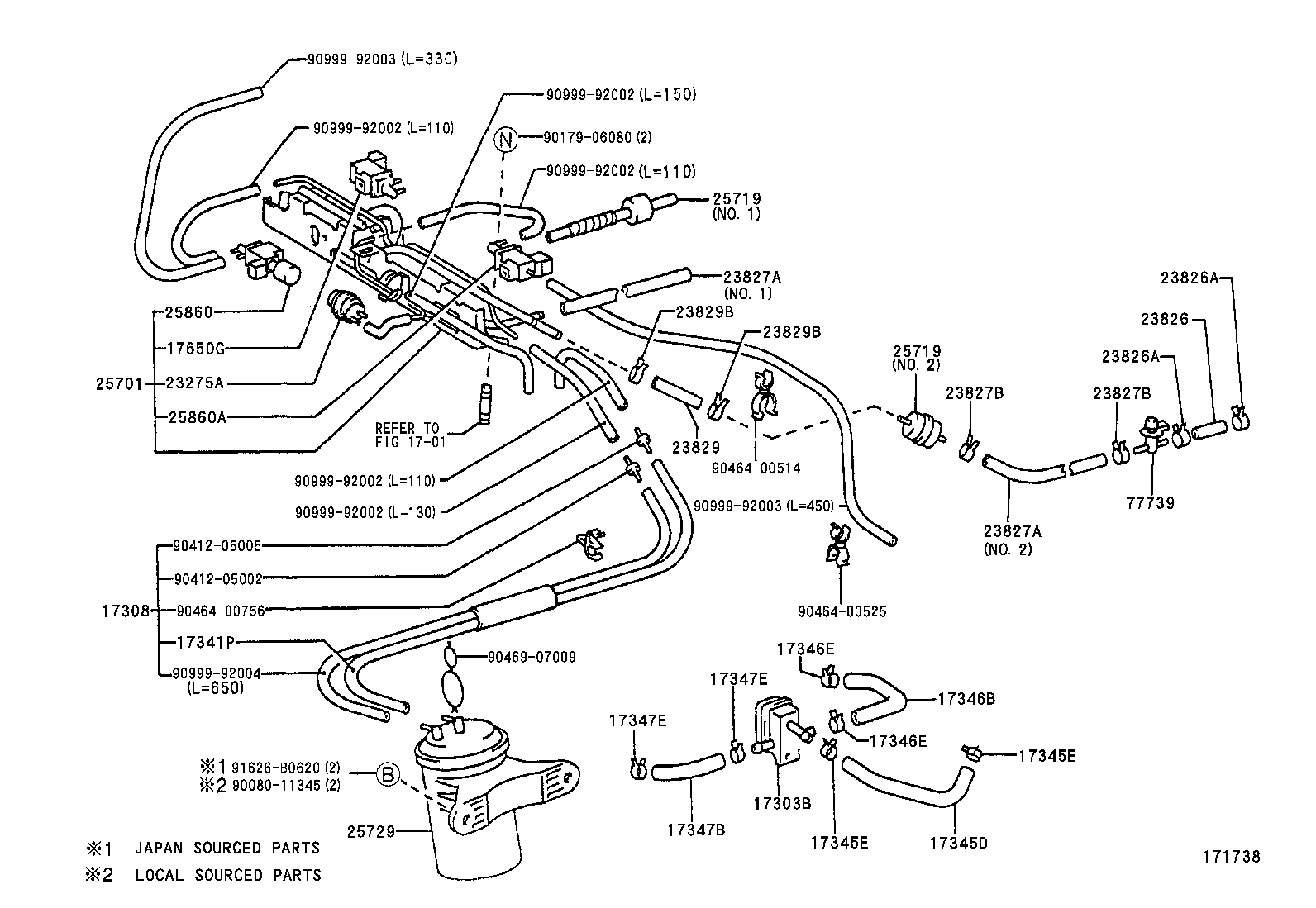

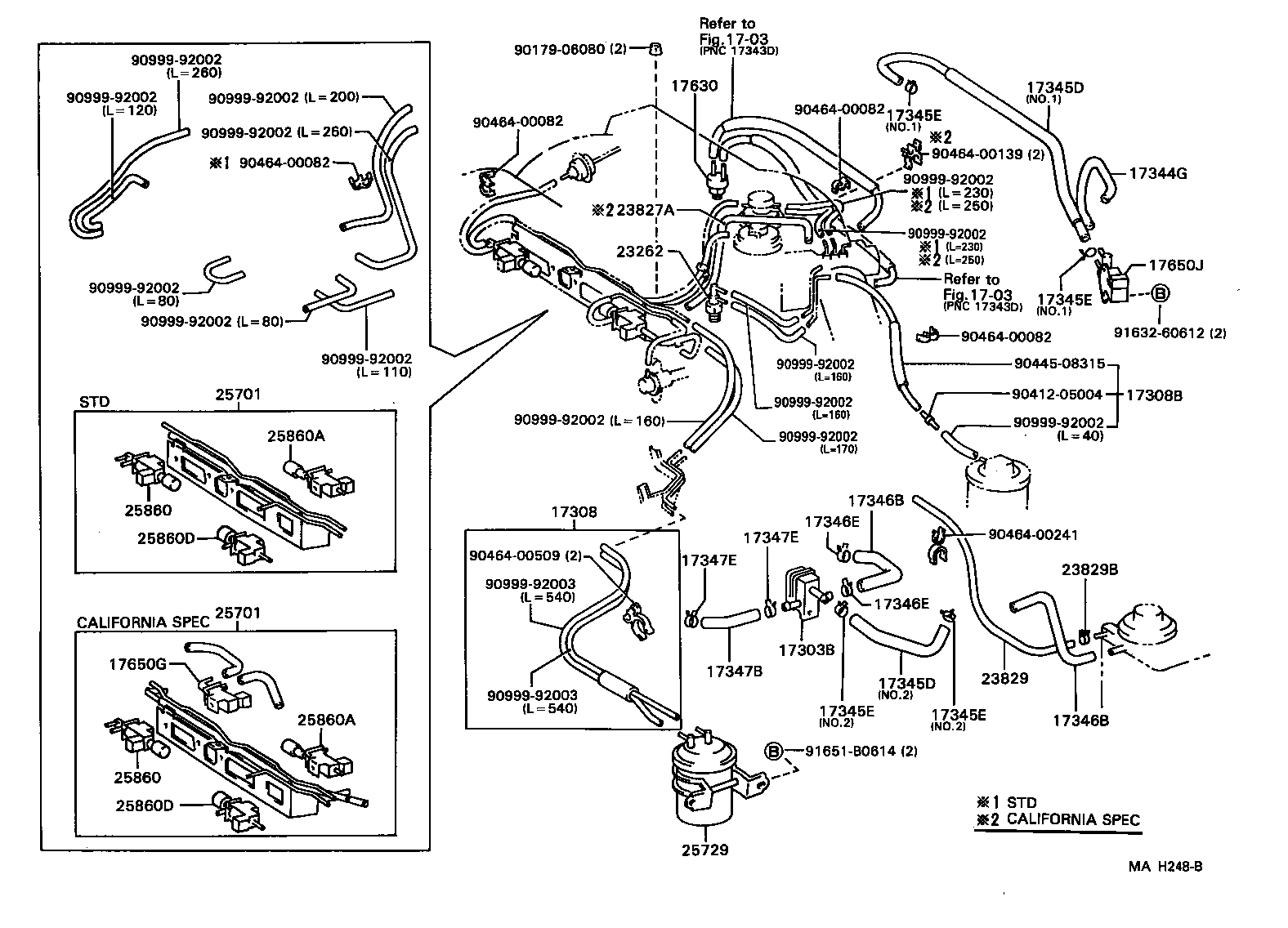

Vacuum Piping
30 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17308 | Hose Sub-assy, Vacuum(FOR IDLE-UP) |
| 17308B | Hose Sub-assy, Vacuum |
| 17341P | Hose, Air |
| 17341T | Hose, Air, NO.1 |
| 17344G | Hose, Air, NO.4 |
| 17345D | Hose, Air, NO.5 |
| 17345E | Clamp OR Clip(FOR AIR HOSE, NO.5) |
| 17346B | Hose, Air, NO.6 |
| 17346E | Clip(FOR AIR HOSE NO.6) |
| 17347B | Hose, Air, NO.7 |
| 17347E | Clip(FOR AIR HOSE NO.7) |
| 17630 | Valve Assy, Air Control |
| 17650G | Valve, Duty Vacuum Switching |
| 17650J | Valve, Solenoid W/Adjust Screw |
| 23262 | Valve, Bimetal Vacuum Switching, NO.1 |
| 23275A | Valve, Vacuum Control |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829 | Hose, Fuel Vapor Feed, NO.3 |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25701 | Valve Set, Emission Control |
| 25719 | Tank, Vacuum Surge |
| 25729 | Tank, Vacuum Surge W/Bracket |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860A | Valve, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
| 77739 | Valve, Evap Service Port |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
