Toyota Avalon

1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

20 part groups · 2 illustrations

Illustrations

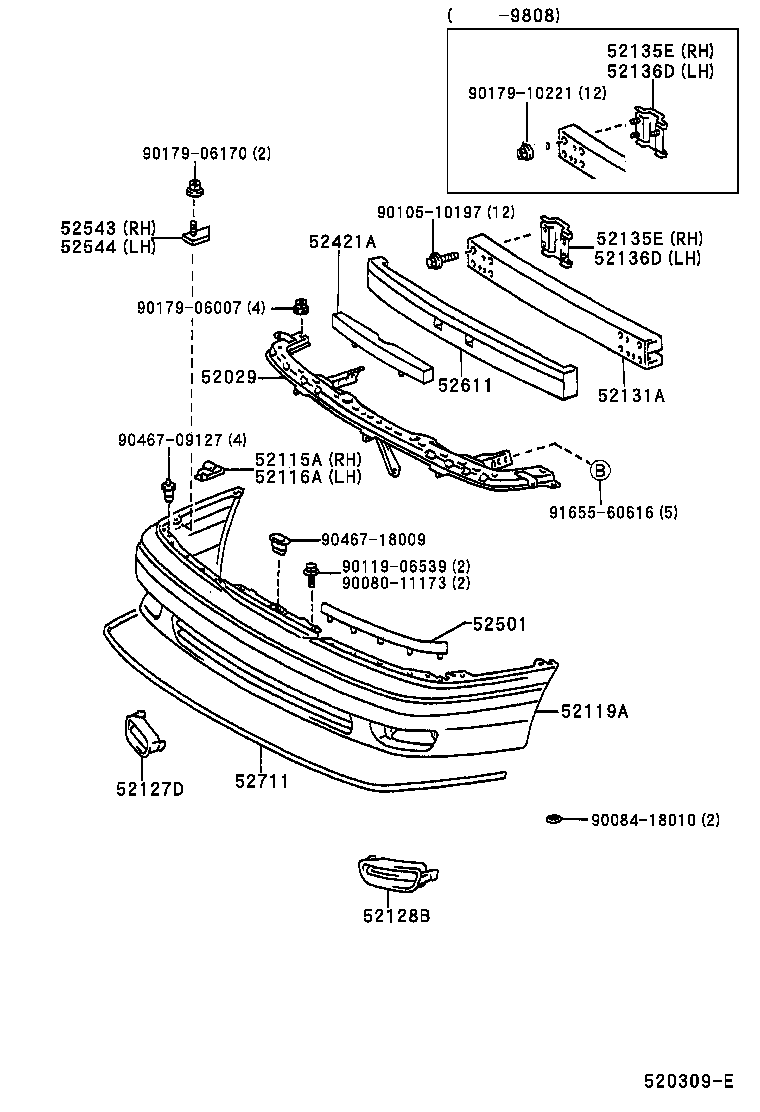

Figure 520113 520113 1994-09 → 1997-09 Figure 520309E 520309E 1997-09 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52029 Reinforcement Sub-assy, Front Bumper, Upper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121B Bracket, Front Licence Plate Mounting
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52135E Reinforcement, Front Bumper Arm Mounting, RH
52136D Reinforcement, Front Bumper Arm Mounting, LH
52421A Pad, Front Bumper
52501 Filler Sub-assy, Front Bumper
52543 Seal, Front Bumper Side, RH
52544 Seal, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
53141C Garnish, Radiator Grille
53142C Garnish, Radiator Grille, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
