Toyota Avalon
1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States
Discontinued model
Data version 2000-02

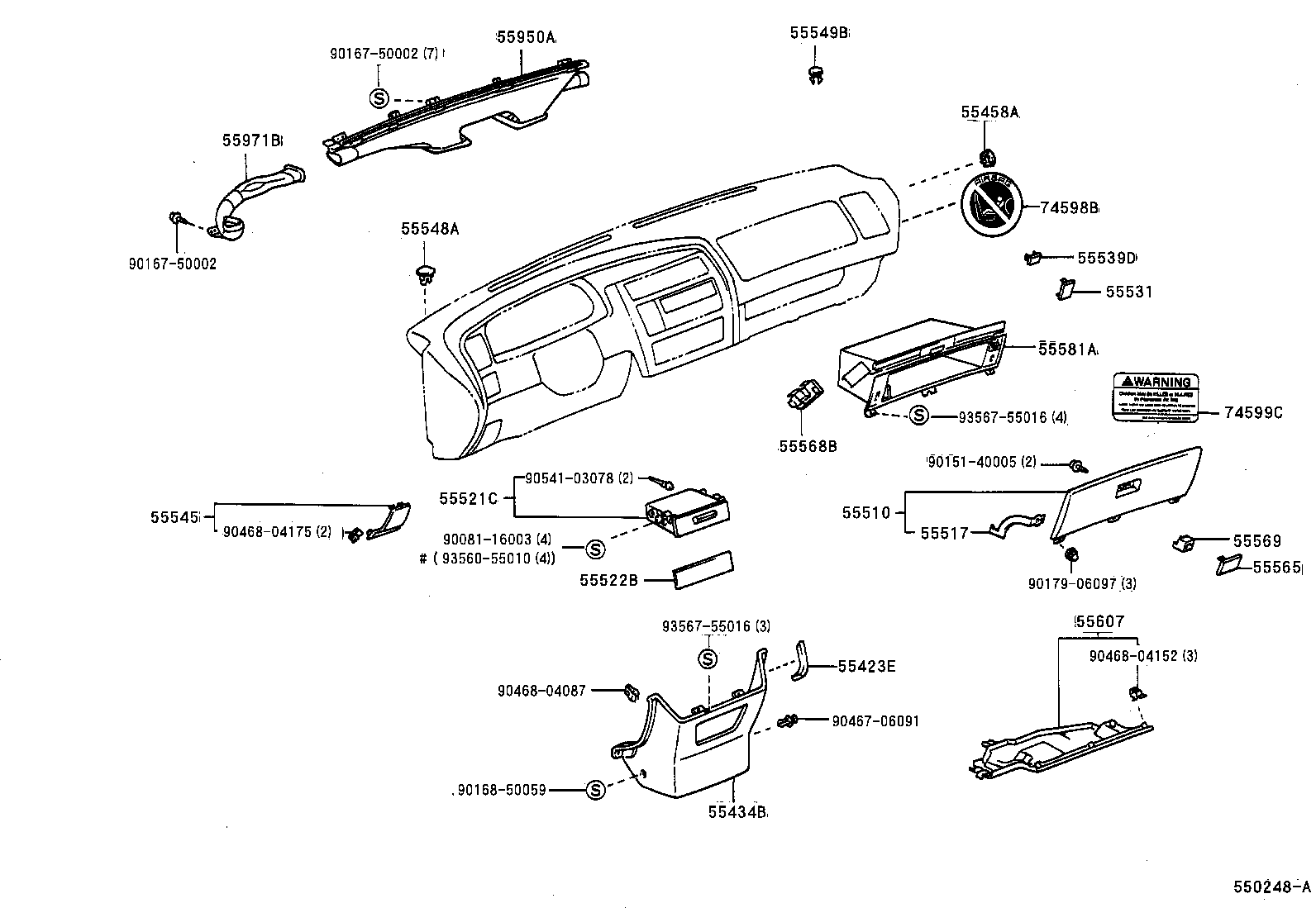

Instrument Panel & Glove Compartment
47 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 50540 | DO0R Assy, Airbag Passenger |
| 55045A | Panel Sub-assy, Instrument Panel Finish, Lower RH |
| 55046A | Panel Sub-assy, Instrument Panel Finish, Lower LH |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55377A | Bracket, Instrument Panel Mounting, NO.2 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55423E | Cushion, Center Cluster, NO.1 |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55458A | Cap, Instrument Panel Safety Pad |
| 55466A | Retainer, Instrument Panel Safety Pad |
| 55510 | Door Assy, Glove Compartment |
| 55517 | Stopper, Glove Compartment Door Arm |
| 55519A | Support, Airbag Passenger Door |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55531 | Panel, Glove Compartment |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55539D | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55565 | Handle, Glove Compartment Door Lock |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55581A | Compartment, Glove |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 55950A | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55982 | Garnish, Defroster Nozzle, NO.2 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74598B | Label, Passenger Airbag Caution |
| 74599C | Label, Driver & Passenger Airbag Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
