Toyota Avalon
1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States
Discontinued model
Data version 2000-02

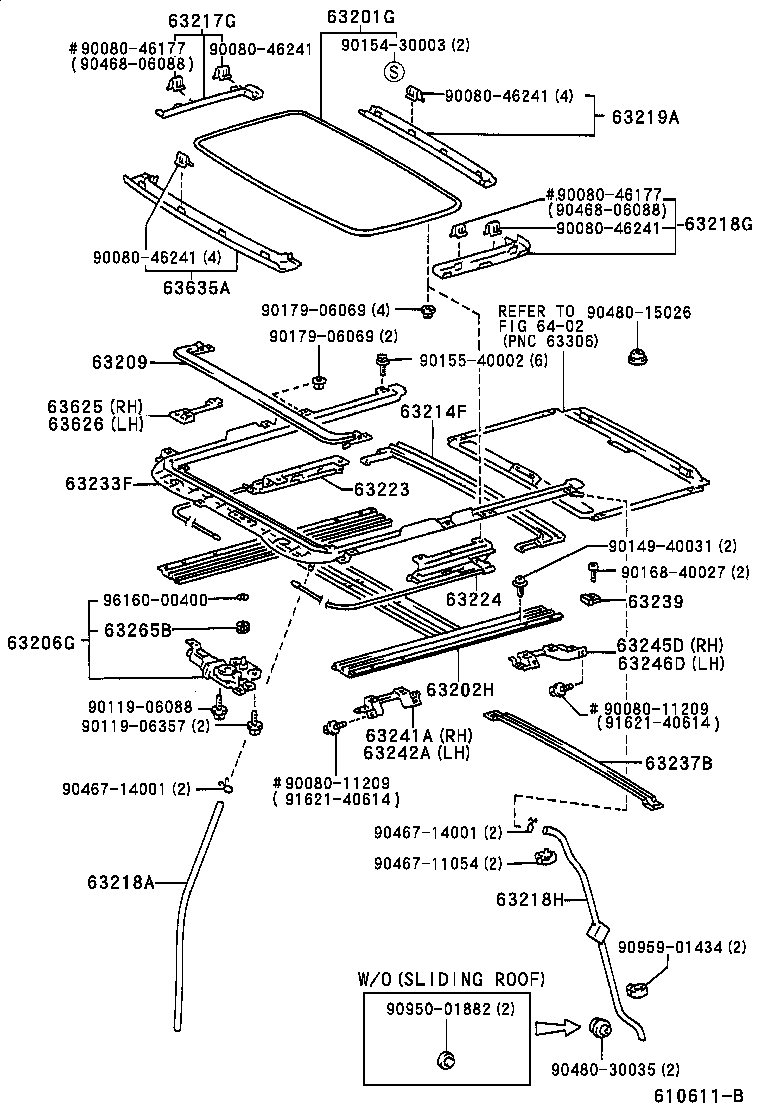

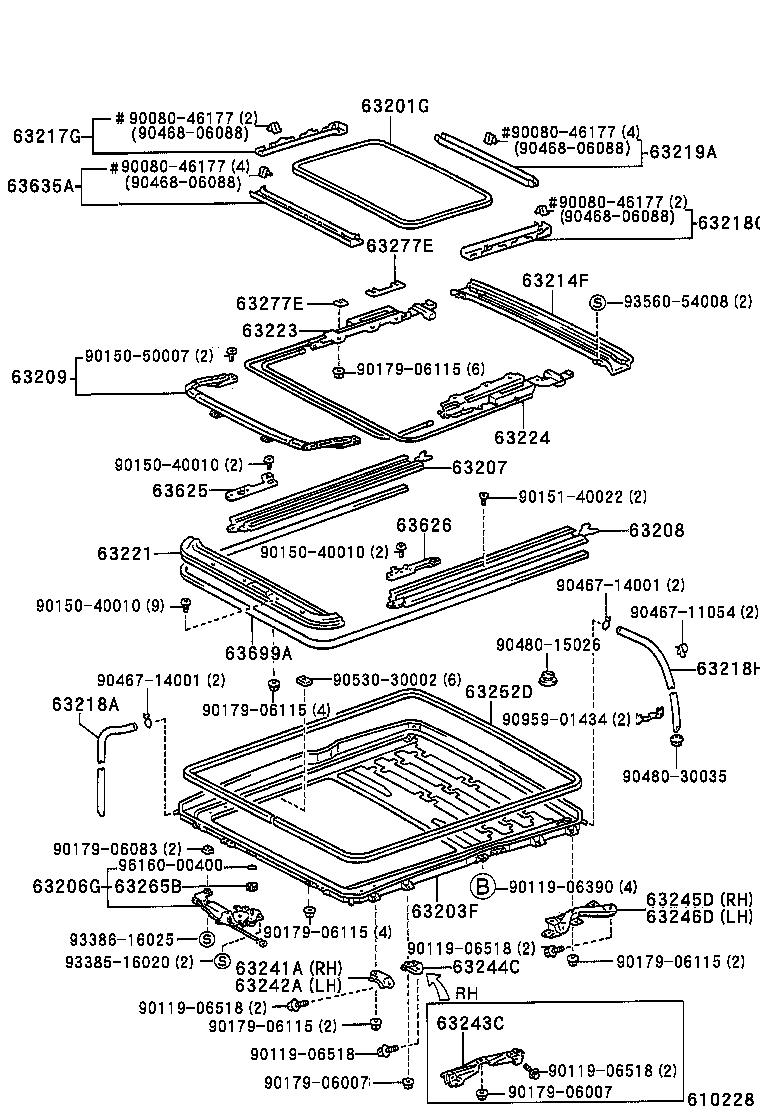

Roof Panel & Back Window Glass
46 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 56116A | Spacer, Windshield Glass |
| 63102A | Panel Sub-assy, Windshield Header |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63133A | Frame, Back Window, Upper |
| 63141H | Reinforcement, Roof Panel, Center |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63206G | Gear Sub-assy, Sliding Roof Drive |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63218H | Hose, Sliding Roof Drain |
| 63219A | Garnish, Sliding Roof, Rear |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63233F | Frame, Removable Roof Housing |
| 63237B | Frame, Sliding Roof Housing, Rear |
| 63239 | Stopper, Sliding Roof Panel |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63243C | Bracket, Sliding Roof Housing Center Mounting, RH |
| 63244C | Bracket, Sliding Roof Housing Center Mounting, LH |
| 63245D | Bracket, Sliding Roof Housing Rear Mounting, RH |
| 63246D | Bracket, Sliding Roof Housing Rear Mounting, LH |
| 63252D | Weatherstrip, Sliding Roof Housing |
| 63265B | Gear, Sliding Roof Drive |
| 63277E | Shim, Sliding Roof Panel |
| 63625 | Block, Sliding Roof Guide, RH |
| 63626 | Block, Sliding Roof Guide, LH |
| 63635A | Garnish, Sliding Roof, Front |
| 63699A | Seal, Sliding Roof Guide Rail |
| 64101 | Panel Sub-assy, Upper Back |
| 64165B | Cover, Upper Back Panel Hole, NO.1 |
| 64167B | Cover, Upper Back Panel Hole, NO.3 |
| 64811 | Glass, Back Window |
| 64818 | Spacer, Back Window Glass |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
