Toyota Avalon

1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

7 part groups · 2 illustrations

Illustrations

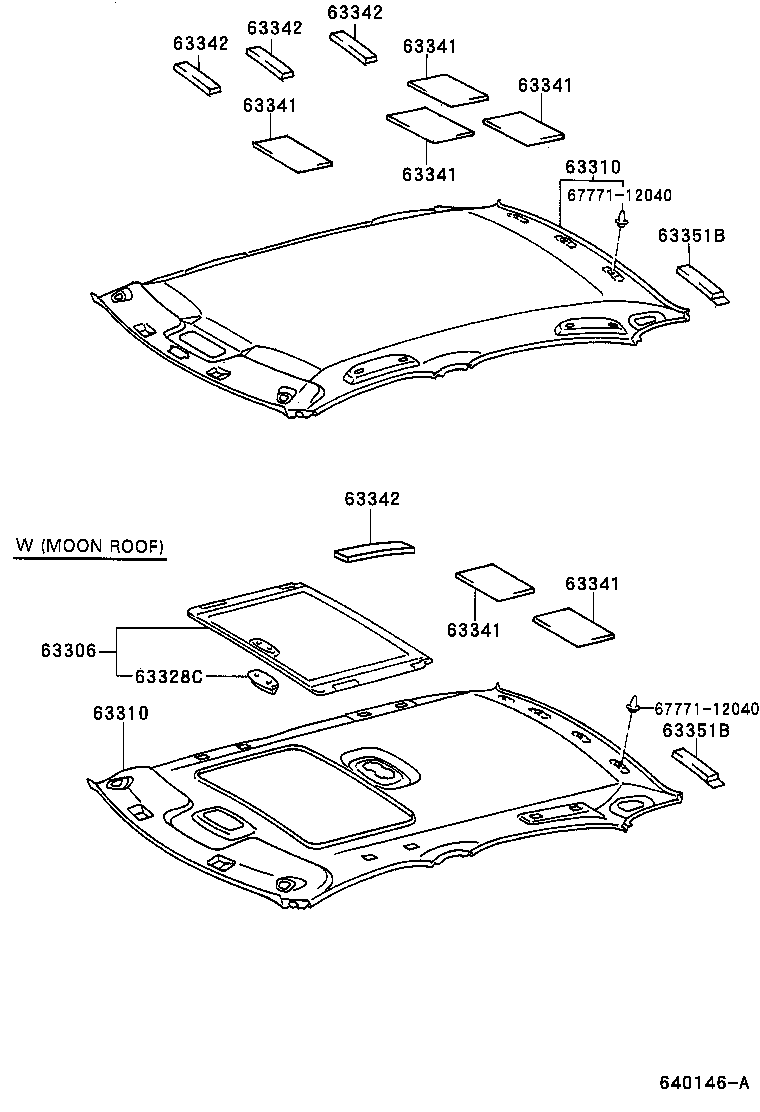

Figure 640147B 640147B 1994-09 → 1996-08 Figure 640146A 640146A 1996-08 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63328C Knob, Sunshade Trim
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63349 Pad, Roof Silencer, NO.9
63351B Pad, Roof Headlining
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
