Toyota Avalon

1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

9 part groups · 3 illustrations

Illustrations

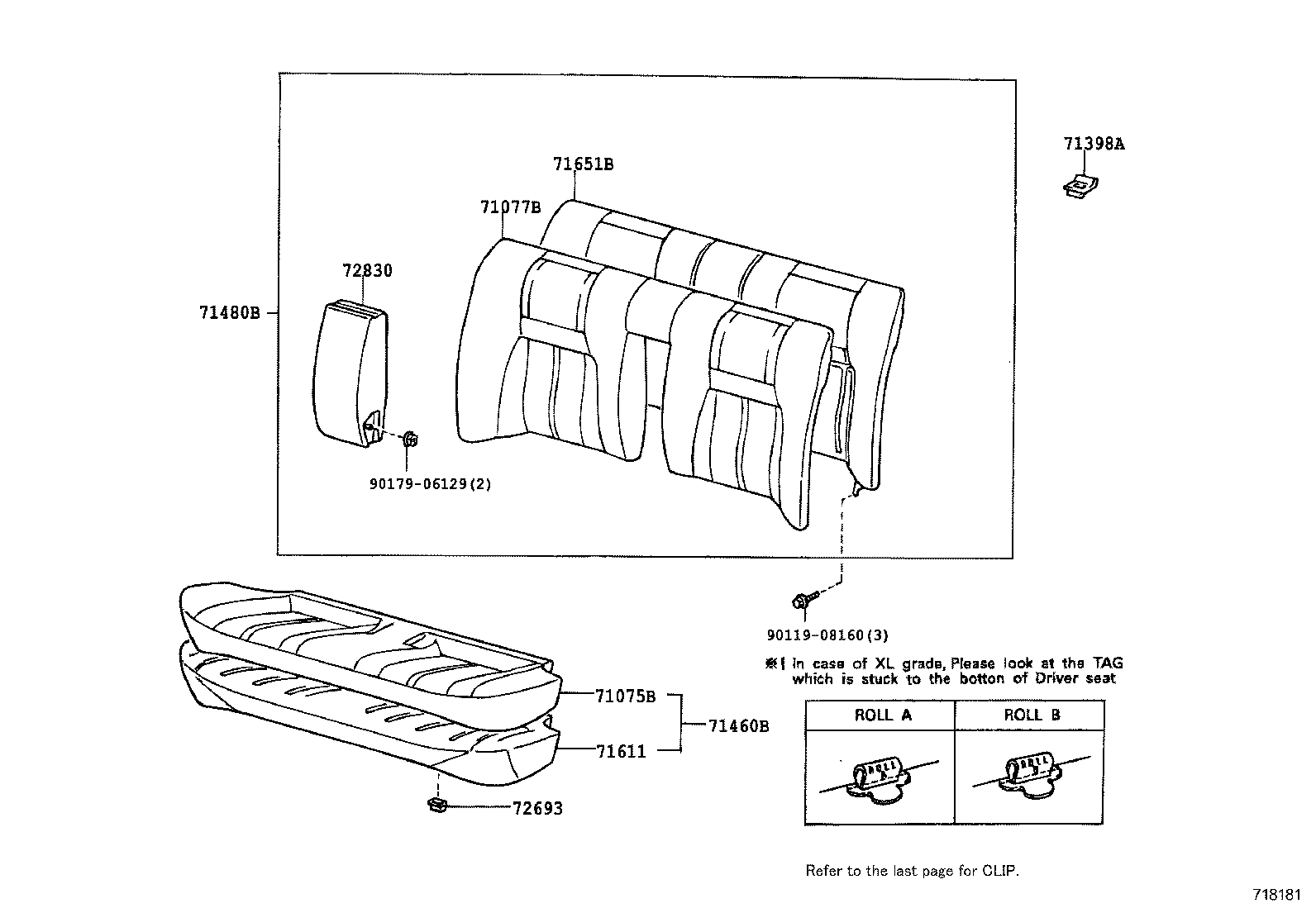

Figure 718180 718180 1994-09 → 1995-08 Figure 718181 718181 1995-08 → — Figure 718166A 718166A 1994-09 → —

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71398A Holder, Rear Seatback
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
72693 Hook, Rear Seat Cushion Lock
72830 Armrest Assy, Rear Seat, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
