Toyota Avalon
1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States
Discontinued model
Data version 2000-02
Fuel Tank & Tube

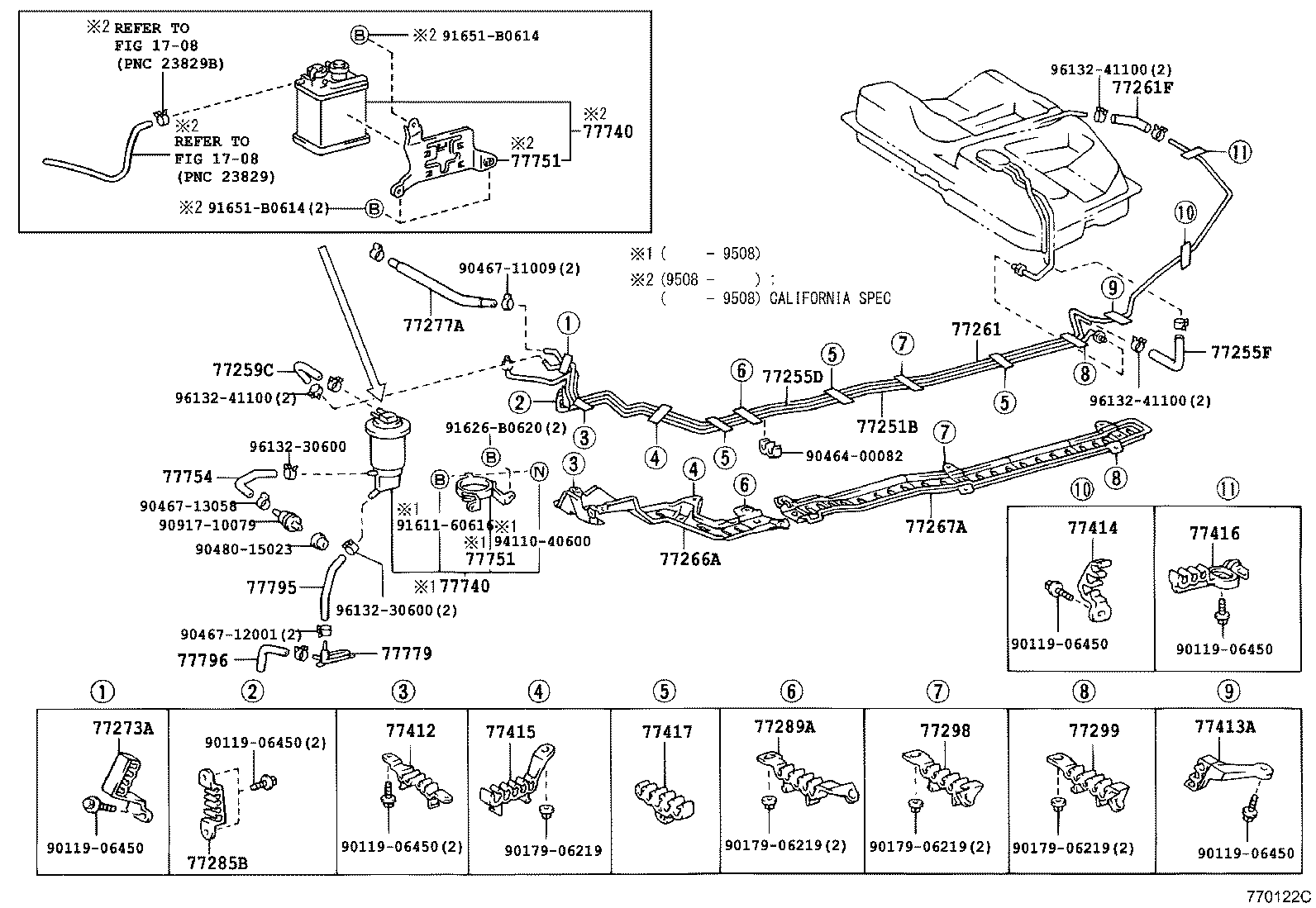

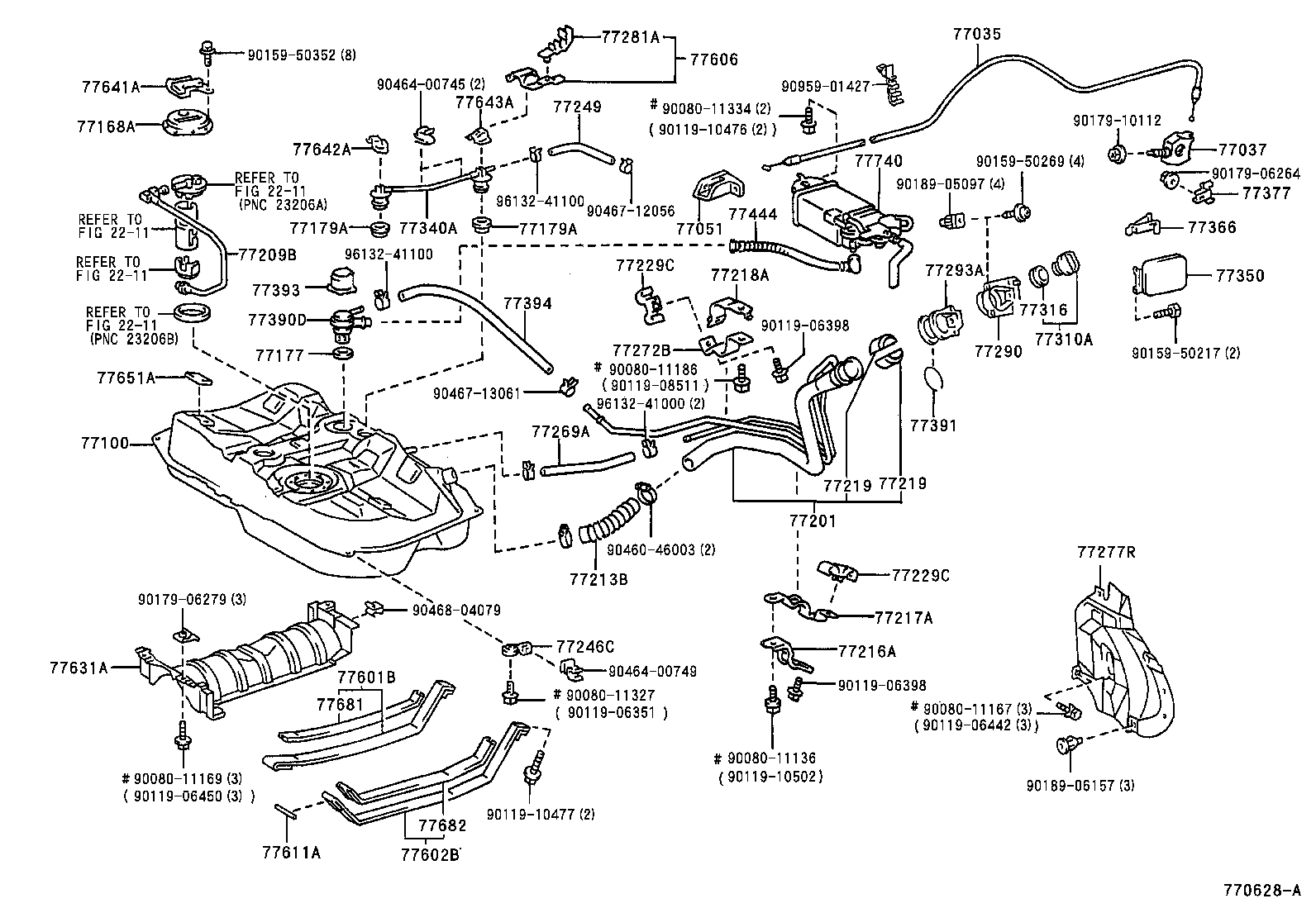

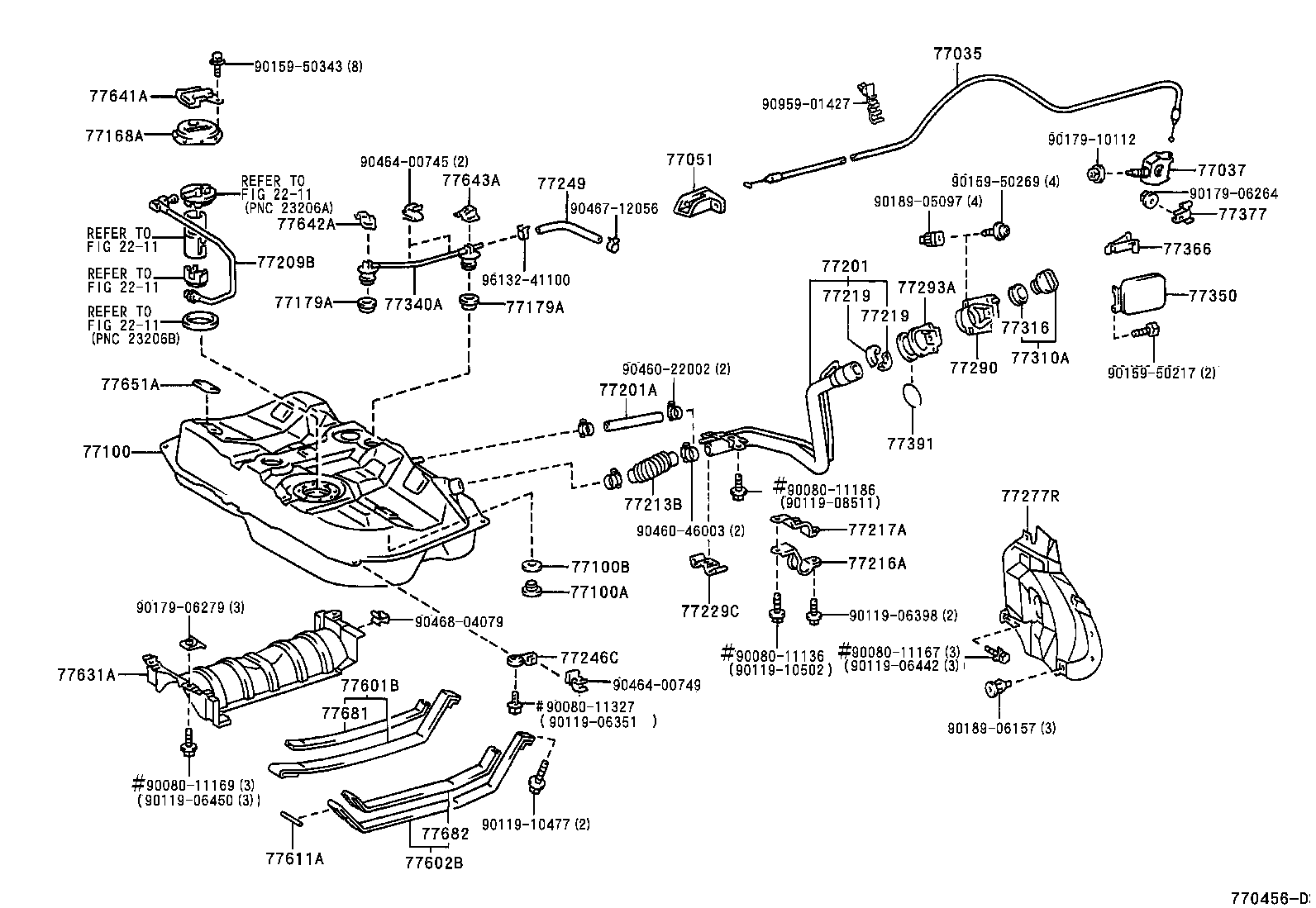

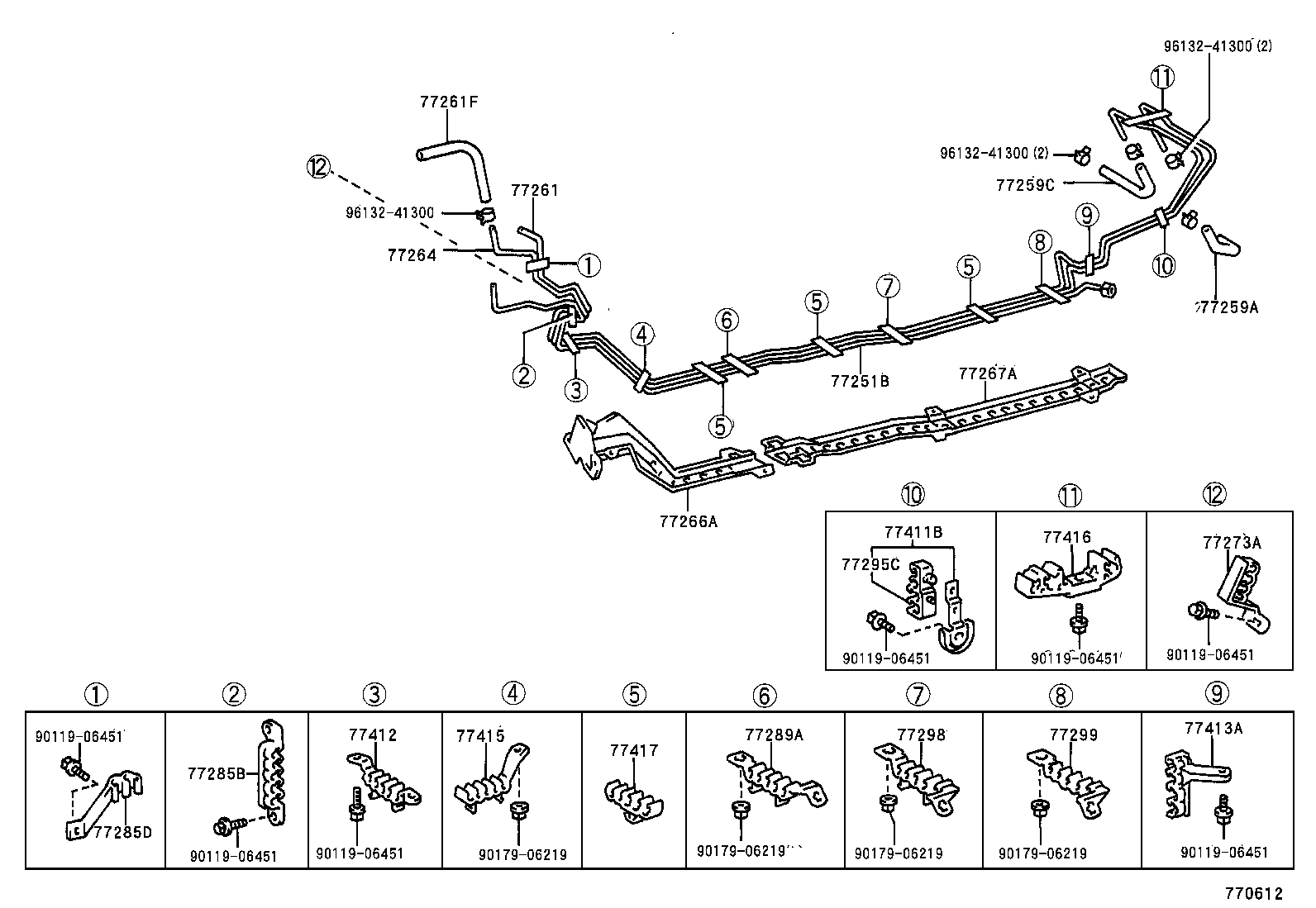

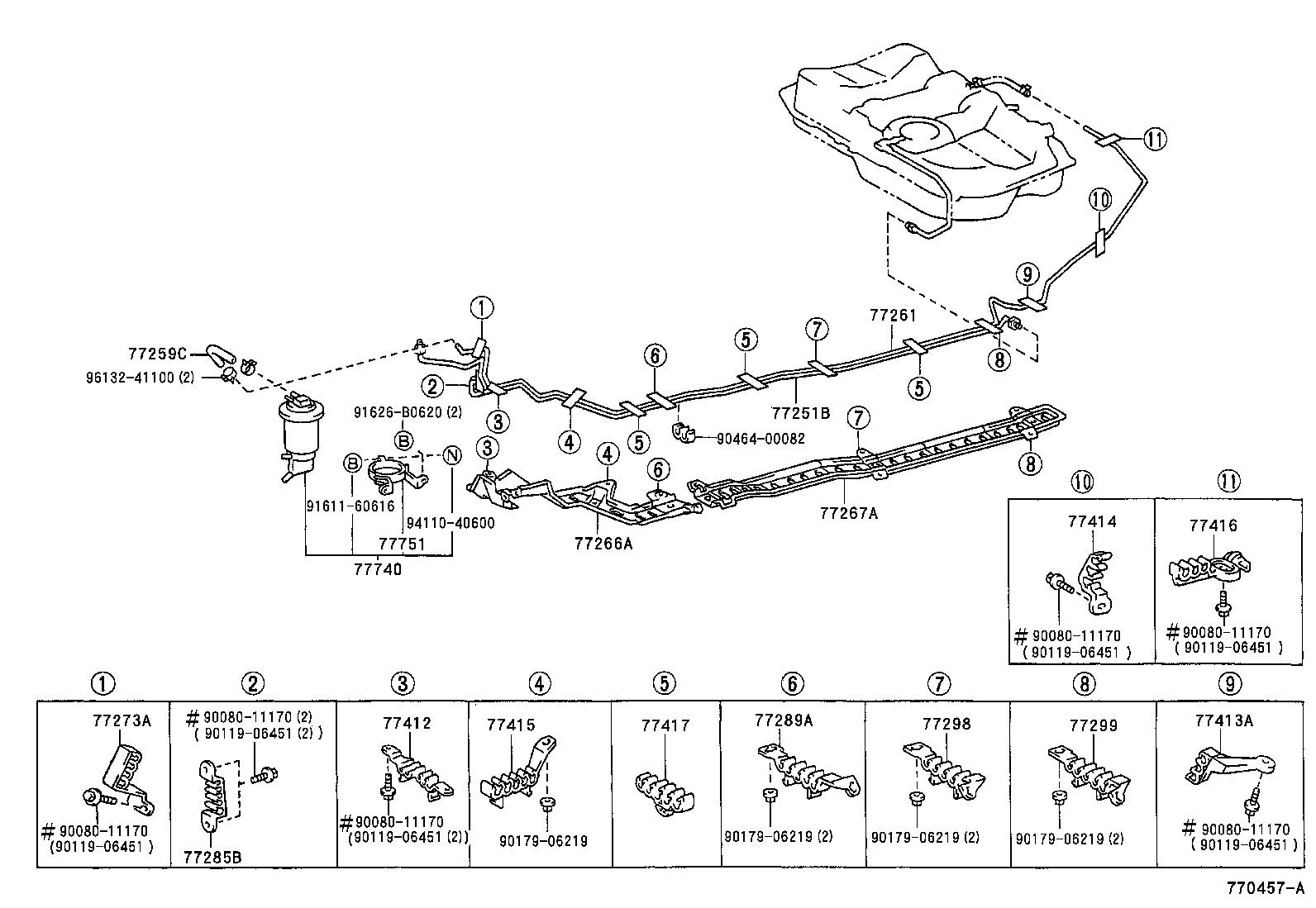

85 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 64648A | Grommet, Luggage Door Lock Opener |
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77051 | Lever Sub-assy, Fuel Lid Open |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77177 | Gasket, Check Valve |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77196 | Clamp, Evaporation Vent Tube, NO.1 |
| 77197A | Clamp, Evaporation Vent Tube, NO.2 |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77209B | Tube Sub-assy, Fuel Pump |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77218A | Support, Fuel Tank Filler Pipe, NO.3 |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77229C | Clamp, Breather Tube |
| 77246C | Support, Fuel Main Tube |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77255D | Tube, Fuel Return |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77259A | Hose, Fuel(FOR BREATHER TUBE) |
| 77259C | Hose, Fuel |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261F | Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE) |
| 77264 | Tube, Canister TO Front Side Member |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77269A | Hose, Fuel Tank Breather |
| 77272B | Support, Breather Tube, NO.1 |
| 77273A | Clamp, Fuel Tube W/Grommet, NO.6 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77281A | Clamp, Fuel Filler Pipe |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77289A | Clamp, Fuel Tube W/Grommet, NO.3 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77295C | Grommet, Fuel Tube |
| 77298 | Clamp, Fuel Tube W/Grommet, NO.4 |
| 77299 | Clamp, Fuel Tube W/Grommet, NO.5 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77340A | Valve Assy, Fuel Cut Off W/Tube |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77390D | Valve Assy, Fuel Tank Over Fill Check |
| 77391 | Ring, Fuel Inlet Box |
| 77393 | Protector, Check Valve |
| 77394 | Hose, Valve TO Fuel Filler Pipe |
| 77411B | Support, Fuel Tube Grommet, NO.1 |
| 77412 | Support, Fuel Tube Grommet, NO.2 |
| 77413A | Support, Fuel Tube Grommet, NO.3 |
| 77414 | Support, Fuel Tube Grommet, NO.4 |
| 77415 | Support, Fuel Tube Grommet, NO.5 |
| 77416 | Support, Fuel Tube Grommet, NO.6 |
| 77417 | Support, Fuel Tube Grommet, NO.7 |
| 77444 | Hose, Fuel Tank Vent |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77631A | Protector, Fuel Tank, Lower Center |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77643A | Protector, Fuel Tank, NO.3 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77681 | Seat, Fuel Tank Band, RH |
| 77682 | Seat, Fuel Tank Band, LH |
| 77740 | Canister Assy, Charcoal |
| 77751 | Bracket, Charcoal Canister Base |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77779 | Tube, Charcoal Canister Outlet |
| 77795 | Hose, Charcoal Canister Outlet, NO.2 |
| 77796 | Hose, Charcoal Canister Outlet, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
