Toyota Avalon

1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

9 part groups · 2 illustrations

Illustrations

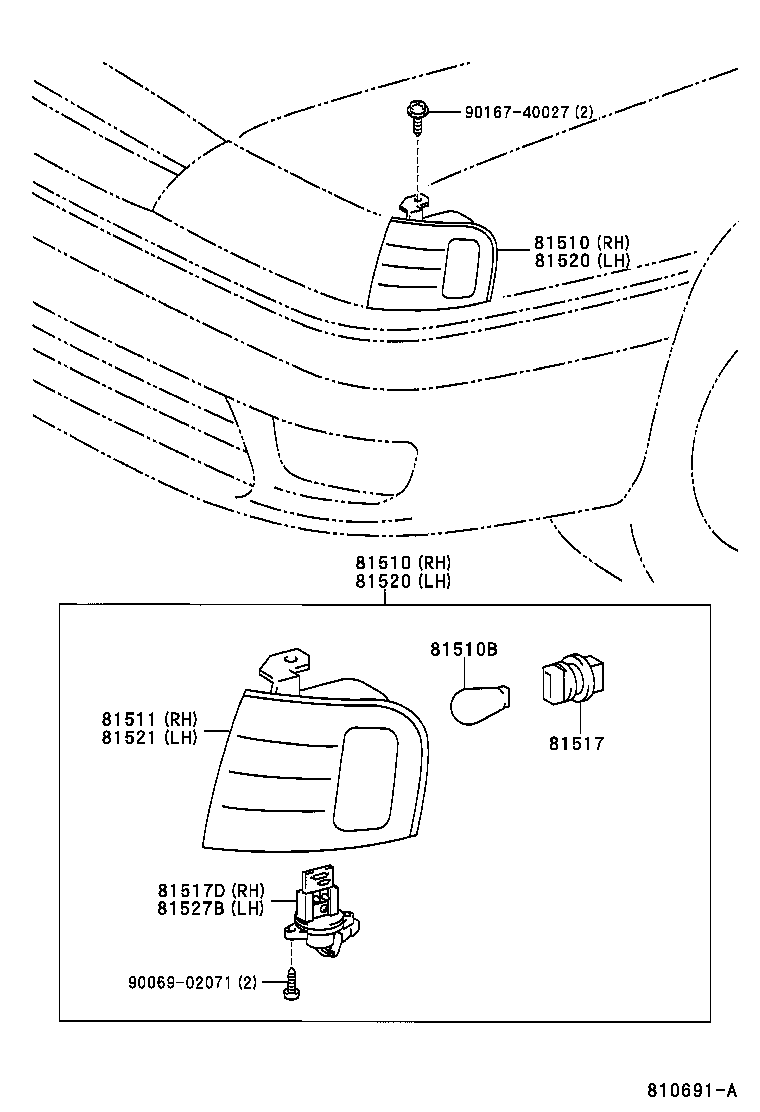

Figure 810838 810838 1994-09 → 1997-09 Figure 810691A 810691A 1997-09 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81517 Socket, Front Turn Signal Lamp
81517D Lamp, Front Marker, RH
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
81527B Lamp, Front Marker, LH
81945A Socket, Bulb
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
