Toyota Avalon

1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

38 part groups · 11 illustrations

Illustrations

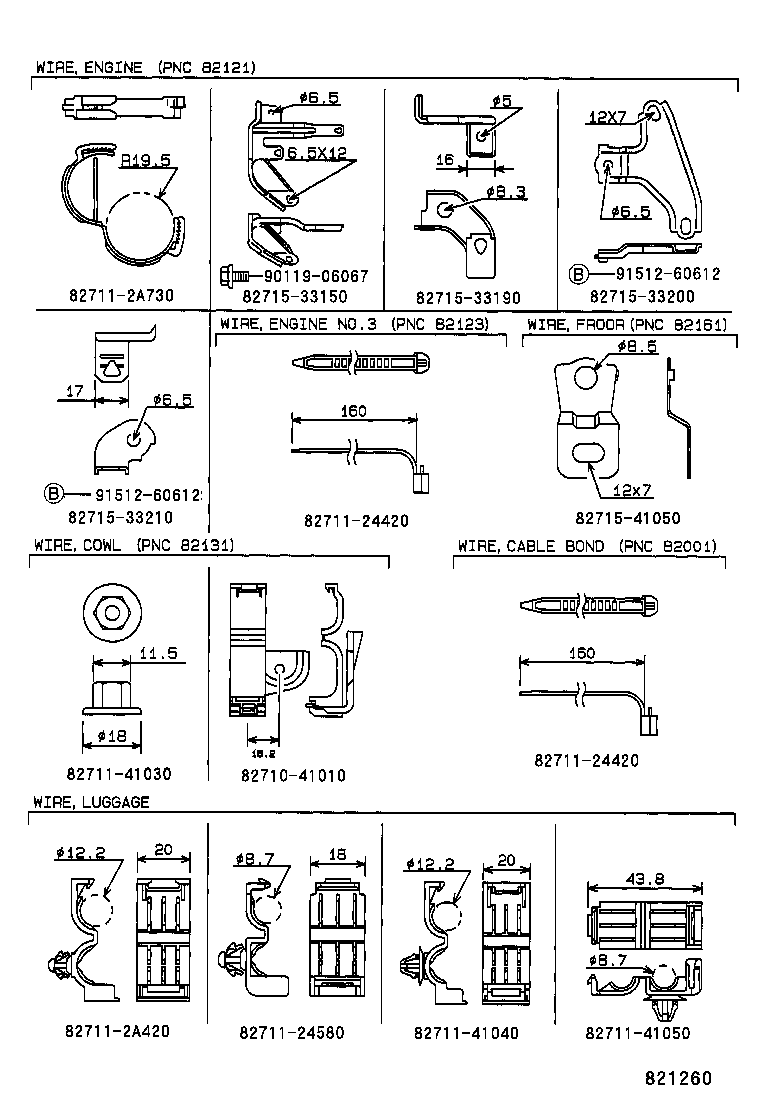

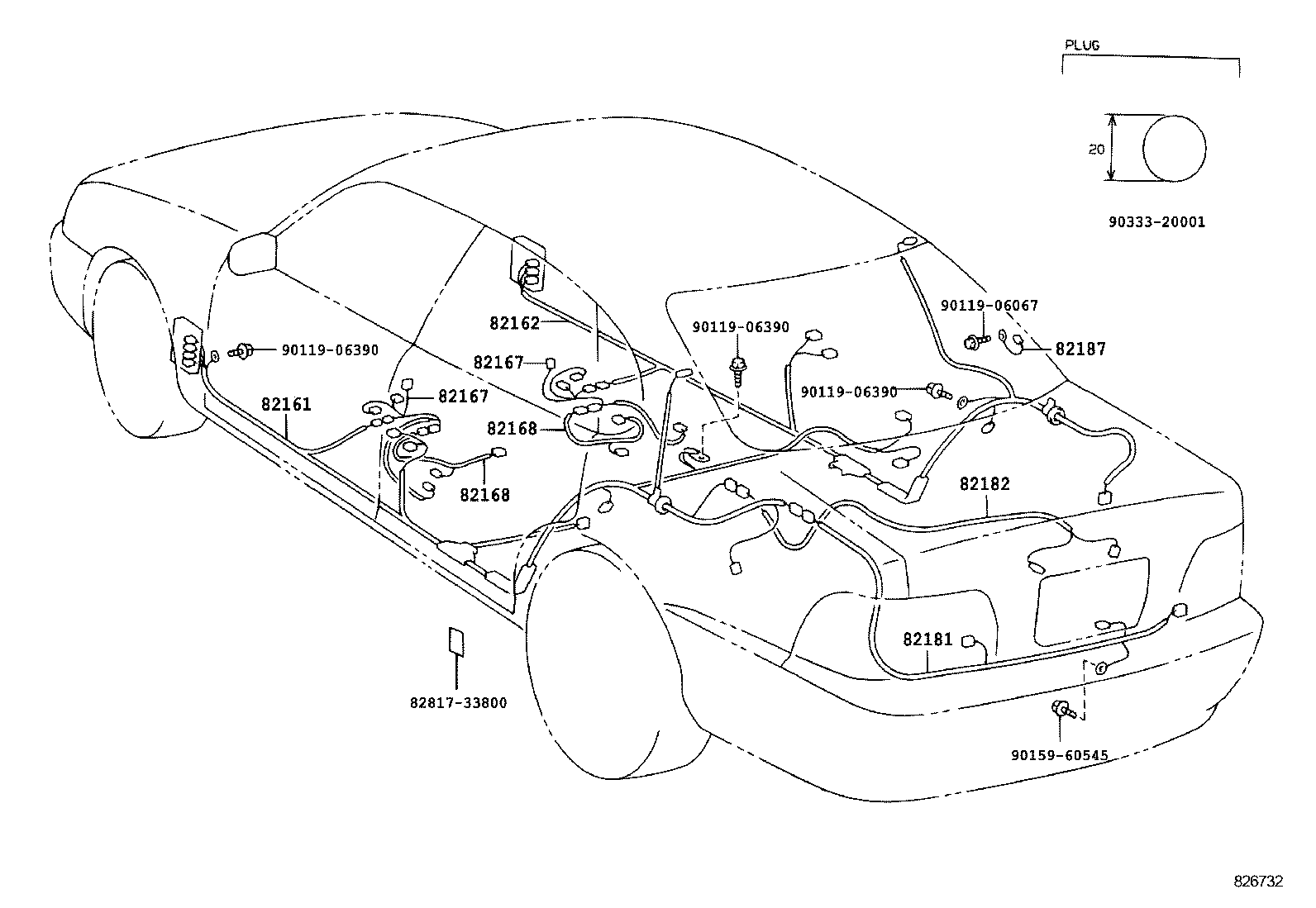

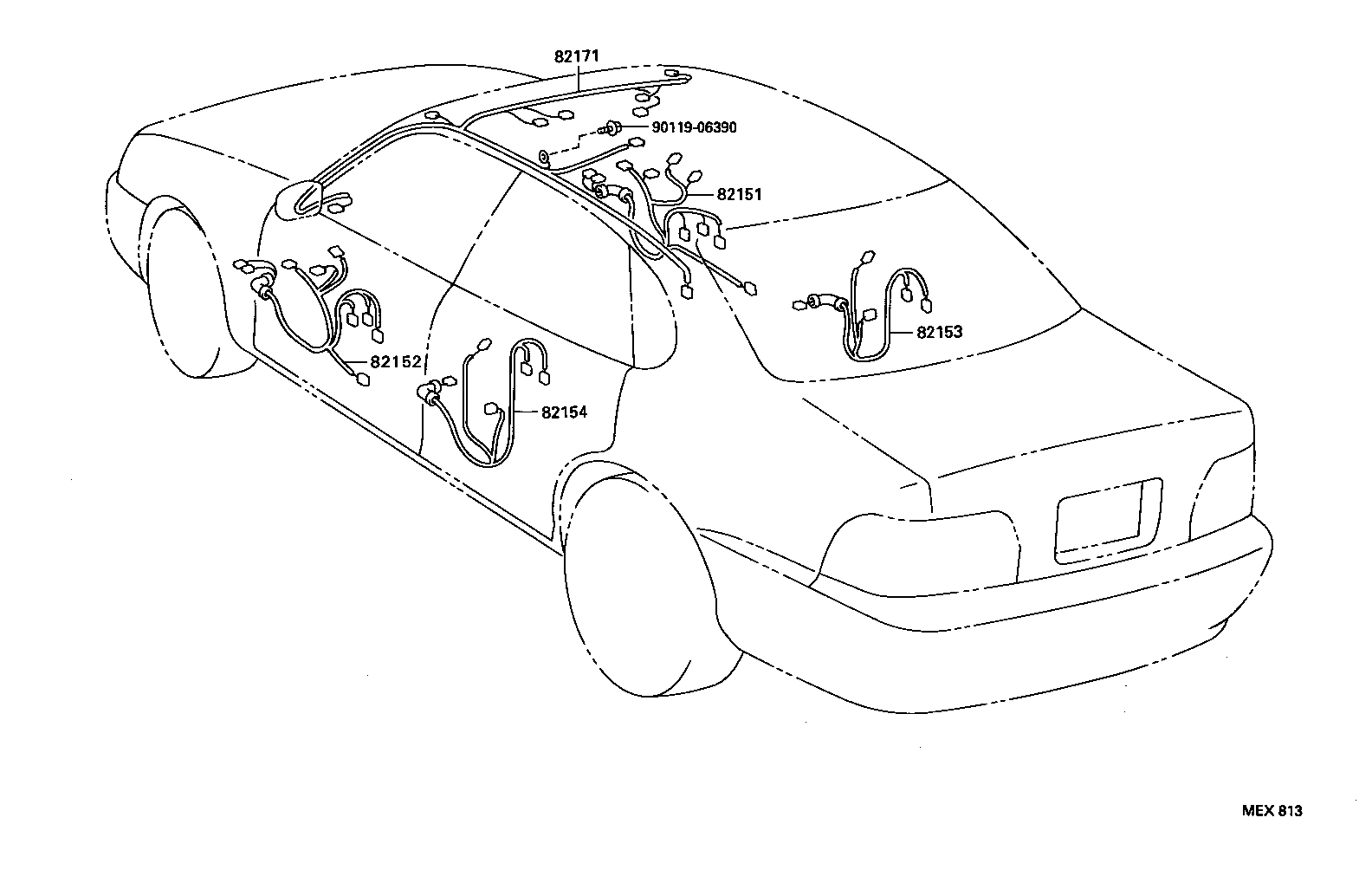

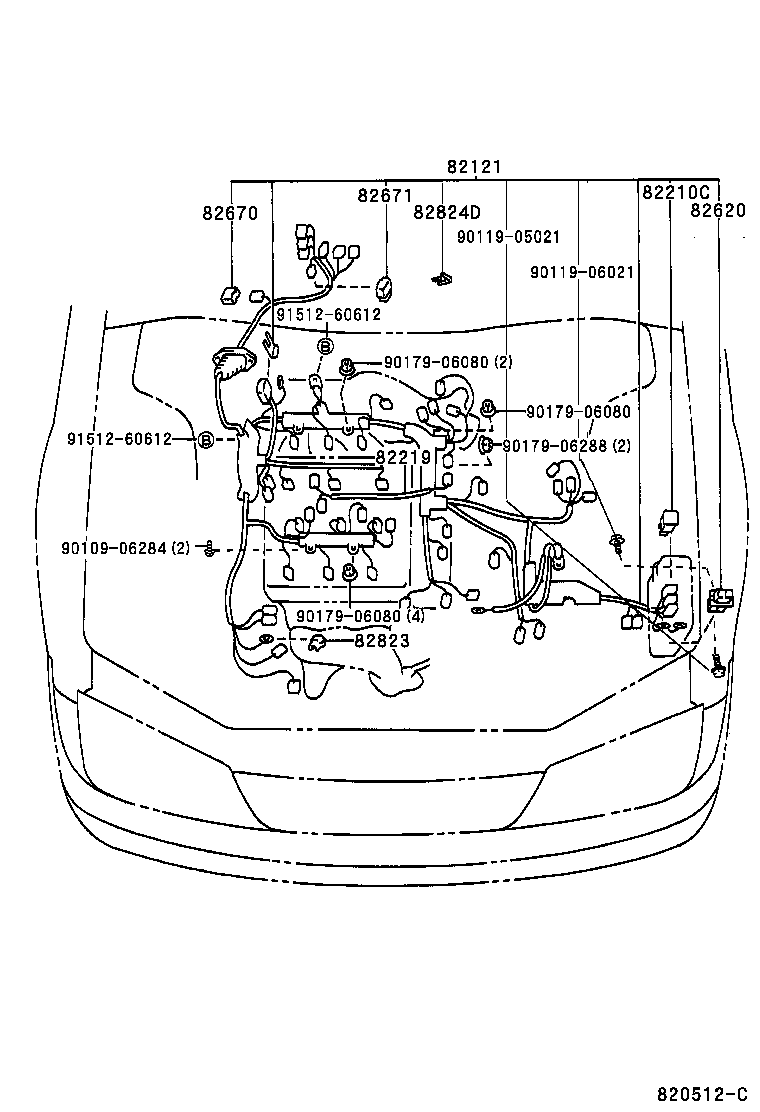

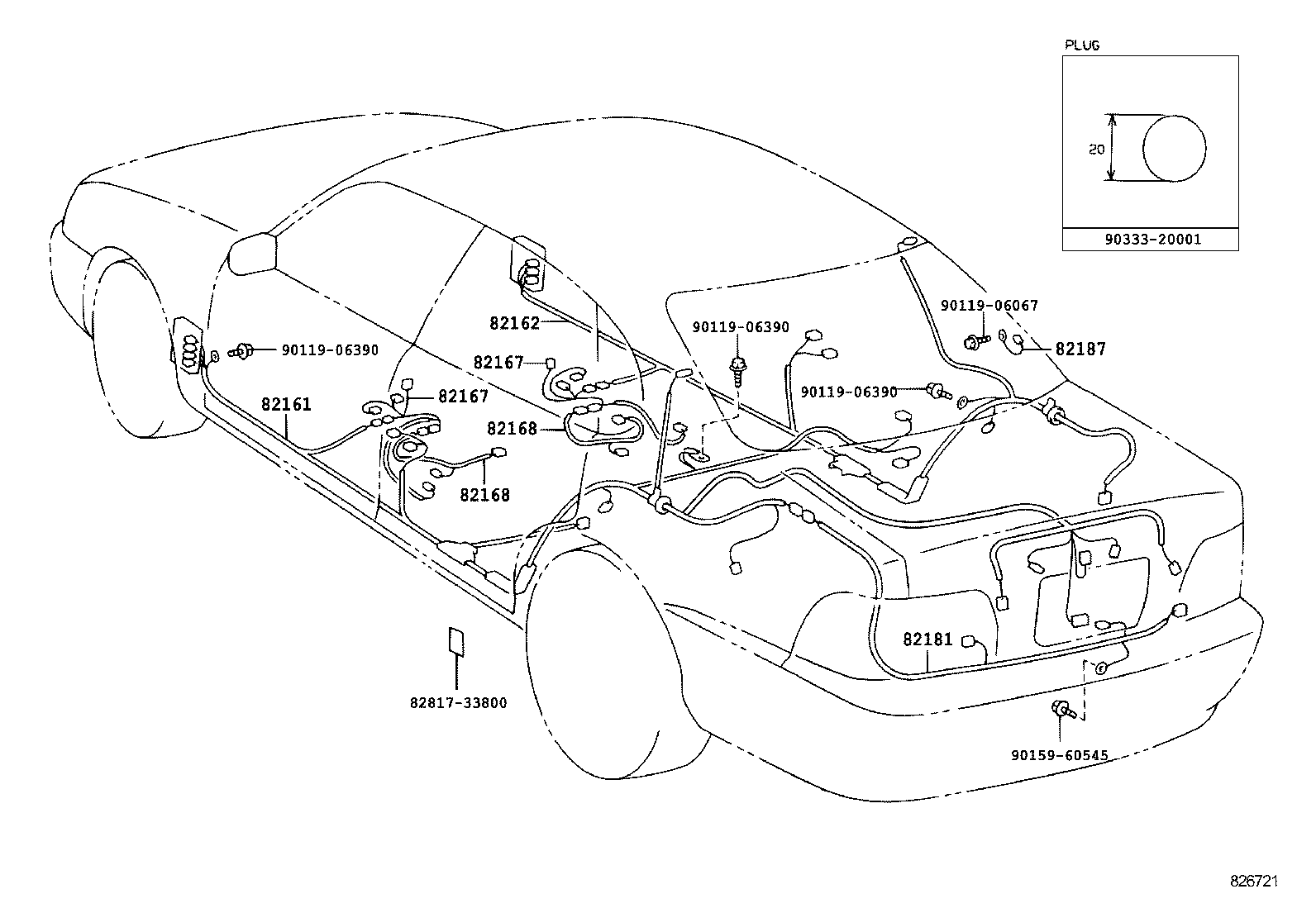

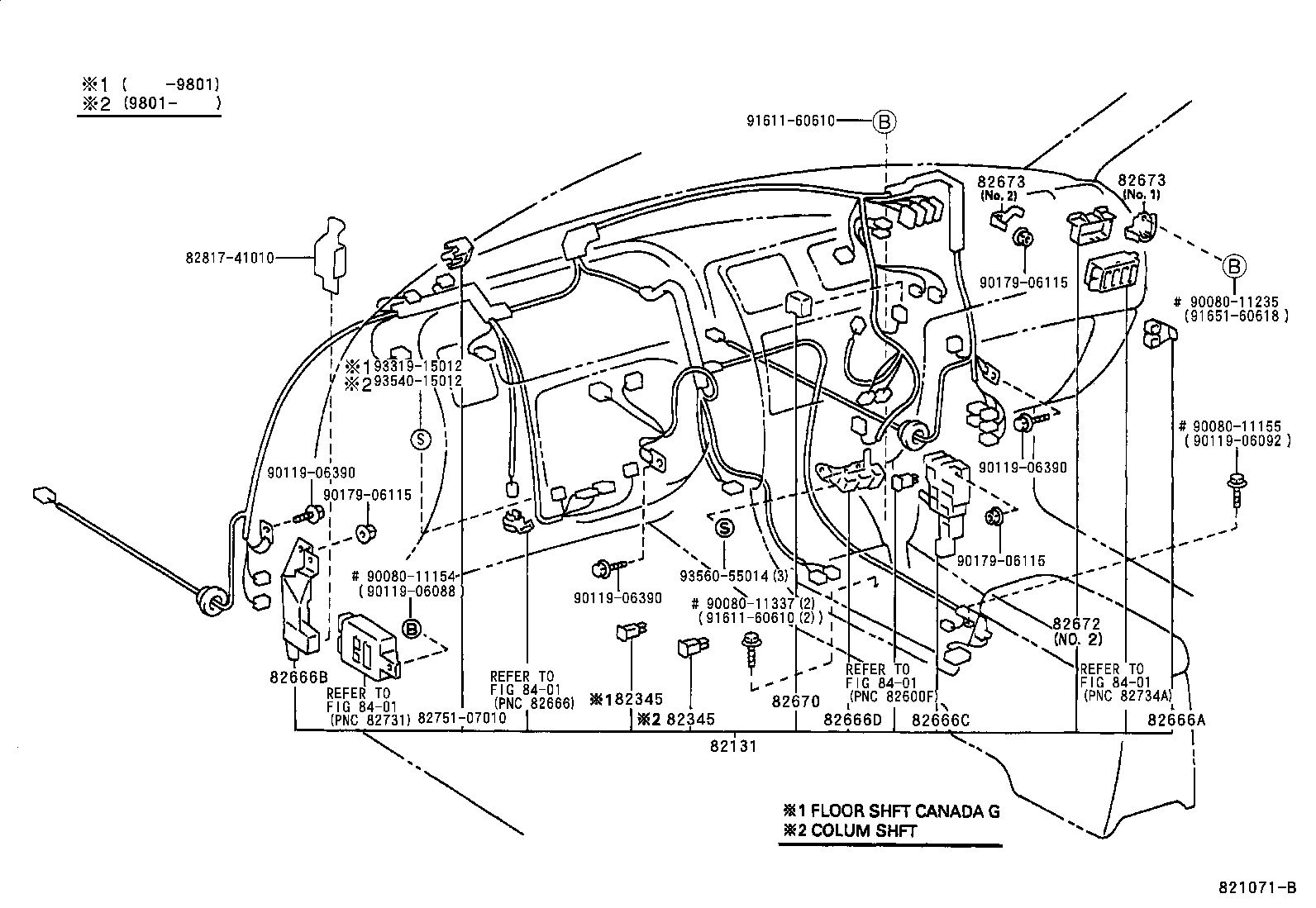

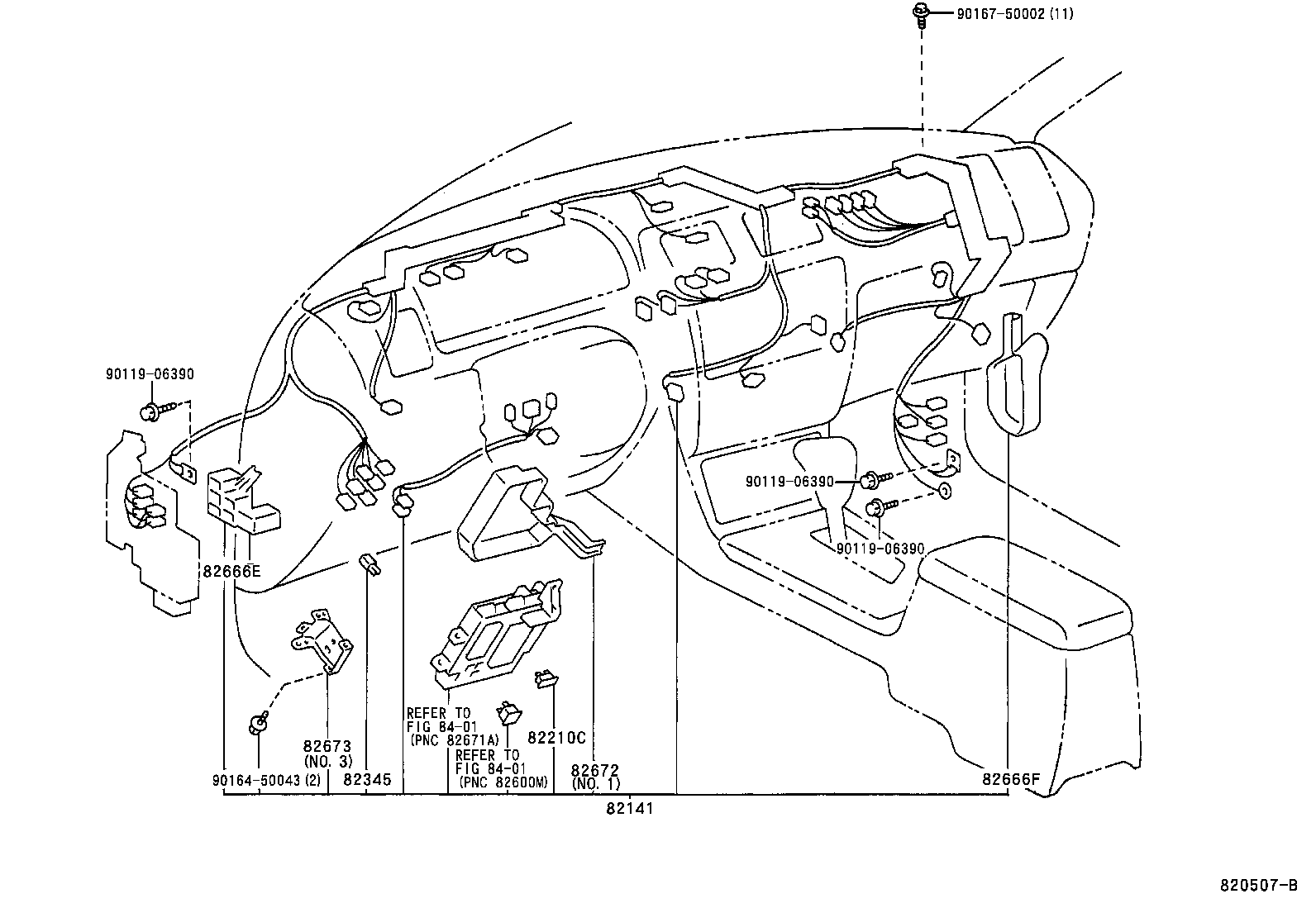

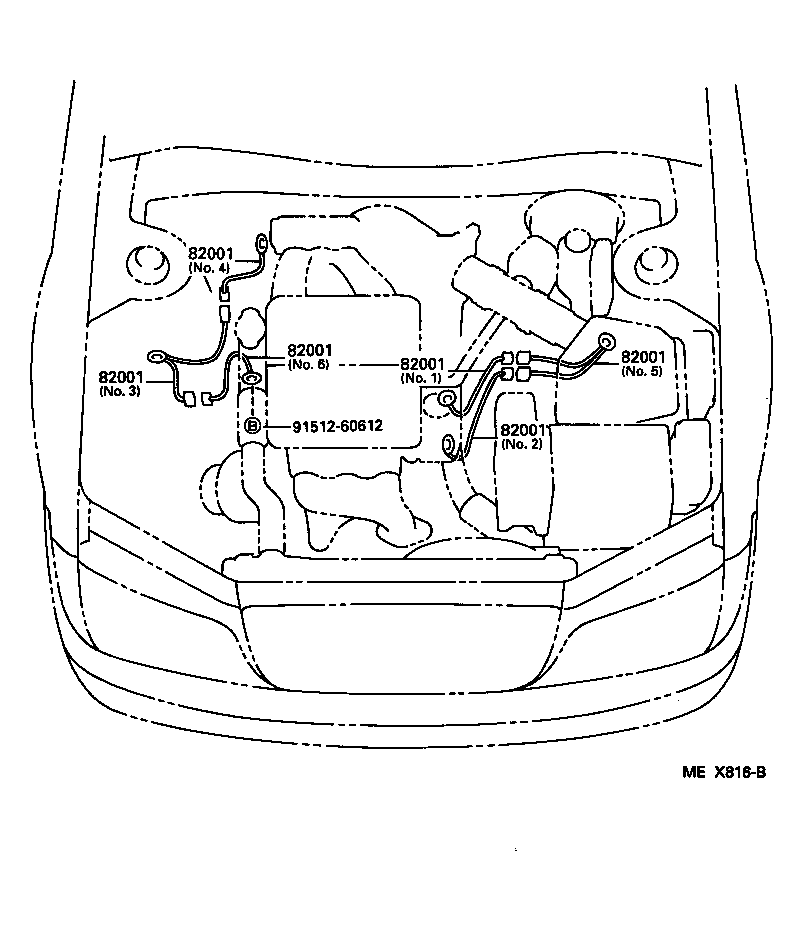

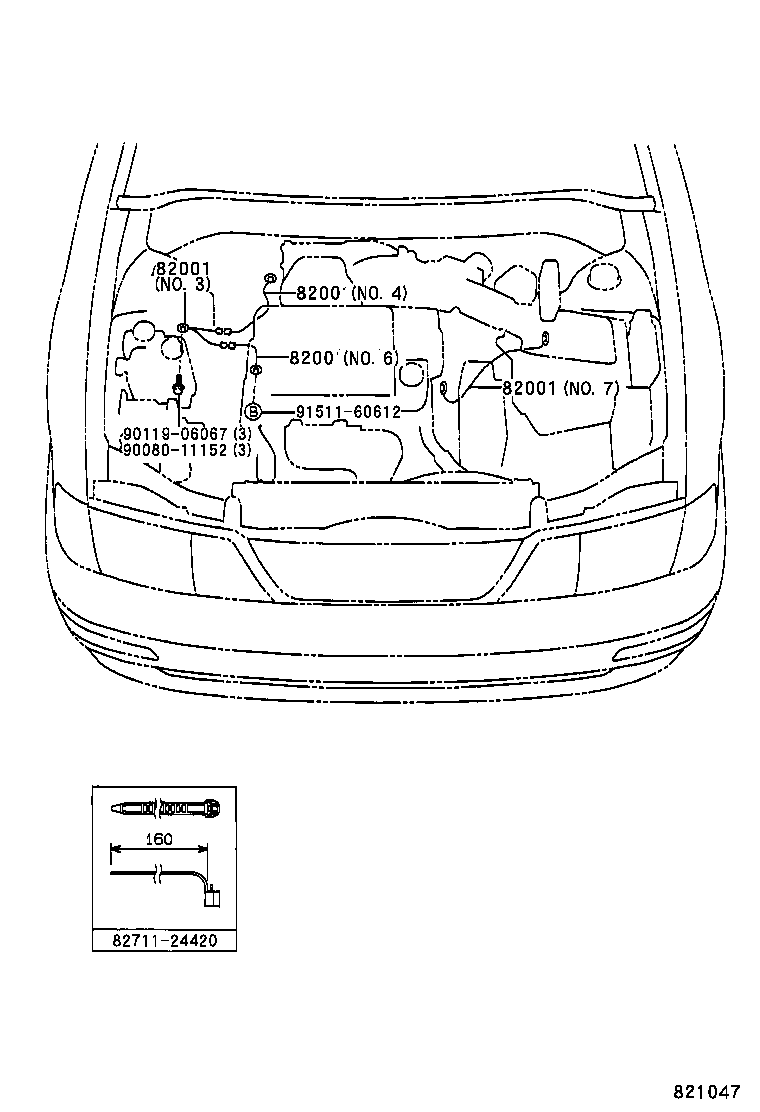

Figure 821108B 821108B 1994-09 → — Figure 820512C 820512C 1994-09 → — Figure 820508 820508 1994-09 → — Figure 821071B 821071B 1994-09 → — Figure 820507B 820507B 1994-09 → — Figure MEX813 MEX813 1994-09 → — Figure 826732 826732 1994-09 → 1997-09 Figure 826721 826721 1997-09 → — Figure 821260 821260 1994-09 → — Figure MEX816B MEX816B 1994-09 → 1997-09 Figure 821047 821047 1997-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82219 Wire, Thermo Sensor
82241C Wire, Relay
82345 Diode
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82672 Cover, Junktion Block
82673 Bracket, Junction Block
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823 Cap, Terminal, NO.1
82824D Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
