Toyota Avalon

1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

101 part groups · 7 illustrations

Illustrations

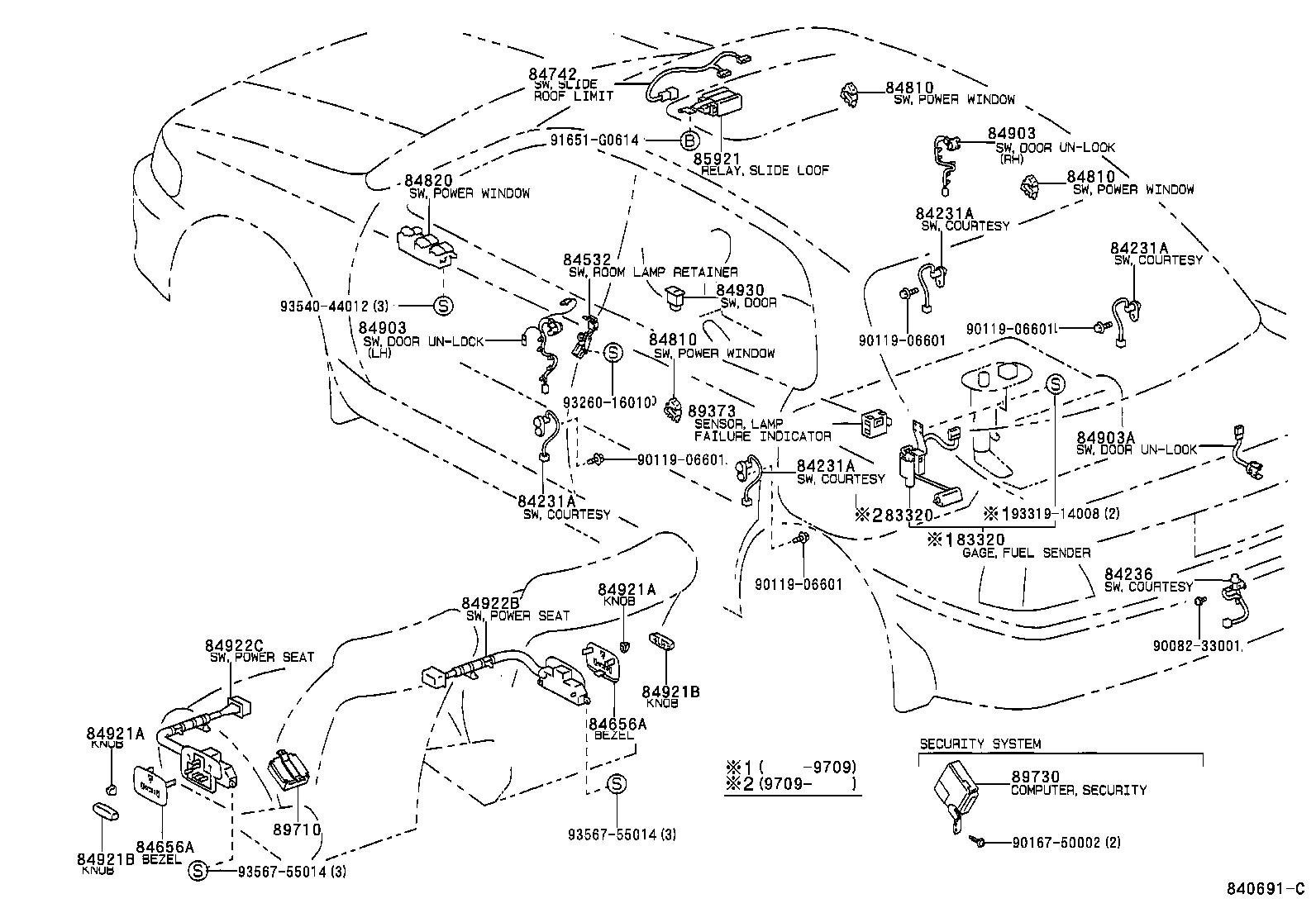

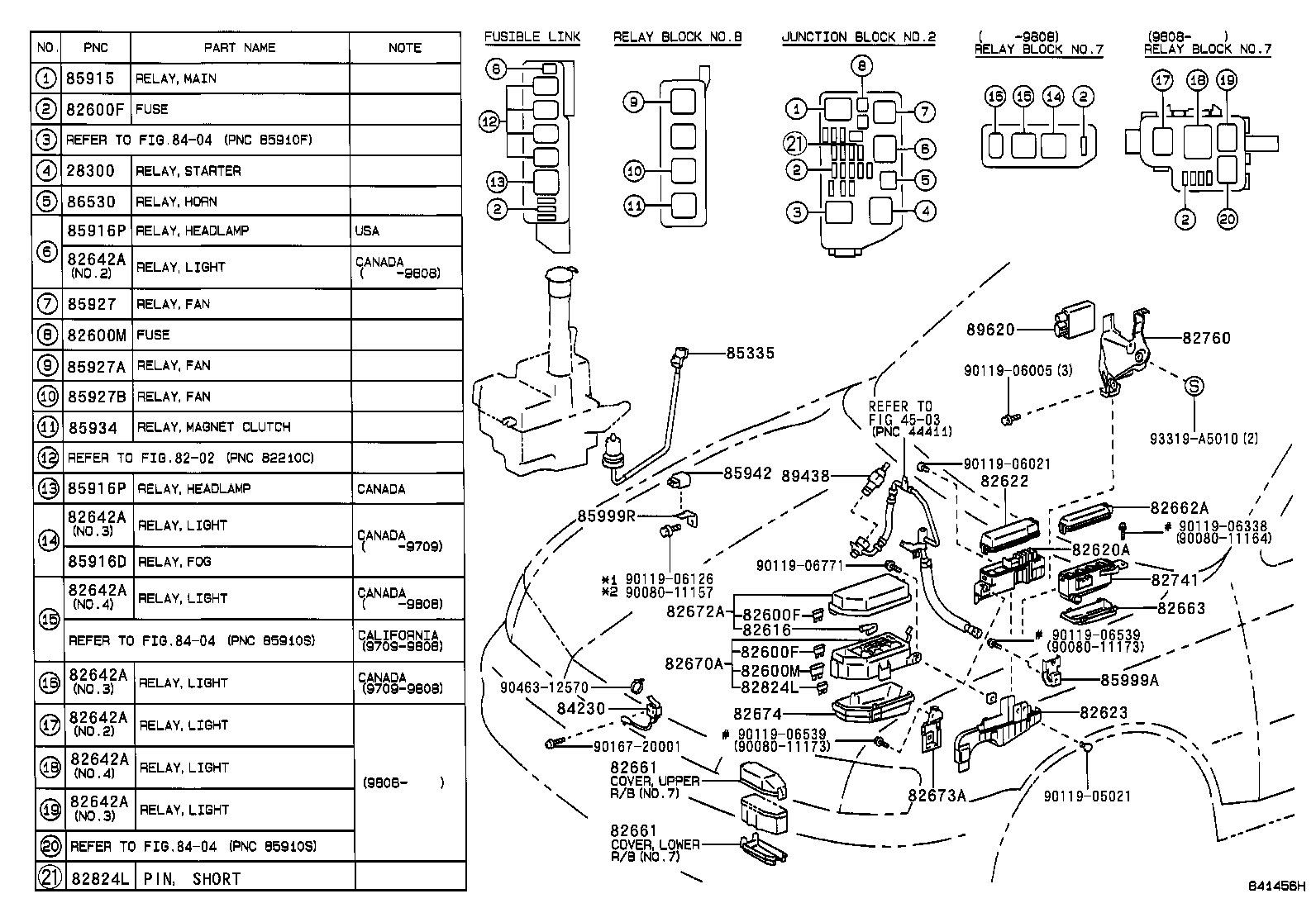

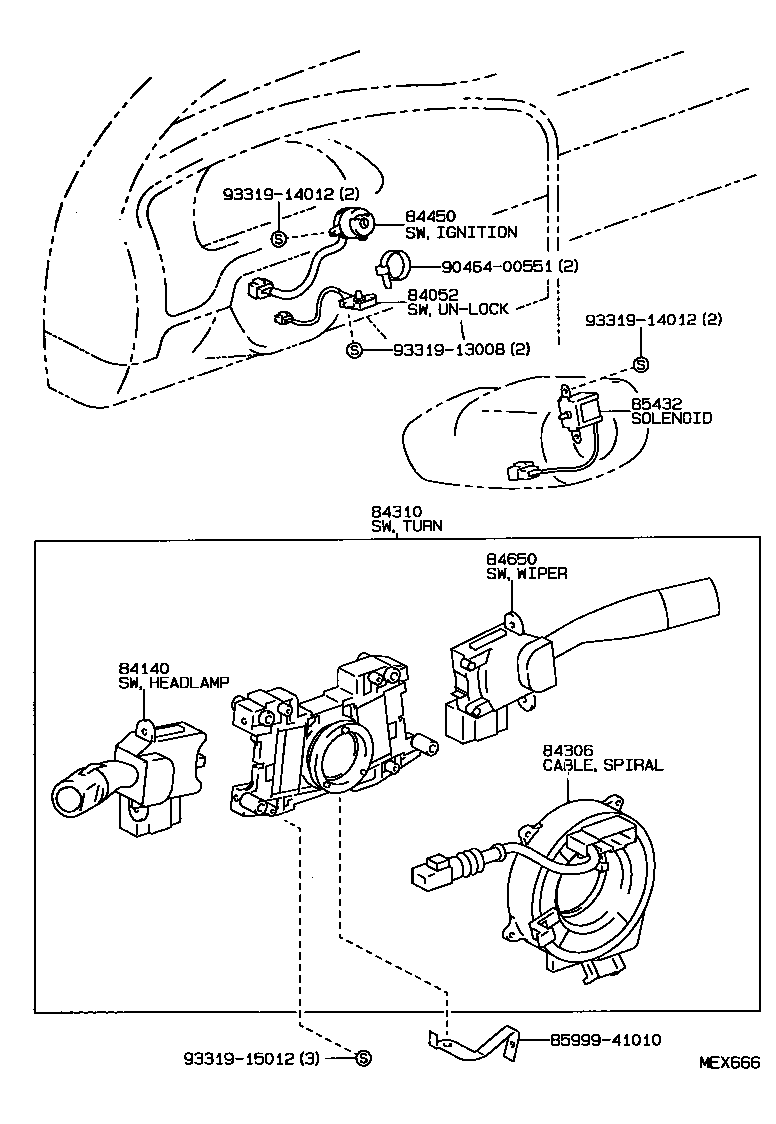

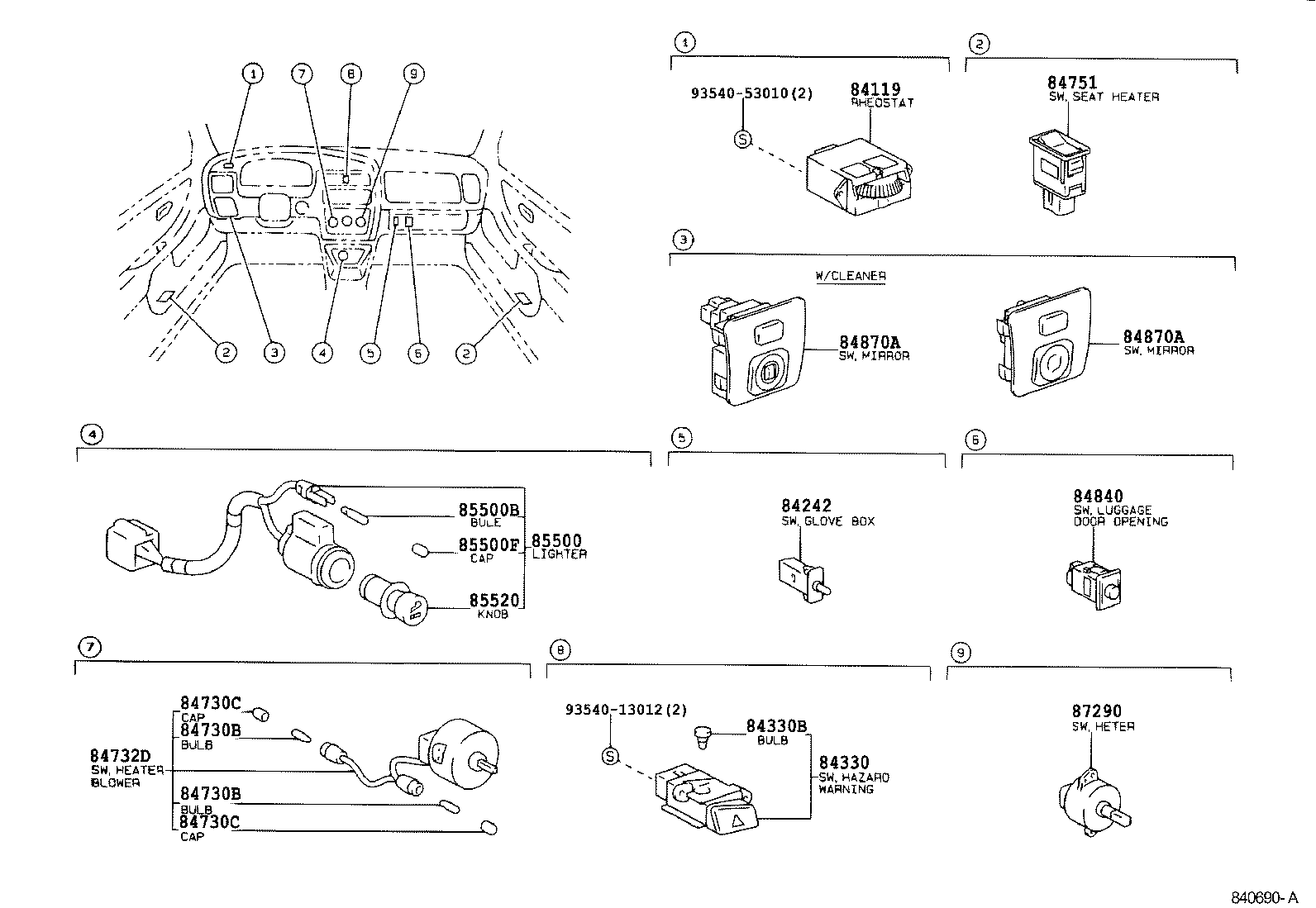

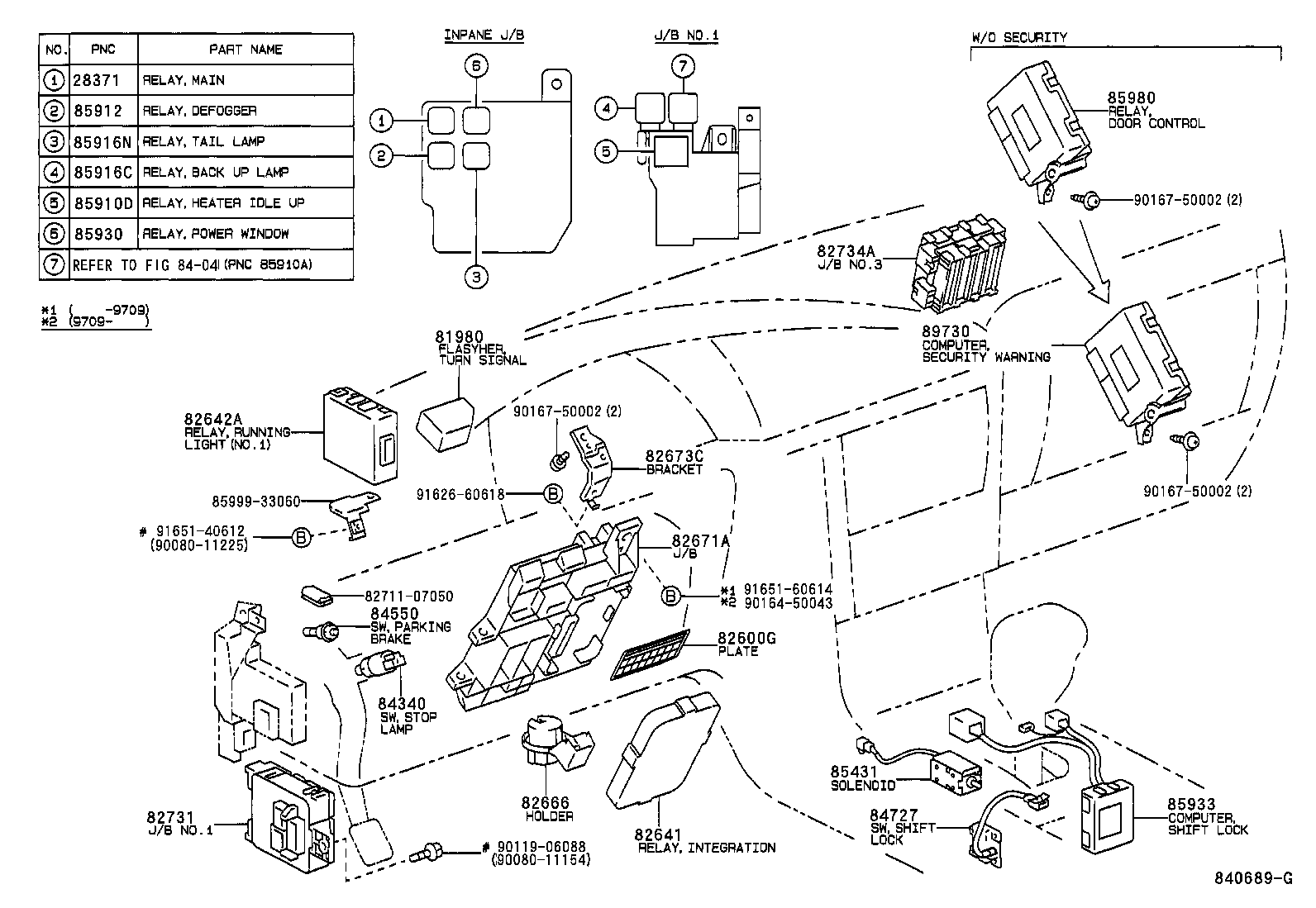

Figure 840701B 840701B 1994-09 → — Figure 840886 840886 1997-03 → — Figure 841456H 841456H 1994-09 → — Figure 840690A 840690A 1994-09 → — Figure 840689G 840689G 1994-09 → — Figure 840691C 840691C 1994-09 → — Figure MEX666 MEX666 1994-09 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82600M Fuse, Medium Current
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82622 Cover, Fusible Link, Upper
82623 Cover, Fusible Link, Lower
82641 Relay, Integration NO.1
82642A Relay, Running Light
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82666 Holder, Connector
82670A Block Assy, Junction, NO.1
82671A Block, Junction
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673C Bracket, Junction Block
82674 Cover, Junction Block Lower
82731 Block, Driver Side Junction
82734A Block, Center Junction
82741 Block, Engine Room Relay
82760 Bracket Assy, Relay Block
82824L Pin, Short
83320 Gage Assy, Fuel Sender
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84230 Switch Assy, Courtesy Lamp (FOR ENGINE ROOM)
84231A Switch, Courtesy Lamp
84236 Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
84242 Switch, Glove Box Lamp
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84532 Switch, Room Lamp Retainer
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84727 Switch, Shift Lock Control
84730B Bulb, Heater Blower Switch
84730C Switch Assy, Control
84732D Switch, Heater Blower
84742 Switch, Slide Roof Limit
84751 Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84840 Switch Assy, Luggage Compartment Door Opening
84870A Switch Assy, Outer Mirror
84903 Switch Sub-assy, Door Un-lock
84903A Switch Sub-assy, Door Unlock
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84930 Switch Assy, Door Control
85335 Switch Assy, Washer Level Warning
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85500F Cap, Cigarette Lighter Bulb
85520 Knob And Element Assy, Cigarette Lighter
85910D Relay (FOR HEATER IDLE UP)
85912 Relay, Defogger
85915 Relay, Main
85916C Relay, Back UP Lamp
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85921 Relay, Sliding Roof Control
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85930 Relay Assy, Power Window
85933 Computer, Shift Lock Control
85934 Relay, Magnet-clutch
85942 Relay, Headlamp Cleaner Control
85980 Relay Assy, Door Control
85999A Bracket, Relay, NO.2
85999R Bracket, Relay, NO.6
86530 Relay Assy, Horn
87290 Switch Assy, Heater
89373 Sensor, Lamp Failure Indicator
89428 Switch, Temperature Detect, NO.2
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89467A Sensor, Wide Range Air Fuel Ratio
89615 Sensor, Knock Control
89620 Igniter Assy
89710 Computer Assy, Position Control
89730 Computer Assy, Security Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
