Toyota Avalon

1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

7 part groups · 2 illustrations

Illustrations

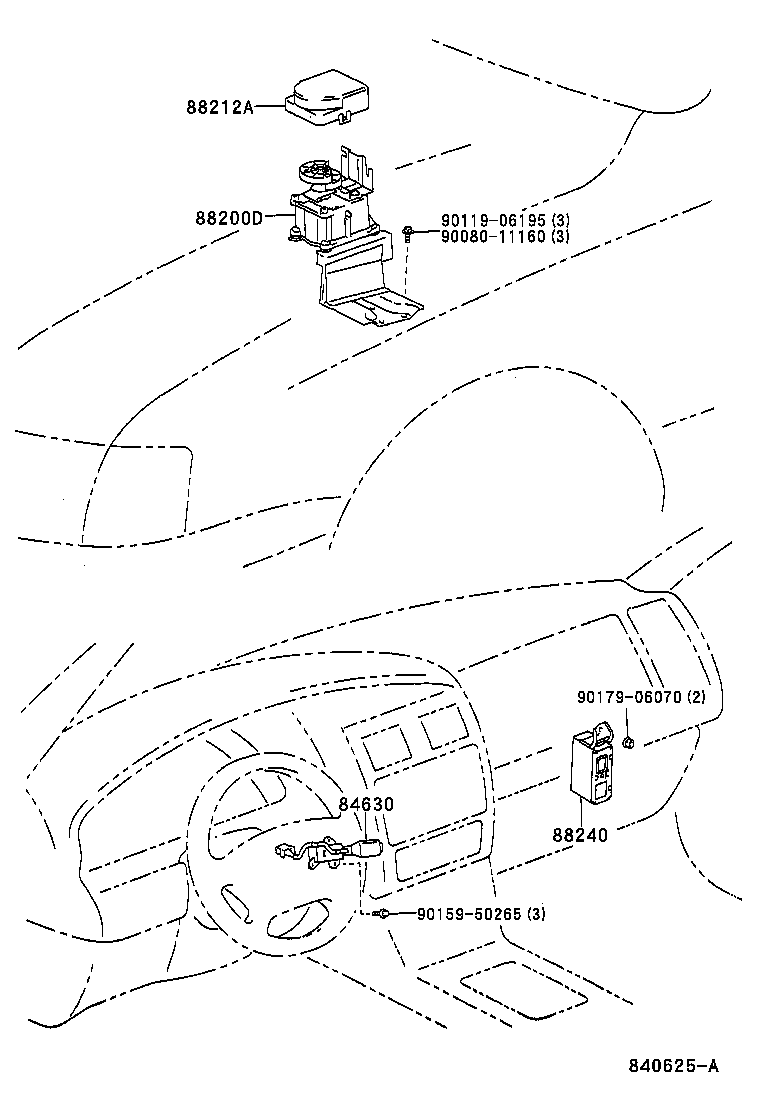

Figure MEX668 MEX668 1994-09 → 1996-08 Figure 840625A 840625A 1996-08 → —

Part groups

PNCDescription
84630 Switch Assy, Cruise Control Main
88200D Actuator Assy, Cruise Control
88212A Cover, Cruise Control Actuator
88240 Computer Assy, Cruise Control
88262 Rod, Speed Control
88272 End, Speed Control Rod
88272A End, Speed Control Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
