Toyota Avalon

1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States

Discontinued model Data version 2000-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 2 illustrations

Illustrations

Figure MEY932A

MEY932A 1994-09 → 1996-08

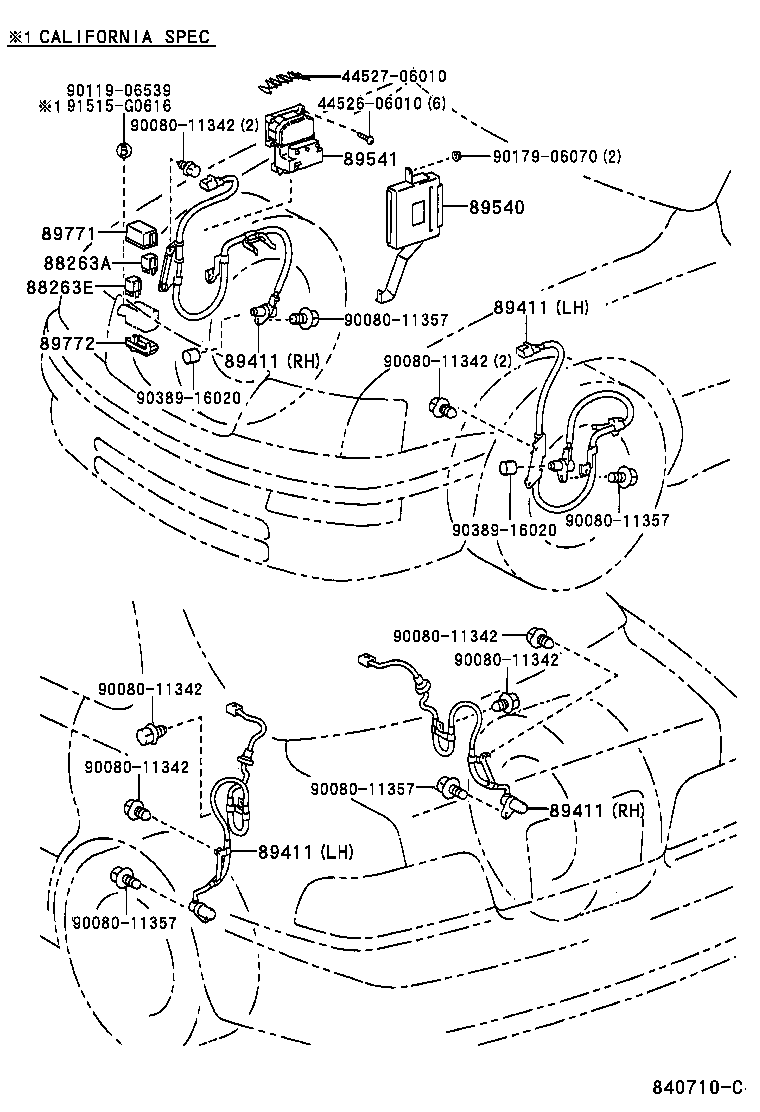

Figure 840710C

840710C 1996-08 → —

Part groups

PNC	Description
88263A	Relay, Skid Control
88263E	Relay, Skid Control NO.2
89411	Sensor, Speed
89540	Computer Assy, Skid Control
89541	Computer, Skid Control
89771	Cover, Abs Relay Block, Upper
89772	Cover, Abs Relay Block, Lower

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
