Toyota Avalon
1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States
Discontinued model
Data version 2000-02

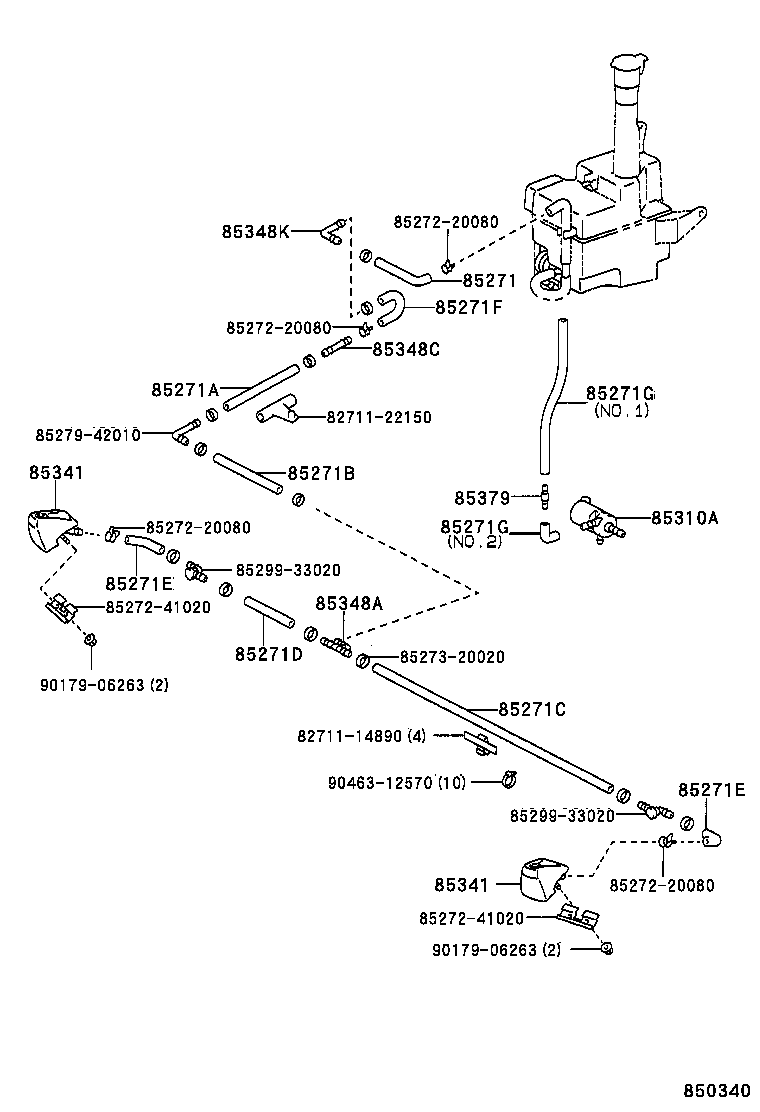

Headlamp Cleaner
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85271 | Hose, Headlamp Cleaner, NO.1 |
| 85271A | Hose, Headlamp Cleaner, NO.2 |
| 85271B | Hose, Headlamp Cleaner, NO.3 |
| 85271C | Hose, Headlamp Cleaner, NO.4 |
| 85271D | Hose, Headlamp Cleaner, NO.5 |
| 85271E | Hose, Headlamp Cleaner, NO.6 |
| 85271F | Hose, Headlamp Cleaner, NO.7 |
| 85271G | Hose, Head Lamp |
| 85310A | Motor And Pump Assy, Headlamp Cleaner Washer |
| 85336C | Packing, Headlamp Cleaner Motor |
| 85341 | Nozzle, Headlamp Cleaner Washer |
| 85348A | Joint, Headlamp Cleaner Hose, NO.1 |
| 85348C | Joint, Headlamp Cleaner Hose, NO.3 |
| 85348K | Joint, Headlamp Cleaner Elbow, NO.1 |
| 85361C | Bracket, Washer |
| 85379 | Joint |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
