Heating & Air Conditioning - Cooler Unit

19 part groups · 5 illustrations

Illustrations

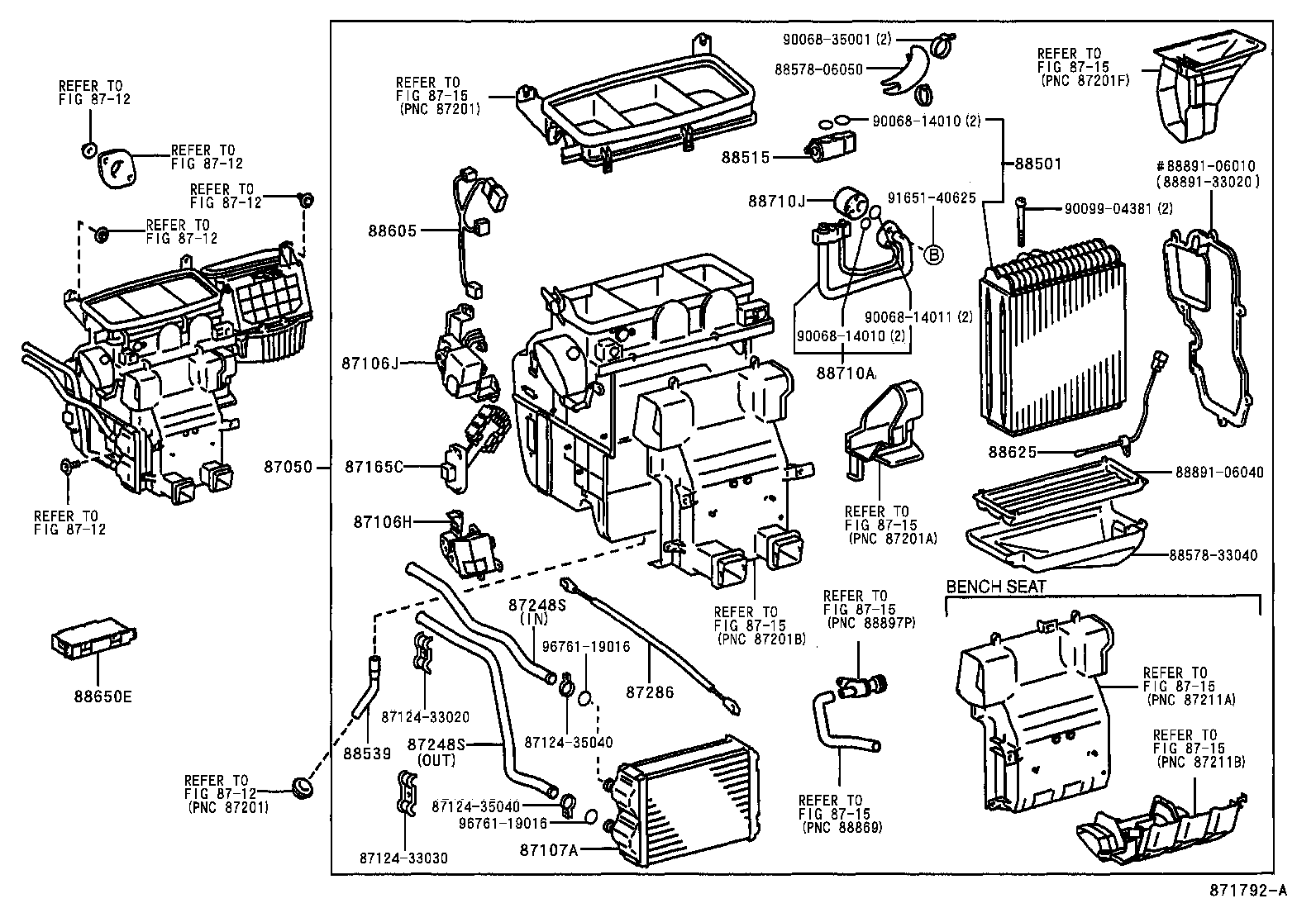

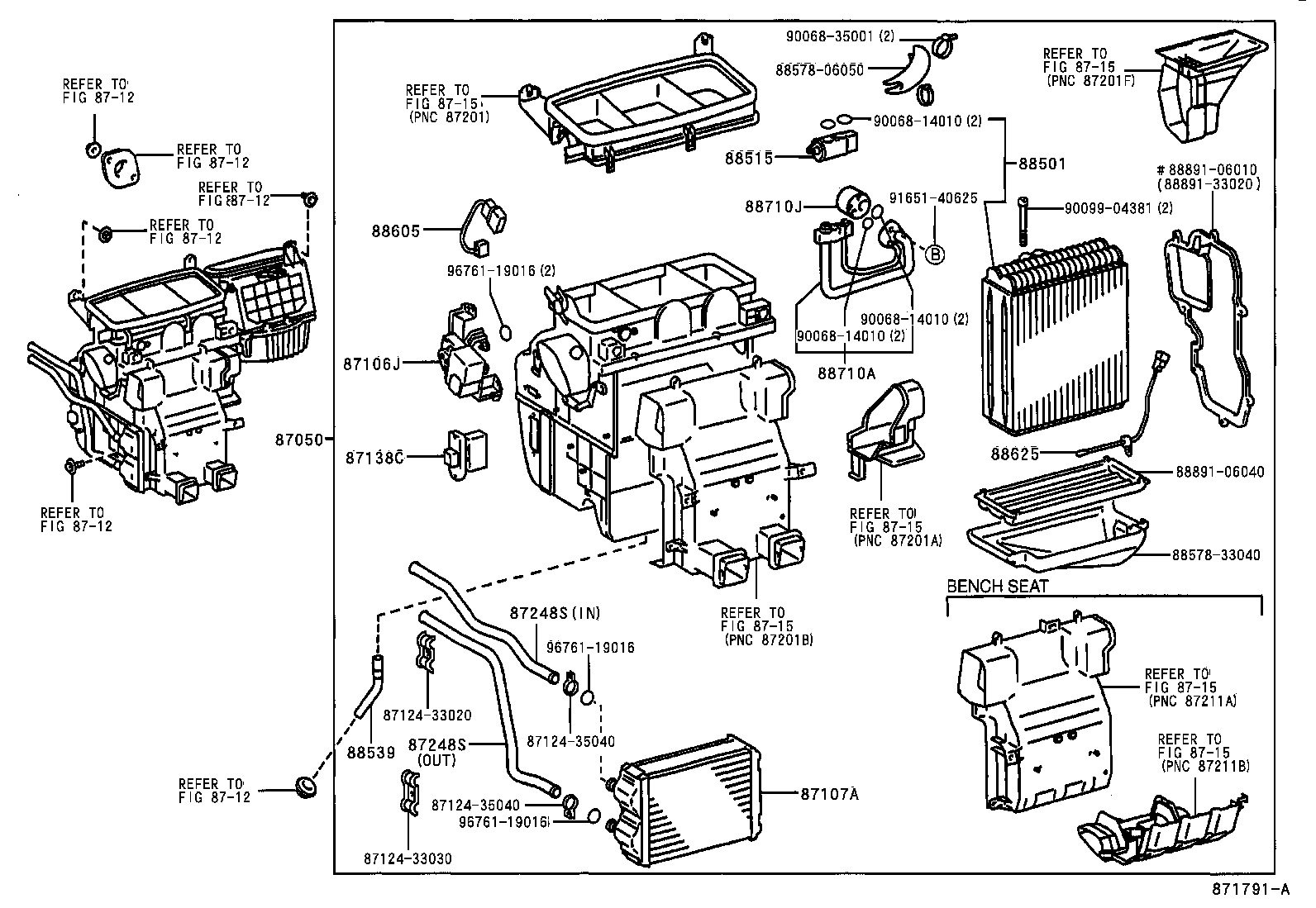

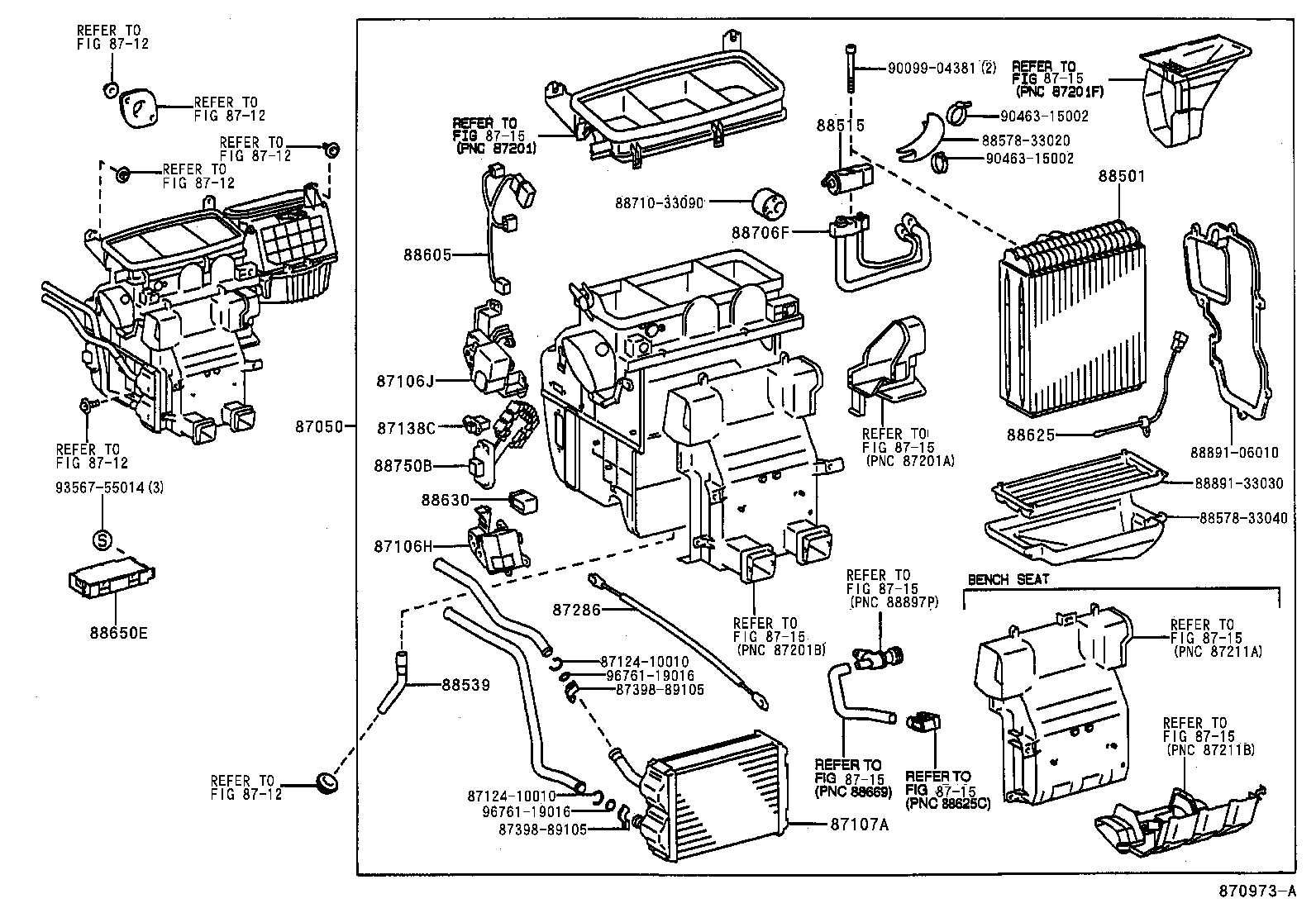

Figure 870972A 870972A 1994-09 → 1997-09 Figure 871791A 871791A 1997-09 → — Figure 870973A 870973A 1994-09 → 1997-09 Figure 871792A 871792A 1997-09 → — Figure 870233 870233 1994-09 → —

Part groups

PNCDescription
87050 Radiator Assy, Air Conditioner
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87107A Unit Sub-assy, Heater Radiator
87138C Resistor, Blower
87165C Control, Blower Motor
87248S Pipe, Front Heater Radiator Water
87286 Cable, Control
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88650E Amplifier Assy, Air Conditioner, NO.1
88706F Tube Sub-assy, Liquid, F
88710A Tube Assy, Air Conditioner
88710J Tube, Air Conditioner Connector
88750B Transistor Assy, Blower Resistor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
