Toyota Avalon

1994-09 → 1999-08 · chassis MCX10 · catalogue 361410 · United States

Discontinued model Data version 2000-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

25 part groups · 4 illustrations

Illustrations

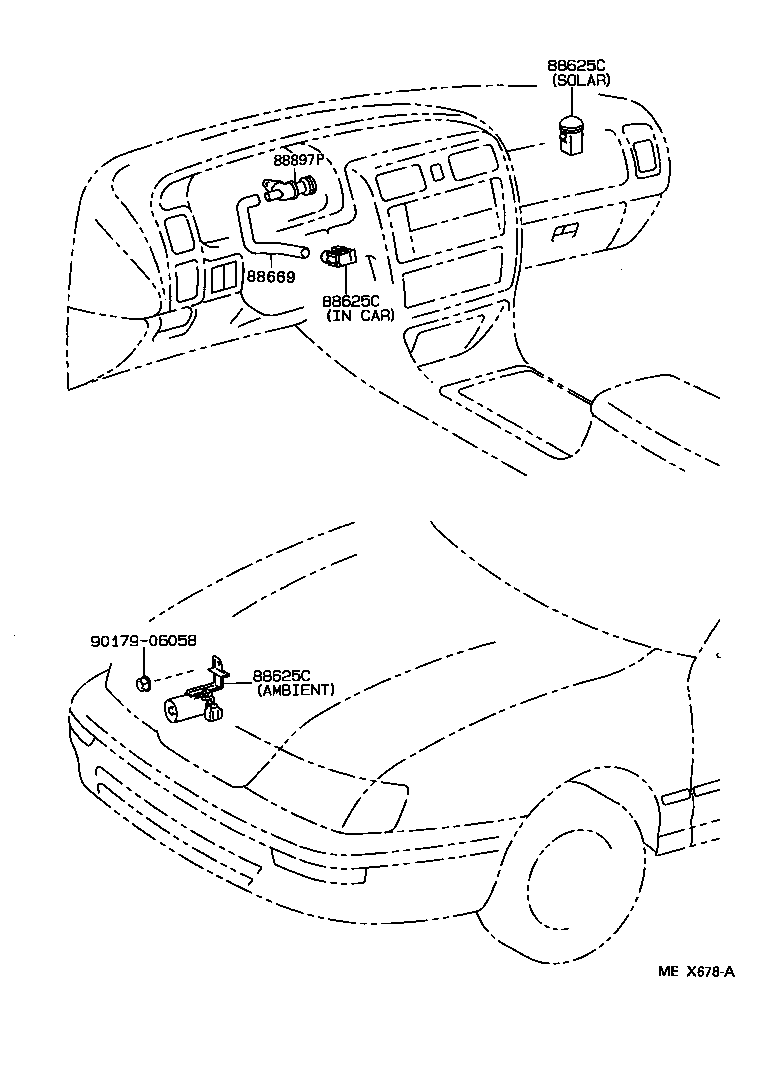

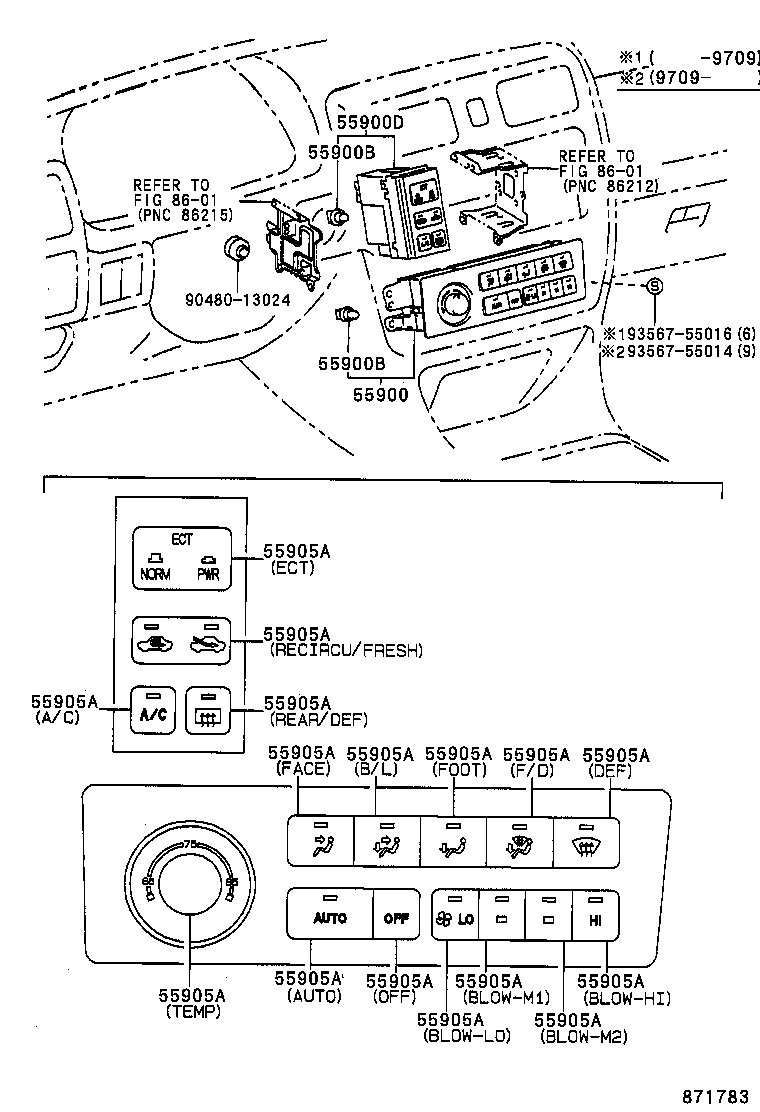

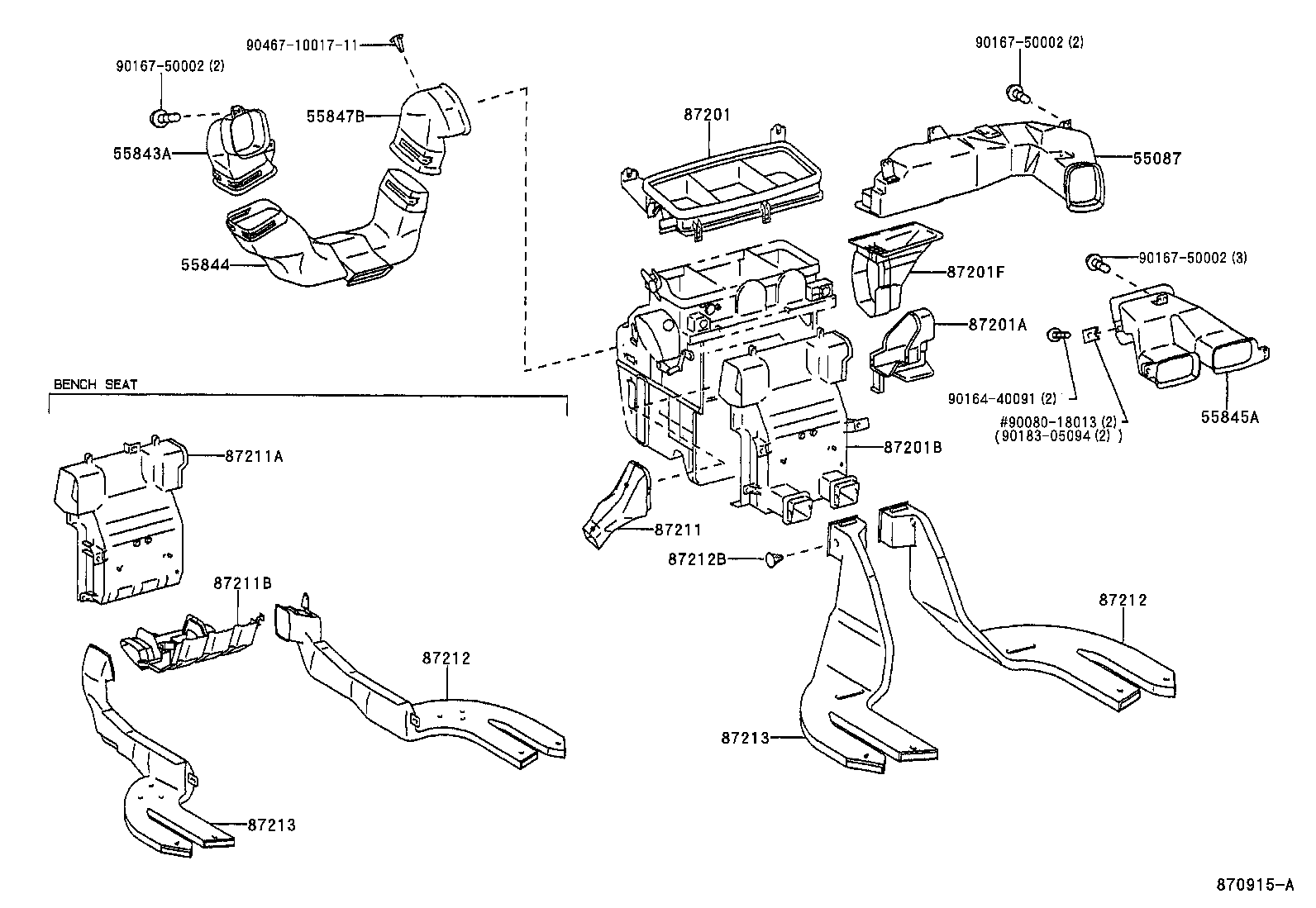

Figure 870916A 870916A 1994-09 → — Figure 871783 871783 1994-09 → — Figure 870915A 870915A 1994-09 → — Figure MEX678A MEX678A 1994-09 → —

Part groups

PNCDescription
55087 Duct Sub-assy, Heater TO Register, NO.4
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55847B Duct, Heater TO Register, NO.5
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55900D Control Assy, Air Conditioner, NO.2
55905A Knob, Heater Control
55907A Cable Sub-assy, Water Valve Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87201 Duct Sub-assy, Air, NO.1
87201A Duct Sub-assy, Air
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87213 Duct, Air, Rear NO.2
88625C Thermistor, Cooler
88669 Hose, Cooler Air
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
