Toyota Avalon

1999-08 → 2005-01 · chassis MCX20 · catalogue 361420 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

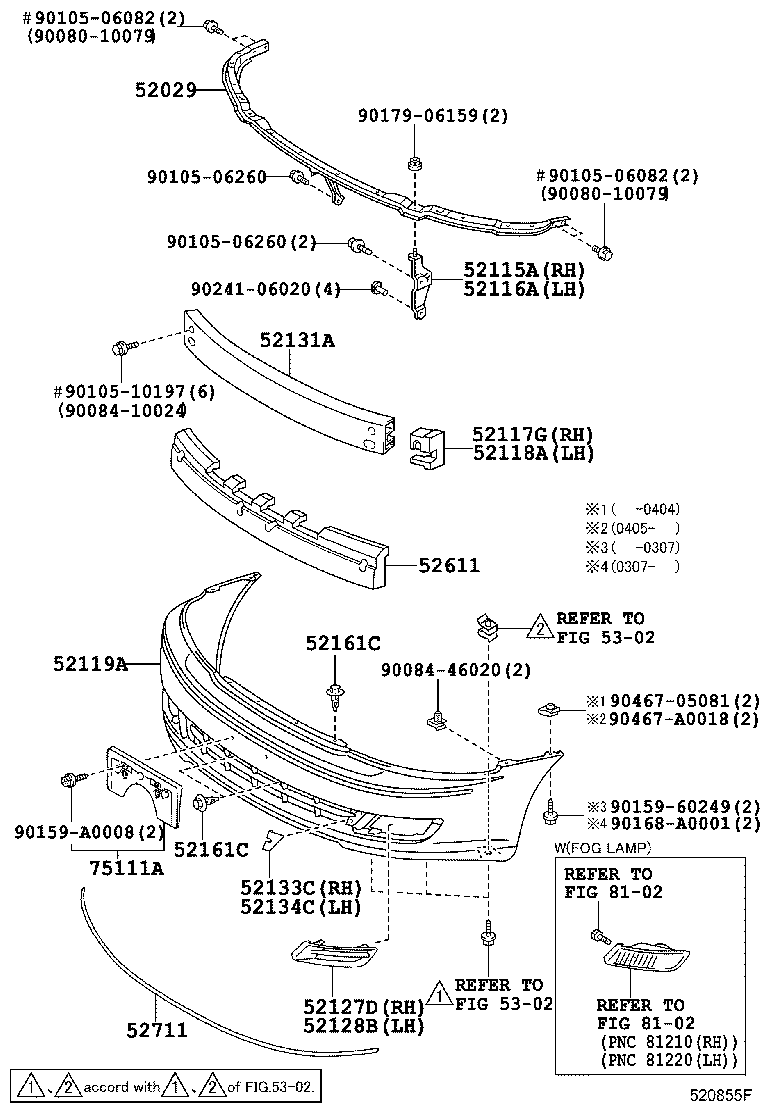

Figure 520842A 520842A 1999-08 → 2002-06 Figure 520855F 520855F 2002-06 → —

Part groups

PNCDescription
52029 Reinforcement Sub-assy, Front Bumper, Upper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52117G Insert, Front Bumper Extension, NO.2 RH
52118A Insert, Front Bumper Extension, NO.2 LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52133C Reinforcement, Front Bumper Bar, RH
52134C Reinforcement, Front Bumper Bar, LH
52161C Piece, Front Bumper
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
75111A Bracket, Front License Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
