Toyota Avalon

1999-08 → 2005-01 · chassis MCX20 · catalogue 361420 · United States

Discontinued model Data version 2005-07

Roof Panel & Back Window Glass

42 part groups · 2 illustrations

PNC	Description
56115B	Stopper, Back Window Glass, NO.1
56116A	Spacer, Windshield Glass
63102A	Panel Sub-assy, Windshield Header
63111	Panel, Roof
63118	Support, Roof Panel, RH
63119	Support, Roof Panel, LH
63133B	Frame, Back Window
63137A	Bracket, Dome Lamp, NO.1
63141H	Reinforcement, Roof Panel, Center
63142	Reinforcement, Roof Panel, NO.2
63143B	Reinforcement, Roof Panel, NO.3
63144A	Reinforcement, Roof Panel, NO.4

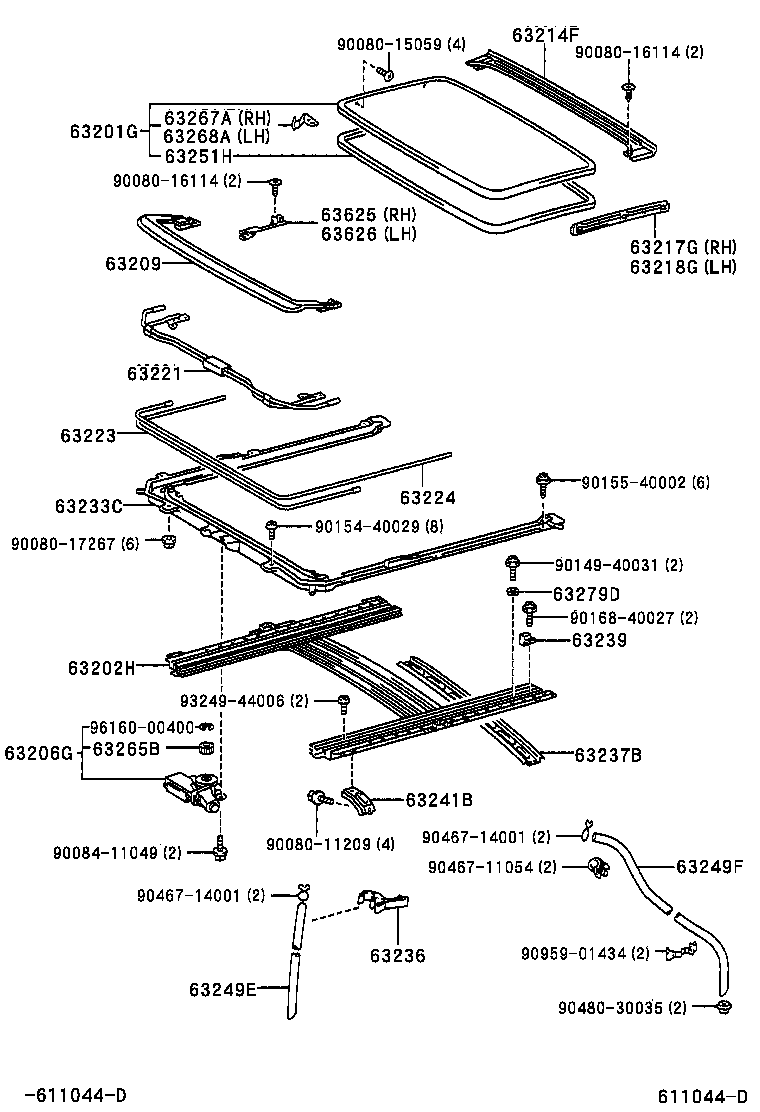

63201G	Glass Sub-assy, Sliding Roof
63202H	Rail Sub-assy, Slide Roof
63206G	Gear Sub-assy, Sliding Roof Drive
63209	Panel Sub-assy, Roof Wind Deflector
63214F	Channel, Roof Drip, Rear
63217G	Garnish, Sliding Roof Side, RH
63218G	Garnish, Sliding Roof Side, LH
63221	Casing, Sliding Roof Cable Guide
63223	Cable, Sliding Roof Drive, RH
63224	Cable, Sliding Roof Drive, LH
63227	Clip, Roof Wind Deflector Panel
63233C	Panel, Sliding Roof Housing
63236	Clamp, Sliding Roof OR Removable Roof Drain Hose
63237B	Frame, Sliding Roof Housing, Rear
63239	Stopper, Sliding Roof Panel
63241B	Bracket, Sliding Roof Housing, NO.1
63249E	Hose, Sliding Roof Drain
63249F	Hose, Sliding Roof Drain
63251H	Weatherstrip, Sliding Roof
63265B	Gear, Sliding Roof Drive
63267A	Protector, Sliding Roof Weatherstrip, RH
63268A	Protector, Sliding Roof Weatherstrip, LH
63279D	Stopper, Sliding Roof Guide Rail
63625	Block, Sliding Roof Guide, RH
63626	Block, Sliding Roof Guide, LH
64101	Panel Sub-assy, Upper Back
64165B	Cover, Upper Back Panel Hole, NO.1
64166B	Cover, Upper Back Panel Hole, NO.2
64167B	Cover, Upper Back Panel Hole, NO.3
64811	Glass, Back Window

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
