Toyota Avalon

1999-08 → 2005-01 · chassis MCX20 · catalogue 361420 · United States

Discontinued model Data version 2005-07

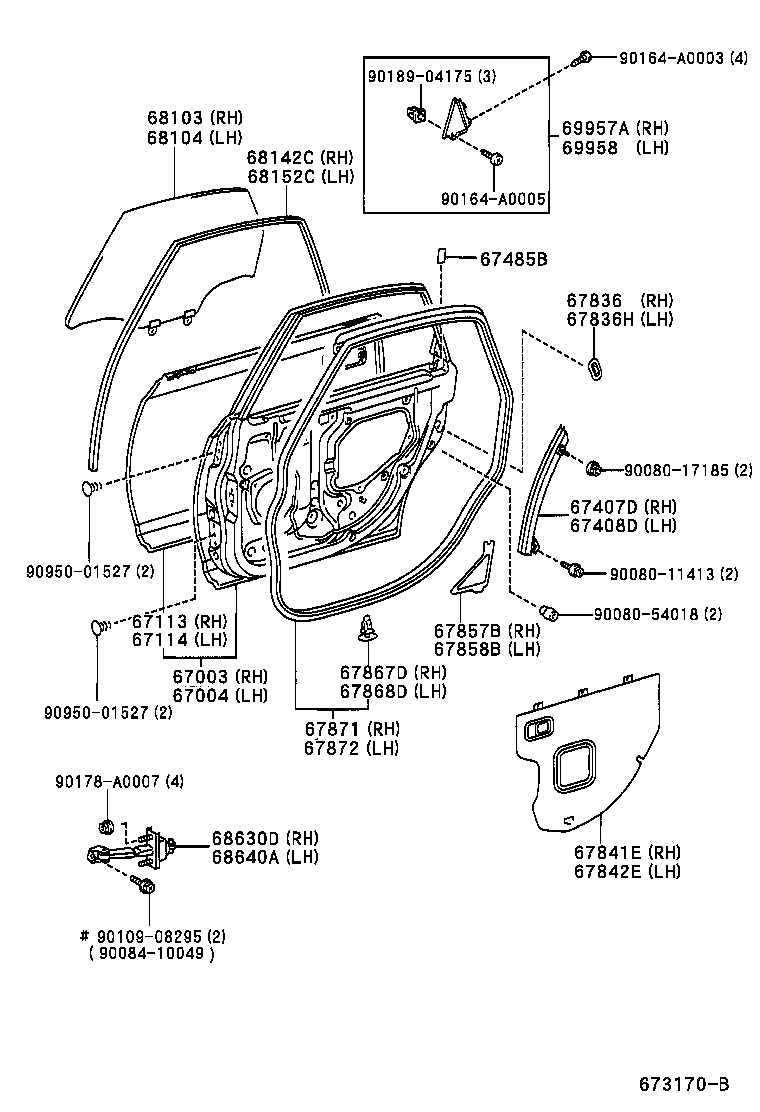

Rear Door Panel & Glass

37 part groups · 2 illustrations

PNC	Description
67003	Panel Sub-assy, Rear Door, RH
67004	Panel Sub-assy, Rear Door, LH
67113	Panel, Rear Door, Outer RH
67114	Panel, Rear Door, Outer LH
67407D	Guide Sub-assy, Rear Door Window, Rear RH
67408D	Guide Sub-assy, Rear Door Window, Rear LH
67485B	Seal, Rear Door Division Bar, Inside, RH
67487A	Garnish, Rear Door Rear Guide Bracket, RH
67488A	Garnish, Rear Door Rear Guide Bracket, LH
67499A	Retainer, Rear Door Lower Frame Bracket Garnish
67603	Board Sub-assy, Rear Door Trim, RH
67603B	Clip(FOR REAR DOOR TRIM BOARD)
67604	Board Sub-assy, Rear Door Trim, LH
67653D	Grille Sub-assy, Rear Door Speaker, RH
67654D	Grille Sub-assy, Rear Door Speaker, LH
67787E	Pocket, Rear Door Trim, RH
67788A	Pocket, Rear Door Trim, LH
67836	Cover, Rear Door Lock Child Protection, RH
67836H	Cover, Rear Door Lock Child Protection, LH
67841E	Cover, Rear Door Service Hole, RH
67842E	Cover, Rear Door Service Hole, LH
67857B	Protector, Rear Door Panel, RH
67858B	Protector, Rear Door Panel, LH
67867D	Retainer, Rear Door Weatherstrip, RH
67868D	Retainer, Rear Door Weatherstrip, LH
67871	Weatherstrip, Rear Door, RH
67872	Weatherstrip, Rear Door, LH
68103	Glass Sub-assy, Rear Door, RH
68104	Glass Sub-assy, Rear Door, LH
68142C	Run, Rear Door Glass, RH
68152C	Run, Rear Door Glass, LH
68173B	Weatherstrip, Rear Door Glass, Inner RH
68174A	Weatherstrip, Rear Door Glass, Inner LH
68630D	Check Assy, Rear Door, RH
68640A	Check Assy, Rear Door, LH
69957A	Plate, Rear Door Glass Guide Piece, RH
69958	Plate, Rear Door Glass Guide Piece, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
