Toyota Avalon

1999-08 → 2005-01 · chassis MCX20 · catalogue 361420 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

19 part groups · 2 illustrations

Illustrations

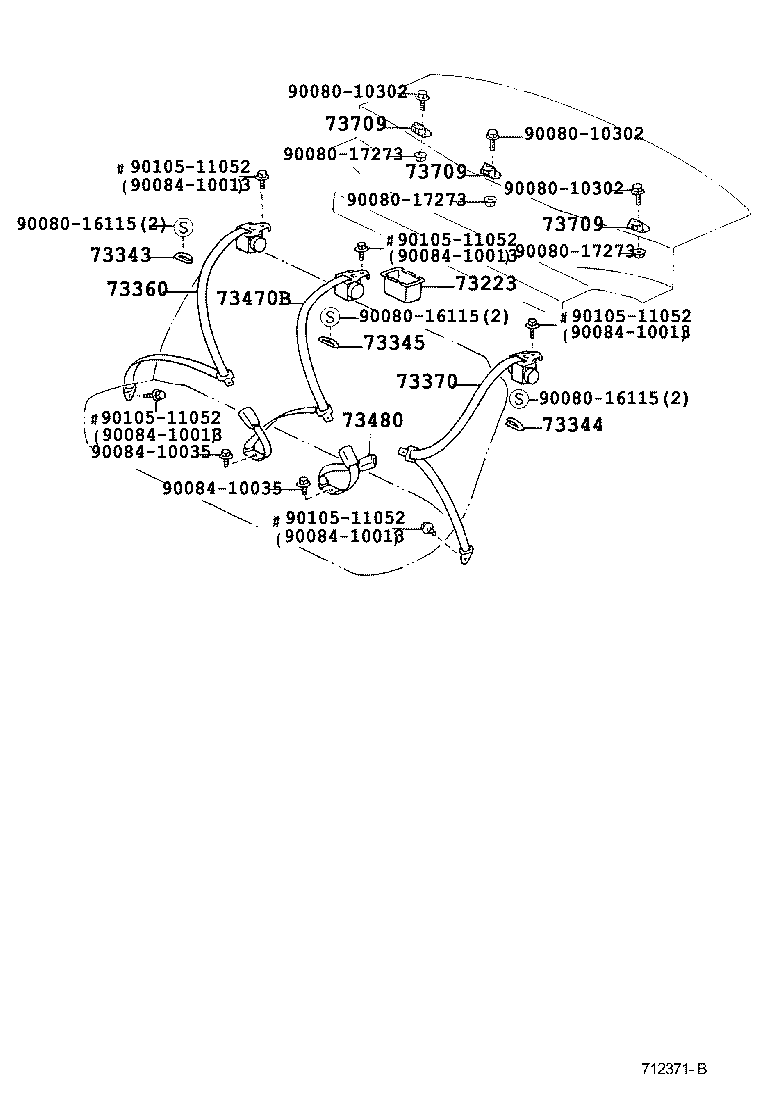

Figure 711394H 711394H 1999-08 → 2005-01 Figure 712371B 712371B 1999-08 → 2005-01

Part groups

PNCDescription
73130 Belt Assy, Front Seat Lap Type, RH
73140 Belt Assy, Front Seat Lap Type, LH
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73252 Cover, Shoulder Belt Anchor Adjust, RH
73253 Cover, Shoulder Belt Anchor Adjust, LH
73343 Guide, Rear Seat Shoulder Belt, RH
73344 Guide, Rear Seat Shoulder Belt, LH
73345 Guide, Rear Seat Shoulder Belt, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73709 Bracket Sub-assy, Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
