Toyota Avalon

1999-08 → 2005-01 · chassis MCX20 · catalogue 361420 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

20 part groups · 6 illustrations

Illustrations

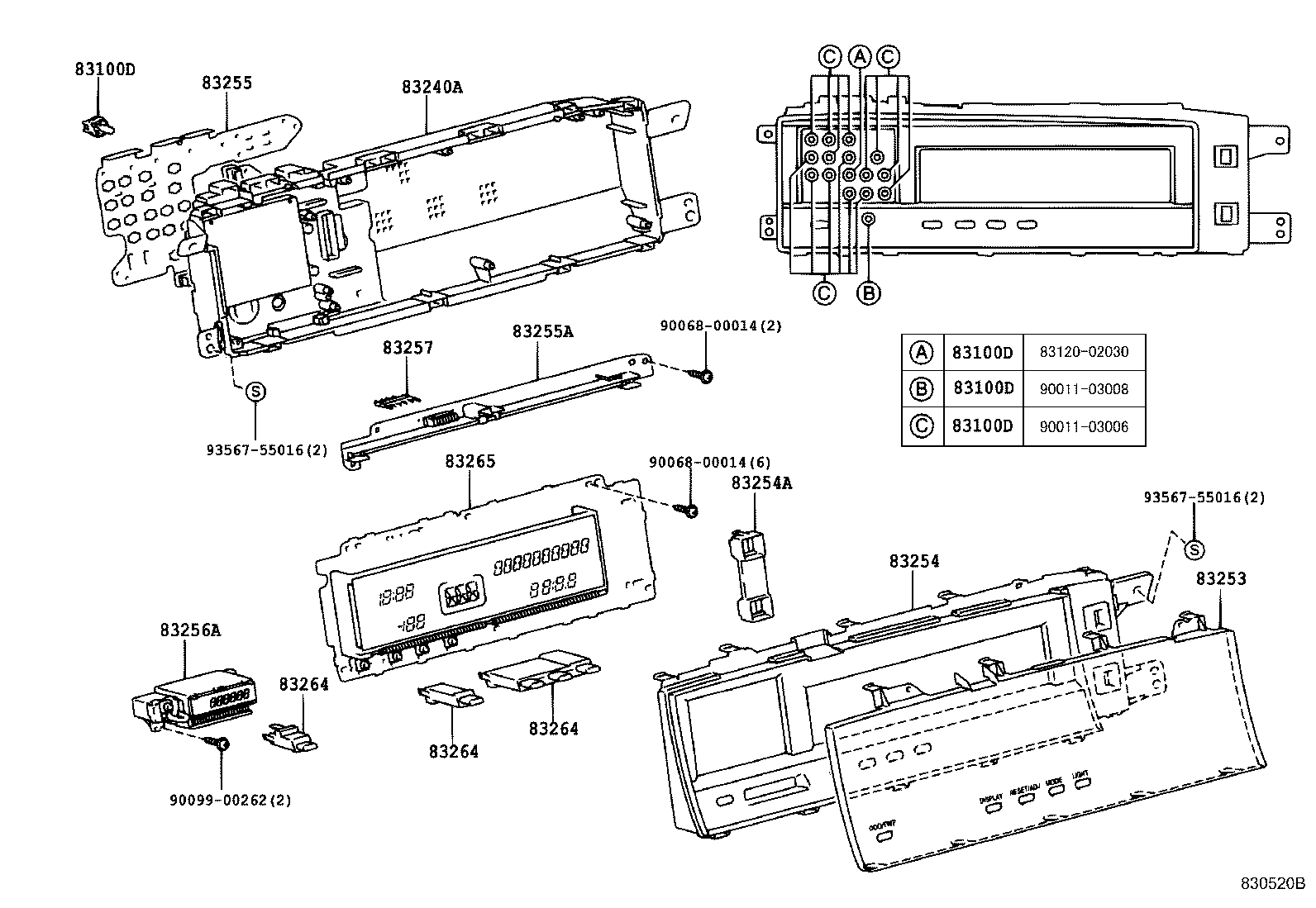

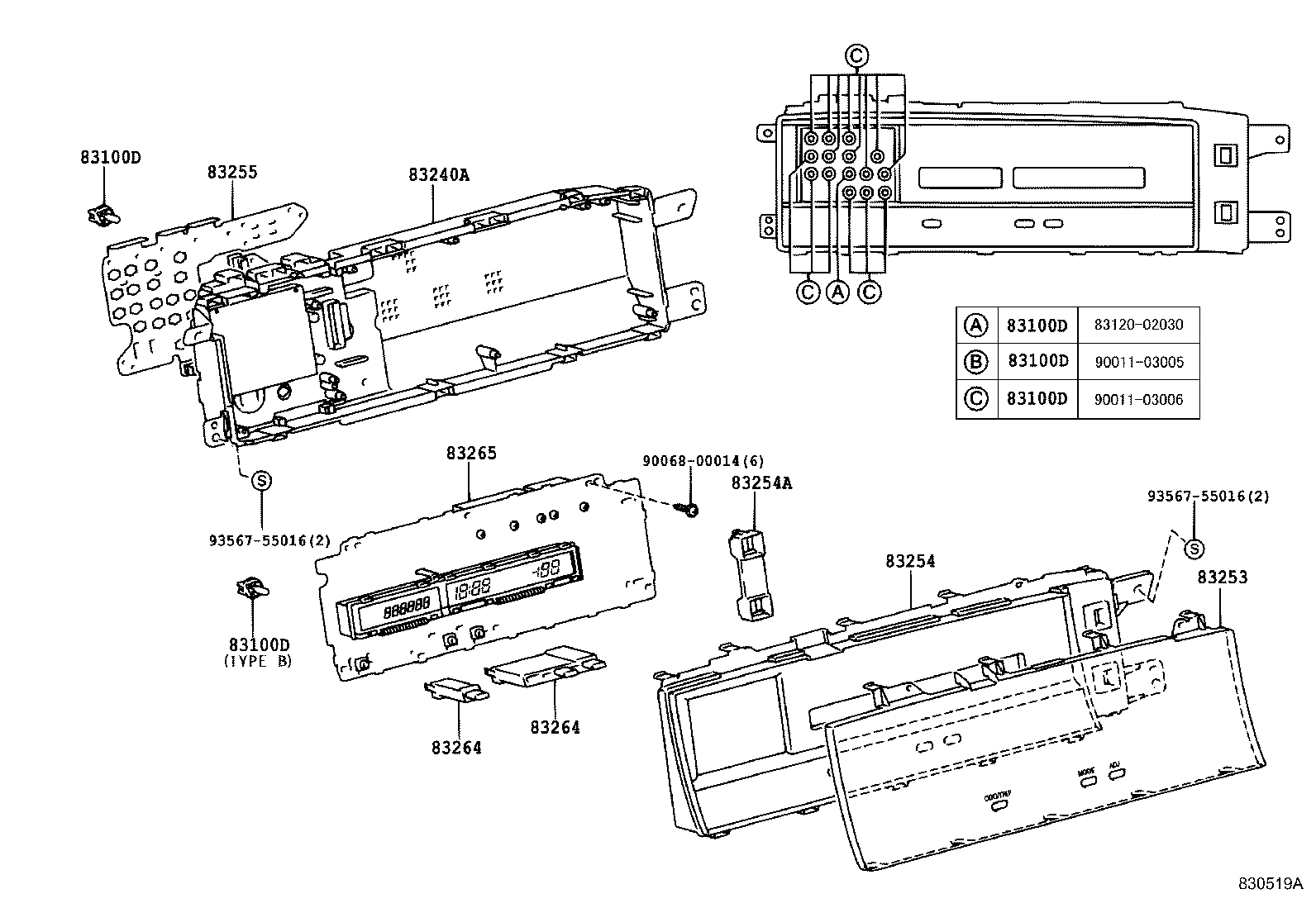

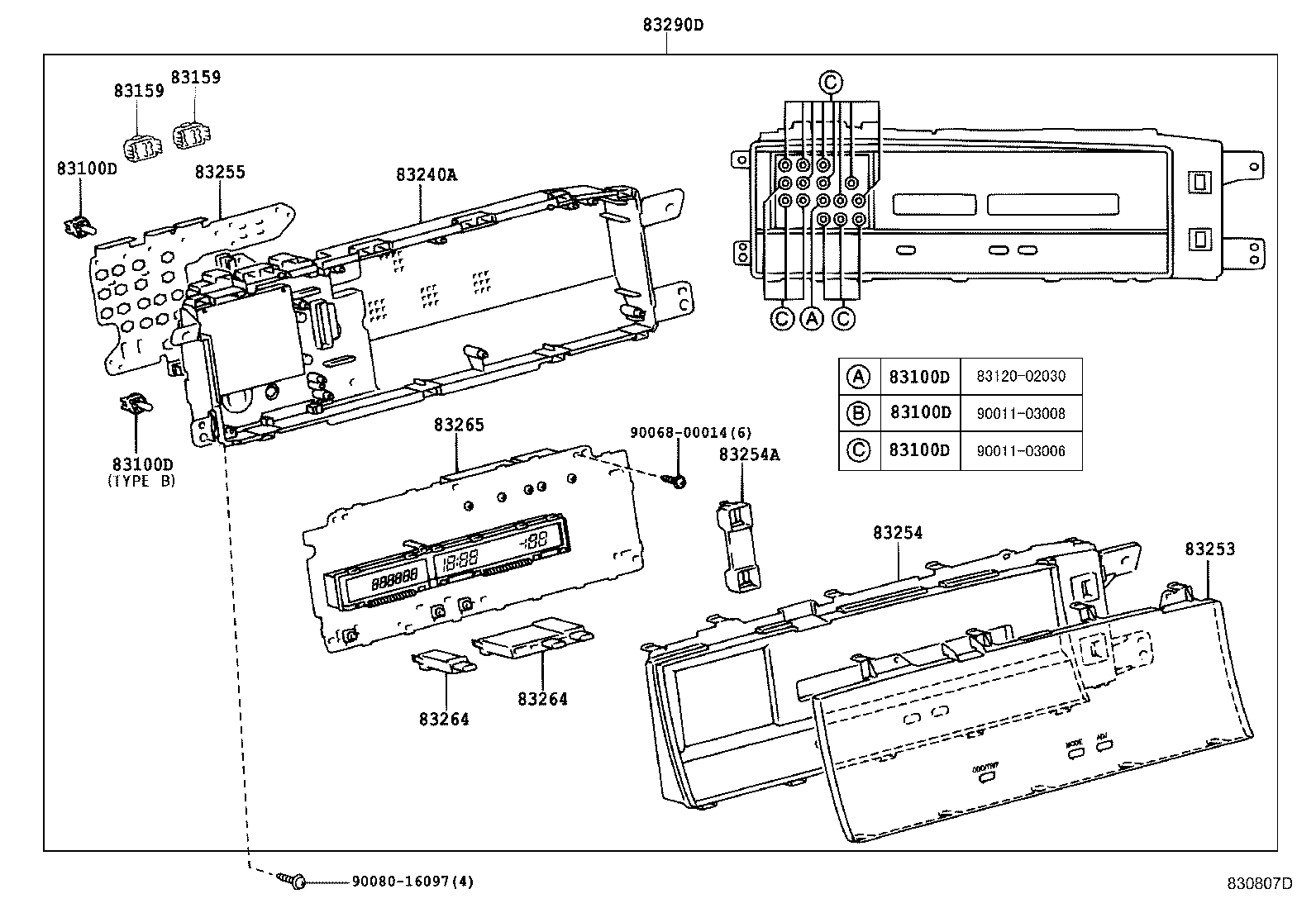

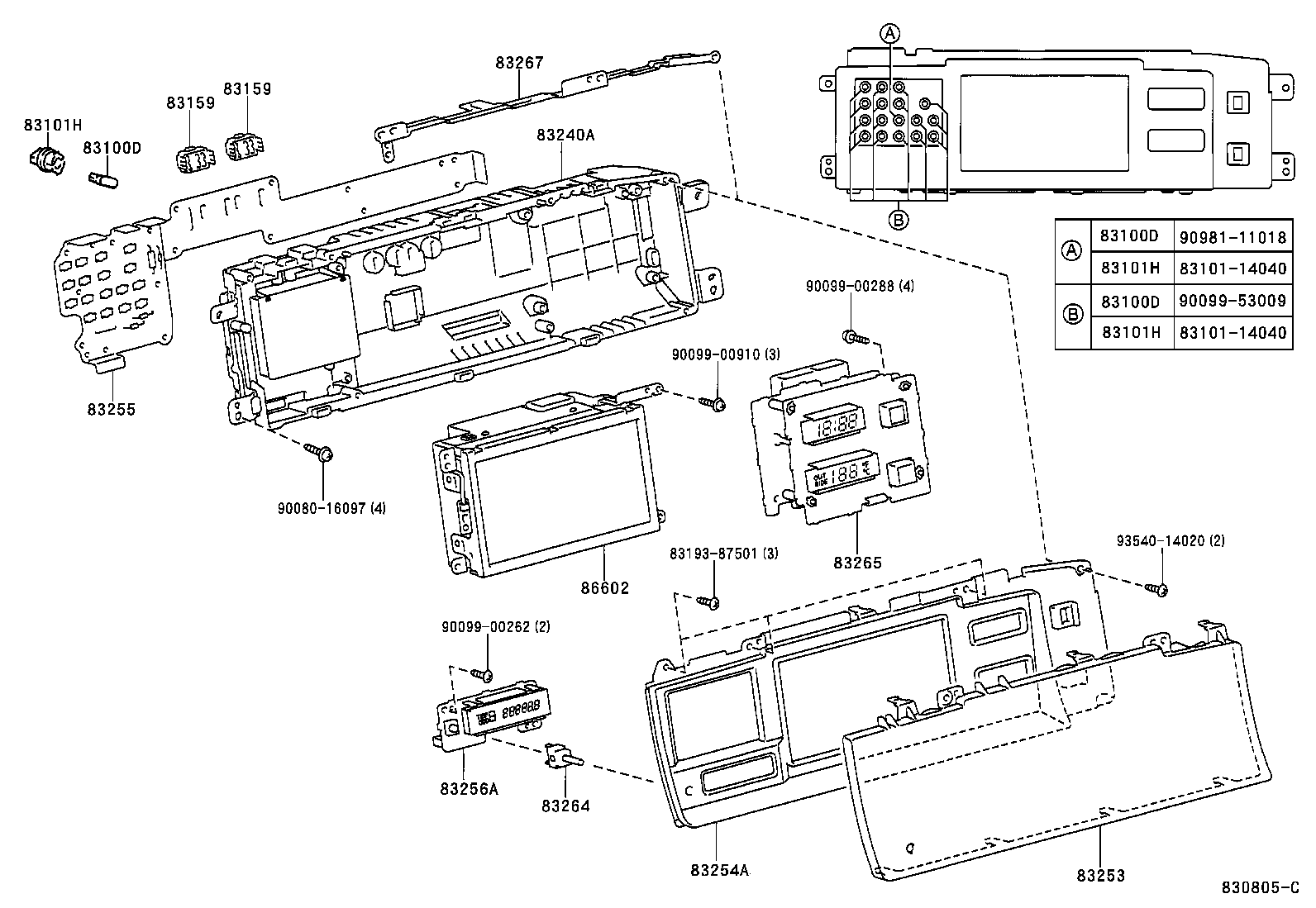

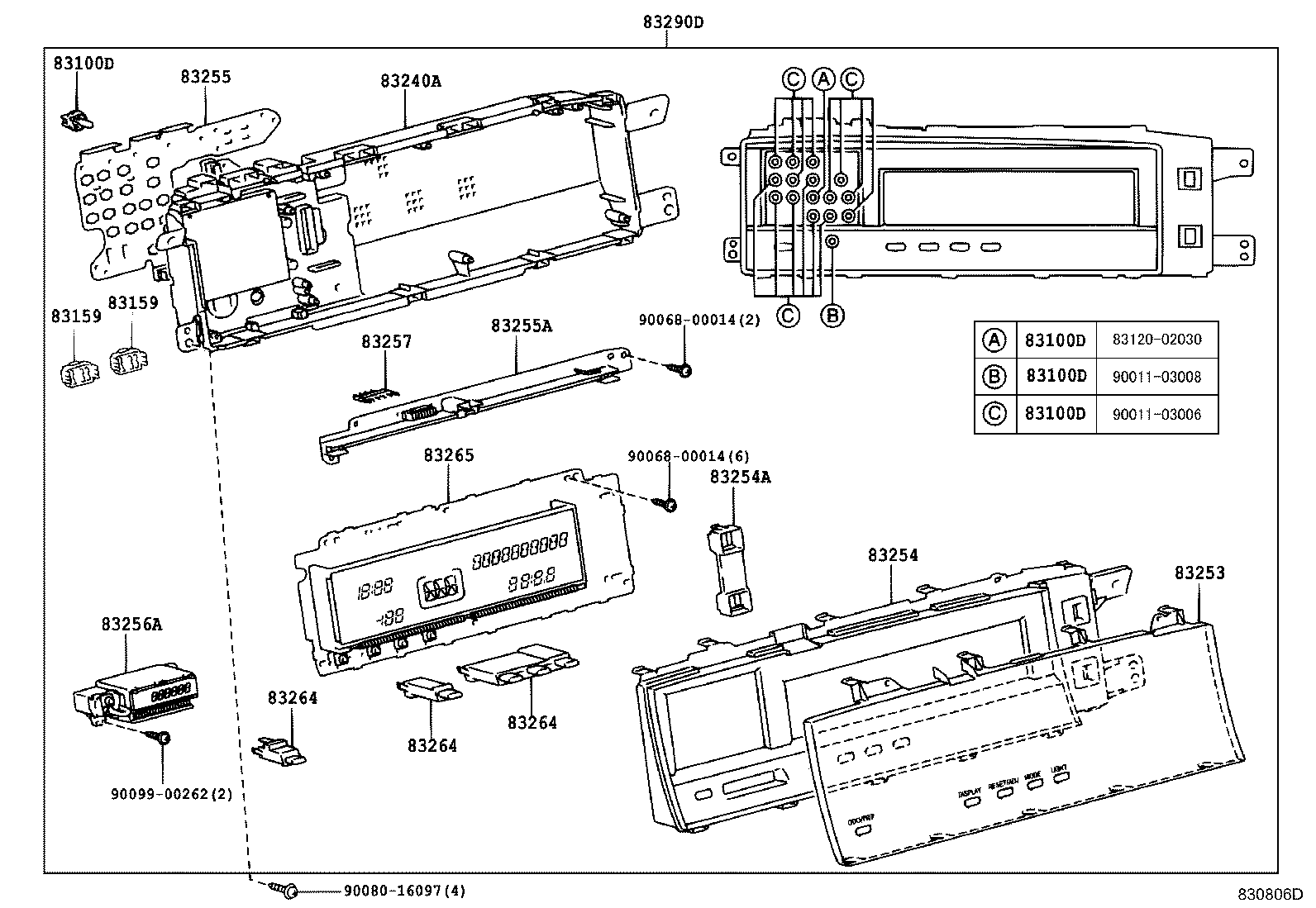

Figure 830514E 830514E 1999-08 → — Figure 830519A 830519A 1999-08 → 2002-06 Figure 830520B 830520B 1999-08 → 2002-06 Figure 830807D 830807D 2002-06 → — Figure 830806D 830806D 2002-06 → — Figure 830805C 830805C 2002-06 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83100D Bulb, Combination Meter, NO.2
83101H Socket Sub-assy, Combination Meter Bulb, NO.2
83133 Plate, Combination Meter, NO.1
83138 Glass, Speedometer
83159 Switch, Meter, NO.1
83240A Case Assy, Center Display
83253 Glass, Center Display
83254 Plate, Center Display Window
83254A Plate, Center Display Decoration
83255 Plate Center Display Circuit
83255A Plate Center Display Circuit
83256A Computer, Accessory Meter, NO.2
83257 Connector, Center Display
83264 Knob, Center Display
83265 Computer, Center Display
83267 Cover, Accessory Meter
83290D Meter Assy, Accessory
86602 Display Sub-assy, Multi Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
