Toyota Avalon
1999-08 → 2005-01 · chassis MCX20 · catalogue 361420 · United States
Discontinued model
Data version 2005-07
Switch & Relay & Computer

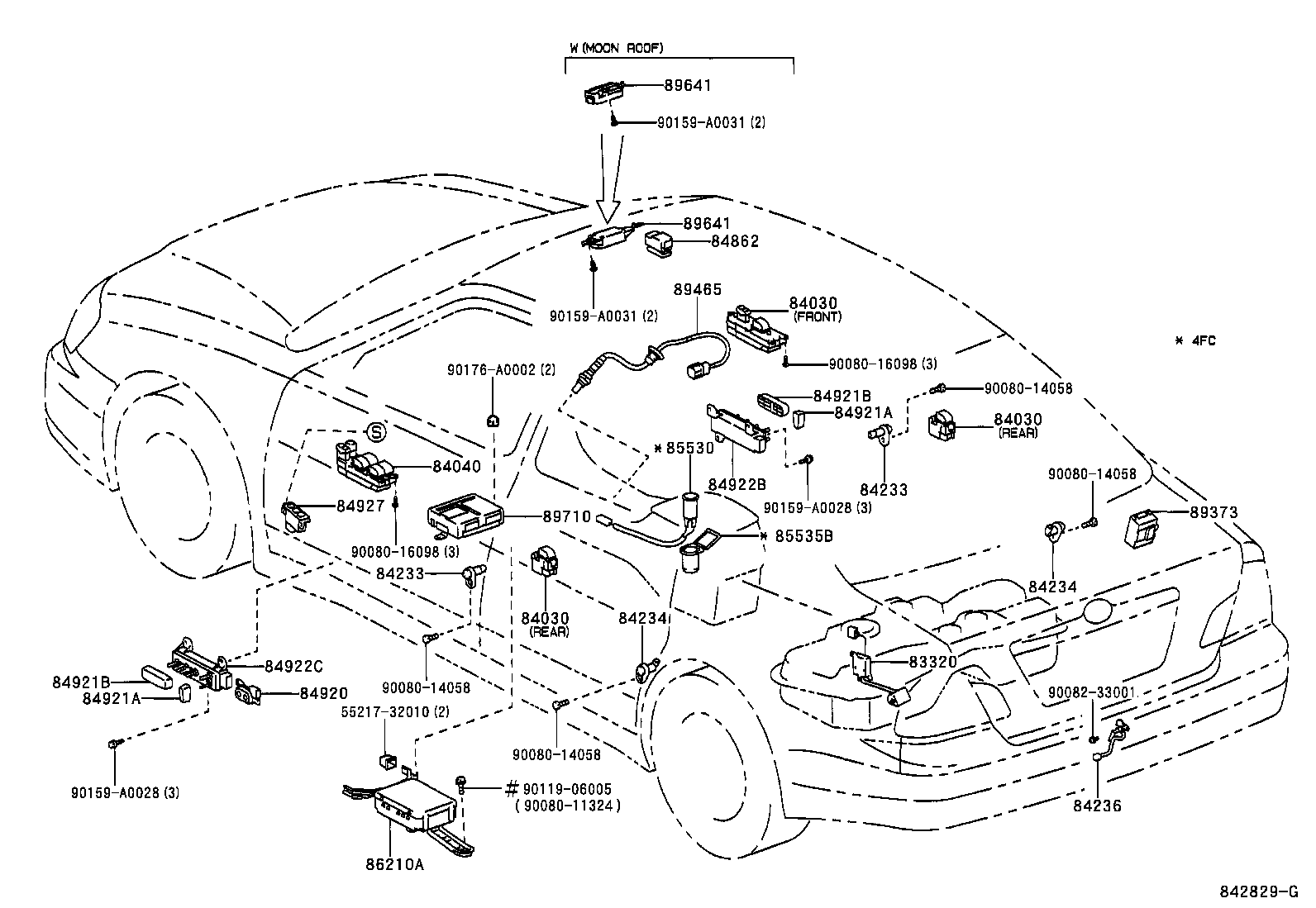

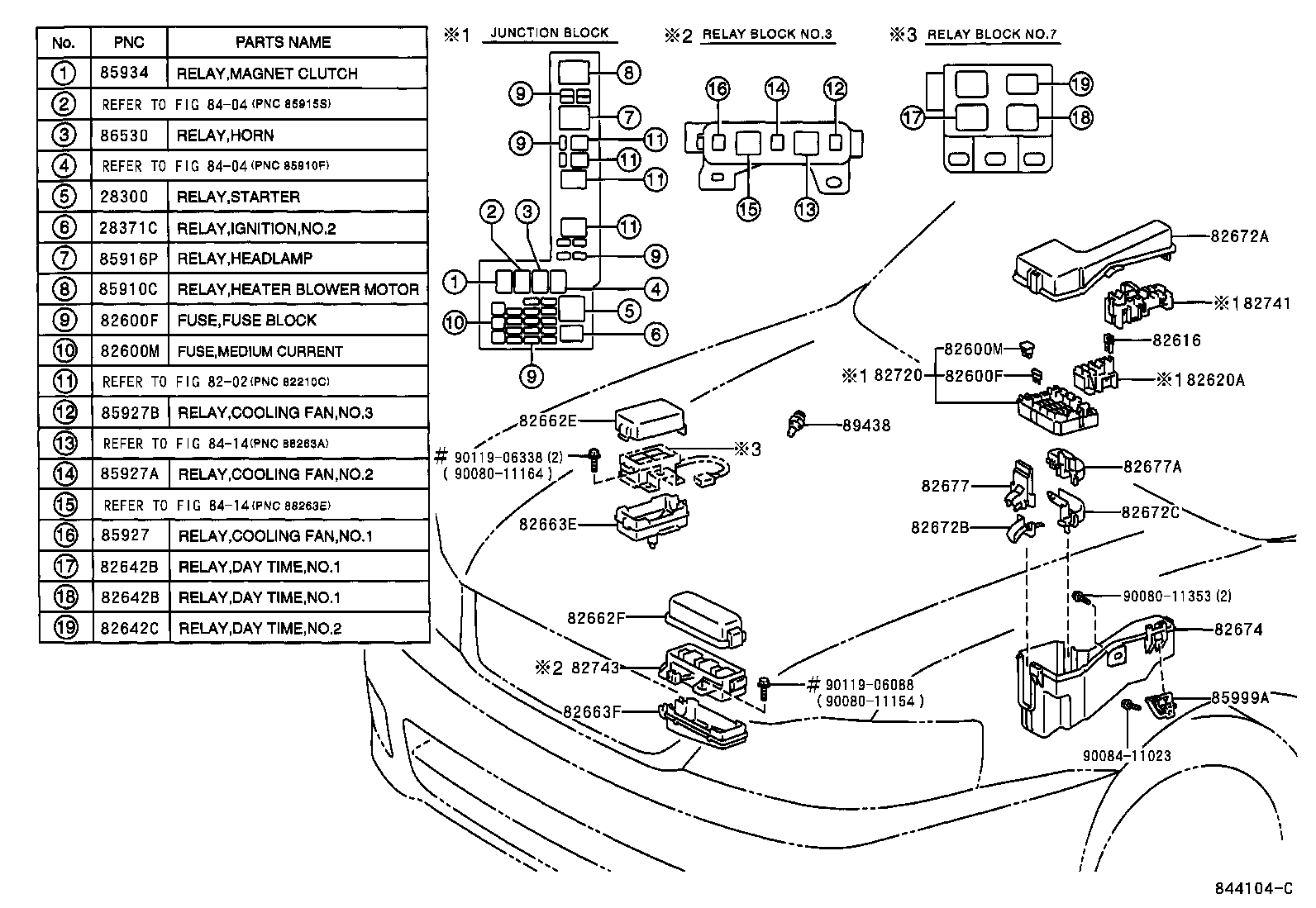

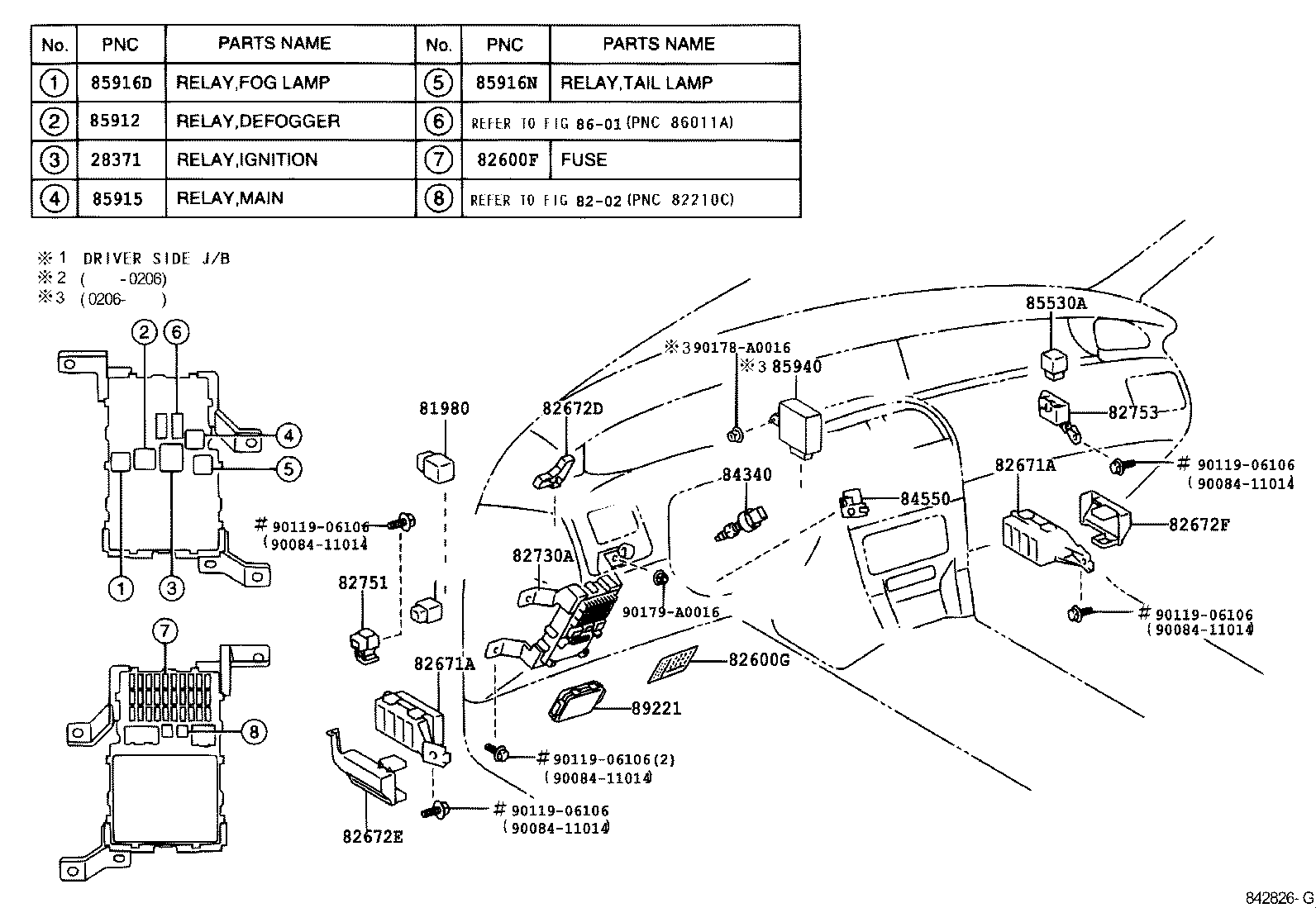

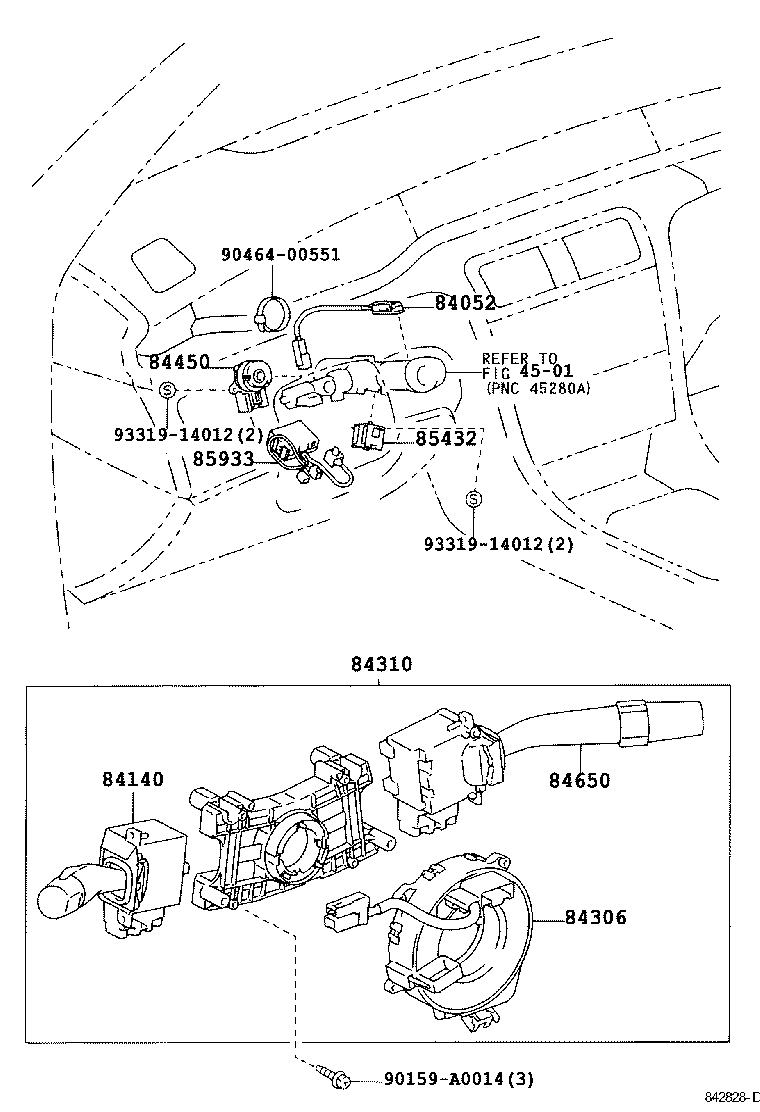

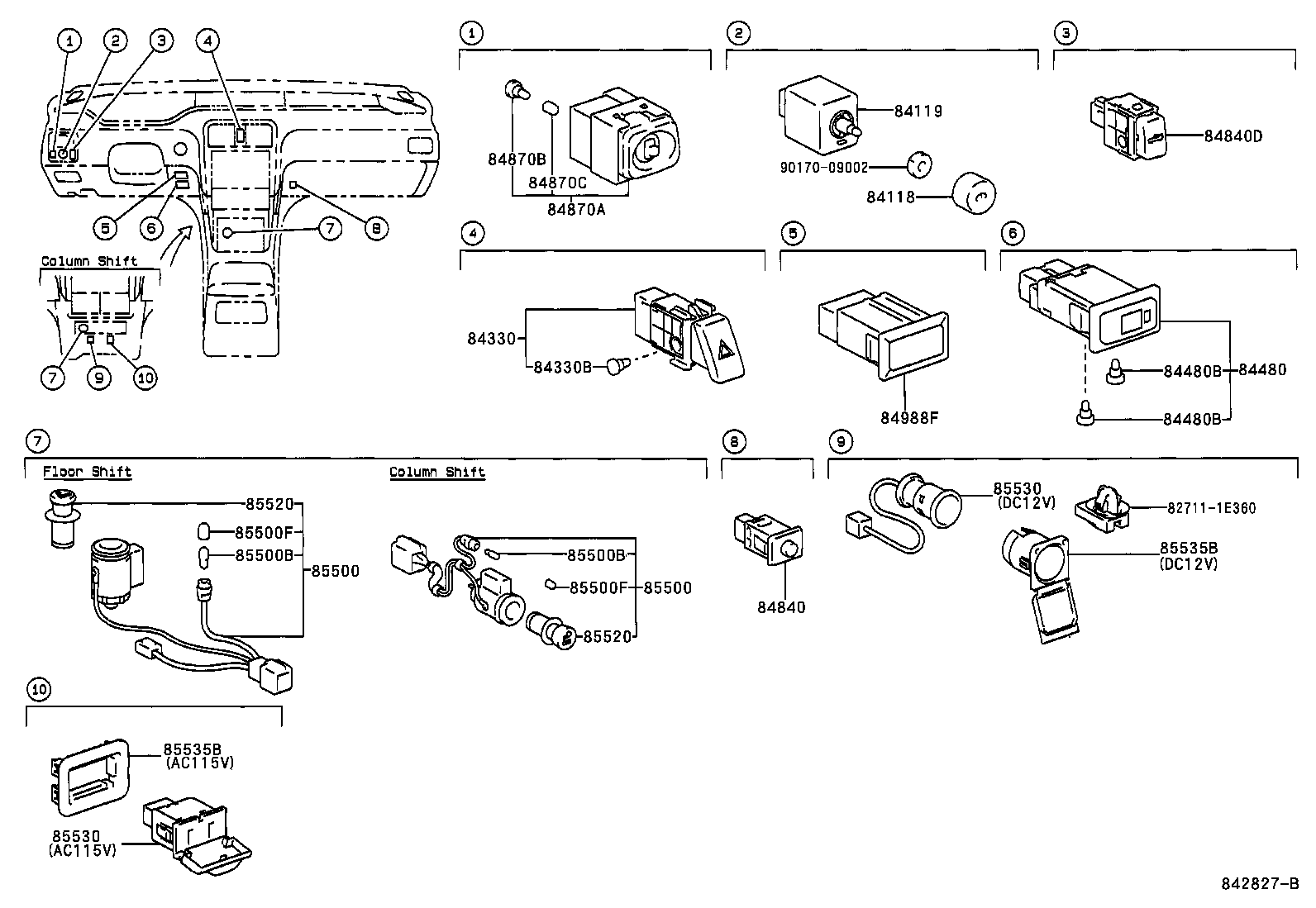

100 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 28371C | Relay, Ignition, NO.2 |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82600M | Fuse, Medium Current |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82642B | Relay, Day Time Running Light, NO.1 |
| 82642C | Relay, Day Time Running Light, NO.2 |
| 82662E | Cover, Relay Block, Upper, NO.7 |
| 82662F | Cover, Relay Block, Upper, NO.8 |
| 82663E | Cover, Relay Block, Lower, NO.7 |
| 82663F | Cover, Relay Block, Lower, NO.8 |
| 82671A | Block, Junction |
| 82672A | Cover, Junction Block |
| 82672B | Cover, Junction Block |
| 82672C | Cover, Junction Block |
| 82672D | Cover, Junction Block |
| 82672E | Cover, Junction Block |
| 82672F | Cover, Junction Block |
| 82674 | Cover, Junction Block Lower |
| 82677 | Cover, Junction Block, Upper NO.2 |
| 82677A | Cover, Junction Block, Upper |
| 82720 | Block Assy, Engine Room Junction |
| 82730A | Block Assy, Driver Side Junction |
| 82741 | Block, Engine Room Relay |
| 82743 | Block, Engine Room Relay, NO.3 |
| 82751 | Block, Driver Side Relay |
| 82753 | Block, Passenger Side Relay |
| 83320 | Gage Assy, Fuel Sender |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84030 | Switch Assy,Multiplex Network |
| 84040 | Master Switch Assy,Multiplex Network |
| 84052 | Switch Assy, Un-lock Warning |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84236 | Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) |
| 84306 | Cable Sub-assy, Spiral |
| 84310 | Switch Assy, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84480 | Switch Assy, Main |
| 84480B | Bulb, Main Switch Assy |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84840D | Switch Assy, Luggage Door Opening |
| 84862 | Switch, Slide Roof Motor |
| 84870A | Switch Assy, Outer Mirror |
| 84870B | Bulb, Outer Mirror Switch |
| 84870C | Cap, Outer Mirror Switch Bulb |
| 84920 | Switch Assy, Power Seat |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927 | Switch, Seat Memory |
| 84988F | Switch, Traction Control |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530A | Relay, Power Outlet Socket |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85915 | Relay, Main |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85933 | Computer, Shift Lock Control |
| 85934 | Relay, Magnet-clutch |
| 85940 | Relay Assy, Windshield Wiper |
| 85999A | Bracket, Relay, NO.2 |
| 86210A | Inverter Assy, Voltage |
| 86530 | Relay Assy, Horn |
| 89221 | Computer, Multiplex Network Body |
| 89373 | Sensor, Lamp Failure Indicator |
| 89427 | Switch, Temperature Detect |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89438 | Switch, Power Steering Oil Pressure |
| 89465 | Sensor, Oxygen |
| 89467A | Sensor, Wide Range Air Fuel Ratio |
| 89615 | Sensor, Knock Control |
| 89641 | Sensor, Magnetic Field |
| 89710 | Computer Assy, Position Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
