Toyota Avalon
1999-08 → 2005-01 · chassis MCX20 · catalogue 361420 · United States
Discontinued model
Data version 2005-07
Abs & Vsc

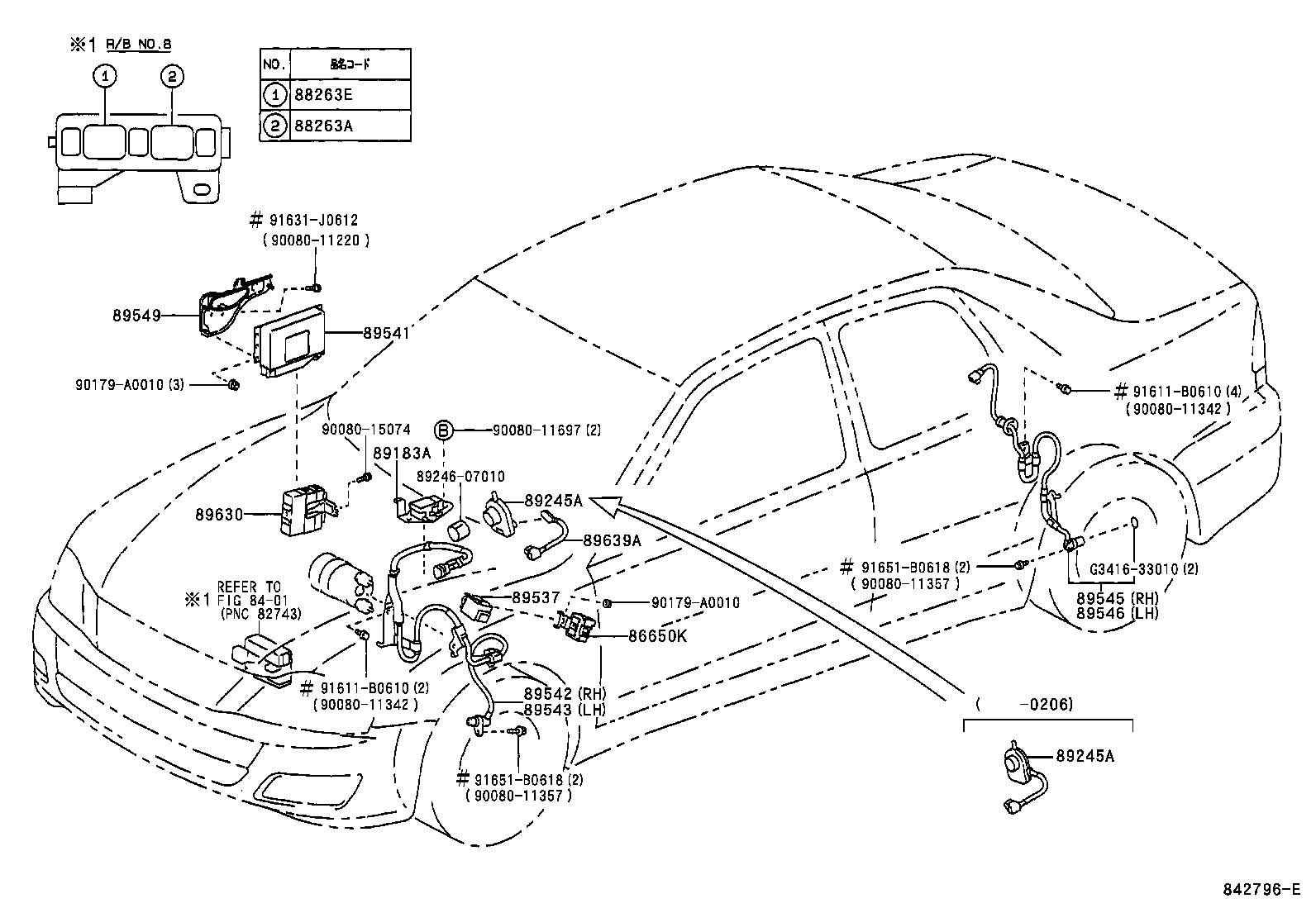

14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86650K | Buzzer Assy, Skid Control |
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 89183A | Sensor, Yawrate |
| 89245A | Sensor, Steering |
| 89537 | Relay, Active Lamp |
| 89541 | Computer, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89549 | Bracket, Skid Control Computer |
| 89630 | Computer Assy, Translate |
| 89639A | Wire, Brake Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
