Toyota Avalon

1999-08 → 2005-01 · chassis MCX20 · catalogue 361420 · United States

Discontinued model Data version 2005-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

6 part groups · 2 illustrations

Illustrations

Figure 842799E

842799E 1999-08 → 2002-06

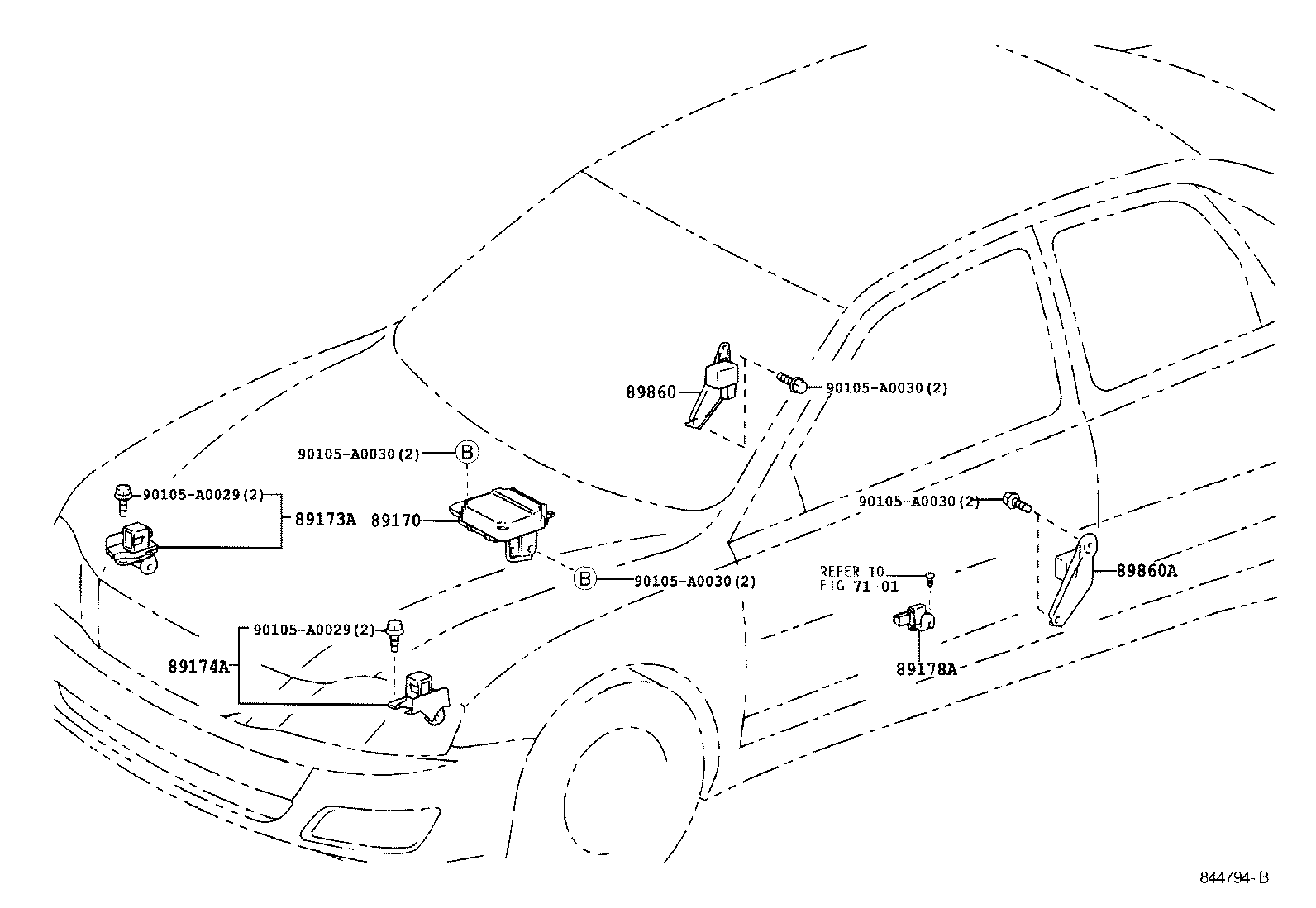

Figure 844794B

844794B 2002-06 → —

Part groups

PNC	Description
89170	Sensor Assy, Airbag
89173A	Sensor, Airbag, Front RH
89174A	Sensor, Airbag, Front LH
89178A	Sensor, Seat Position Airbag
89860	Sensor Assy, Side Airbag, RH
89860A	Sensor Assy, Side Airbag, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
