Toyota Avalon

1999-08 → 2005-01 · chassis MCX20 · catalogue 361420 · United States

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

16 part groups · 2 illustrations

Illustrations

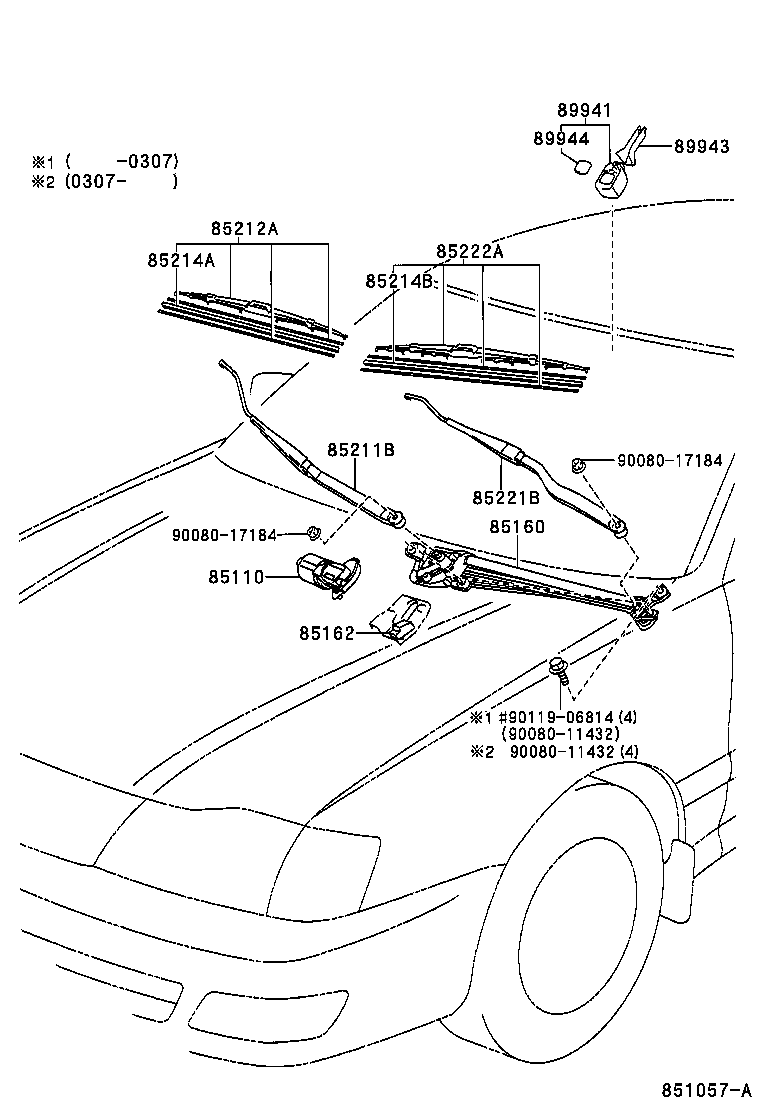

Figure 850623A 850623A 1999-08 → 2002-06 Figure 851057A 851057A 2002-06 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85162 Pivot, Windshield Wiper Link, NO.2
85211B Arm, Front Wiper, RH
85212A Blade, FR Wiper, RH
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85221B Arm, Front Wiper, LH
85222A Blade, FR Wiper, LH
85224A Plate, Wiper Rubber Backing, NO.1
85224B Plate, Wiper Rubber Backing, NO.2
85224C Plate, Wiper Rubber Backing, NO.3
85224D Plate, Wiper Rubber Backing, NO.4
89941 Sensor, Rain
89943 Cover, Rain Sensor
89944 Tape, Rain Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
