Toyota Avalon
2005-01 → 2012-10 · chassis GSX30 · catalogue 361430 · United States
Supported model
Data version 2013-04

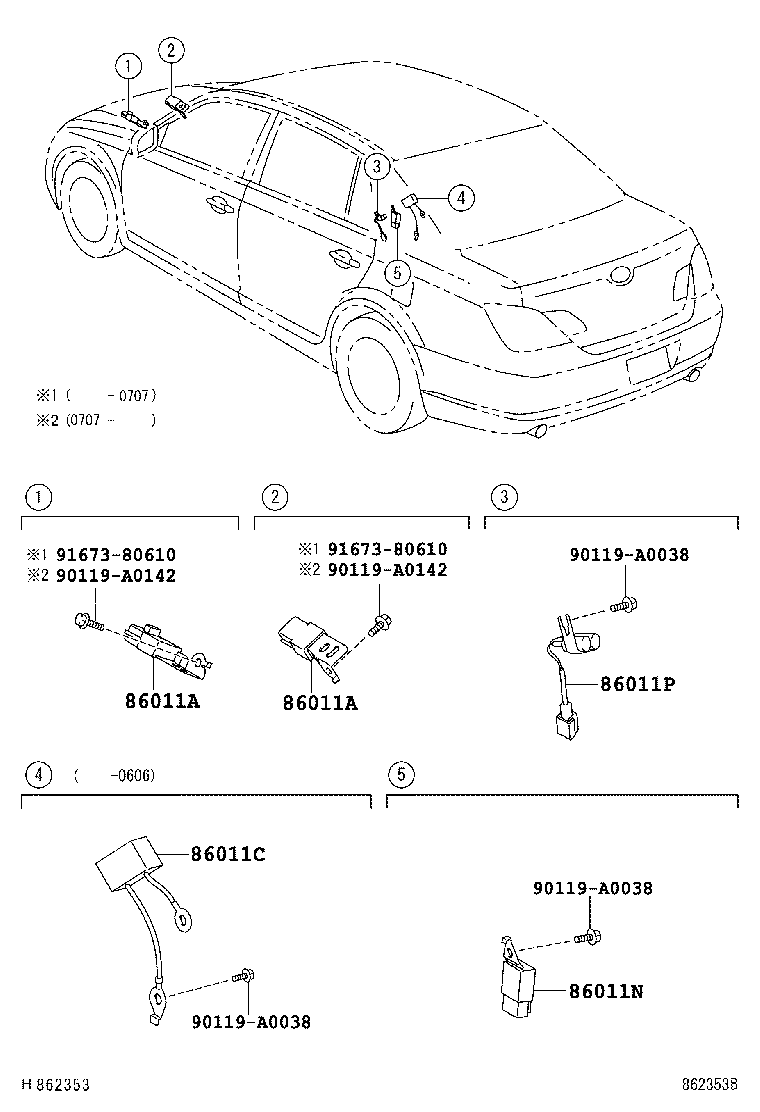

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90980-04182 |
Condenser, Radio Setting
2005-01 → 2007-07
ended
|
GSX30 | — | |
| 90980-04182 |
Condenser, Radio Setting
2007-07 → 2010-03
ended
|
GSX30 LIMD,XLS | — | |
| 90980-04182 |
Condenser, Radio Setting
2007-07 → —
|
GSX30 XL | — | |
| 90980-04182 |
Condenser, Radio Setting
2010-03 → —
|
GSX30 | — | |
| 86011C — Filter, Noise | ||||
| 90980-A4003 |
Filter, Noise
2005-01 → 2006-06
ended
|
GSX30 | — | |
| 86011N — Filter, Noise | ||||
| 90980-A4002 |
Filter, Noise
2005-01 → 2007-07
ended
|
GSX30 | — | |
| 90980-A4002 |
Filter, Noise
2007-07 → 2010-03
ended
|
GSX30 LIMD,XLS | — | |
| 90980-A4002 |
Filter, Noise
2007-07 → —
|
GSX30 XL | — | |
| 90980-A4002 |
Filter, Noise
2010-03 → —
|
GSX30 | — | |
| 86011P — Filter, Noise | ||||
| 90980-04129 |
Filter, Noise
2005-01 → 2007-07
ended
|
GSX30 | — | |
| 90980-04129 |
Filter, Noise
2007-07 → 2010-03
ended
|
GSX30 LIMD,XLS | — | |
| 90980-04129 |
Filter, Noise
2007-07 → —
|
GSX30 XL | — | |
| 90980-04129 |
Filter, Noise
2010-03 → —
|
GSX30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
