Toyota Avalon

2005-01 → 2012-10 · chassis GSX30 · catalogue 361430 · United States

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 10 illustrations

Illustrations

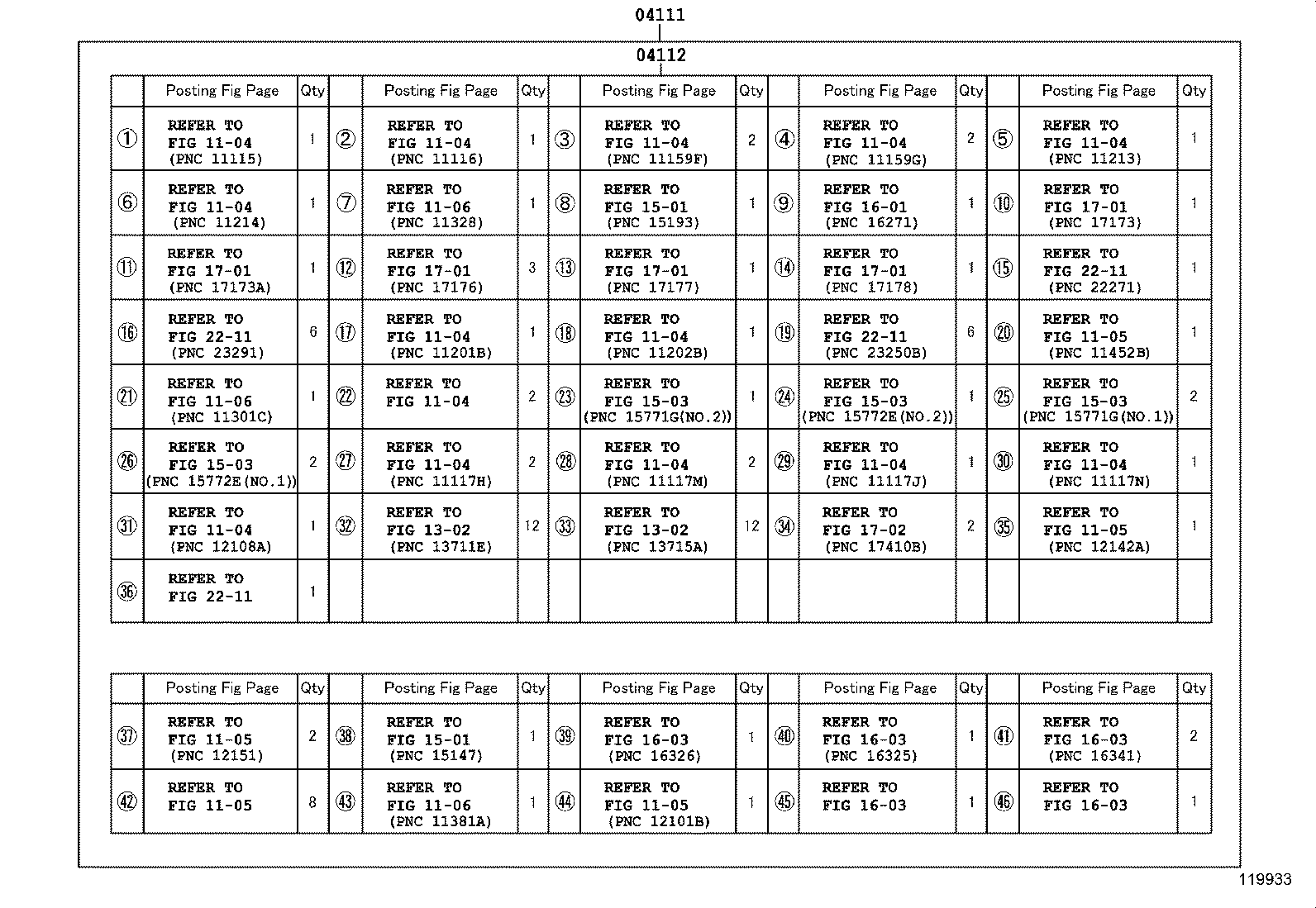

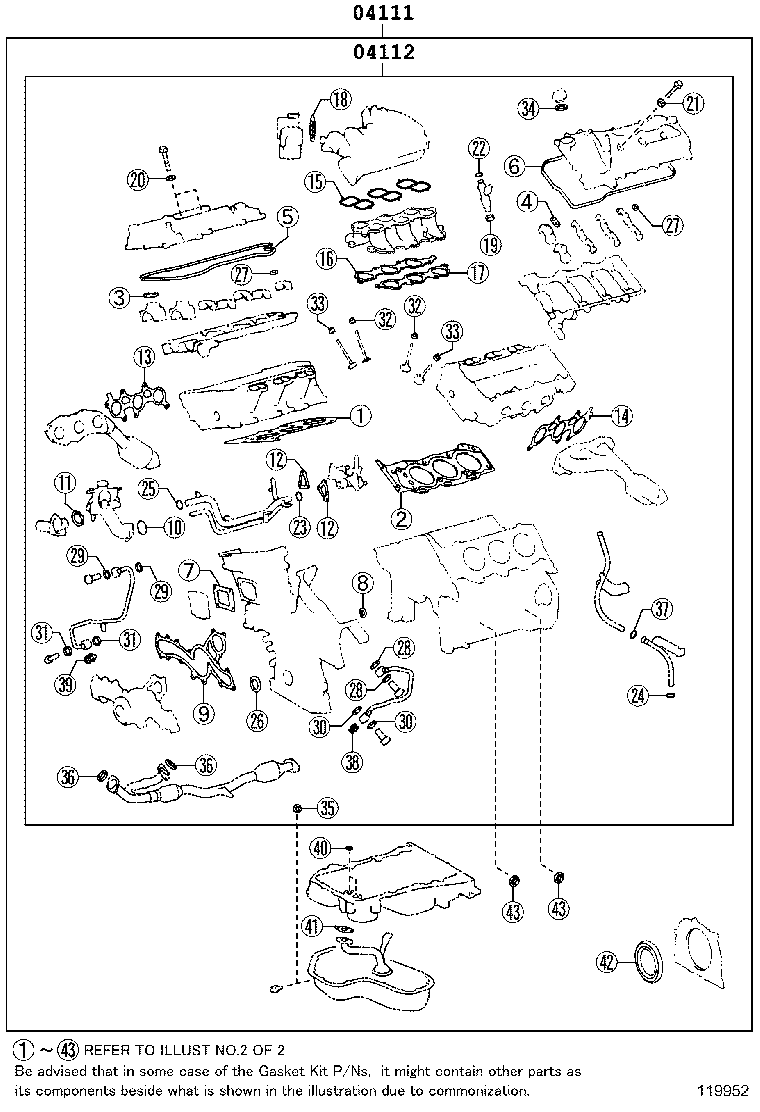

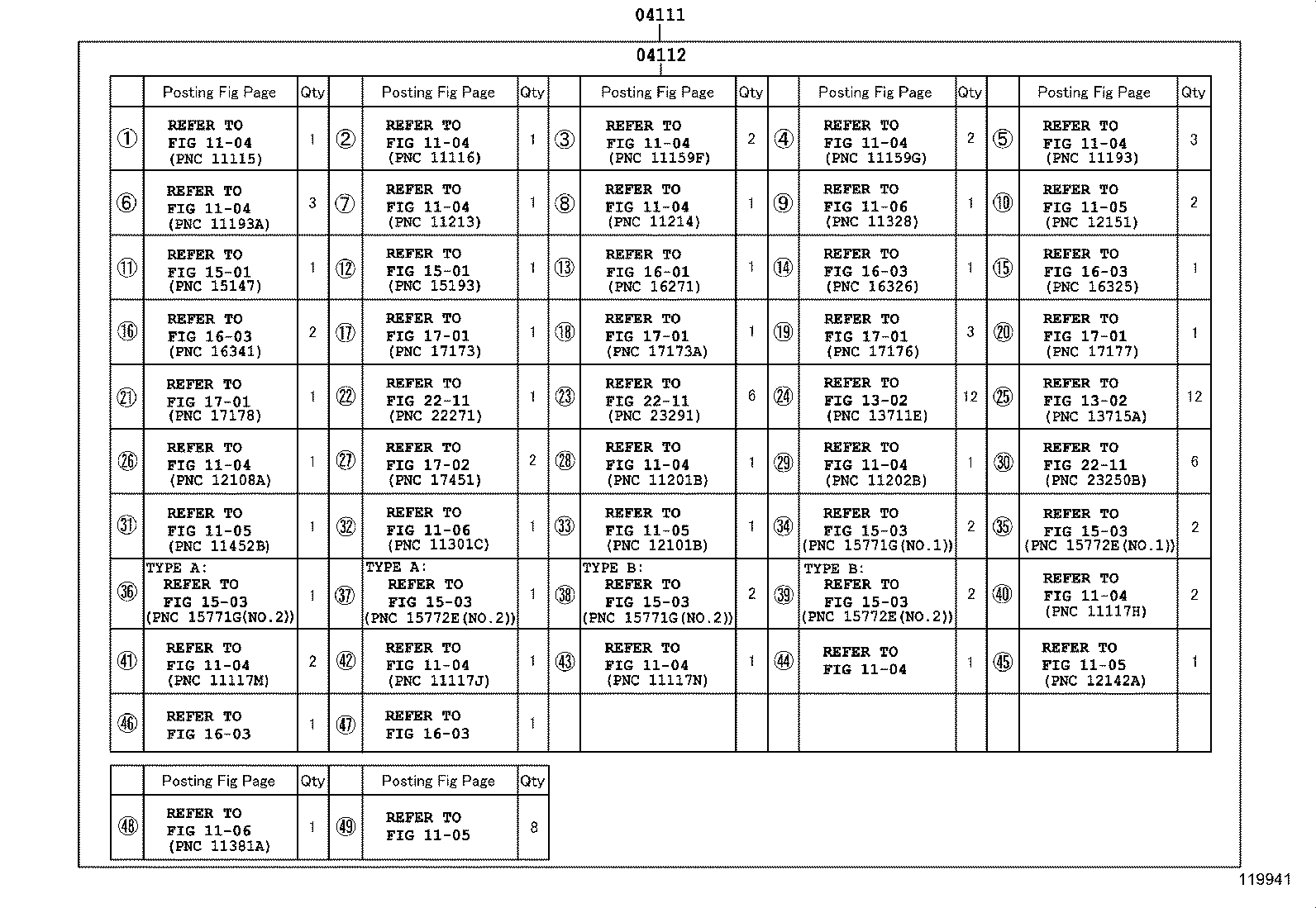

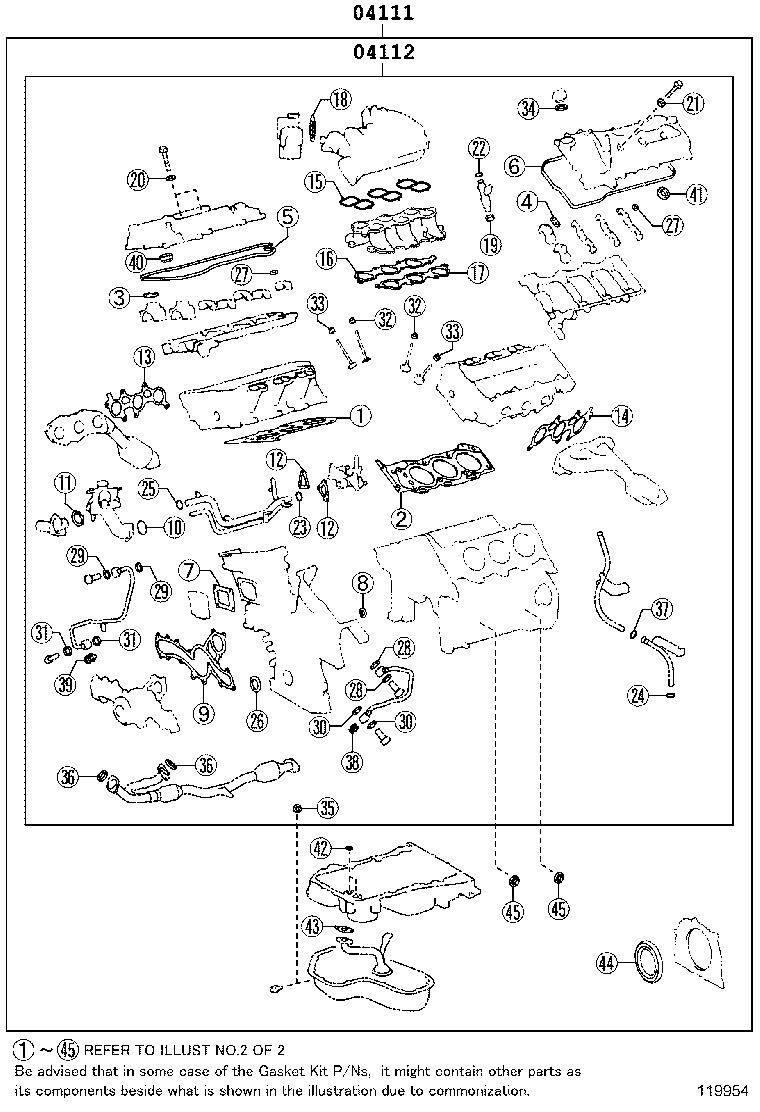

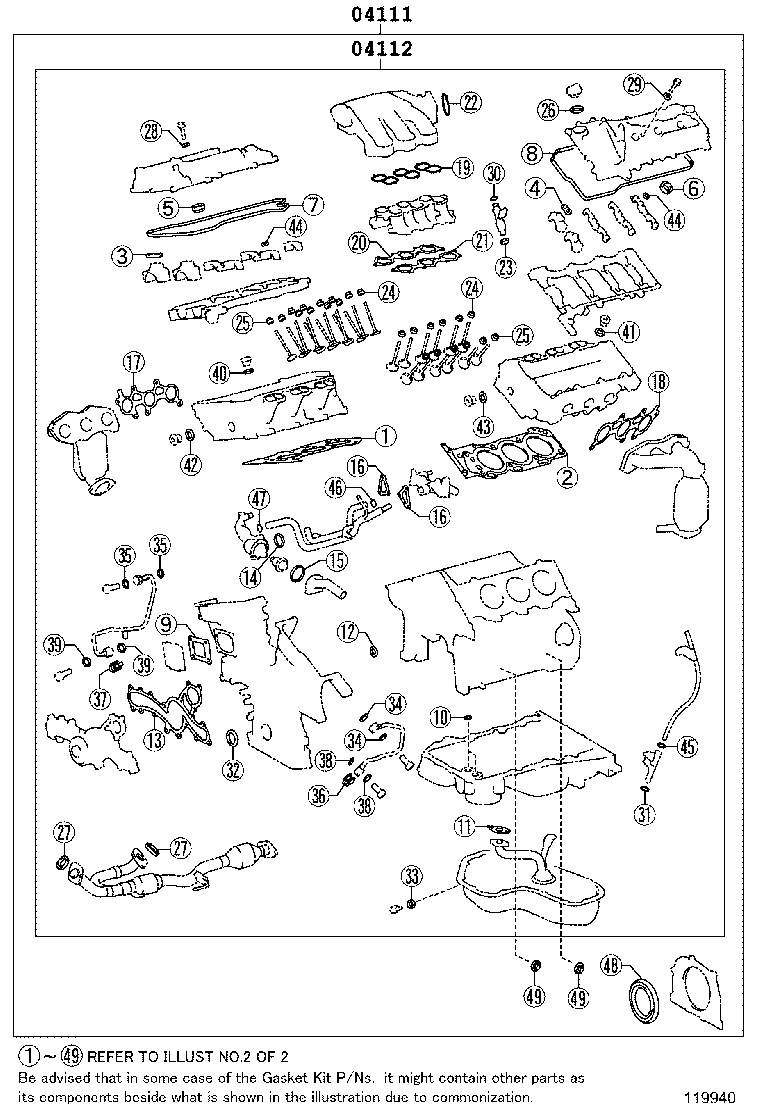

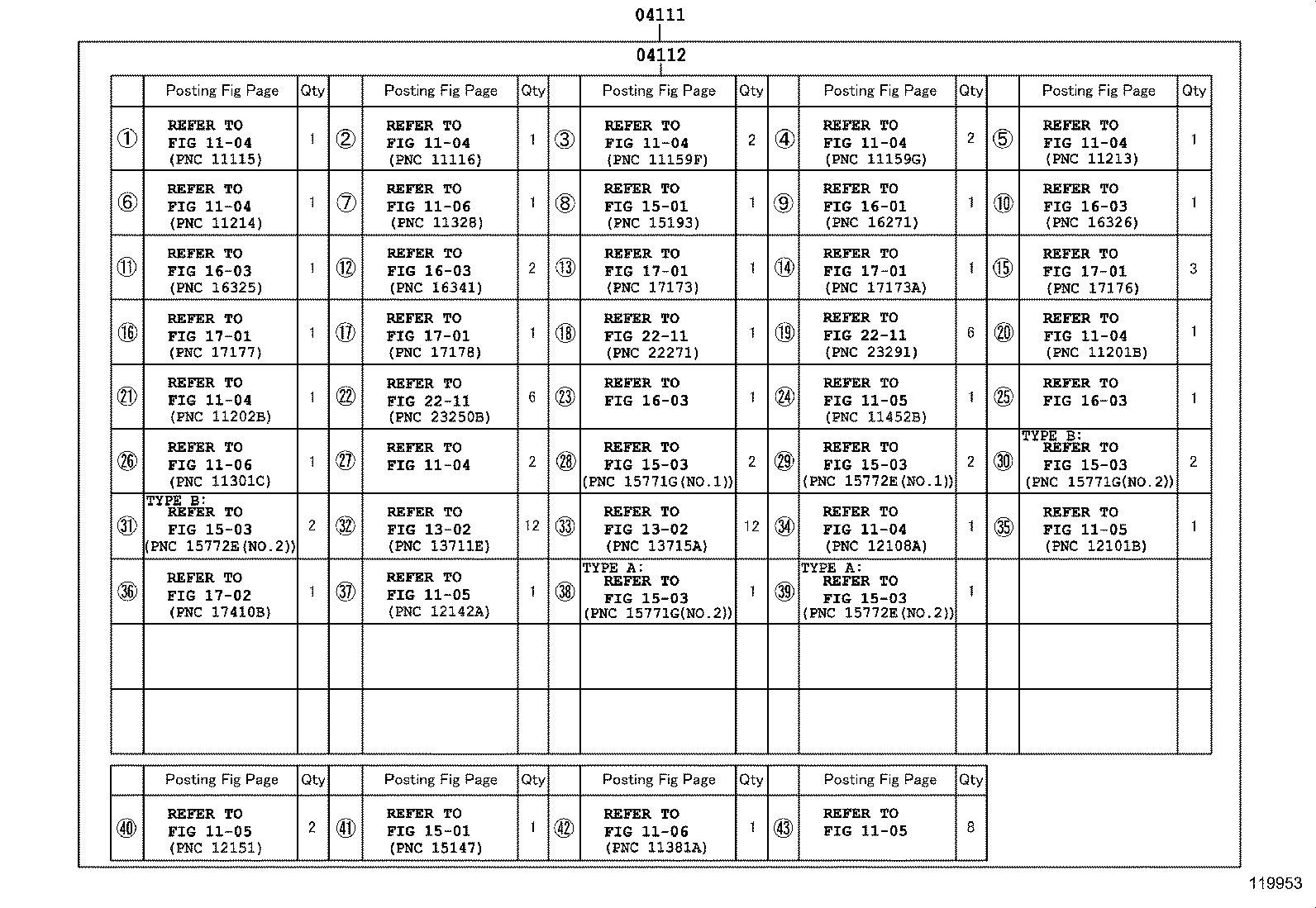

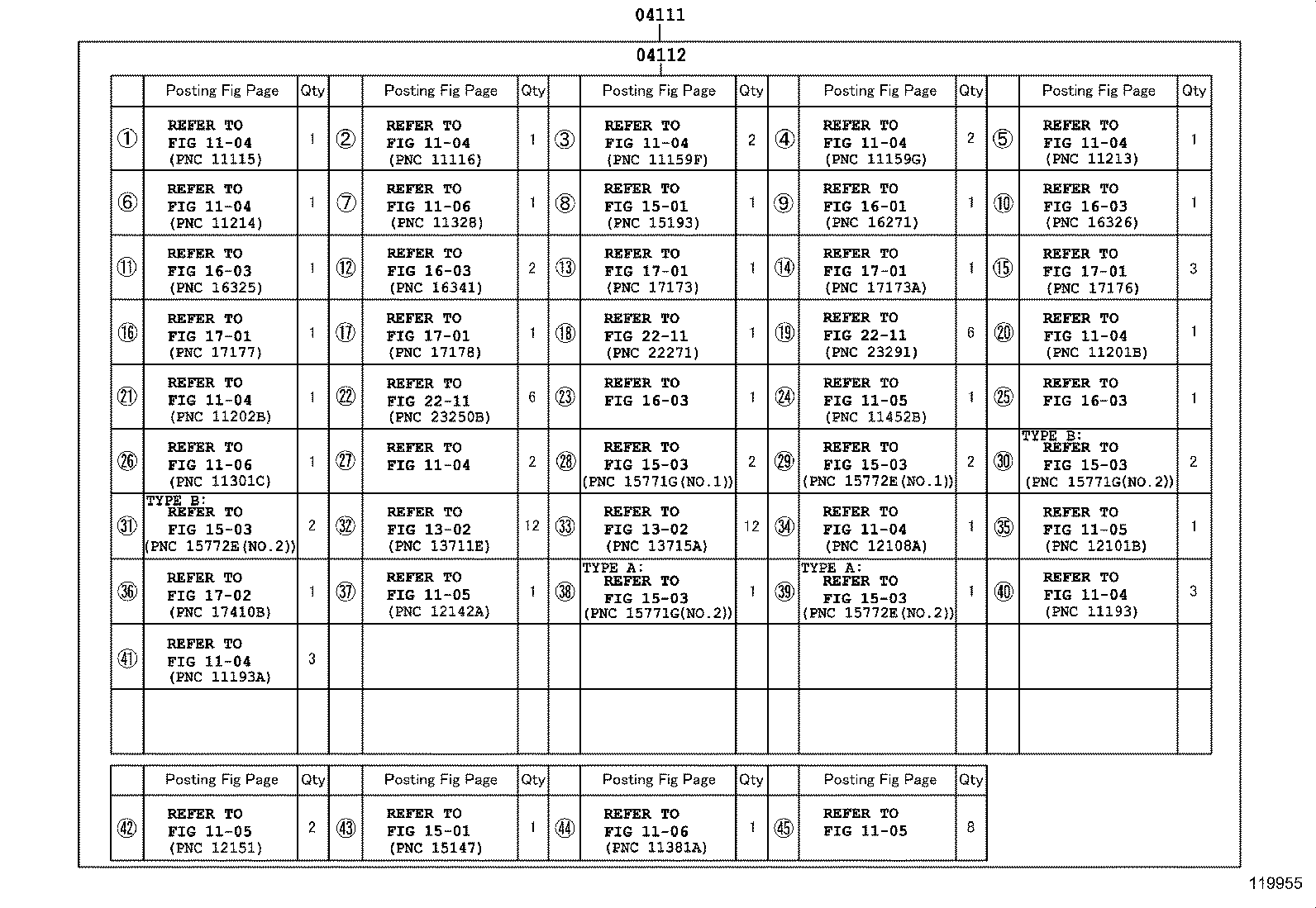

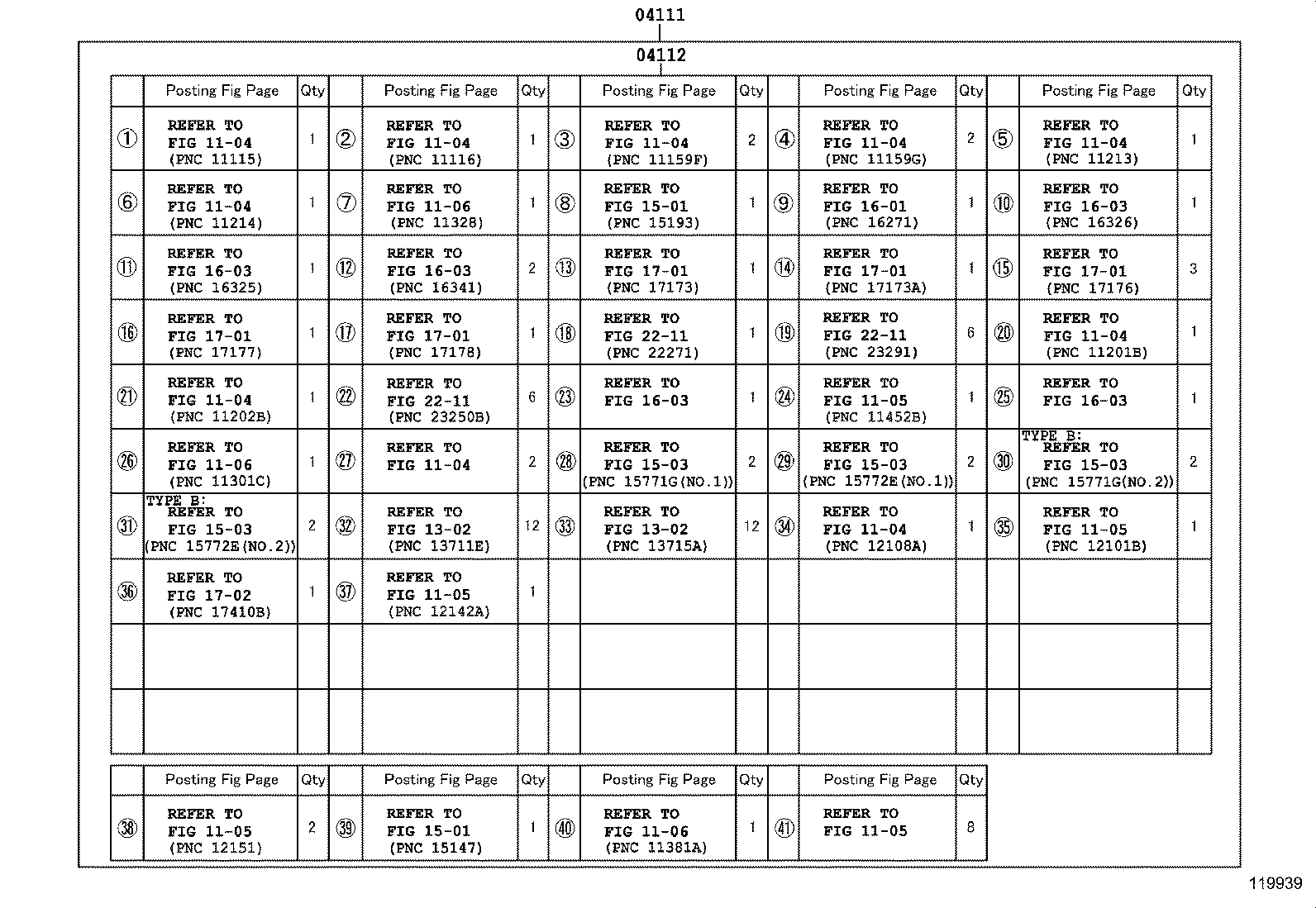

Figure 119932 119932 2005-01 → 2007-07 Figure 119933 119933 2005-01 → 2007-07 Figure 119938 119938 2007-07 → 2008-04 Figure 119939 119939 2007-07 → 2008-04 Figure 119952 119952 2008-04 → 2009-03 Figure 119953 119953 2008-04 → 2009-03 Figure 119954 119954 2009-03 → 2009-11 Figure 119955 119955 2009-03 → 2009-11 Figure 119940 119940 2009-11 → — Figure 119941 119941 2009-11 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
