Toyota Avalon

2005-01 → 2012-10 · chassis GSX30 · catalogue 361430 · United States

Supported model Data version 2013-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

5 part groups · 2 illustrations

Illustrations

Figure 151731A

151731A 2005-01 → 2007-07

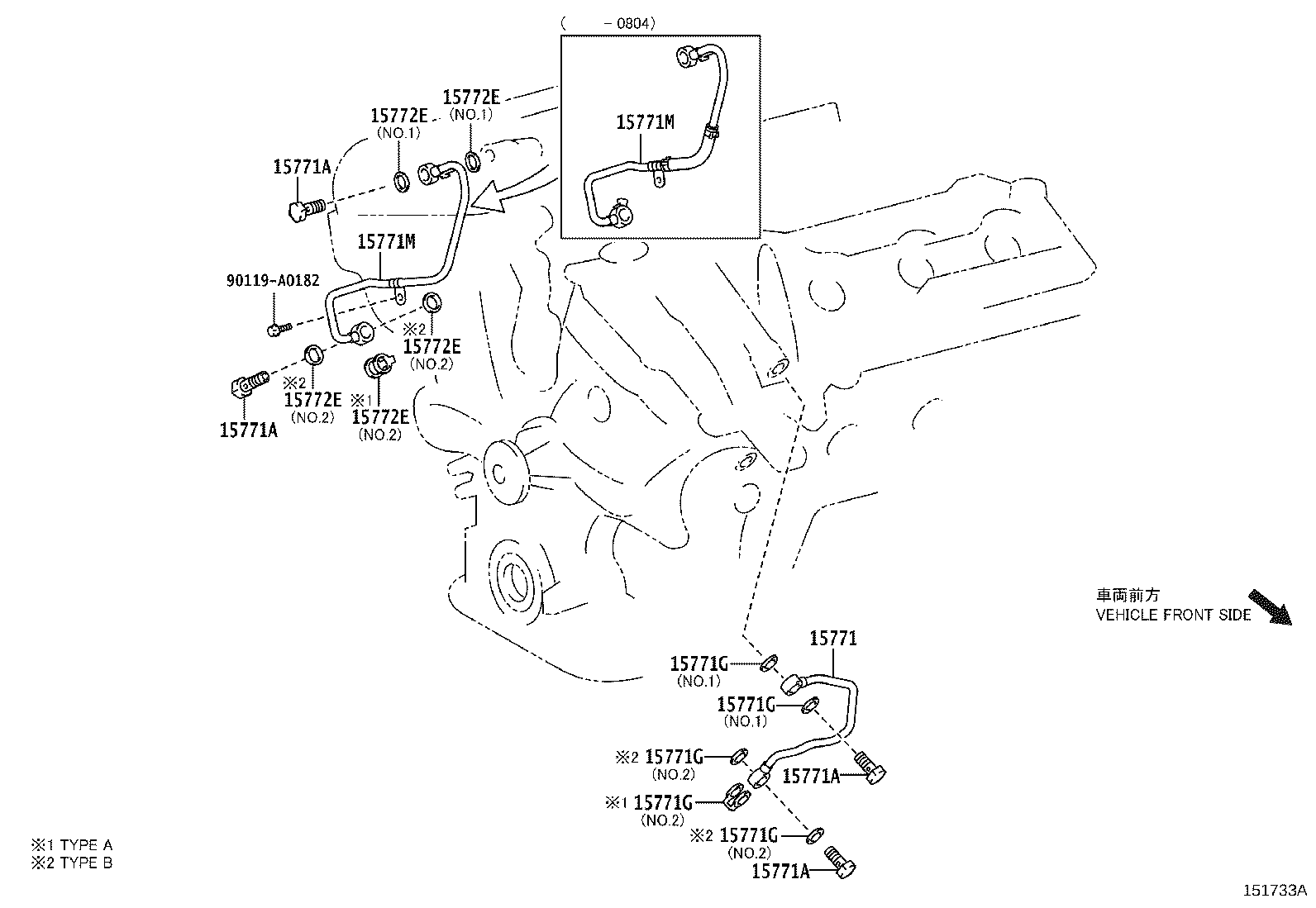

Figure 151733A

151733A 2007-07 → —

Part groups

PNC	Description
15771	Pipe, Oil, NO.1
15771A	Union(FOR OIL PIPE)
15771G	Gasket
15771M	Pipe, Oil
15772E	Gasket(FOR OIL PIPE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
