Toyota Avalon
2005-01 → 2012-10 · chassis GSX30 · catalogue 361430 · United States
Supported model
Data version 2013-04

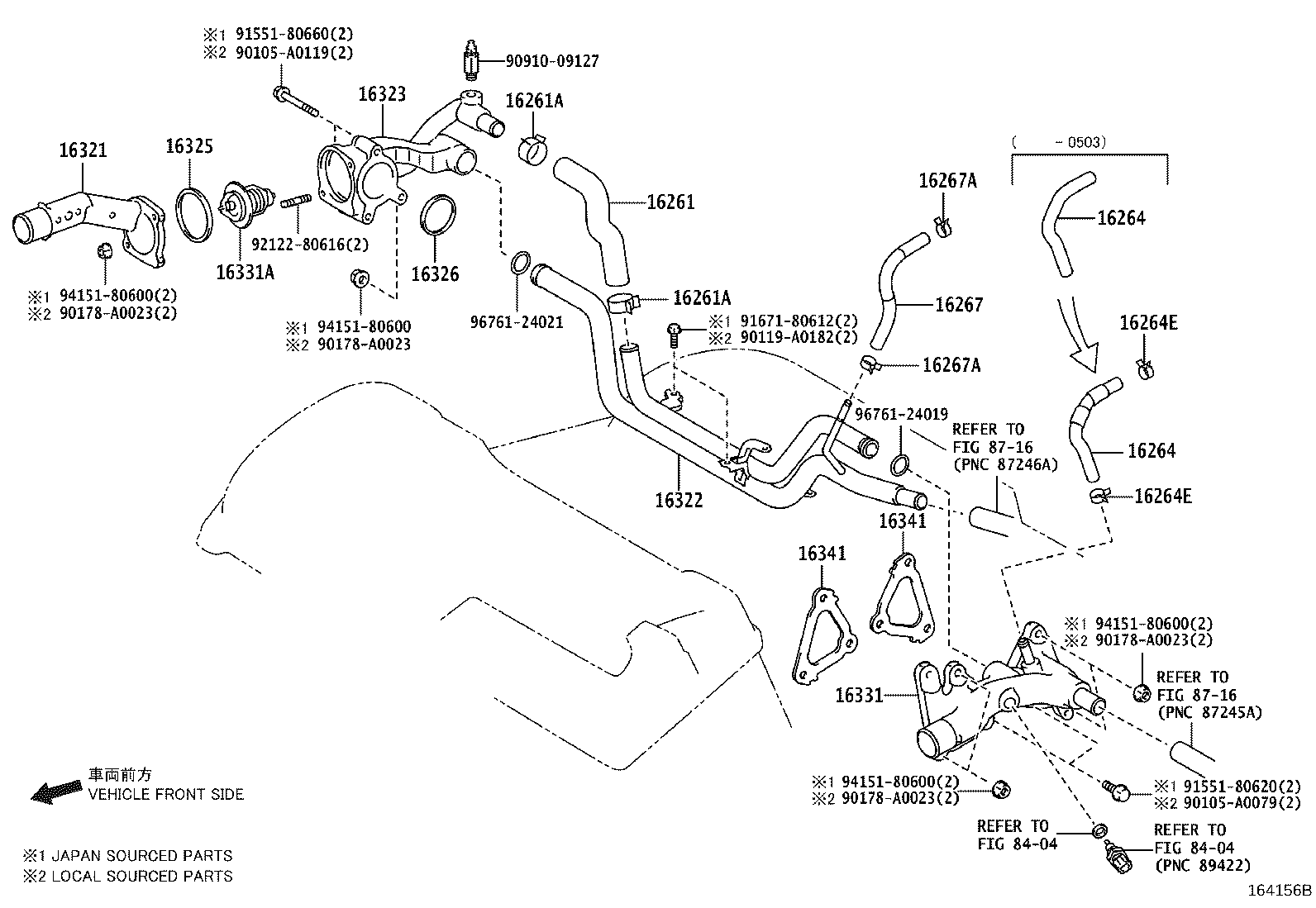

Radiator & Water Outlet
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16321 | Inlet, Water |
| 16322 | Pipe, Water Inlet |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16341 | Gasket, Water Outlet |
| 16361 | Fan |
| 16361B | Fan, NO.2 |
| 16363 | Motor, Cooling Fan |
| 16363A | Motor, Cooling Fan, NO.2 |
| 16400 | Radiator Assy |
| 16400A | Cock Sub-assy, Radiator Drain |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16470C | Bracket(FOR RADIATOR RESERVE TANK) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16523A | Cushion, Radiator Support |
| 16535 | Support, Radiator, Lower |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16571C | Hose, Radiator, NO.1 |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572D | Hose, Radiator, NO.2 |
| 16711 | Shroud, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
