Toyota Avalon
2005-01 → 2012-10 · chassis GSX30 · catalogue 361430 · United States
Supported model
Data version 2013-04

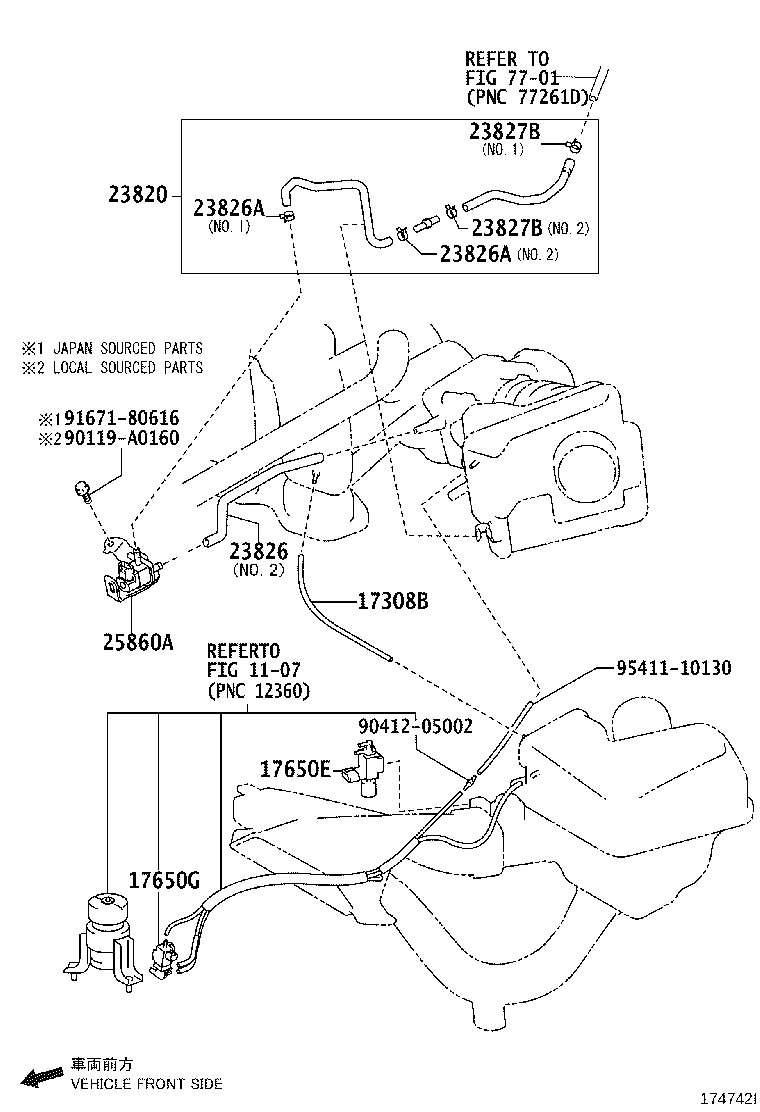

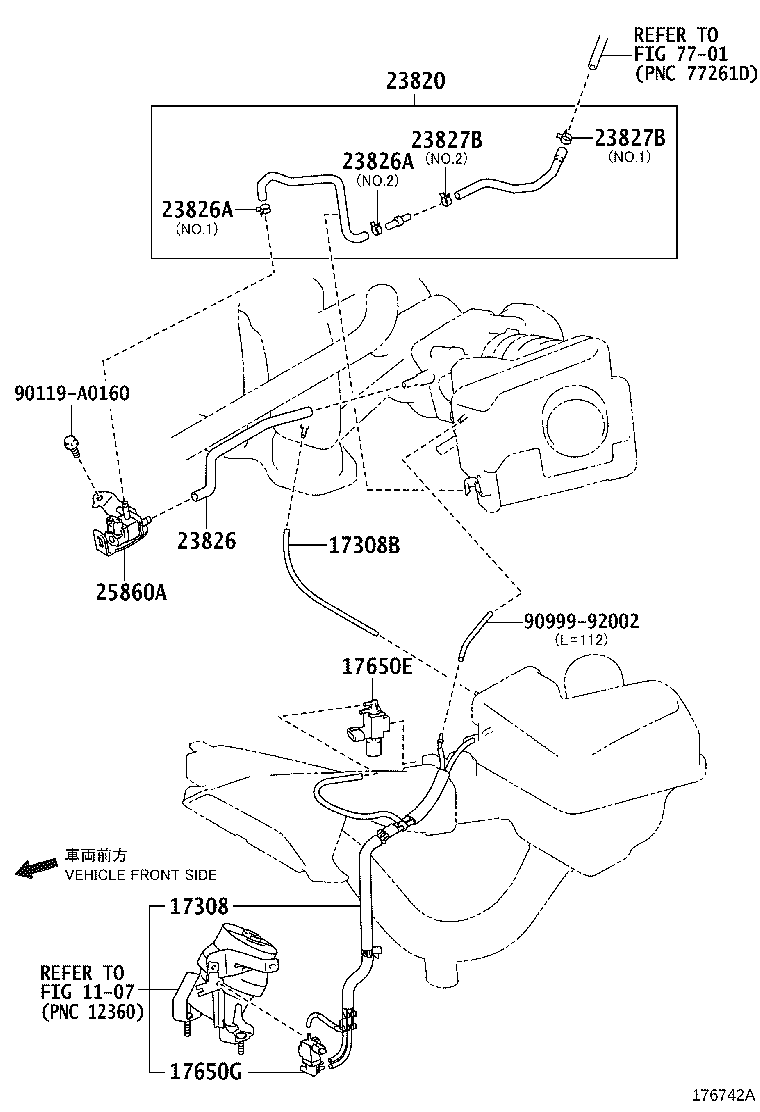

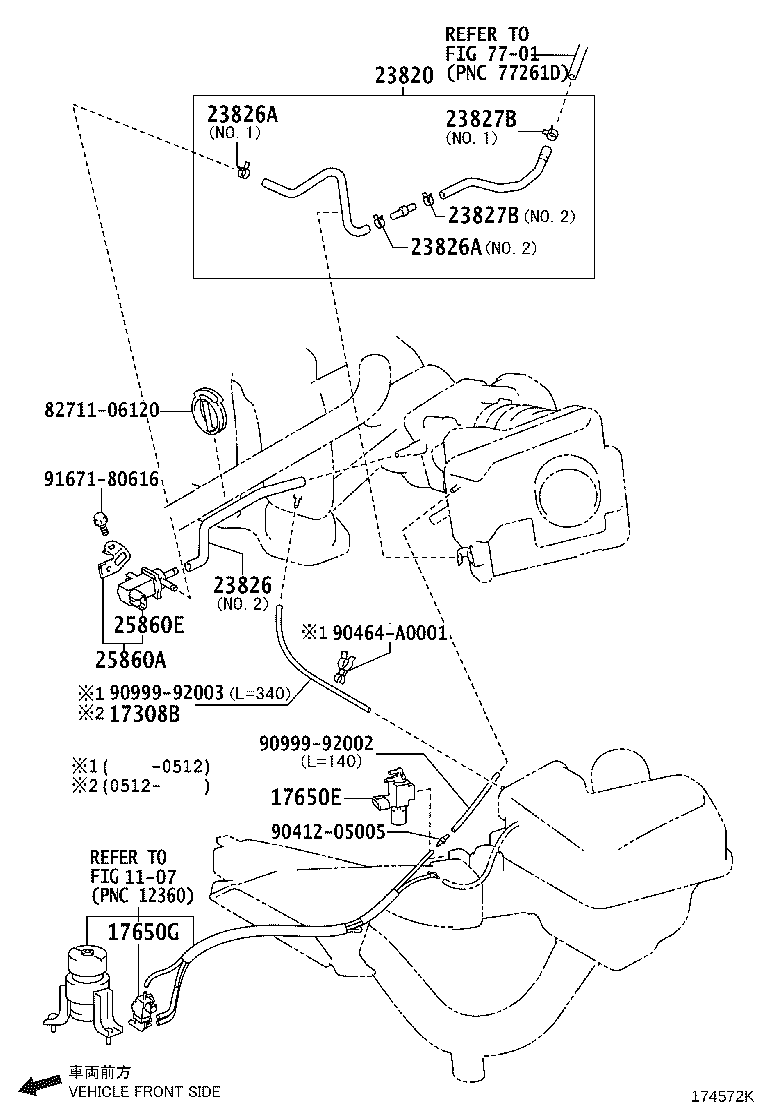

Vacuum Piping
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308 | Hose Sub-assy, Vacuum(FOR IDLE-UP) |
| 17308B | Hose Sub-assy, Vacuum |
| 17650E | Valve, Vacuum Switching |
| 17650G | Valve, Duty Vacuum Switching |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25719 | Tank, Vacuum Surge |
| 25860A | Valve, Vacuum Switching, NO.1 |
| 25860E | Valve, Vacuum Switching, NO.2 |
| 77739 | Valve, Evap Service Port |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
