Toyota Avalon

2005-01 → 2012-10 · chassis GSX30 · catalogue 361430 · United States

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 3 illustrations

Illustrations

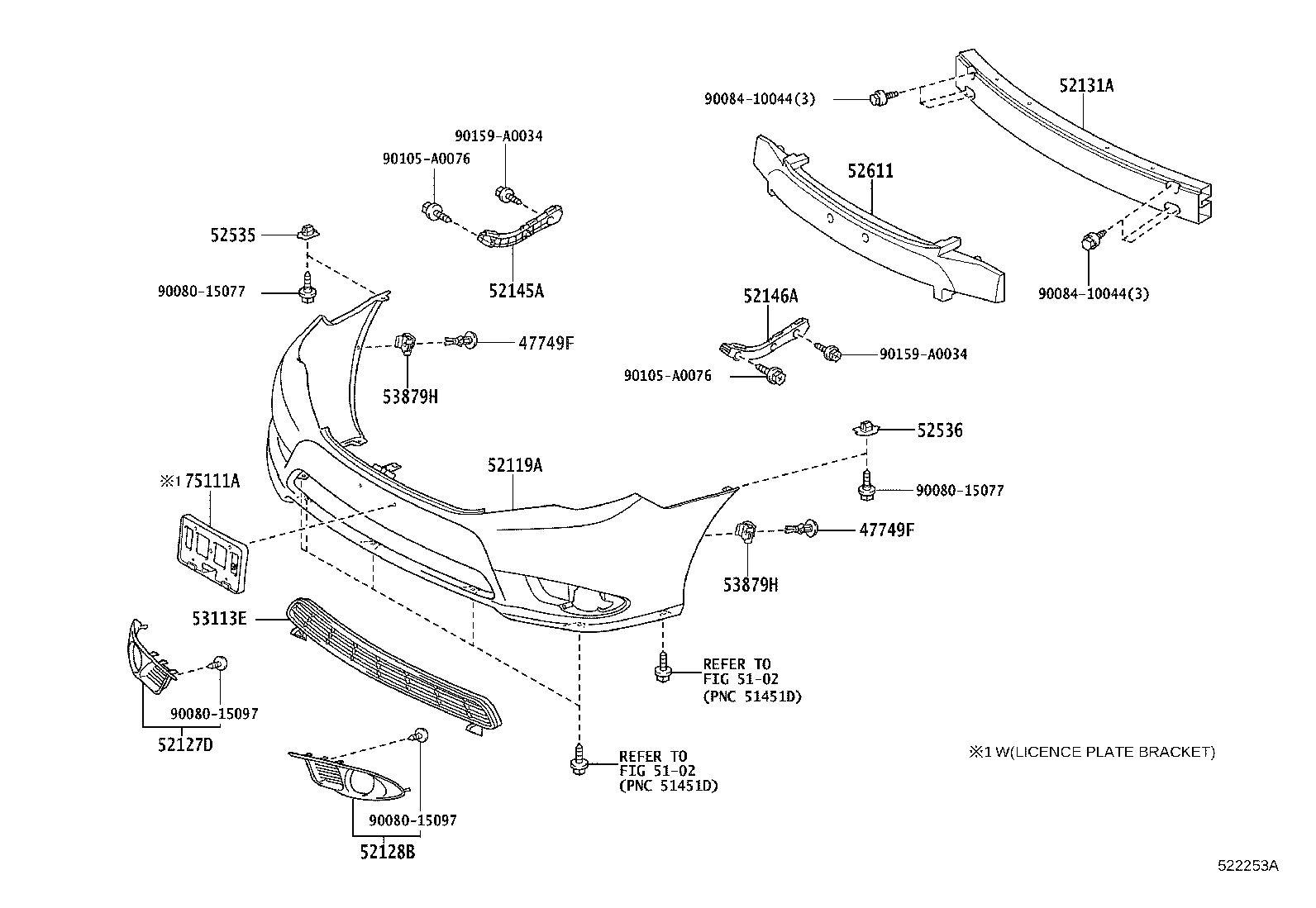

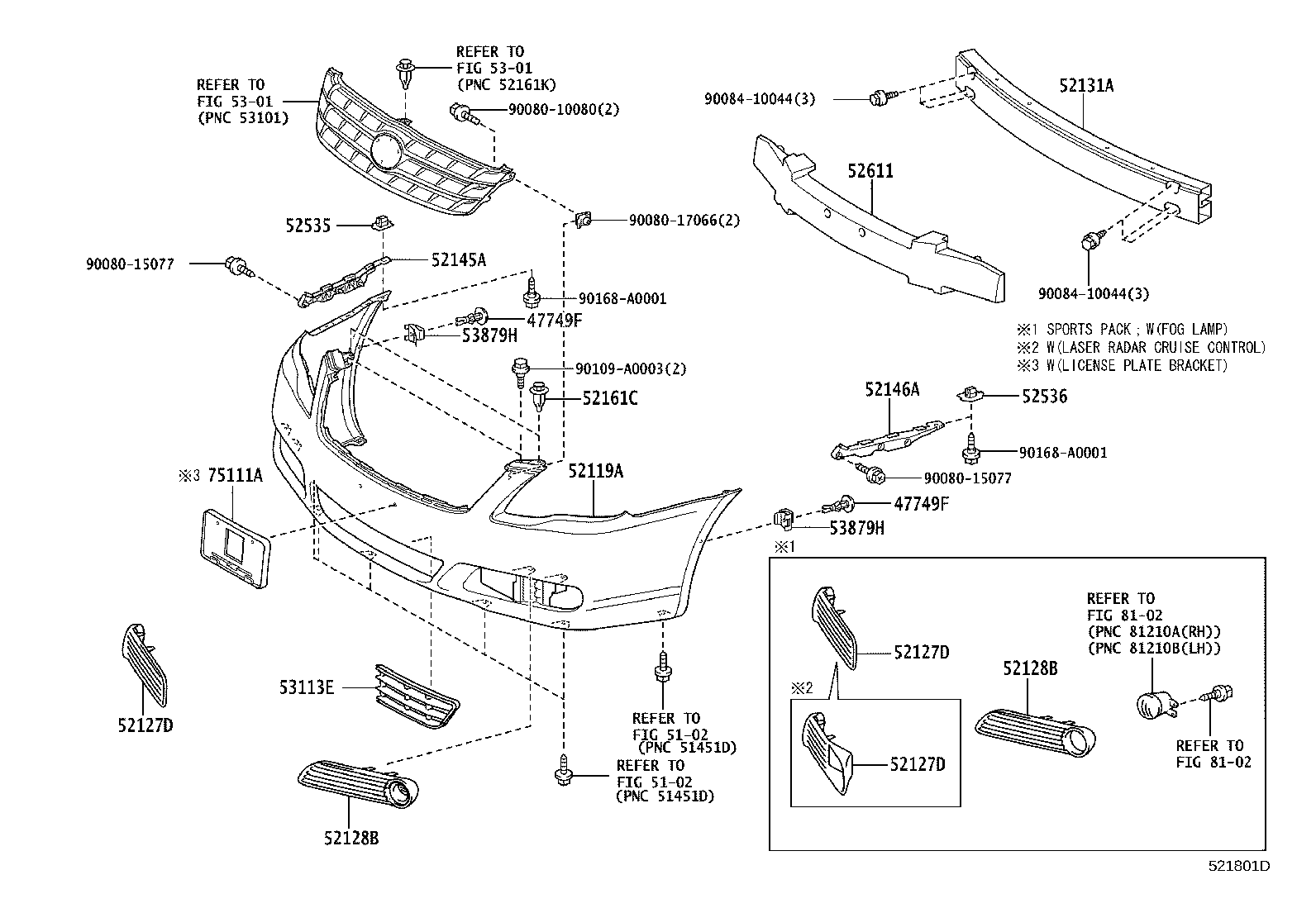

Figure 521294E 521294E 2005-01 → 2007-07 Figure 521801D 521801D 2007-07 → 2010-03 Figure 522253A 522253A 2010-03 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52128C Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
53113E Grille, Radiator, Lower NO.2
53879H Retainer, Front Fender Liner
75111A Bracket, Front License Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
