Toyota Avalon

2005-01 → 2012-10 · chassis GSX30 · catalogue 361430 · United States

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

14 part groups · 2 illustrations

Illustrations

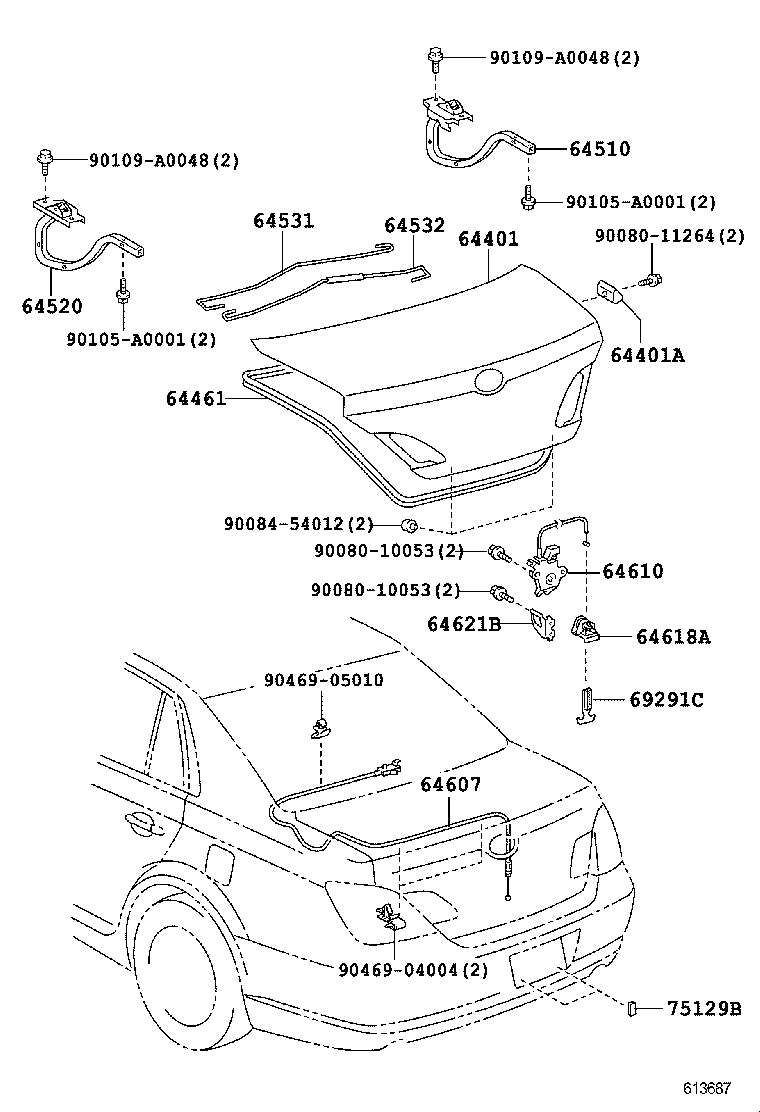

Figure 612218F 612218F 2005-01 → 2010-03 Figure 613687 613687 2010-03 → —

Part groups

PNCDescription
64401 Panel Sub-assy, Luggage Compartment Door
64401A Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461 Weatherstrip, Luggage Compartment Door
64510 Hinge Assy, Luggage Compartment Door, RH
64520 Hinge Assy, Luggage Compartment Door, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64607 Cable Sub-assy, Luggage Door Lock Control
64610 Lock Assy, Luggage Compartment Door
64618A Clamp, Luggage Lock Control Cable
64621B Striker, Luggage Compartment Door Lock
67481D Seal, Luggage Torsion Bar
69291C Handle, Luggage Compartment Door, Inside
75129B Cushion, Rear Licence Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
