Toyota Avalon
2005-01 → 2012-10 · chassis GSX30 · catalogue 361430 · United States
Supported model
Data version 2013-04

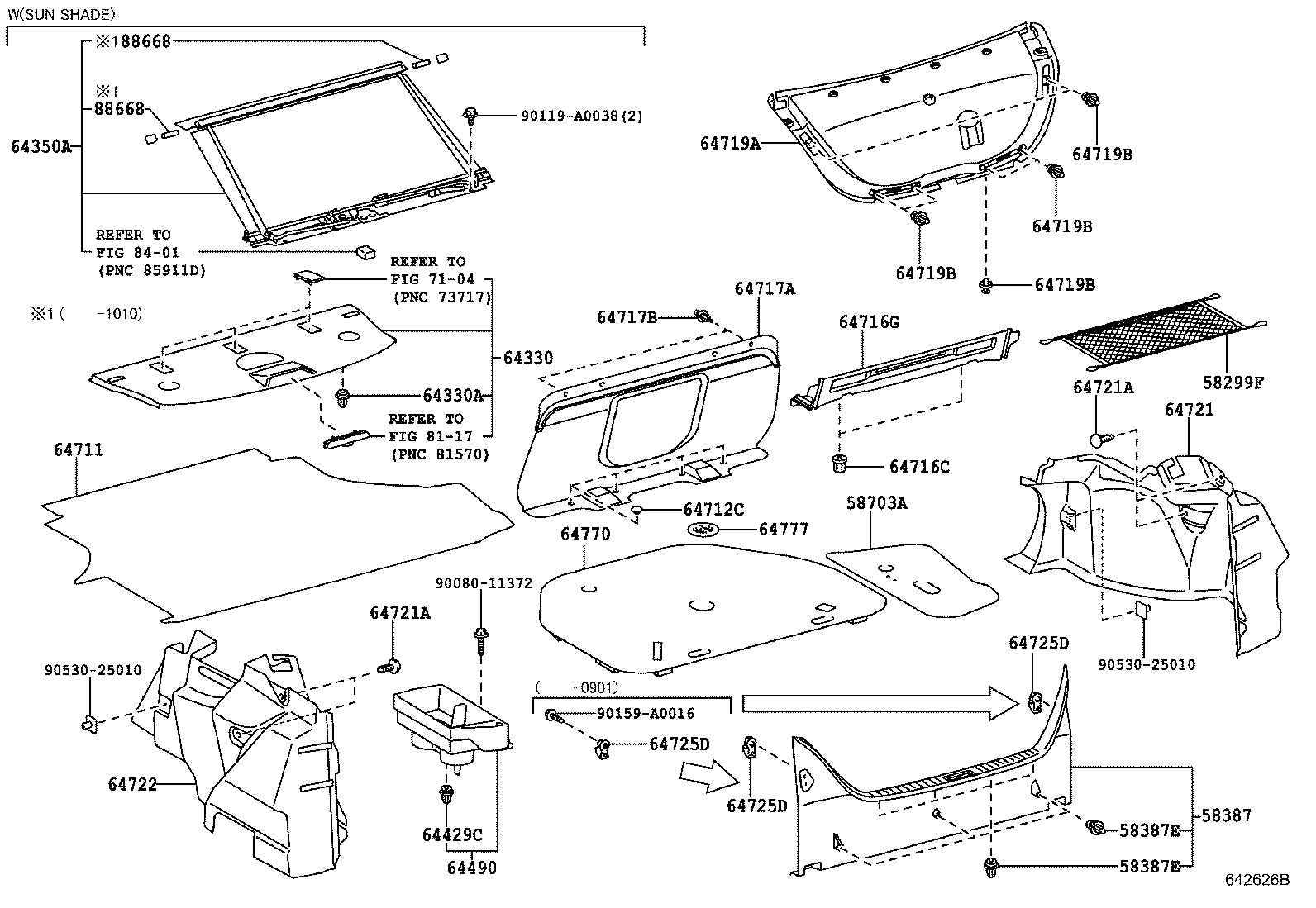

Package Tray Panel & Luggage Compartment Mat
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58299F | Net, Baggage Holder |
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58703A | Cover Sub-assy, Luggage Compartment Side, RH |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64350A | Shade Assy, Rear Window |
| 64429C | Clip(FOR LUGGAGE COMPARTMENT SIDE TRAY) |
| 64490 | Tray Assy, Luggage Compartment Side |
| 64711 | Mat, Luggage Compartment Floor |
| 64712C | Clip(FOR LUGGAGE COMPARTMENT TRIM COVER) |
| 64716C | Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) |
| 64716G | Cover, Luggage Compartment Trim, Rear |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64721C | Clip(LUGGAGE COMPARTMENT) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64770 | Cover Assy, Spare Wheel |
| 64777 | Clamp, Spare Wheel Cover |
| 88668 | Spacer, Rubber |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
