Toyota Avalon

2005-01 → 2012-10 · chassis GSX30 · catalogue 361430 · United States

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

81 part groups · 13 illustrations

Illustrations

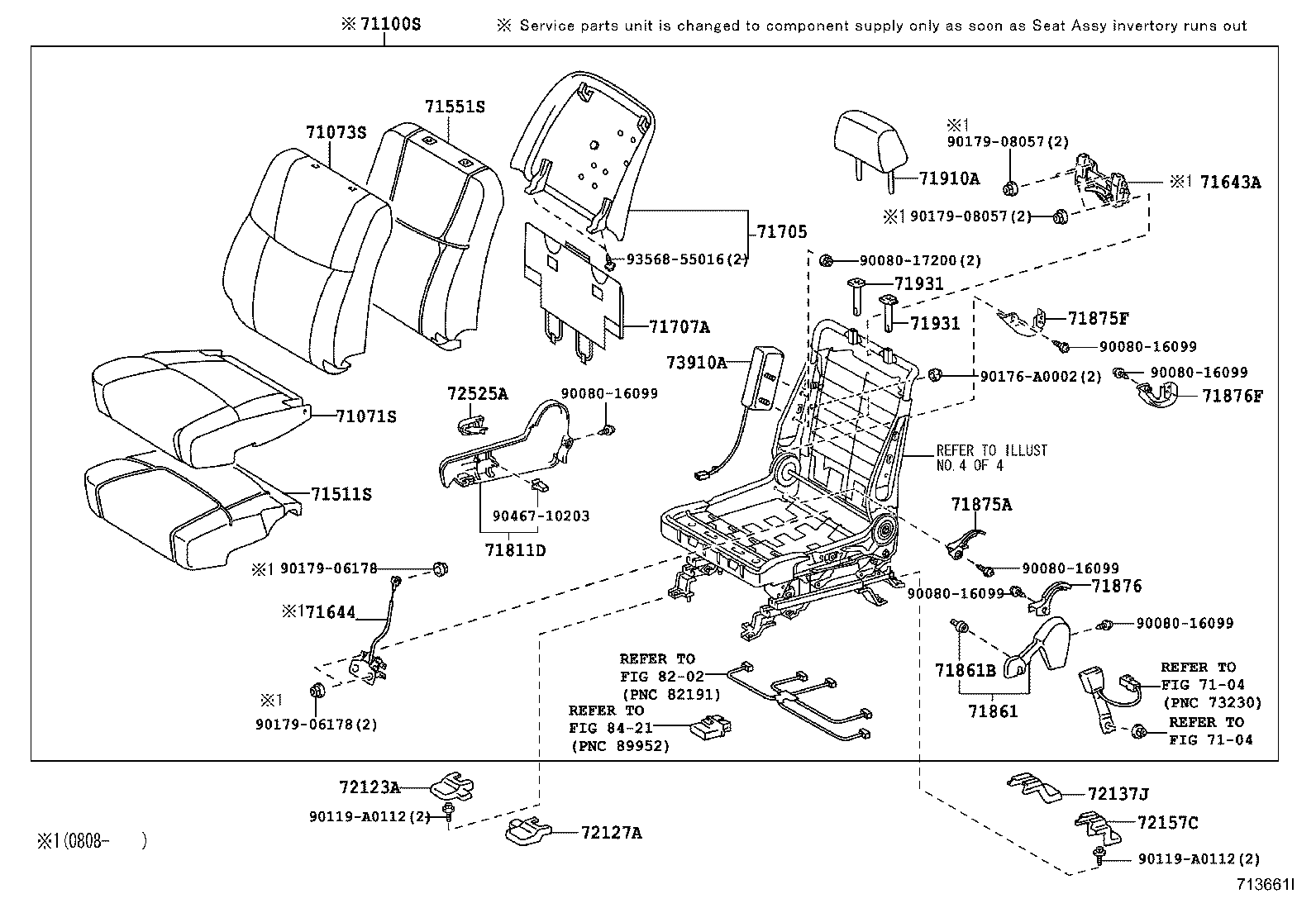

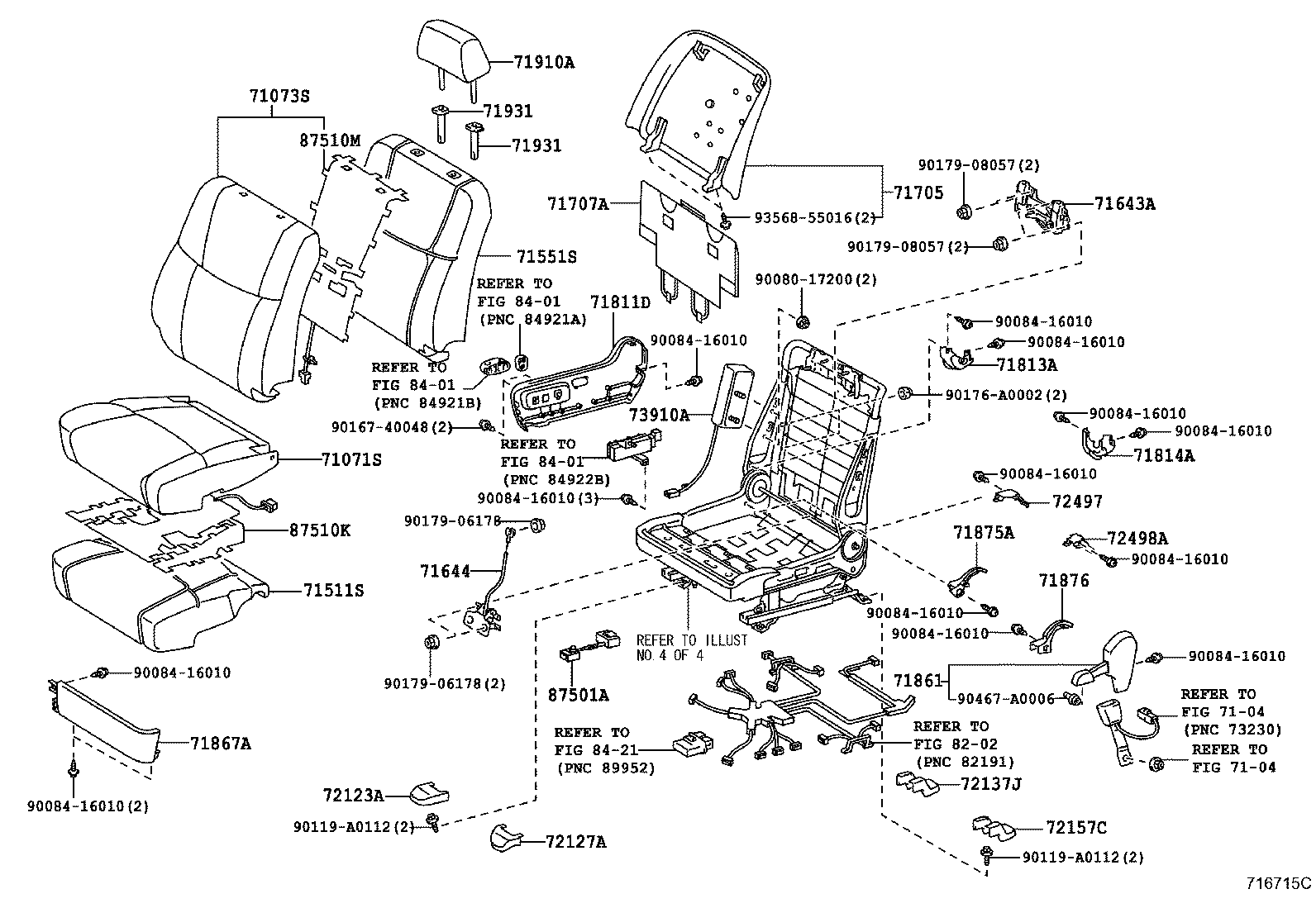

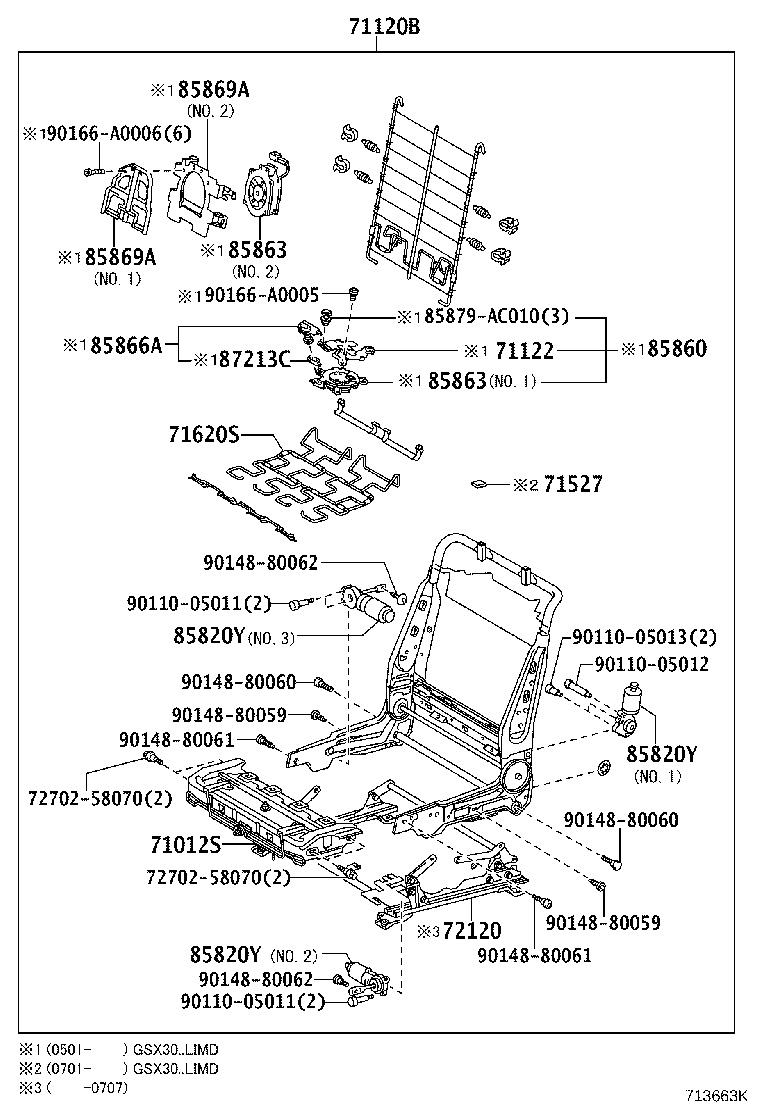

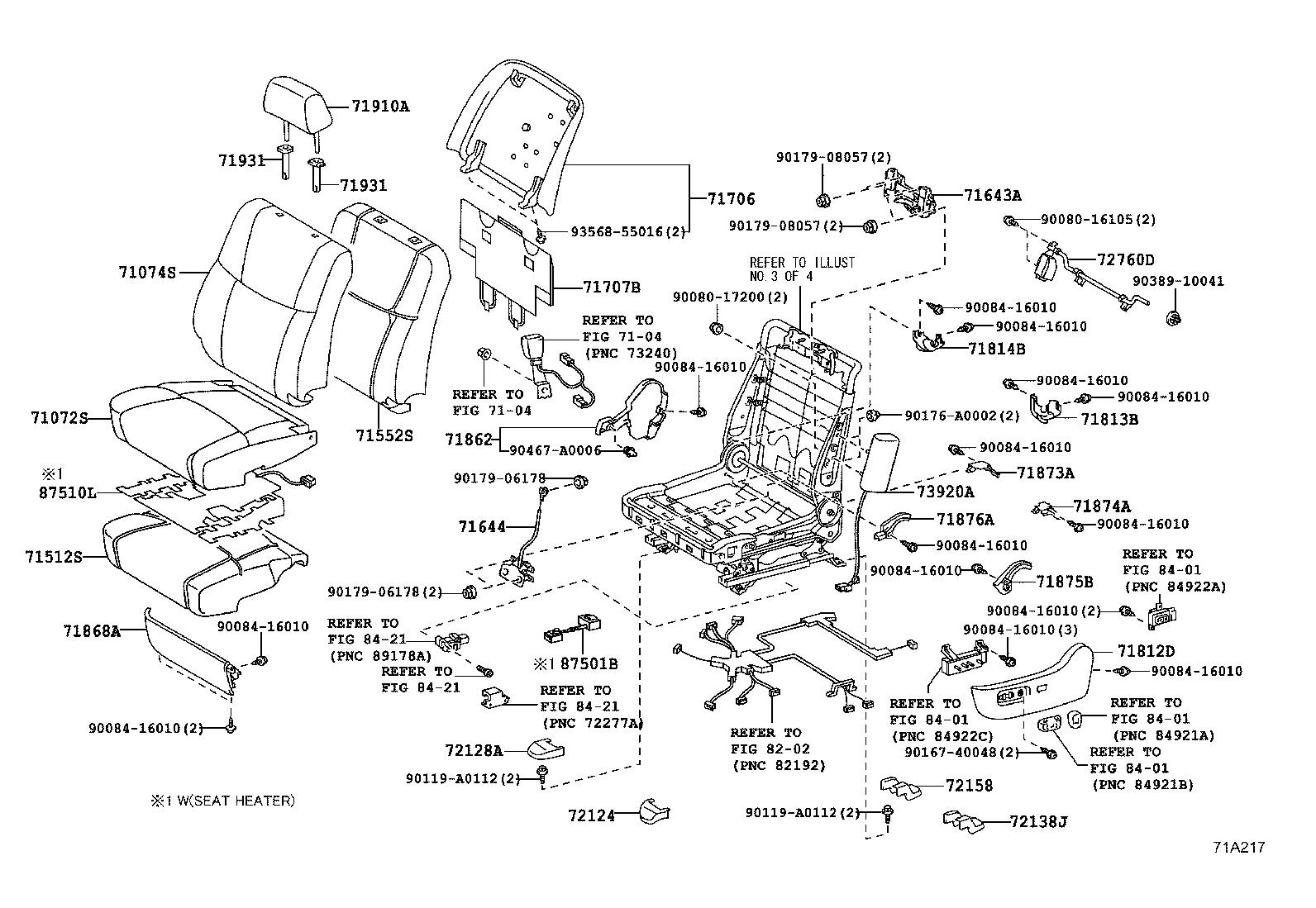

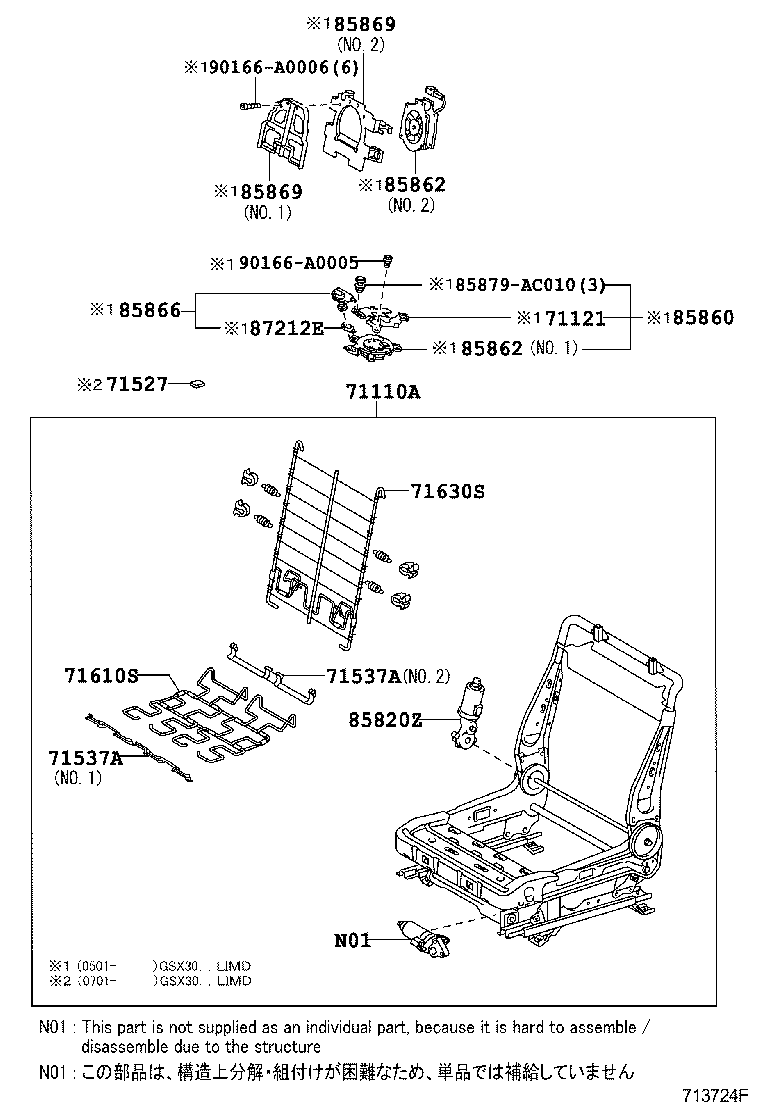

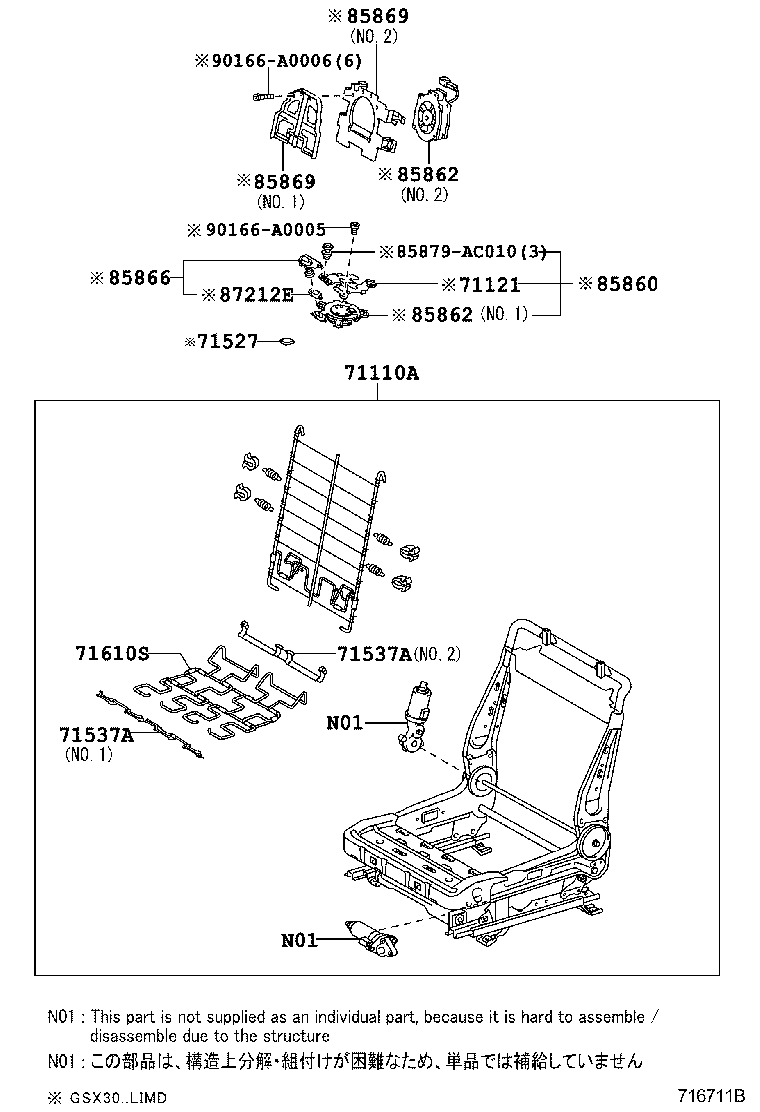

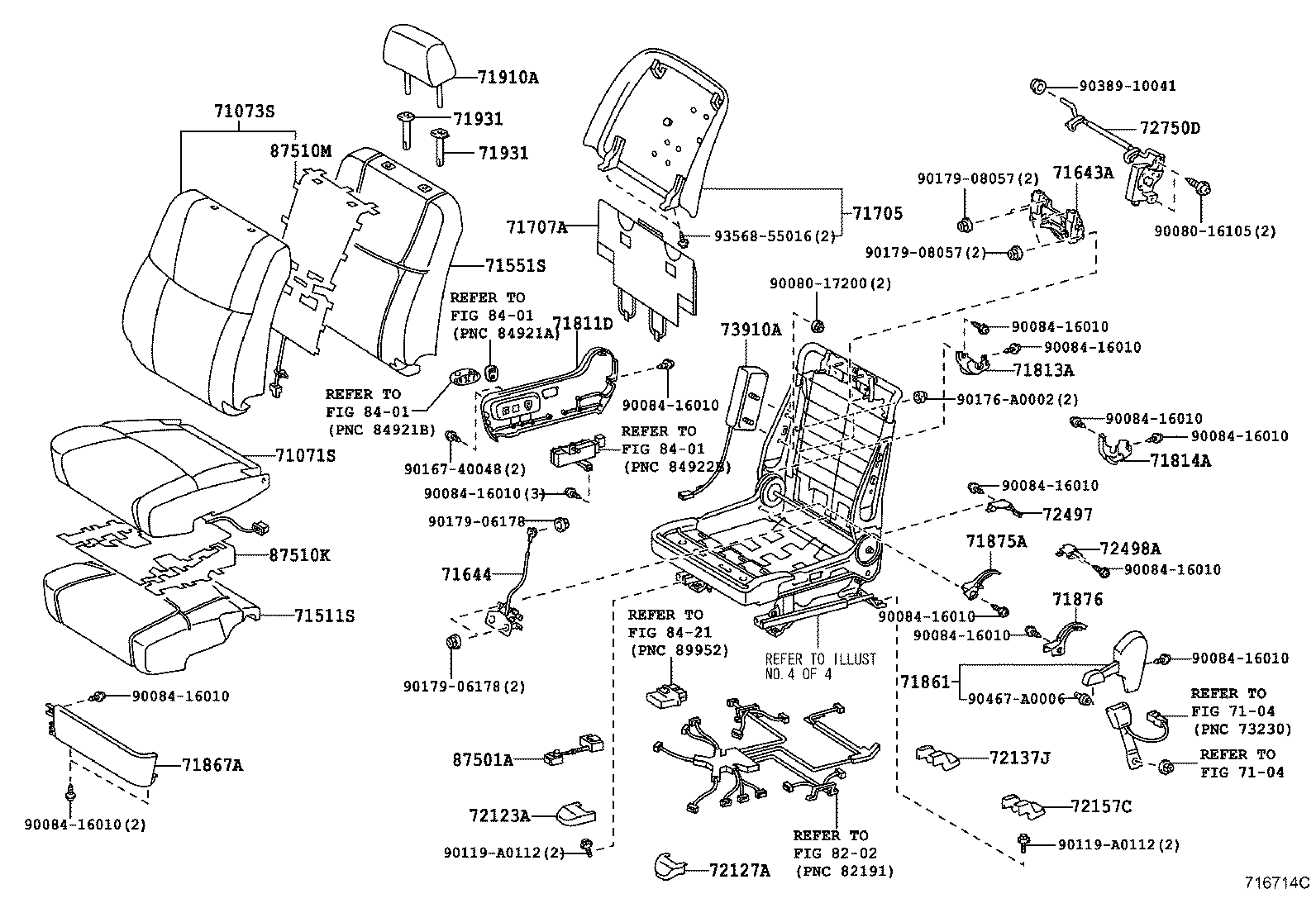

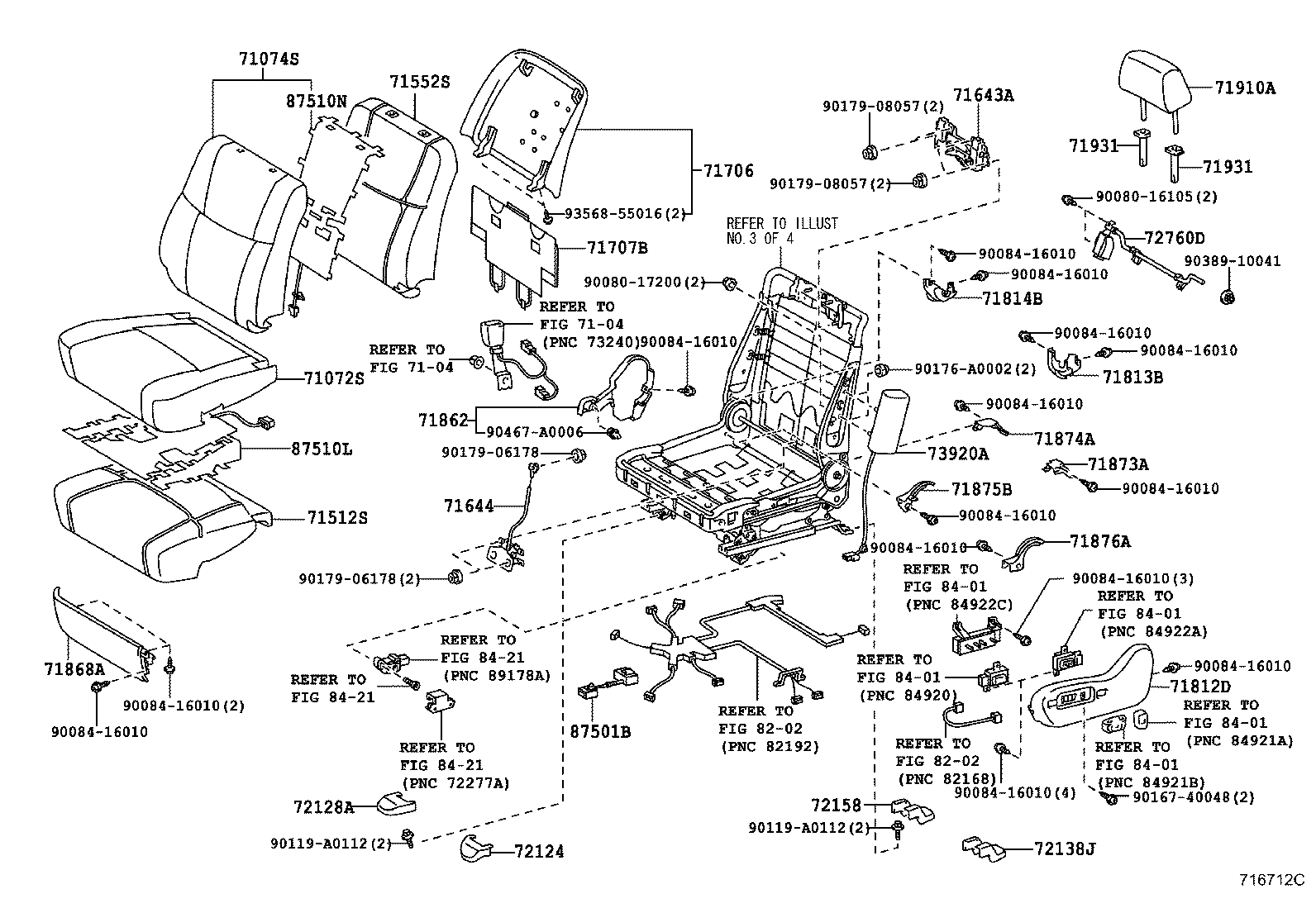

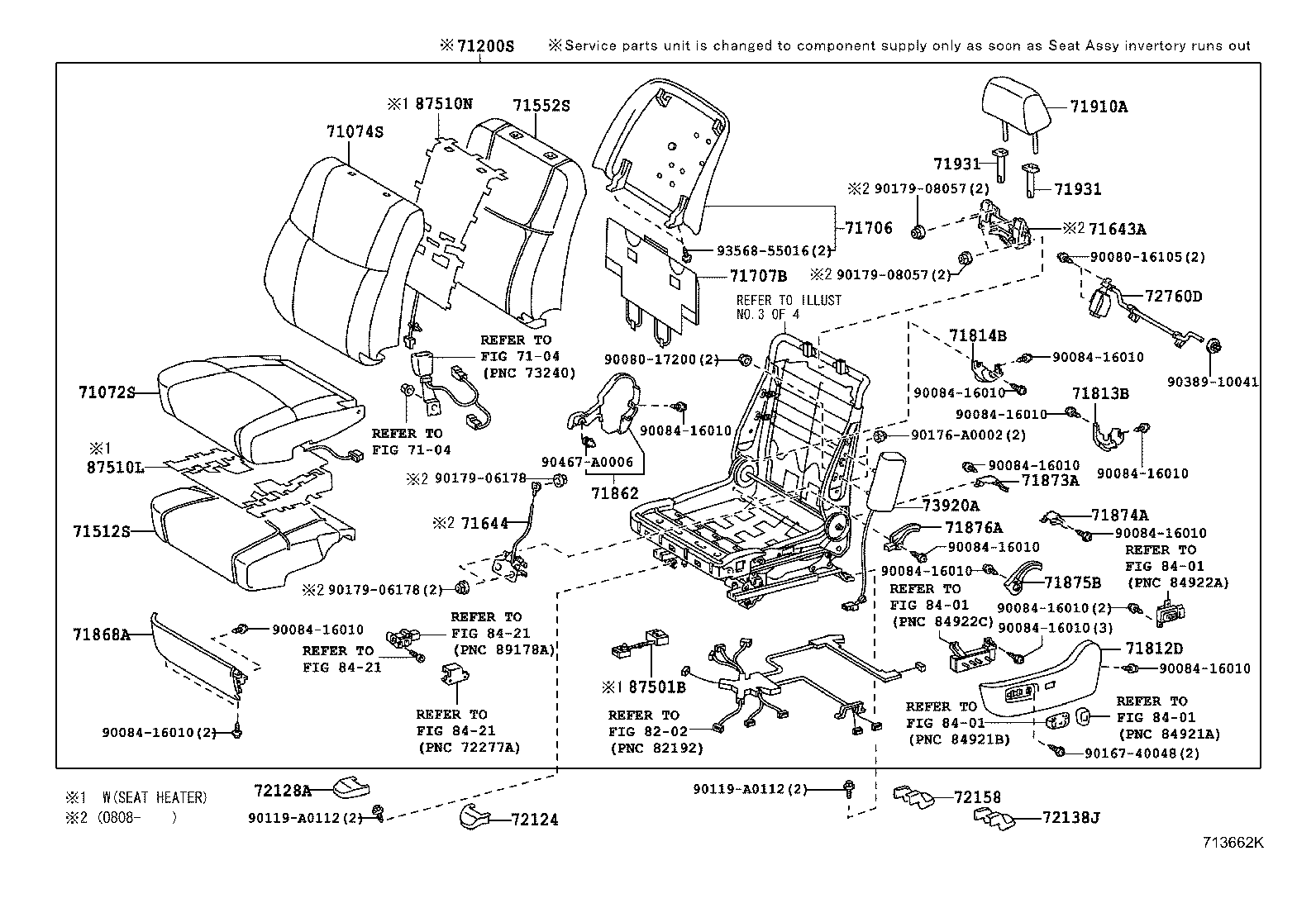

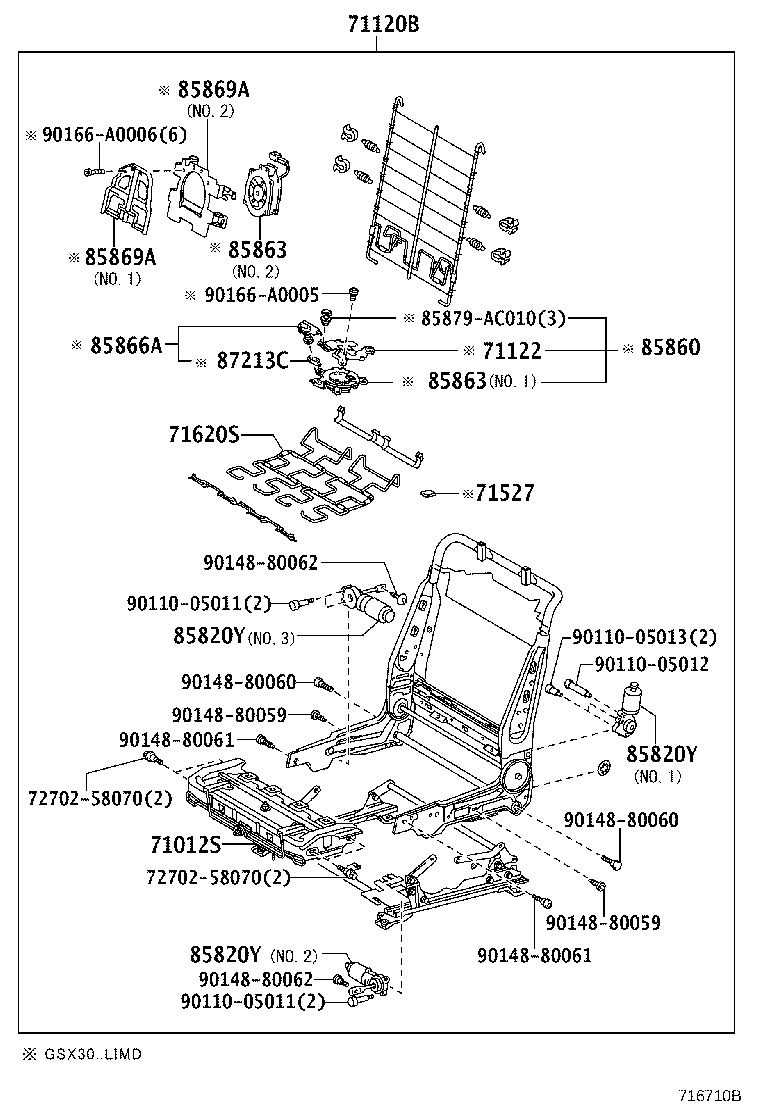

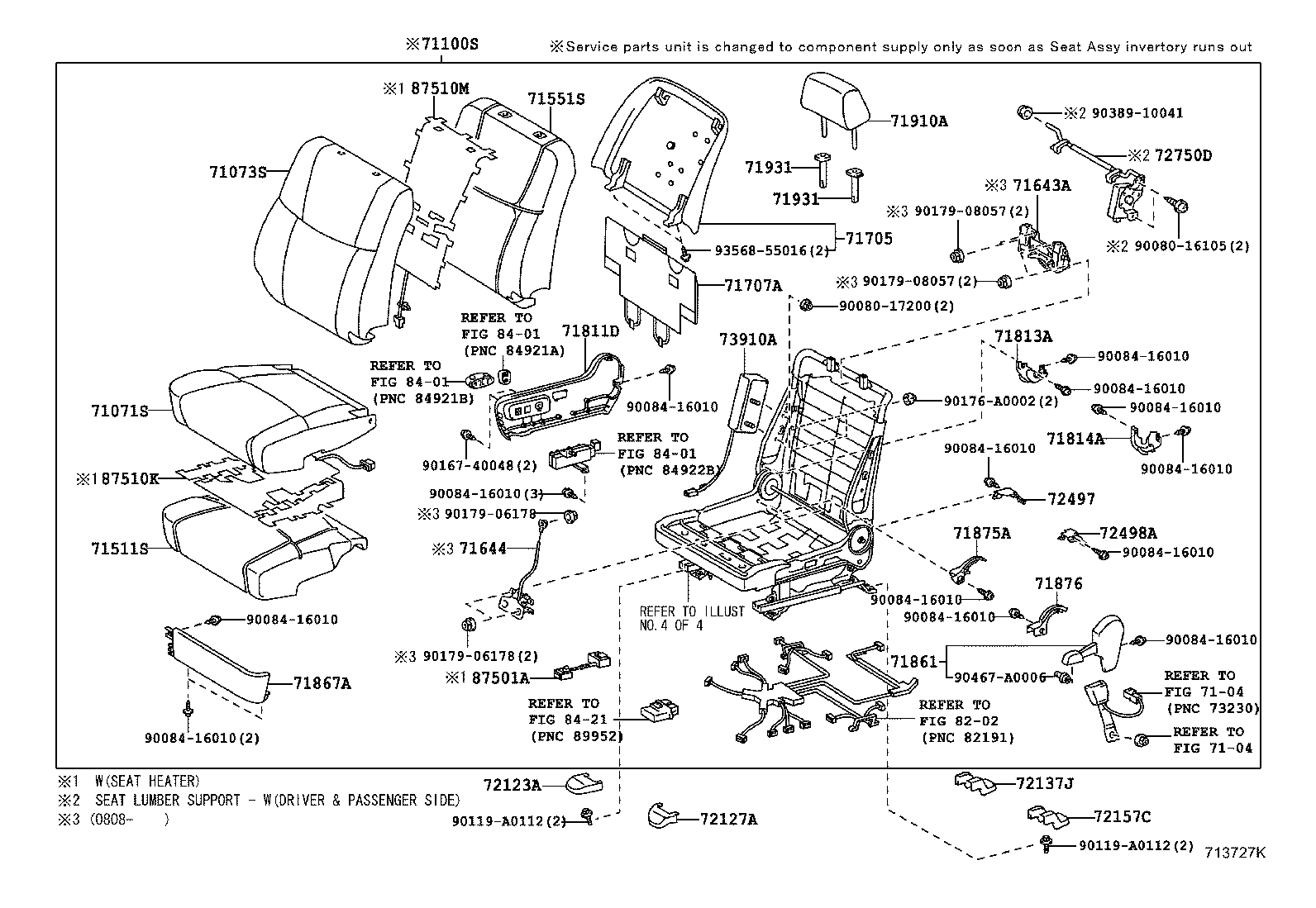

Figure 713659M 713659M 2005-01 → 2010-03 Figure 716712C 716712C 2010-03 → — Figure 713662K 713662K 2005-01 → 2010-03 Figure 71A217 71A217 2010-03 → — Figure 713727K 713727K 2005-01 → 2010-03 Figure 716714C 716714C 2010-03 → — Figure 716715C 716715C 2010-03 → — Figure 713661I 713661I 2005-01 → — Figure 713663K 713663K 2005-01 → 2010-03 Figure 716710B 716710B 2010-03 → — Figure 713724F 713724F 2005-01 → 2010-03 Figure 716711B 716711B 2010-03 → — Figure 713675B 713675B 2005-01 → —

Part groups

PNCDescription
71012S Frame Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71121 Bracket, Front Seat Cushion, RH
71122 Bracket, Front Seat Cushion, LH
71200S Seat Assy, Front LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71527 Tape, Front Seat Cushion Silencer
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71643A Unit, Active Headrest, Upr
71644 Unit, Active Headrest, Lwr
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71707A Cover Sub-assy, Front Seatback Board
71707B Cover Sub-assy, Front Seatback Board
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71813A Shield, Front Seatback, RH
71813B Shield, Front Seatback, RH
71814A Shield, Front Seatback, LH
71814B Shield, Front Seatback, LH
71861 Shield, Front Seat Cushion, Inner RH
71861B Clip(FOR FRONT SEAT SHIELD, RH)
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873A Shield, Front Seat Cushion, Lower
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72120 Track Assy, Front Seat, Outer LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137J Cover, Front Seat Track, RH Rear Outer
72138J Cover, Front Seat Track, LH Rear Outer
72157C Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72201A Handle Sub-assy, Seat Track RH
72497 Cover, Vertical Adjuster Bracket, Outer
72498A Cover, Vertical Adjuster Bracket, LH
72525A Handle, Reclining Adjuster Release, RH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
85820Y Motor Assy, Power Seat
85820Z Motor Assy, Power Seat
85860 Blower Assy, Seat Cushion Climate Control
85862 Blower, Seat Climate Control, RH
85863 Blower, Seat Climate Control, LH
85866 Duct, Seat Cushion Climate Control, RH
85866A Duct, Seat Cushion Climate Control, LH
85869 Cover, Seatback Climate Control, RH
85869A Cover, Seatback Climate Control, LH
87212E Duct, Air, Rear RH
87213C Duct, Air, Rear LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
