Toyota Avalon

2005-01 → 2012-10 · chassis GSX30 · catalogue 361430 · United States

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

21 part groups · 2 illustrations

Illustrations

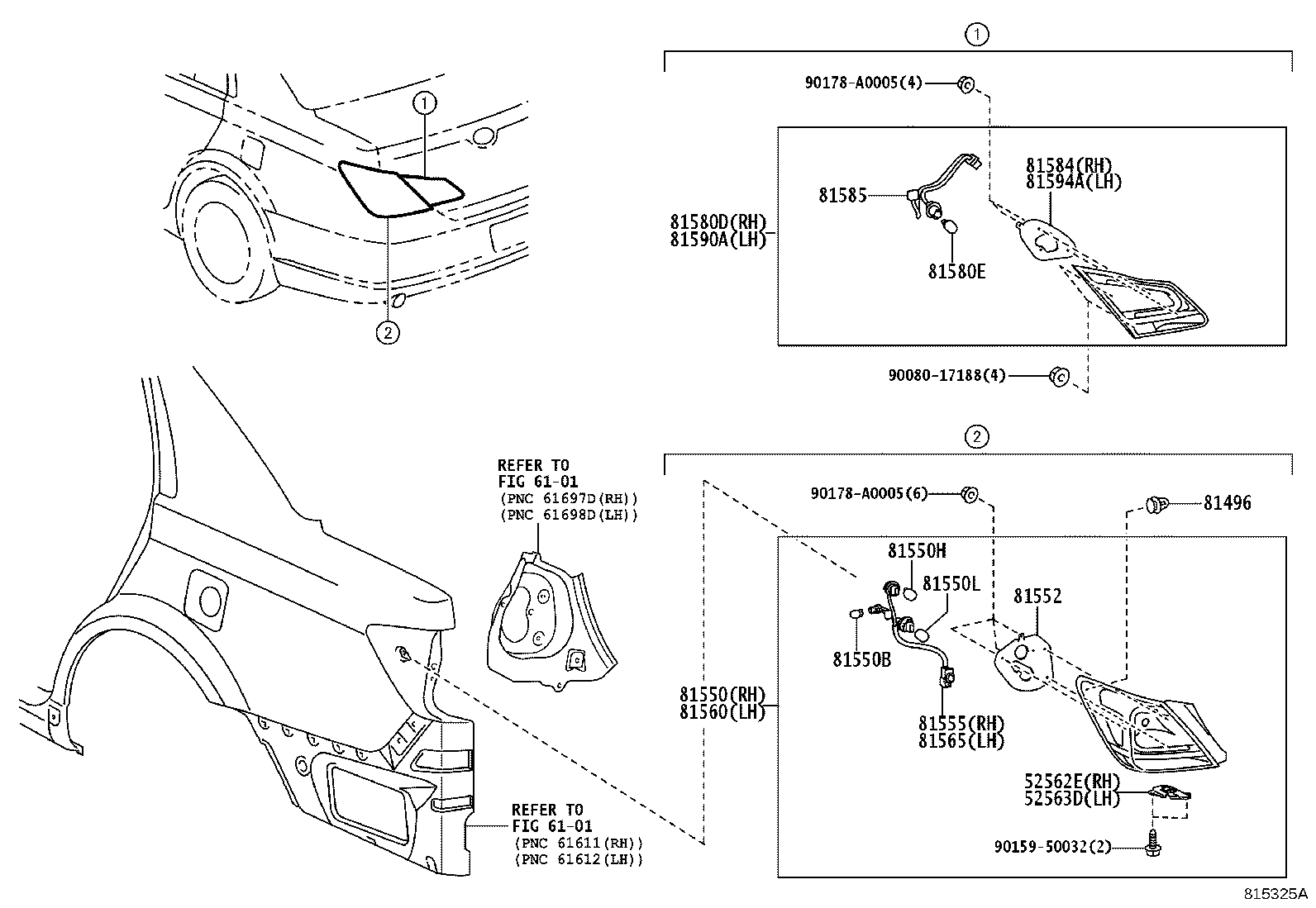

Figure 817740A 817740A 2005-01 → 2010-03 Figure 815325A 815325A 2010-03 → —

Part groups

PNCDescription
52562E Retainer, Rear Bumper, Upper RH
52563D Retainer, Rear Bumper, Upper LH
58385B Bracket, Rear Bumper Cover, RH
58386D Bracket, Rear Bumper Cover, LH
81496 Guide, Rear Combination Lamp
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81552 Gasket, Rear Combination Lamp Lens, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580B Bulb (FOR REAR LAMP)
81580D Lamp Assy, Rear, RH
81580E Bulb
81584 Packing, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81590A Lamp Assy, Rear, LH
81594A Gasket, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
