Toyota Avalon

2005-01 → 2012-10 · chassis GSX30 · catalogue 361430 · United States

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

13 part groups · 3 illustrations

Illustrations

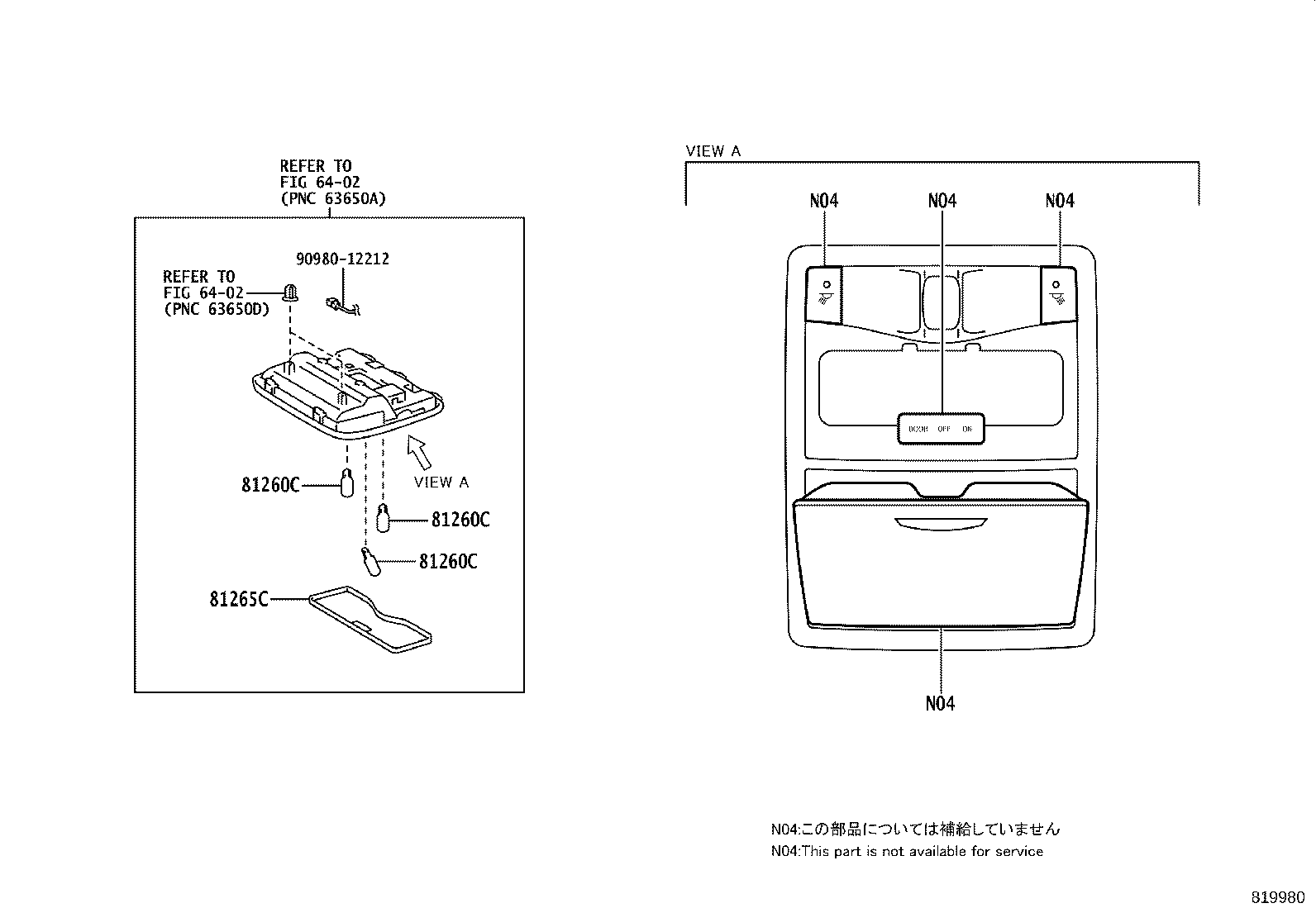

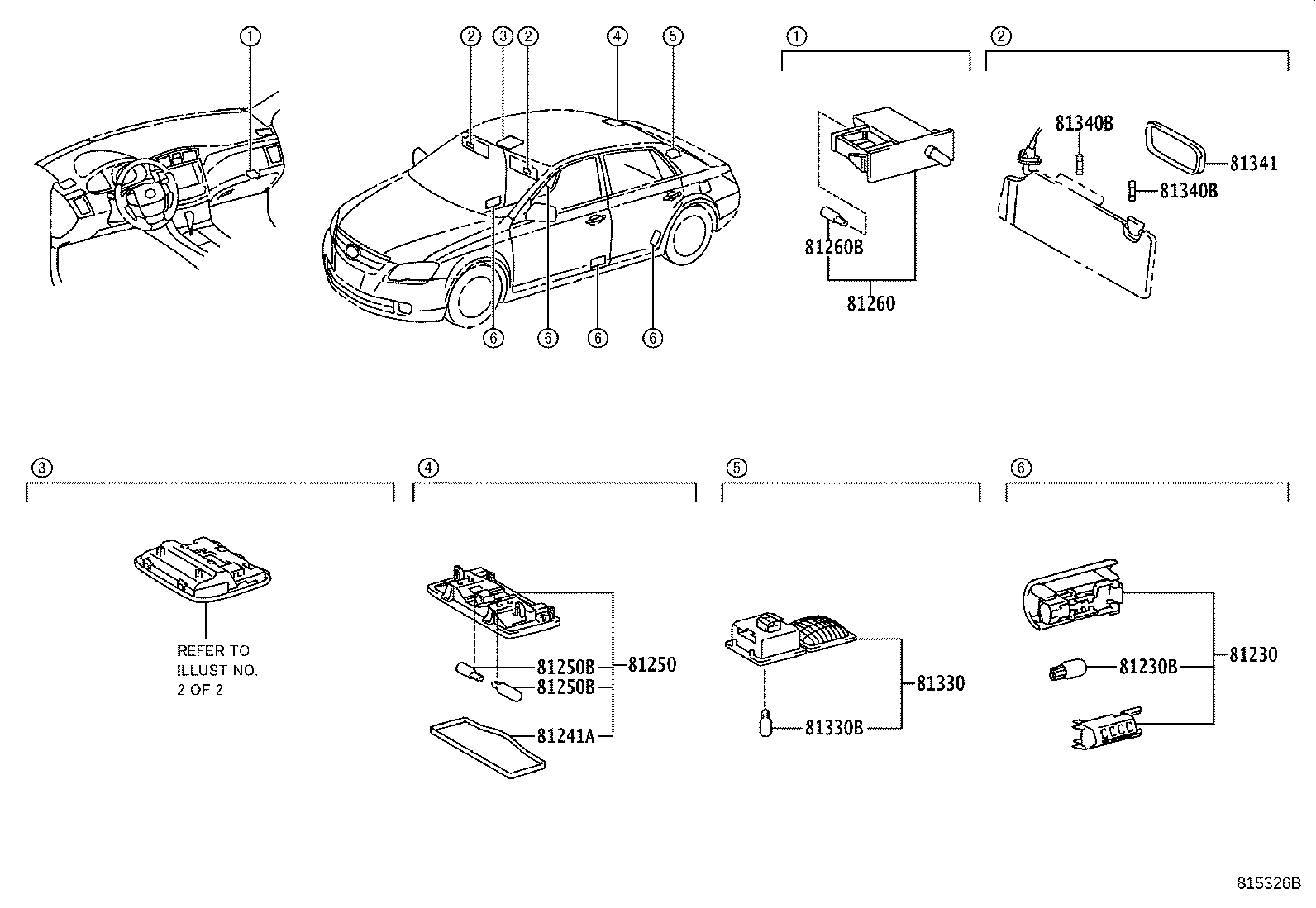

Figure 813083F 813083F 2005-01 → 2010-03 Figure 815326B 815326B 2010-03 → — Figure 819980 819980 2005-01 → —

Part groups

PNCDescription
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81241A Lens, Room Lamp, NO.2
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81260 Lamp Assy, Glove Box
81260B Bulb(FOR GLOVE BOX)
81260C Bulb(FOR MAP LAMP)
81265C Lens, Map Lamp, NO.1
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340B Bulb (FOR VANITY LAMP)
81341 Lens, Vanity Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
