Toyota Avalon

2005-01 → 2012-10 · chassis GSX30 · catalogue 361430 · United States

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

48 part groups · 12 illustrations

Illustrations

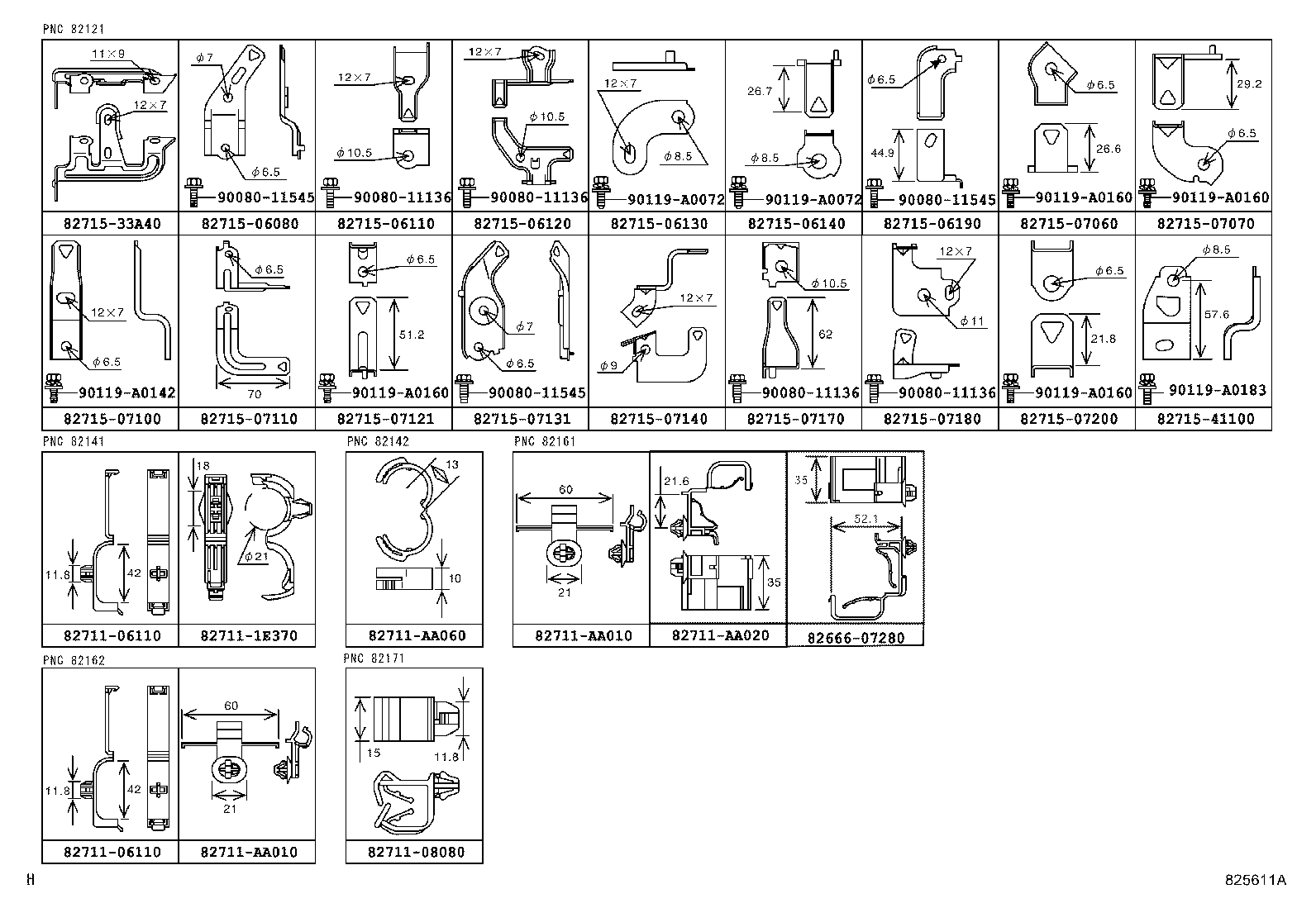

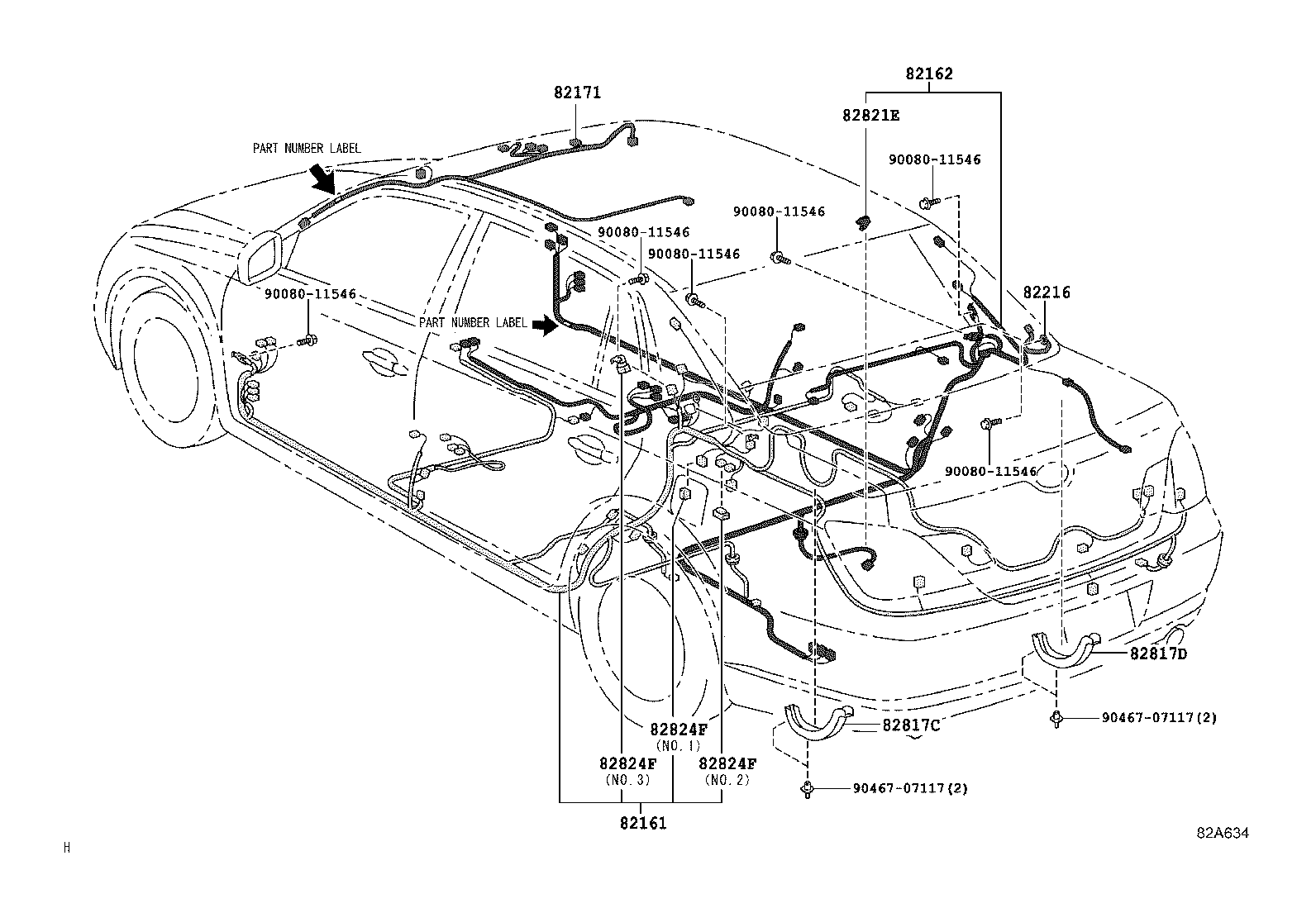

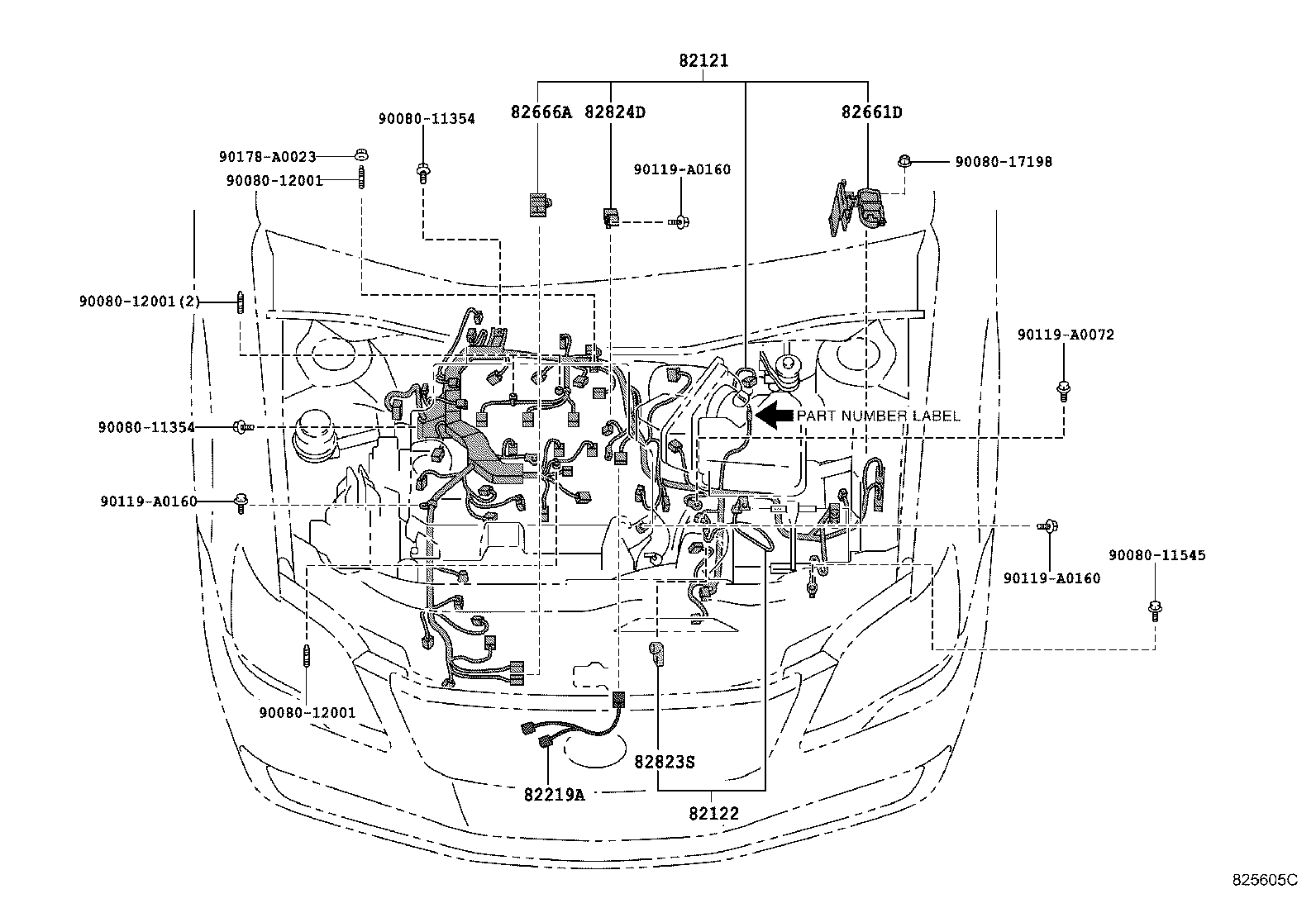

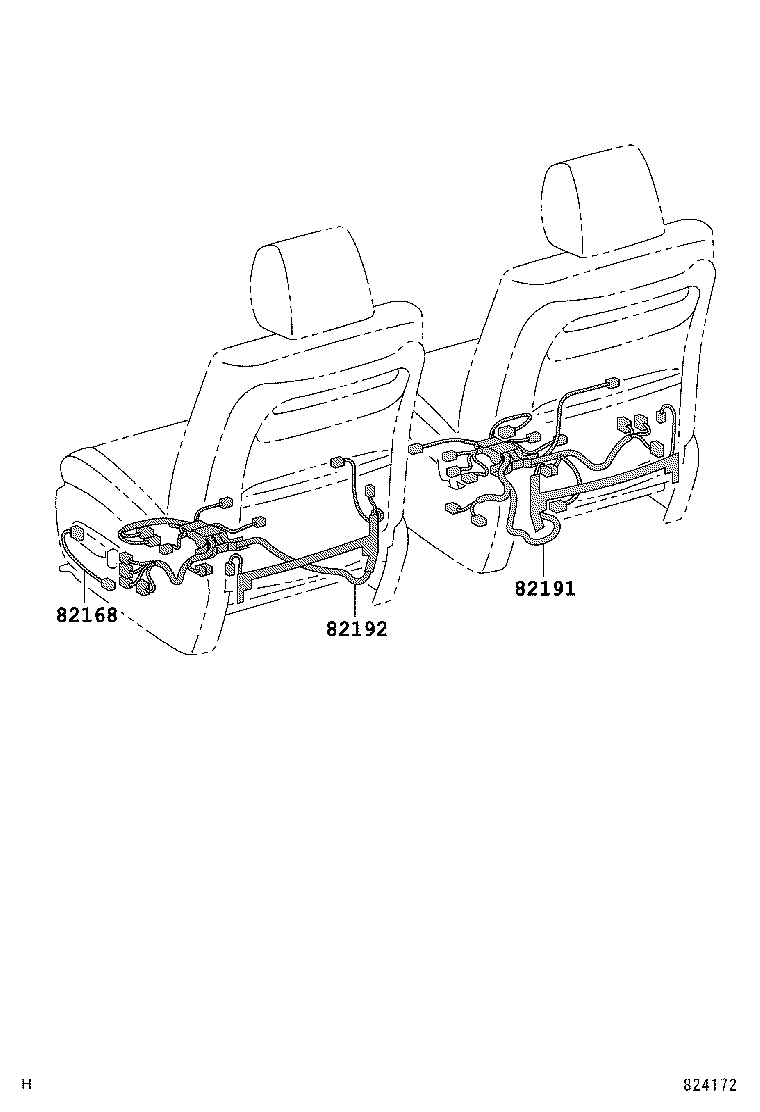

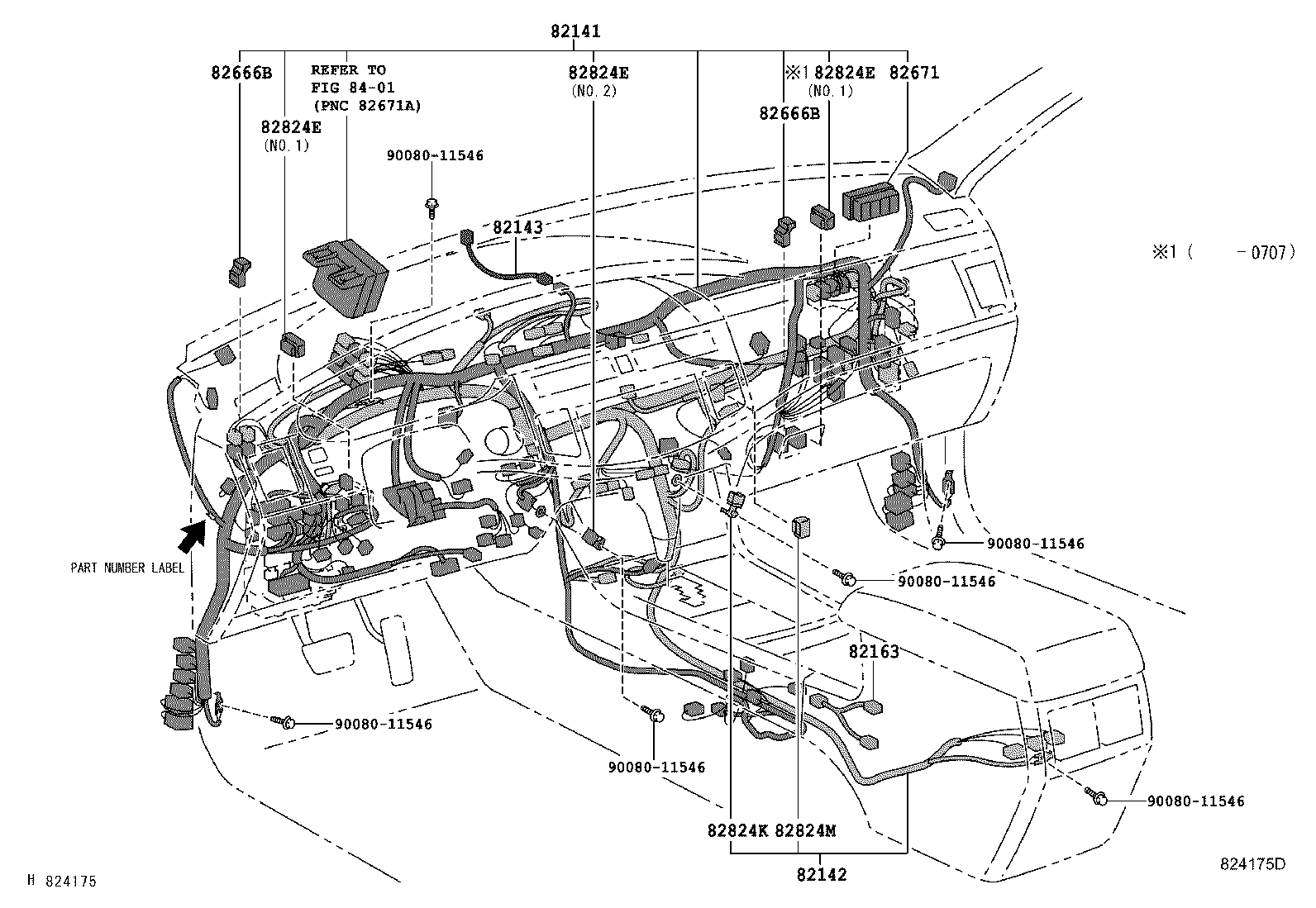

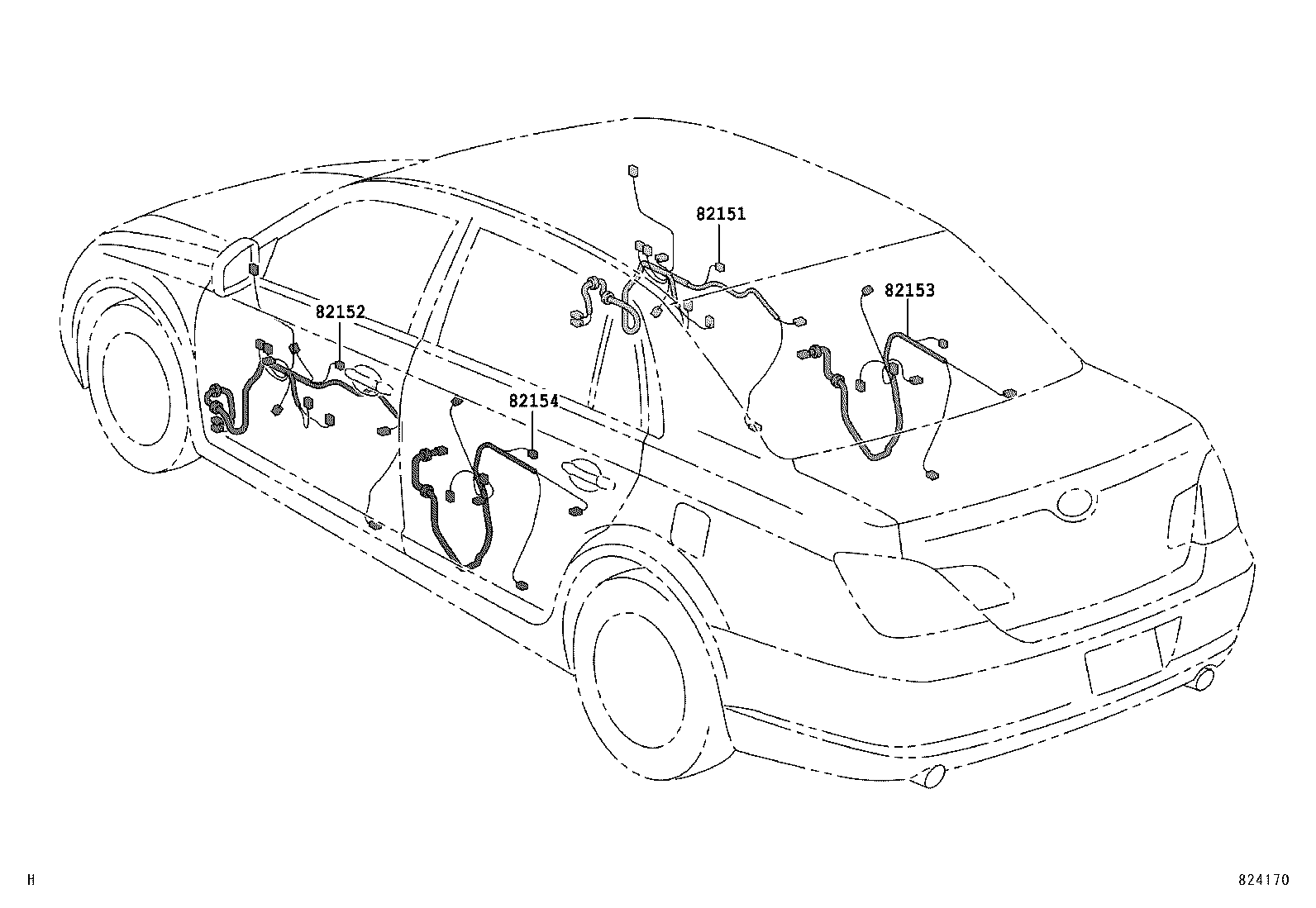

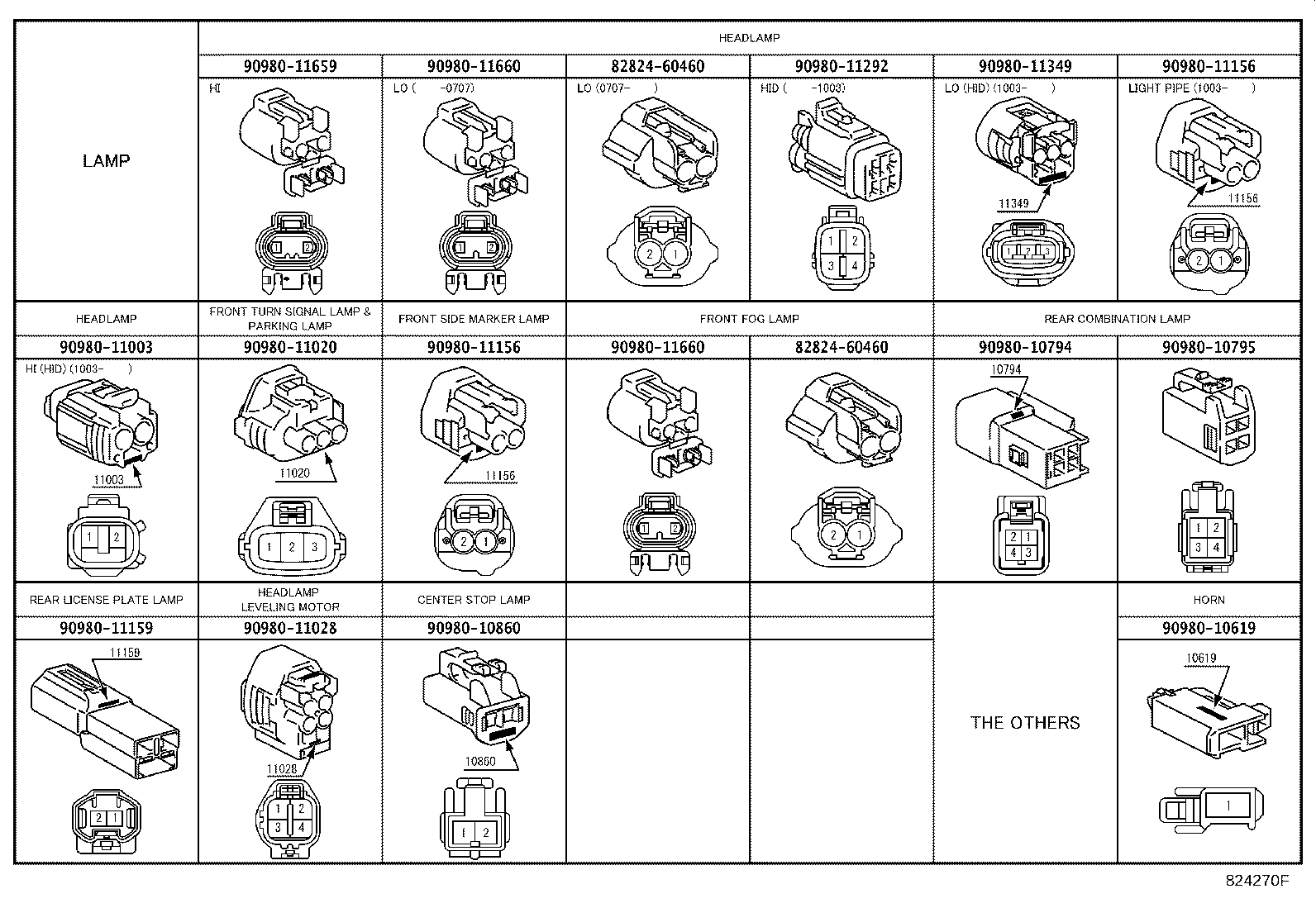

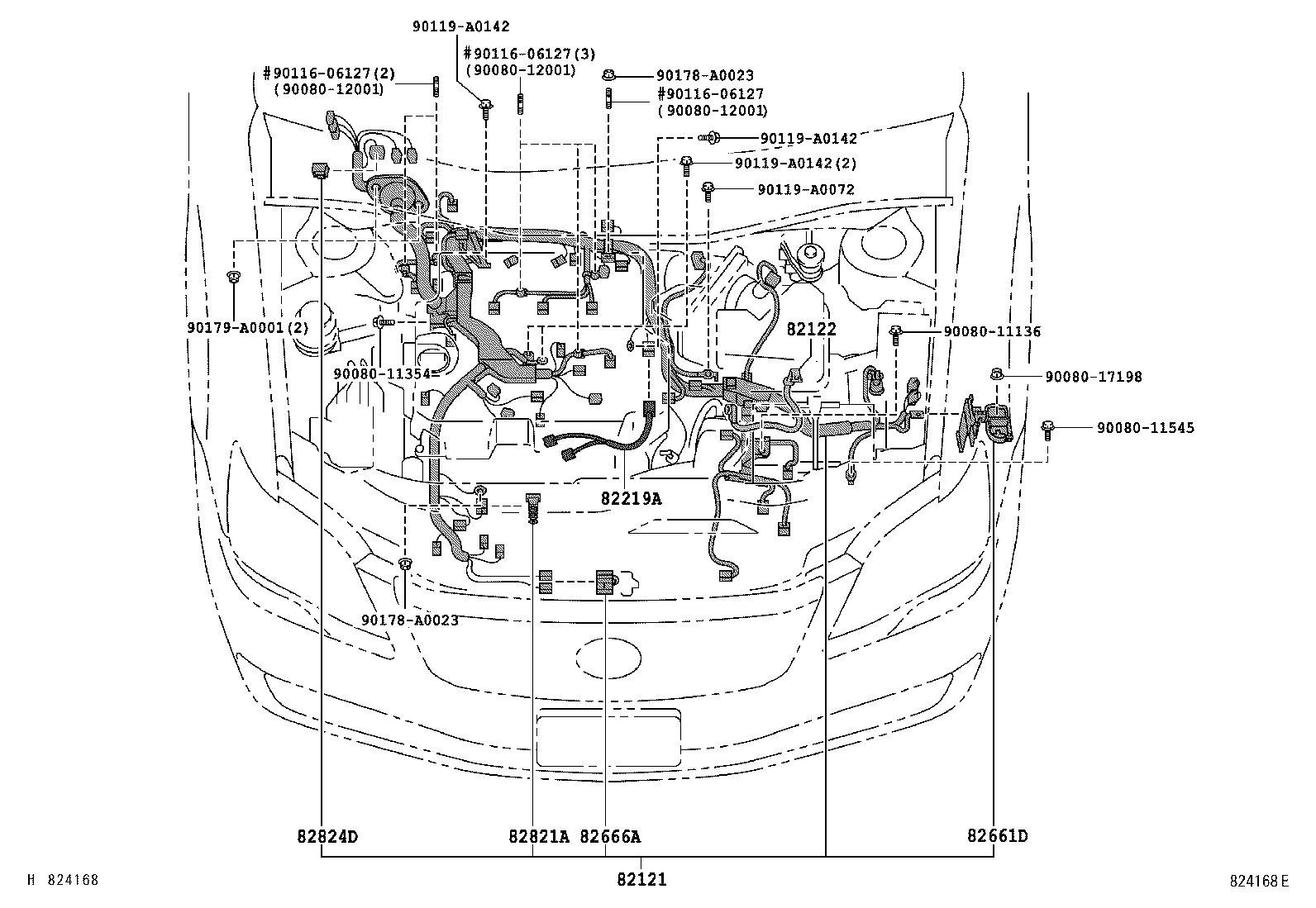

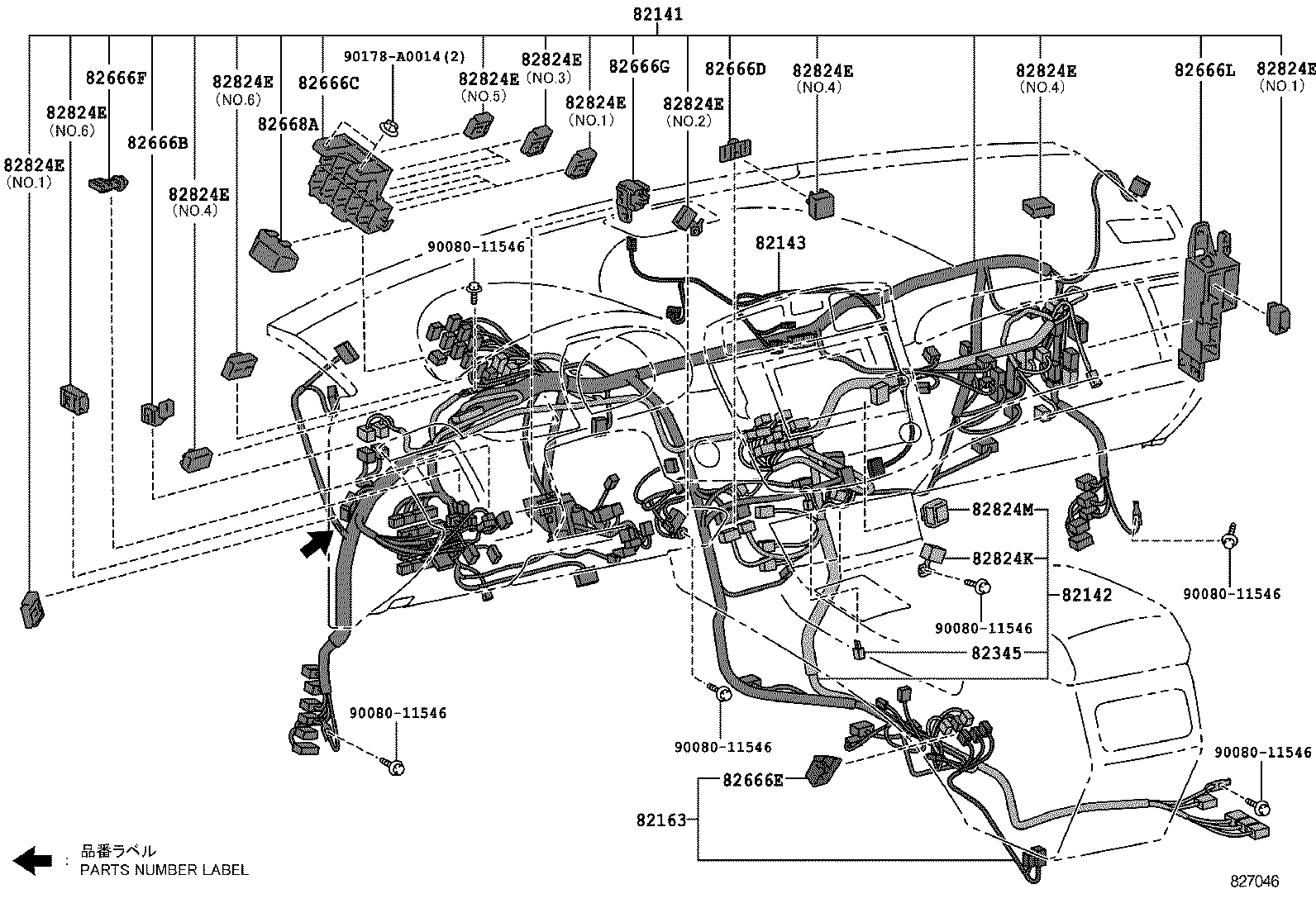

Figure 824167K 824167K 2005-01 → — Figure 824168E 824168E 2005-01 → 2007-07 Figure 825605C 825605C 2007-07 → — Figure 824175D 824175D 2005-01 → 2010-03 Figure 827046 827046 2010-03 → — Figure 824170 824170 2005-01 → — Figure 82A634 82A634 2005-01 → — Figure 824172 824172 2005-01 → — Figure 825611A 825611A 2005-01 → — Figure 824174 824174 2005-01 → 2007-07 Figure 825606 825606 2007-07 → 2010-03 Figure 824270F 824270F 2005-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82216 Wire, Rear Window Defogger
82219A Wire, Sensor
82345 Diode
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82668A Cover, Connector Holder Block, Upper
82671 Block, Junction
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82821A Cover, Connector
82821E Cover, Connector
82823S Cap, Starter Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
