Toyota Avalon

2005-01 → 2012-10 · chassis GSX30 · catalogue 361430 · United States

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

14 part groups · 3 illustrations

Illustrations

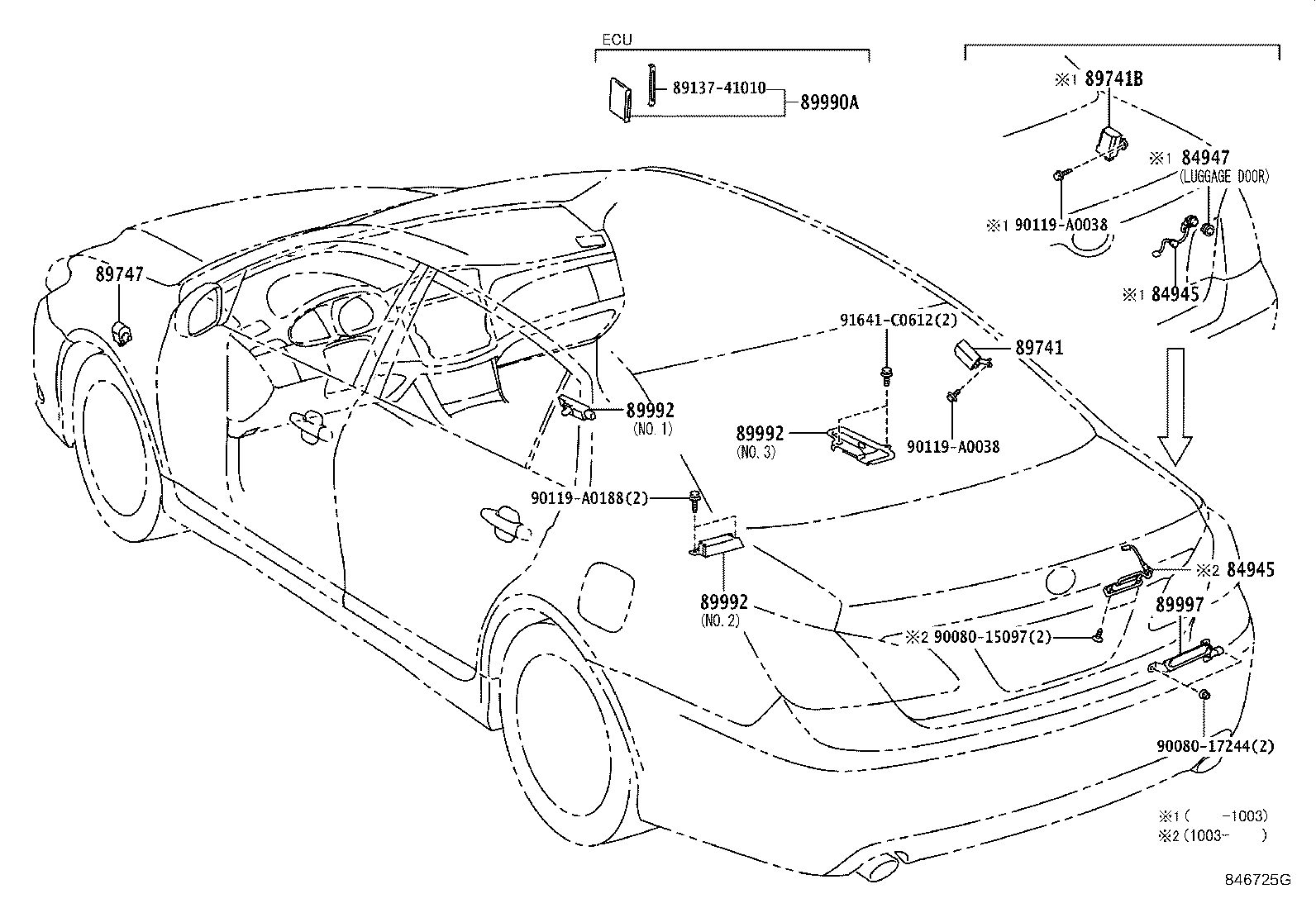

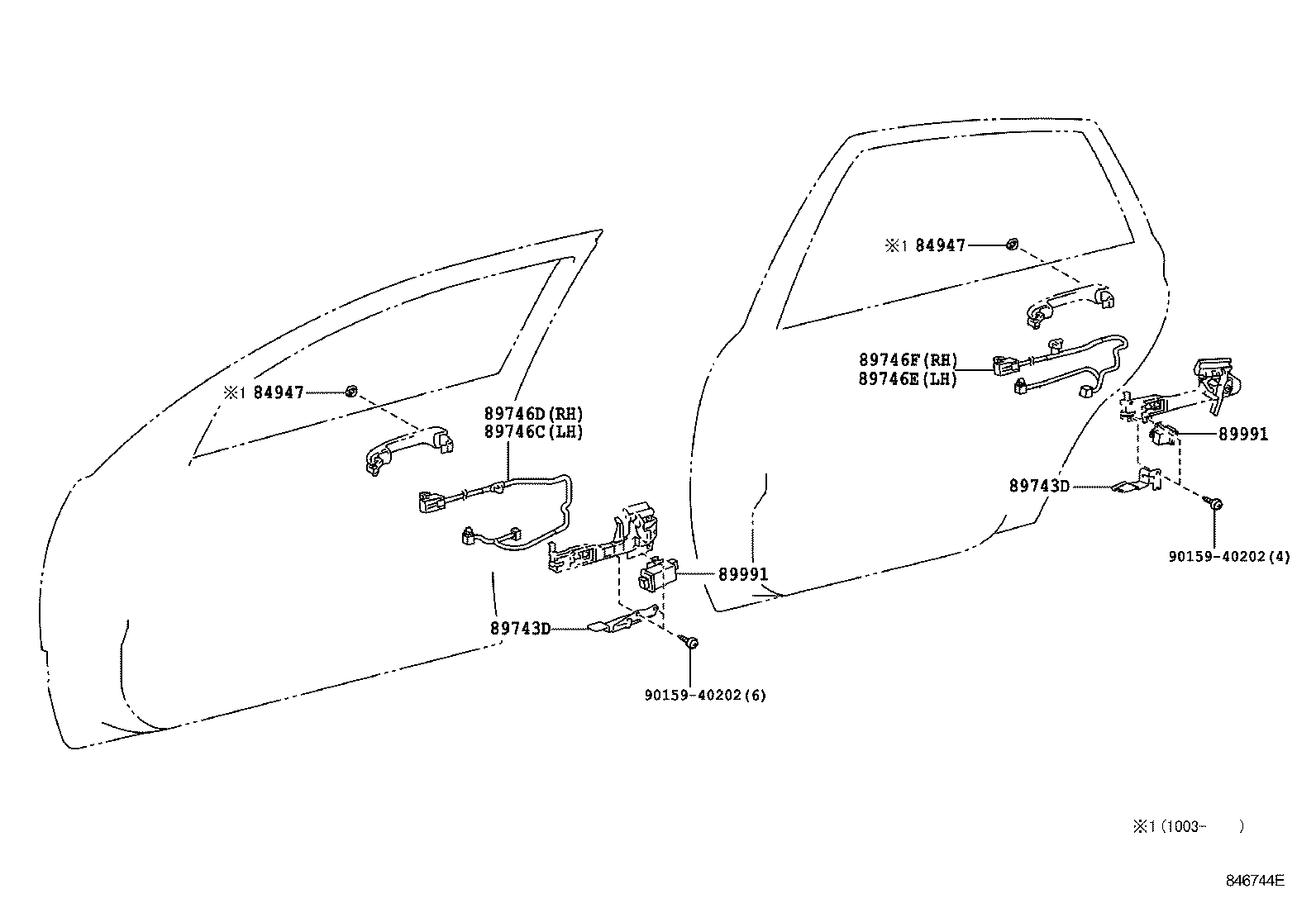

Figure 846745 846745 2005-01 → — Figure 846725G 846725G 2005-01 → — Figure 846744E 846744E 2005-01 → —

Part groups

PNCDescription
84945 Switch, Luggage Electrical Key
84947 Cover, Door Electrical Key Switch
89741 Receiver, Door Control
89741B Receiver, Door Control, NO.2
89743D Bracket, Electrical Key Wire Harness
89746C Harness, Electrical Key Wire, NO.1
89746D Harness, Electrical Key Wire, NO.2
89746E Harness, Electrical Key Wire, NO.3
89746F Harness, Electrical Key Wire, NO.4
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89991 Oscillator, Door Electrical Key
89992 Oscillator, Indoor Electrical Key
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
