Toyota Avalon

2005-01 → 2012-10 · chassis GSX30 · catalogue 361430 · United States

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

16 part groups · 5 illustrations

Illustrations

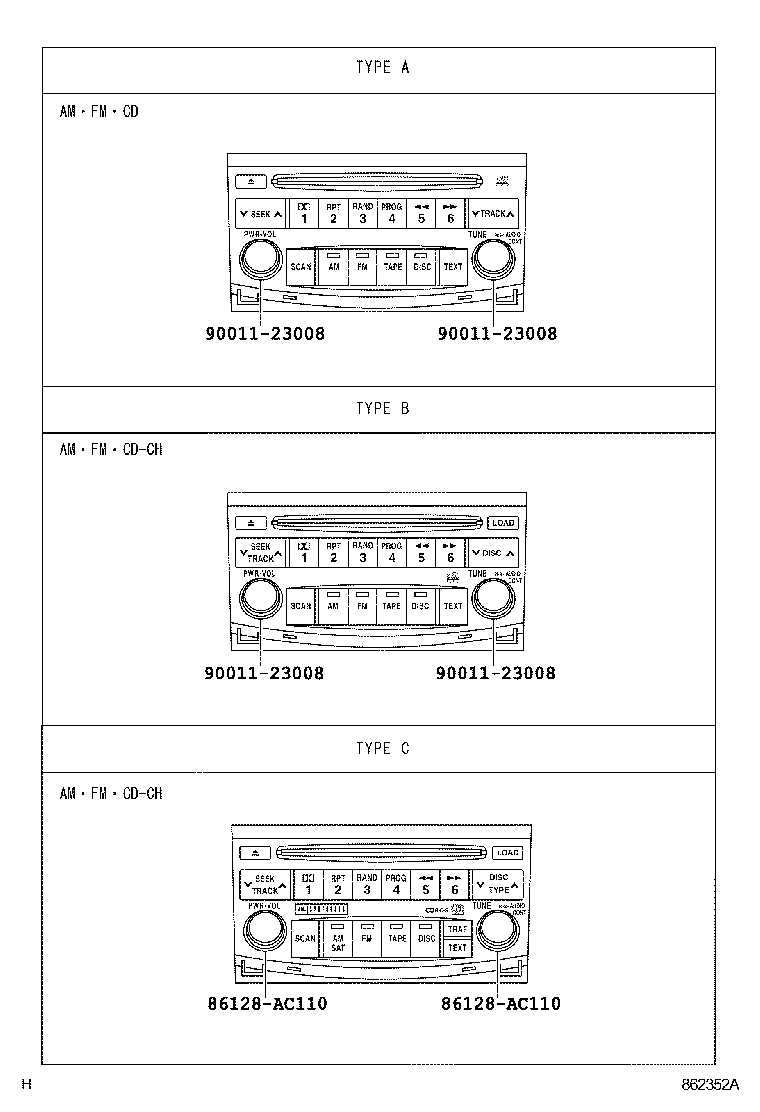

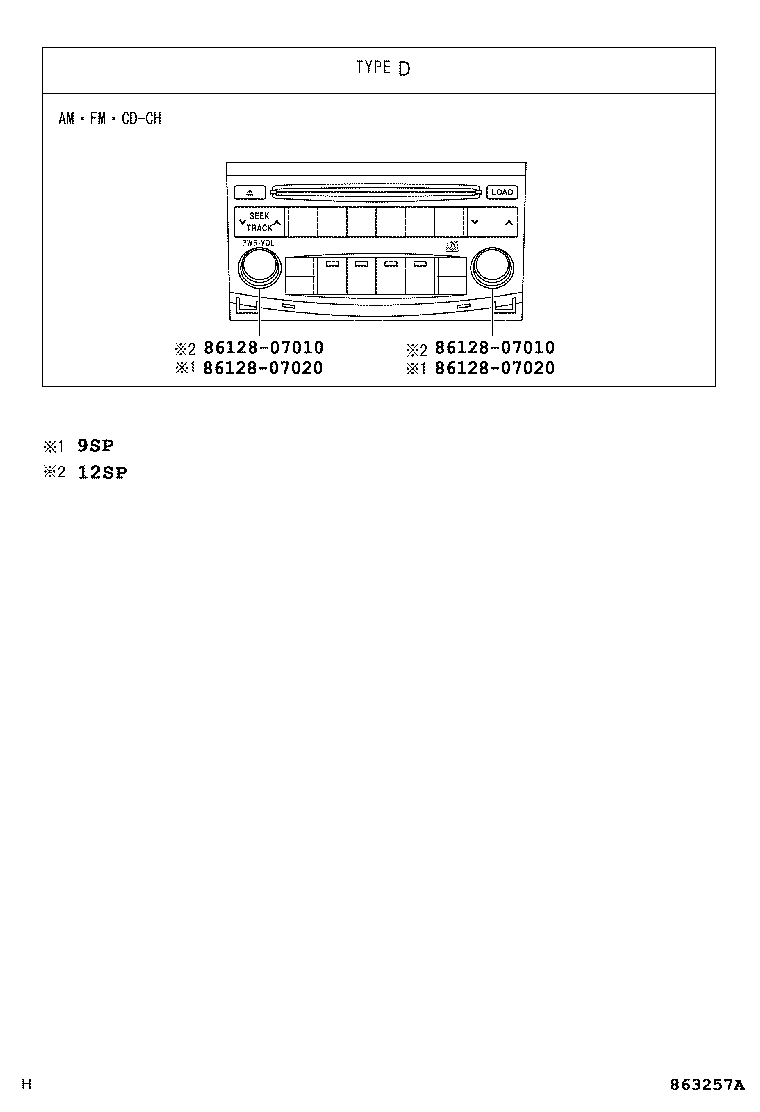

Figure 862349B 862349B 2005-01 → 2010-03 Figure 864215D 864215D 2010-03 → — Figure 862352A 862352A 2005-01 → 2007-07 Figure 863257A 863257A 2007-07 → 2010-03 Figure 862353B 862353B 2005-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86011N Filter, Noise
86011P Filter, Noise
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86180 Tuner Assy, Stereo Component
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
861A0 Computer Assy, Multi-media Interface
861A1 Computer, Multi-media Interface
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
86265 Bracket, Tape Player, NO.1
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
