Toyota Avalon
2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States
Supported model
Data version 2018-11

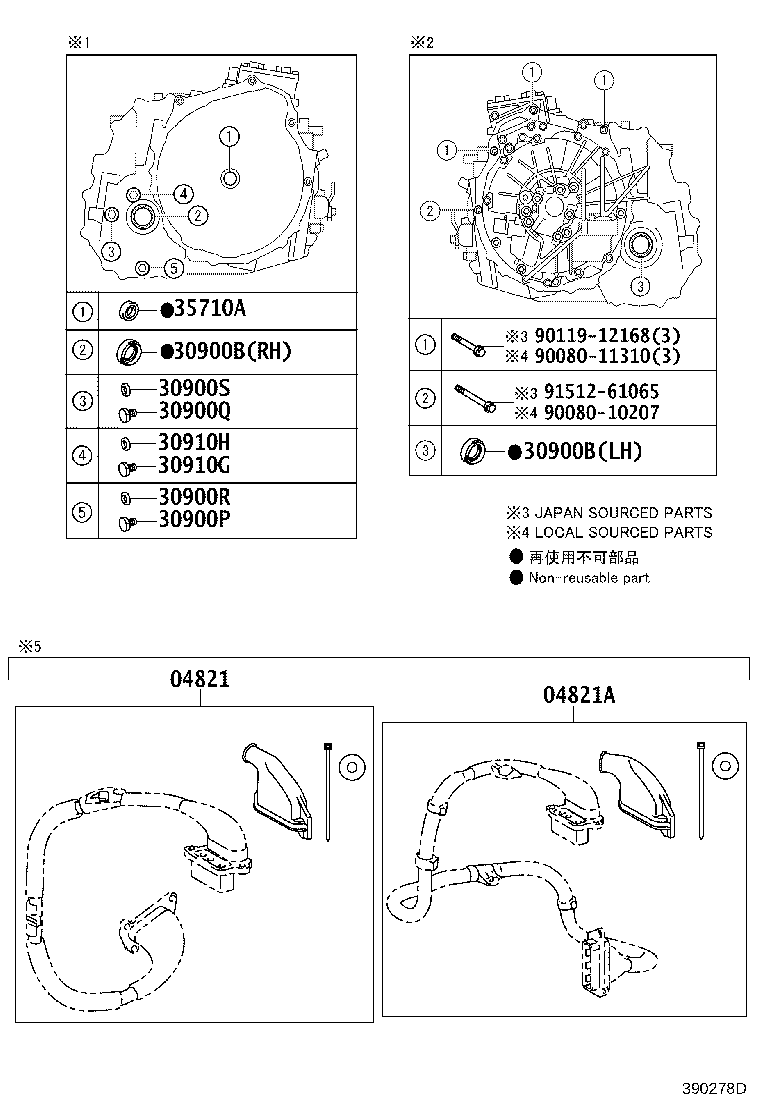

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04821 — Boot Kit, Wire Harness | ||||
| 04821-33010 |
Boot Kit, Wire Harness
2012-11 → 2015-10
ended
|
AVX40 | — | |
| 04821-33010 |
Boot Kit, Wire Harness
2015-10 → 2018-04
ended
|
AVX40 | — | |
| 04821A — Boot Kit, Wire Harness | ||||
| 04821-33020 |
Boot Kit, Wire Harness
2012-11 → 2015-10
ended
|
AVX40 | — | |
| 04821-33020 |
Boot Kit, Wire Harness
2015-10 → 2018-04
ended
|
AVX40 | — | |
| 30900B — Seal, Type T Oil(FOR HYBRID VEHICLE TRANSAXLE ASSY) | ||||
| 90311-40029 note |
Seal, Type T Oil(FOR HYBRID VEHICLE TRANSAXLE ASSY)
2012-11 → 2013-02
ended
|
AVX40 | — | |
| 90311-40039 note |
Seal, Type T Oil(FOR HYBRID VEHICLE TRANSAXLE ASSY)
2013-02 → 2015-10
ended
|
AVX40 | — | |
| 90311-50053 note |
Seal, Type T Oil(FOR HYBRID VEHICLE TRANSAXLE ASSY)
2012-11 → 2015-10
ended
|
AVX40 | — | |
| 90311-40039 note |
Seal, Type T Oil(FOR HYBRID VEHICLE TRANSAXLE ASSY)
2015-10 → —
|
AVX40 | — | |
| 90311-50053 note |
Seal, Type T Oil(FOR HYBRID VEHICLE TRANSAXLE ASSY)
2015-10 → —
|
AVX40 | — | |
| 30900P — Plug, Drain(HEV) | ||||
| 90341-18016 |
Plug, Drain(HEV)
2012-11 → 2015-10
ended
|
AVX40 | — | |
| 90341-18016 |
Plug, Drain(HEV)
2015-10 → —
|
AVX40 | — | |
| 30900Q — Plug, Filler(HEV) | ||||
| 90341-18016 |
Plug, Filler(HEV)
2012-11 → 2015-10
ended
|
AVX40 | — | |
| 90341-18016 |
Plug, Filler(HEV)
2015-10 → —
|
AVX40 | — | |
| 30900R — Gasket, Drain Plug(HEV) | ||||
| 90430-18008 |
Gasket, Drain Plug(HEV)
2012-11 → 2015-10
ended
|
AVX40 | — | |
| 90430-18008 |
Gasket, Drain Plug(HEV)
2015-10 → —
|
AVX40 | — | |
| 30900S — Gasket, Filler Plug(HEV) | ||||
| 90430-18008 |
Gasket, Filler Plug(HEV)
2012-11 → 2015-10
ended
|
AVX40 | — | |
| 90430-18008 |
Gasket, Filler Plug(HEV)
2015-10 → —
|
AVX40 | — | |
| 30910G — Plug, Straight Screw W/Head(FOR TRANSMISSION CASE) | ||||
| 90341-18016 |
Plug, Straight Screw W/Head(FOR TRANSMISSION CASE)
2012-11 → 2014-08
ended
|
AVX40 | — | |
| 90341-18078 |
Plug, Straight Screw W/Head(FOR TRANSMISSION CASE)
2014-08 → 2015-10
ended
|
AVX40 | — | |
| 90341-18078 |
Plug, Straight Screw W/Head(FOR TRANSMISSION CASE)
2015-10 → —
|
AVX40 | — | |
| 30910H — Gasket(FOR TRANSMISSION CASE) | ||||
| 90430-18008 |
Gasket(FOR TRANSMISSION CASE)
2012-11 → 2015-10
ended
|
AVX40 | — | |
| 90430-18008 |
Gasket(FOR TRANSMISSION CASE)
2015-10 → —
|
AVX40 | — | |
| 35710A — Seal, Type T Oil(FOR INPUT SHAFT) | ||||
| 90311-25027 |
Seal, Type T Oil(FOR INPUT SHAFT)
2012-11 → 2015-10
ended
|
AVX40 | — | |
| 90311-25027 |
Seal, Type T Oil(FOR INPUT SHAFT)
2015-10 → —
|
AVX40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
