Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

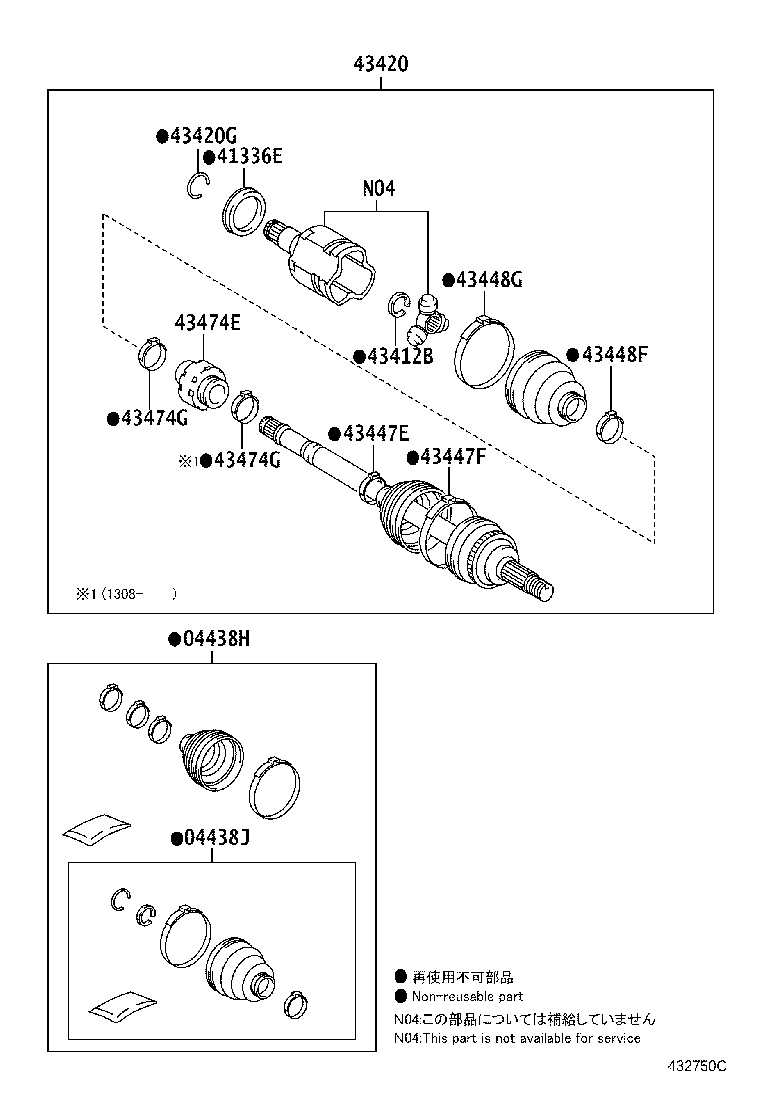

Exploded illustration 432750C 43420 — SHAFT ASSY, FRONT DRIVE, LH (9 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (2 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (4 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (2 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (2 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (4 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (6 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (3 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (4 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (6 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (5 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (3 parts)
432750C · 13 callouts Full size ↗
49 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04428-06570 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2013-08 → 2015-10 ended
GSX40 —
04428-06580 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2012-11 → 2015-10 ended
AVX40 —
04428-0W070 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2012-10 → 2013-08 ended
GSX40 —
04427-06570 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2016-08 → —
AVX40 —
04428-06570 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2015-10 → —
GSX40 —
04428-06580 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2015-10 → 2016-07 ended
AVX40 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-06280 Boot Kit, Front Drive Shaft Inboard Joint, LH
2012-11 → 2015-10 ended
AVX40 —
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, LH
2012-10 → 2015-10 ended
GSX40 —
04437-06280 Boot Kit, Front Drive Shaft Inboard Joint, LH
2015-10 → 2016-07 ended
AVX40 —
04437-06280 Boot Kit, Front Drive Shaft Inboard Joint, LH
2016-08 → —
AVX40 —
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, LH
2015-10 → —
GSX40 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-06060 Cover, Front Drive Shaft Dust, LH
2012-10 → 2015-10 ended
GSX40 —
41336-08010 Cover, Front Drive Shaft Dust, LH
2012-11 → 2015-10 ended
AVX40 —
41336-06060 Cover, Front Drive Shaft Dust, LH
2015-10 → —
GSX40 —
41336-08010 Cover, Front Drive Shaft Dust, LH
2015-10 → —
AVX40 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2012-10 → 2015-10 ended
AVX40,GSX40 —
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2015-10 → —
AVX40,GSX40 —
43420 — Shaft Assy, Front Drive, LH
43420-06830 Shaft Assy, Front Drive, LH
2012-10 → 2013-08 ended
GSX40 —
43420-06850 Shaft Assy, Front Drive, LH
2012-11 → 2013-08 ended
AVX40 —
43420-06860 note Shaft Assy, Front Drive, LH
2012-10 → 2013-08 ended
GSX40 LIMD —
43420-06A70 Shaft Assy, Front Drive, LH
2013-08 → 2015-10 ended
AVX40 —
43420-06A90 Shaft Assy, Front Drive, LH
2013-08 → 2015-10 ended
GSX40 —
43420-06B00 note Shaft Assy, Front Drive, LH
2013-08 → 2015-10 ended
GSX40 LIMD —
43420-06A70 Shaft Assy, Front Drive, LH
2015-10 → —
AVX40 —
43420-06A90 Shaft Assy, Front Drive, LH
2015-10 → —
GSX40 —
43420-06B00 note Shaft Assy, Front Drive, LH
2015-10 → —
GSX40 LIMD —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90080-52017 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2012-10 → 2015-10 ended
AVX40,GSX40 —
90080-52017 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2015-10 → —
AVX40,GSX40 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2012-10 → 2015-10 ended
AVX40,GSX40 —
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2015-10 → —
AVX40,GSX40 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-06250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2012-10 → 2015-10 ended
AVX40,GSX40 —
42345-06250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2015-10 → —
AVX40,GSX40 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-08070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2012-10 → 2015-10 ended
GSX40 —
42345-0T060 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2012-11 → 2015-10 ended
AVX40 —
42345-08070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-10 → —
GSX40 —
42345-0T060 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-10 → —
AVX40 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-06240 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2012-10 → 2015-10 ended
GSX40 —
42345-0T050 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2012-11 → 2015-10 ended
AVX40 —
42345-06240 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-10 → —
GSX40 —
42345-0T050 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2015-10 → —
AVX40 —
43474E — Damper, Front Drive Shaft, LH
43474-06090 Damper, Front Drive Shaft, LH
2012-10 → 2013-08 ended
GSX40 —
43474-06310 Damper, Front Drive Shaft, LH
2013-08 → 2015-10 ended
GSX40 —
43474-06320 Damper, Front Drive Shaft, LH
2013-08 → 2015-10 ended
AVX40 —
43474-0E010 Damper, Front Drive Shaft, LH
2012-11 → 2013-08 ended
AVX40 —
43474-06310 Damper, Front Drive Shaft, LH
2015-10 → —
GSX40 —
43474-06320 Damper, Front Drive Shaft, LH
2015-10 → —
AVX40 —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06100 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2012-10 → 2013-08 ended
AVX40,GSX40 —
42345-06790 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2013-08 → 2015-10 ended
AVX40,GSX40 —
42345-06790 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2015-10 → —
AVX40,GSX40 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
