Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

12 part groups · 2 illustrations

Illustrations

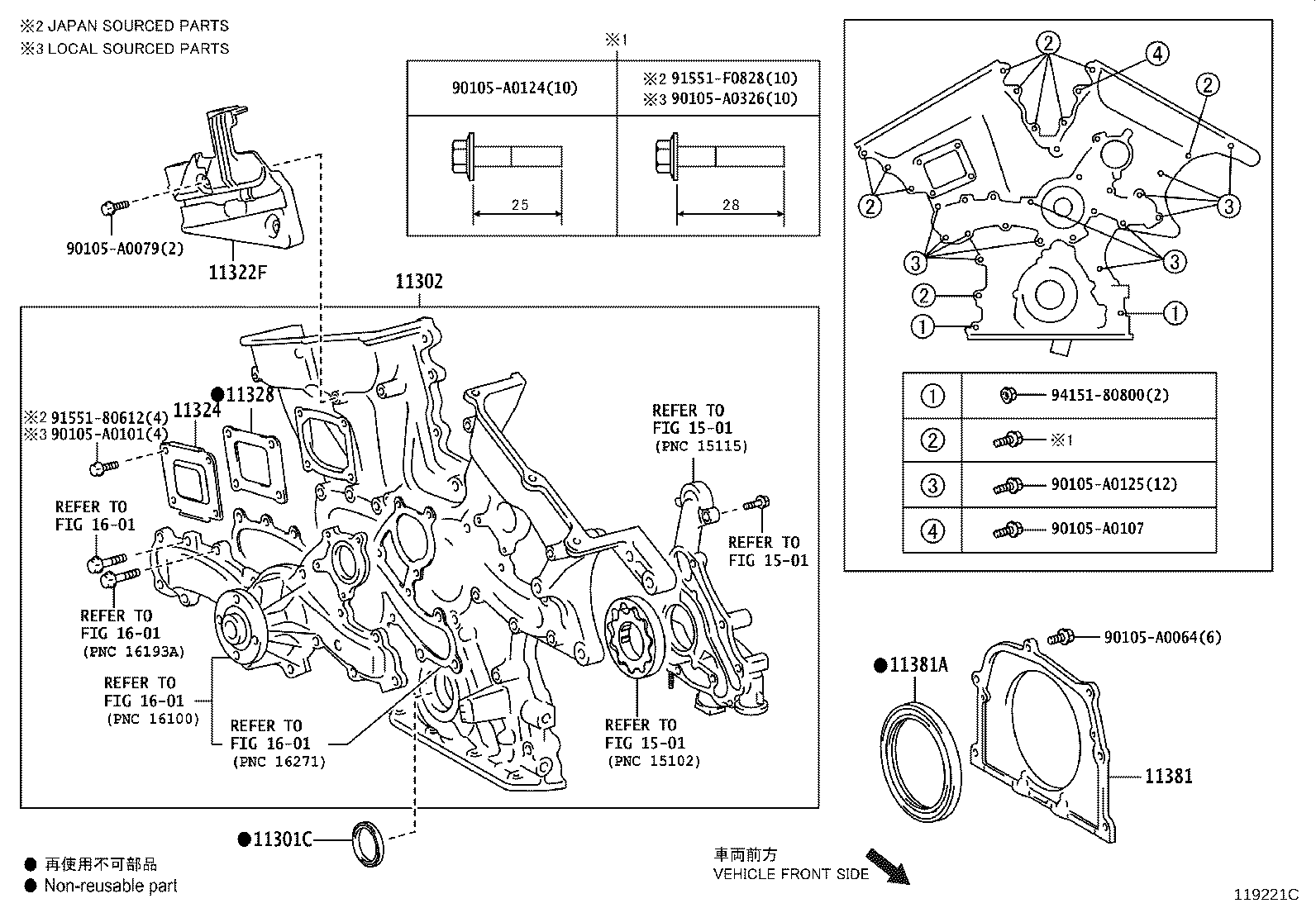

Figure 117740E 117740E 2012-11 → — Figure 119221C 119221C 2012-10 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11322F Cover, Timing Gear, NO.2
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11329A Gasket, Timing Belt OR Chain Cover, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11496A Gasket, Oil Hole Cover
15133B Plug, Oil Pump Relief Valve
15193A Gasket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
