Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

8 part groups · 2 illustrations

Illustrations

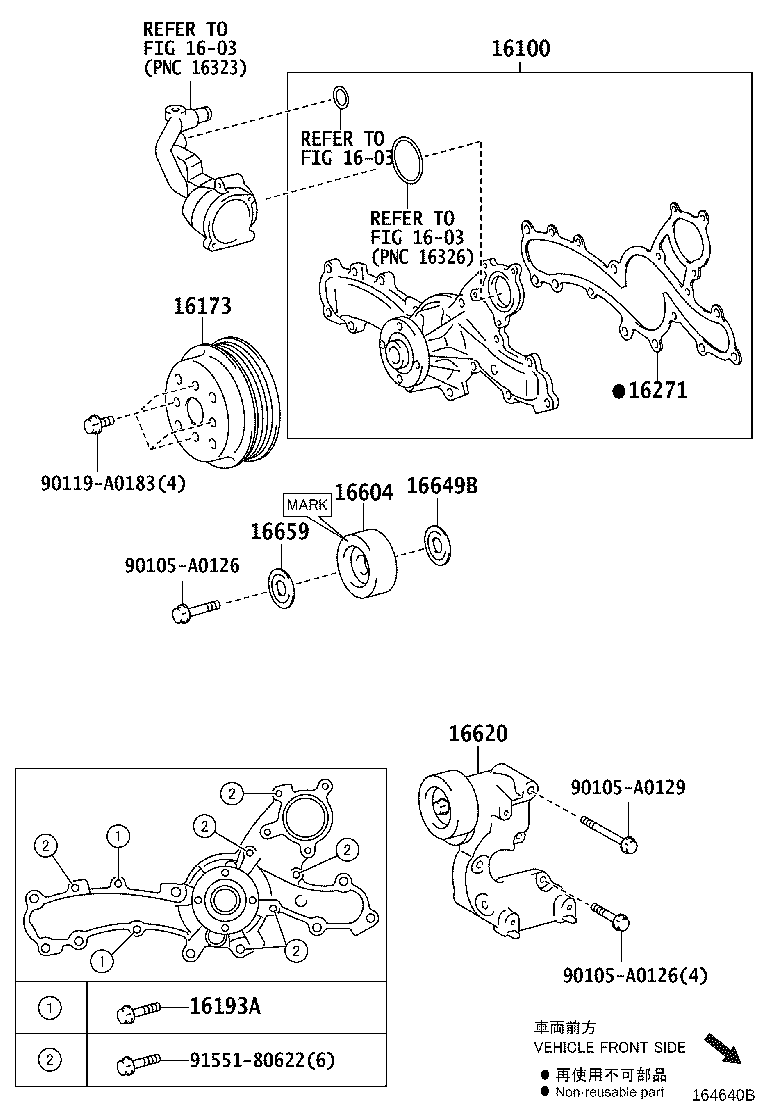

Figure 165171B 165171B 2012-11 → — Figure 164640B 164640B 2012-10 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16173 Pulley, Water Pump
16193A Bolt(FOR WATER PUMP COVER)
16271 Gasket, Water Pump
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
