Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

21 part groups · 3 illustrations

Illustrations

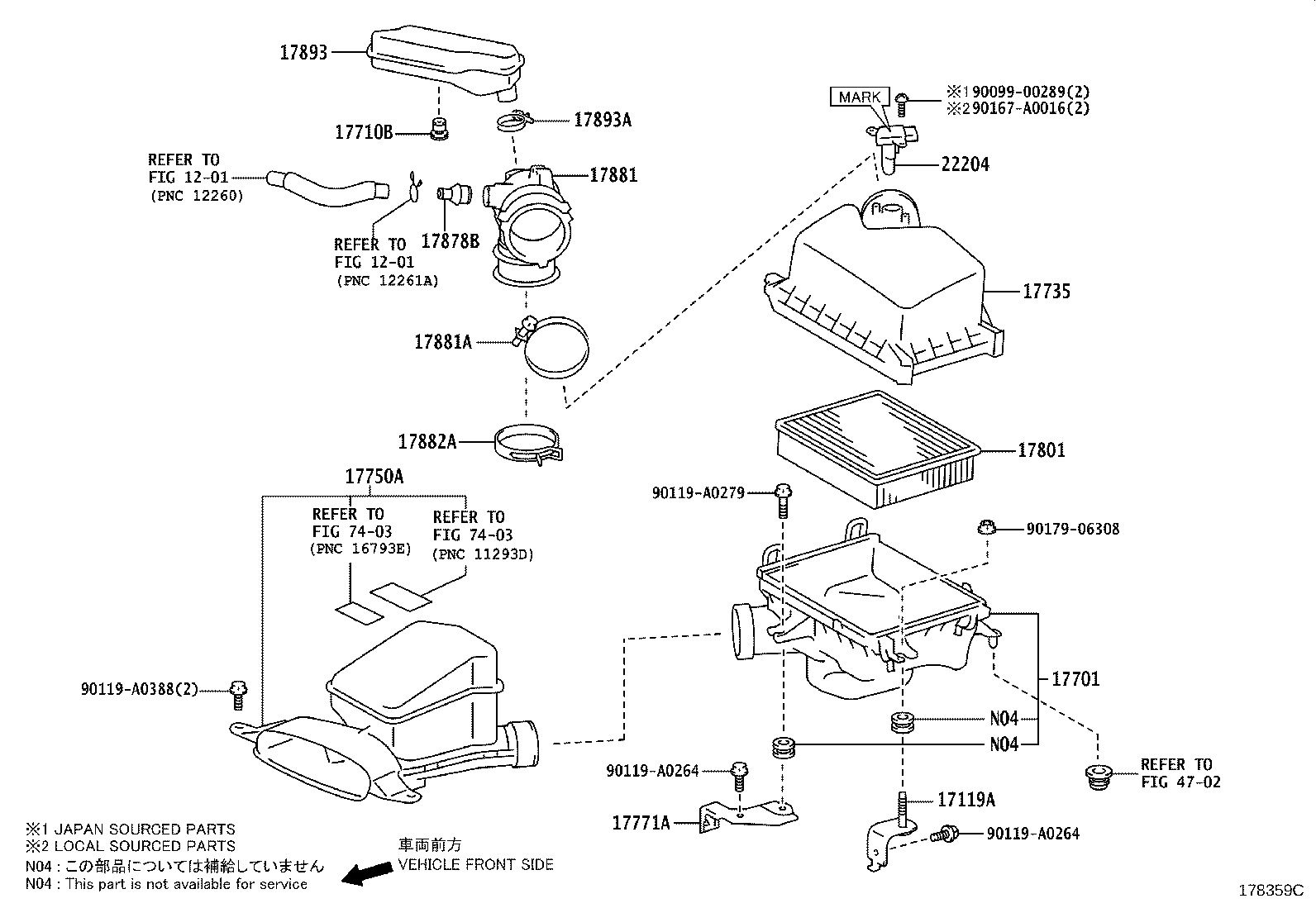

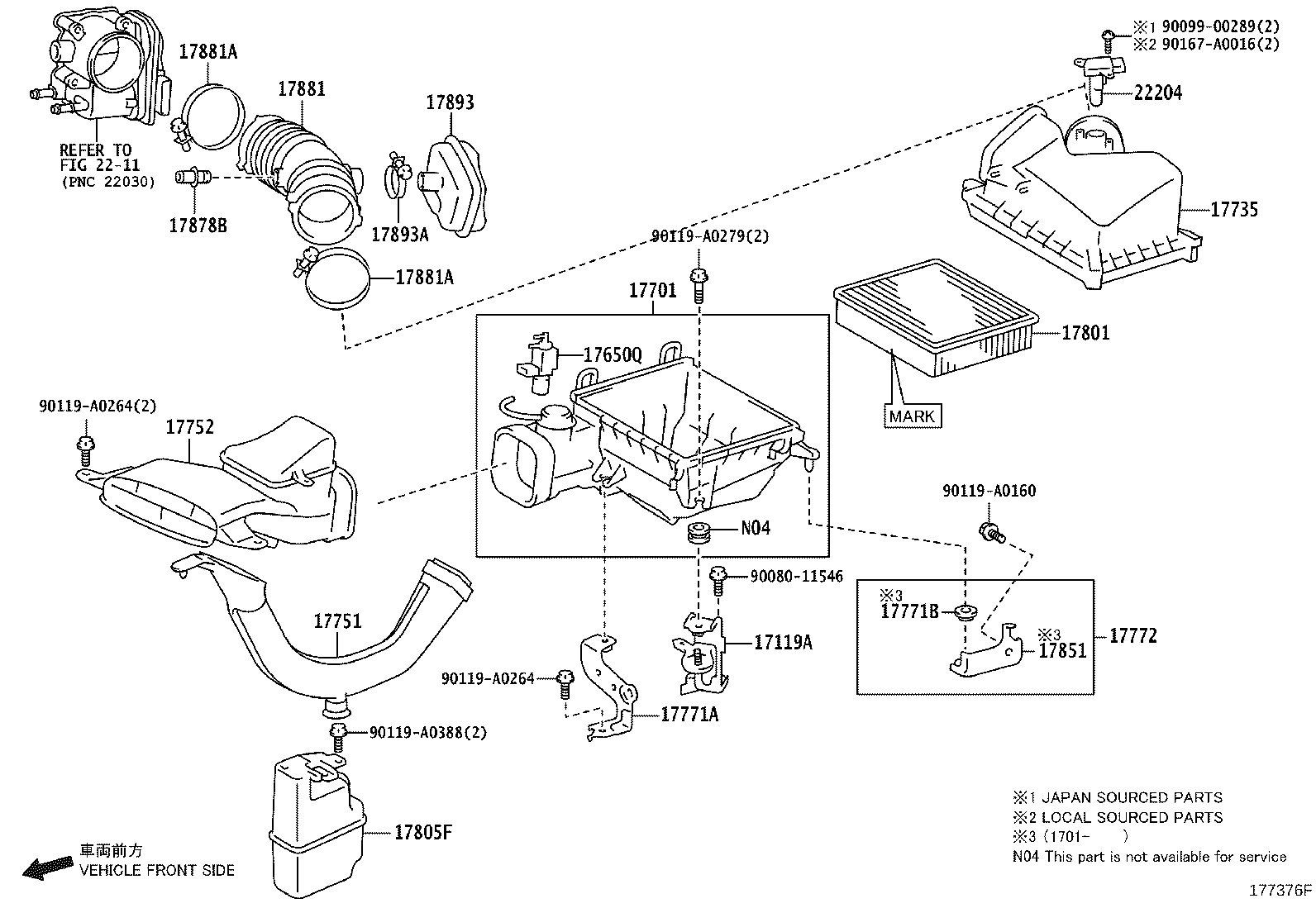

Figure 177878B 177878B 2012-11 → 2014-03 Figure 178359C 178359C 2014-03 → — Figure 177376F 177376F 2012-10 → —

Part groups

PNCDescription
17119A Bracket, Air Cleaner
17650Q Valve, Vacuum Switching
17701 Case Sub-assy, Air Cleaner
17710B Grommet
17735 Cap, Air Cleaner
17750A Inlet Assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17771A Bracket, Air Cleaner
17771B Grommet(FOR AIR CLEANER BRACKET)
17772 Bracket, Intake Air Connector, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17805F Resonator Sub-assy, Intake Air
17851 Bracket, Air Cleaner Support
17878B Tube, Ventilation
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17893A Clamp, Hose
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
