Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

14 part groups · 2 illustrations

Illustrations

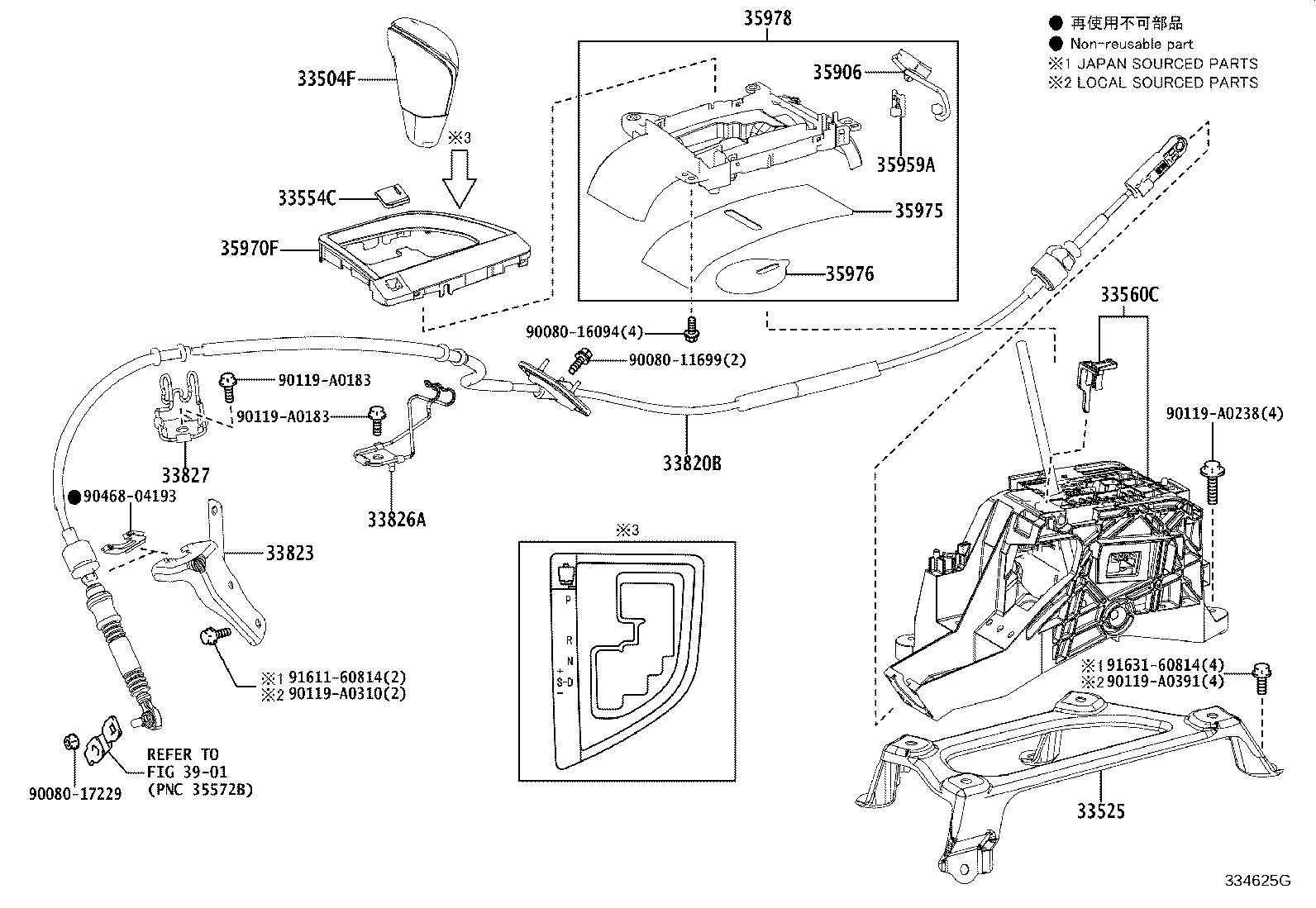

Figure 334624G 334624G 2012-10 → — Figure 334625G 334625G 2012-11 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33525 Support, Shift Lever
33554C Cover, Shift Lock Release Button
33560C Lever Assy, Shift, Lower
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33827 Bracket, Transmission Control Cable, NO.3
35906 Wire Sub-assy, Indicator Lamp
35959A Led, Position Indicator
35970F Housing Assy, Position Indicator
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
