Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 2 illustrations

Illustrations

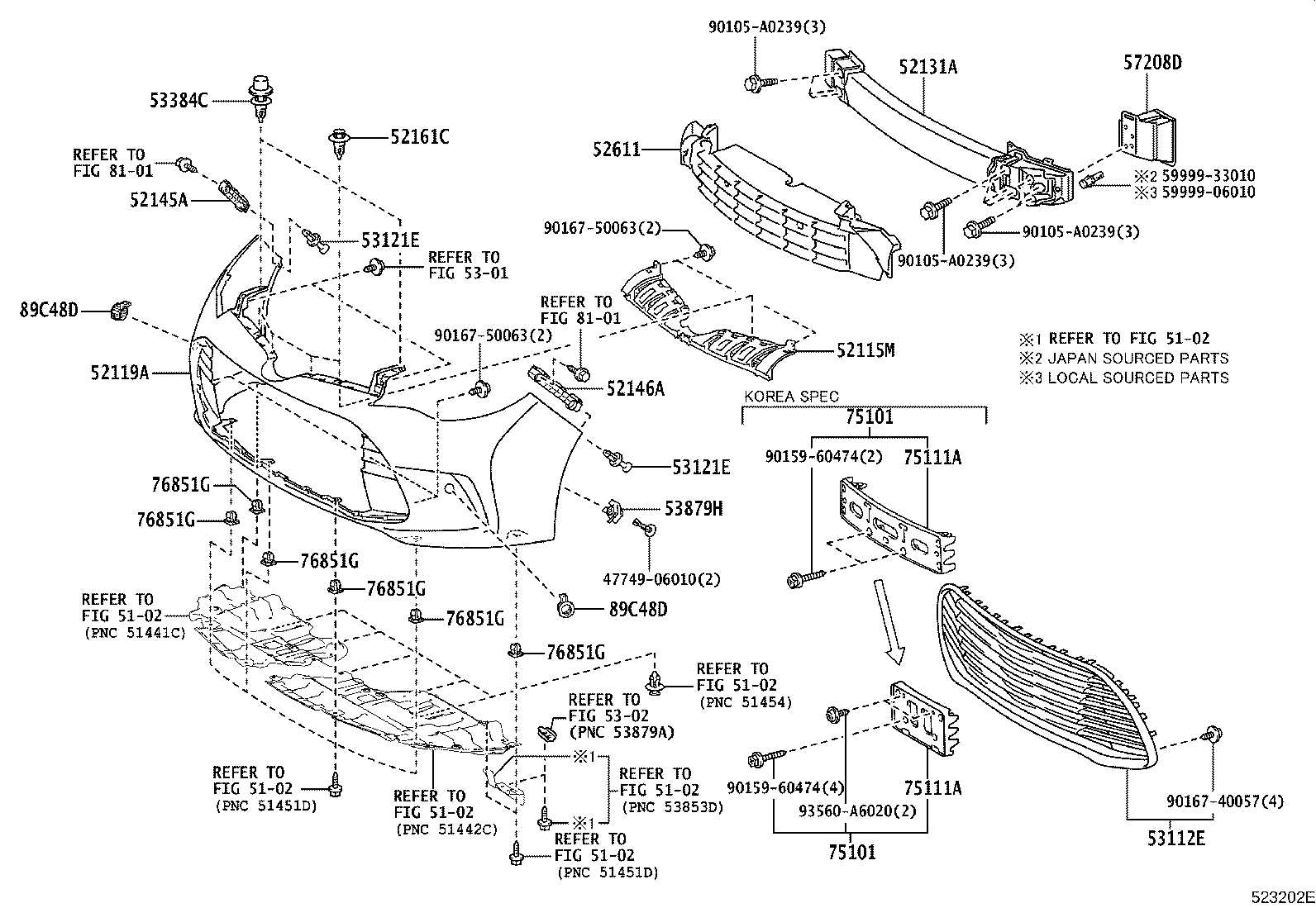

Figure 522744J 522744J 2012-10 → 2015-10 Figure 523202E 523202E 2015-10 → —

Part groups

PNCDescription
52115M Support, Front Bumper Side
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52161C Piece, Front Bumper
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53121E Clip(FOR FRONT BUMPER), NO.1
53384C Cushion, Hood, Center
53879H Retainer, Front Fender Liner
57208D Spacer Sub-assy, Front Bumper Support, NO.2
75101 Bracket Sub-assy, Front License Plate
75111A Bracket, Front License Plate
76851G Grommet, Screw, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
