Toyota Avalon
2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States
Supported model
Data version 2018-11

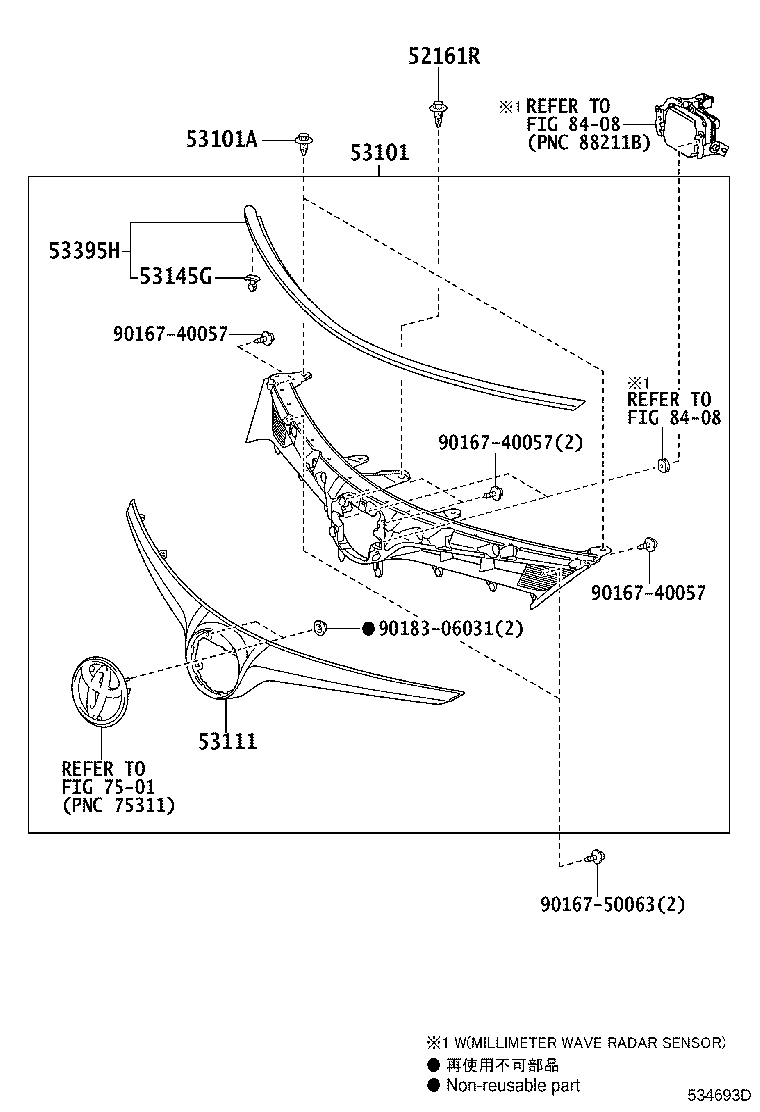

Radiator Grille
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161R | Piece, Front Bumper |
| 53021 | Garnish, Radiator Grille, Lower |
| 53101 | Grille Sub-assy, Radiator |
| 53101A | Clip, Radiator Grille |
| 53111 | Grille, Radiator |
| 53145G | Clip, Radiator Grille |
| 53395H | Seal, Hood TO Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
