Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

29 part groups · 4 illustrations

Illustrations

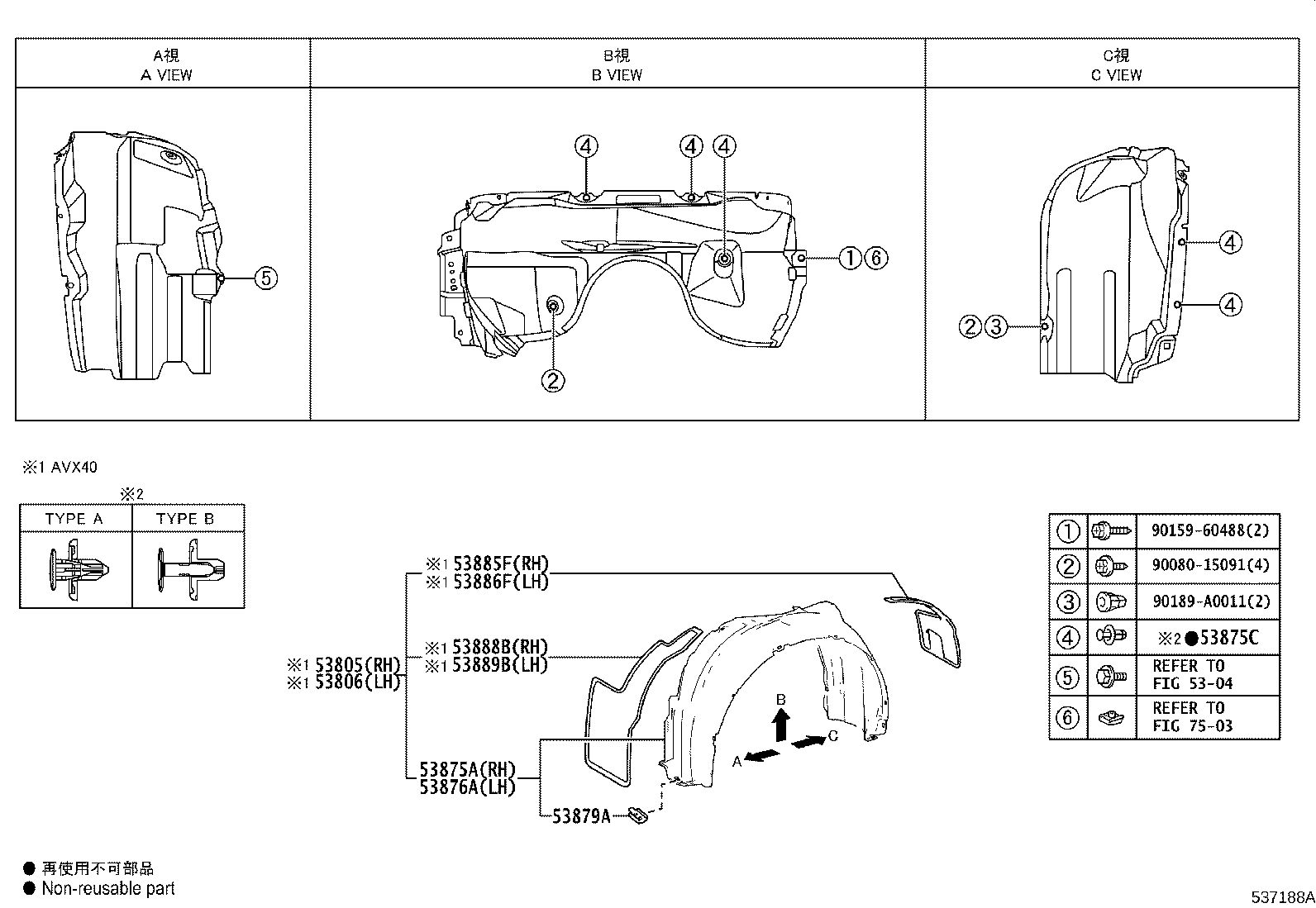

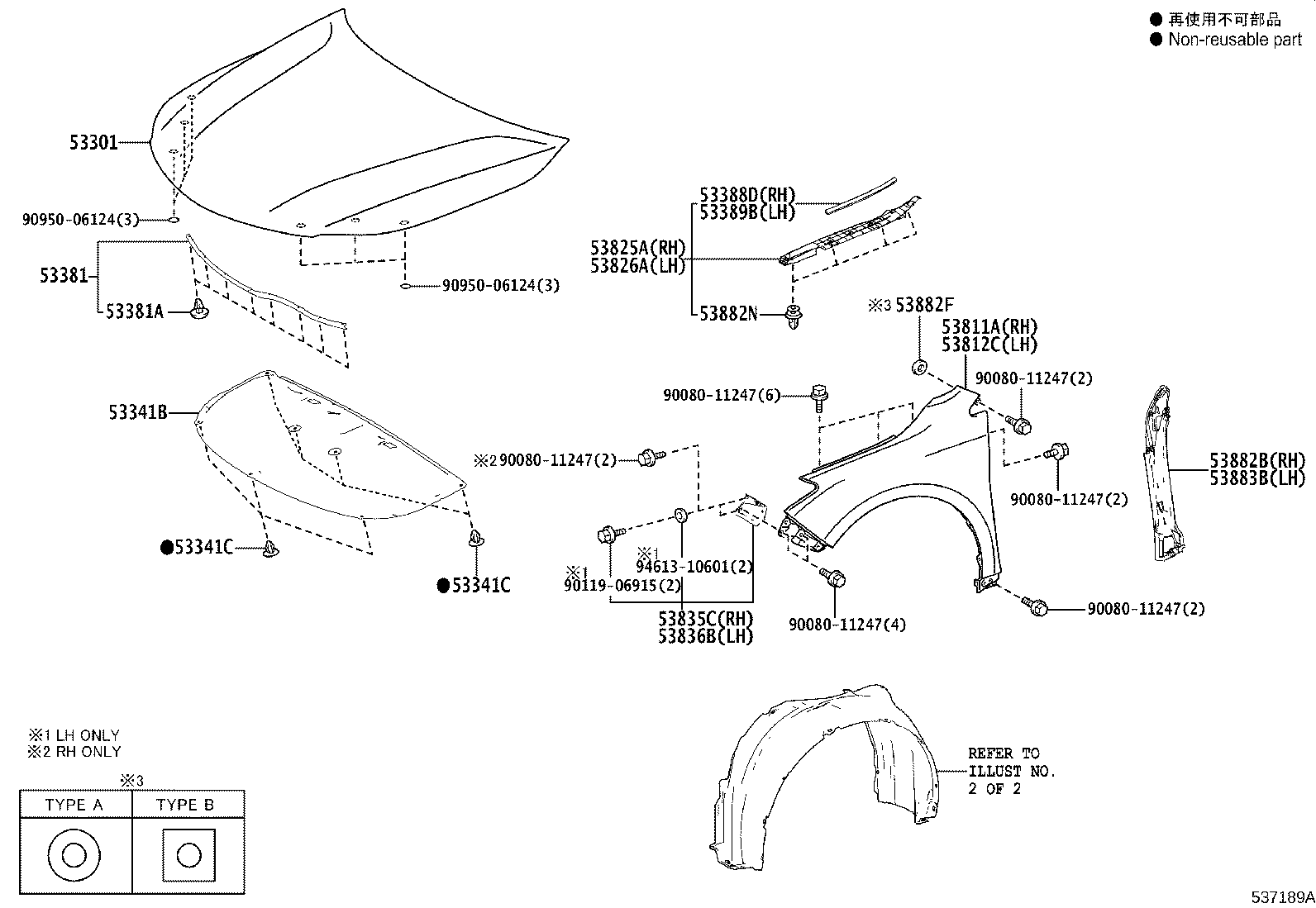

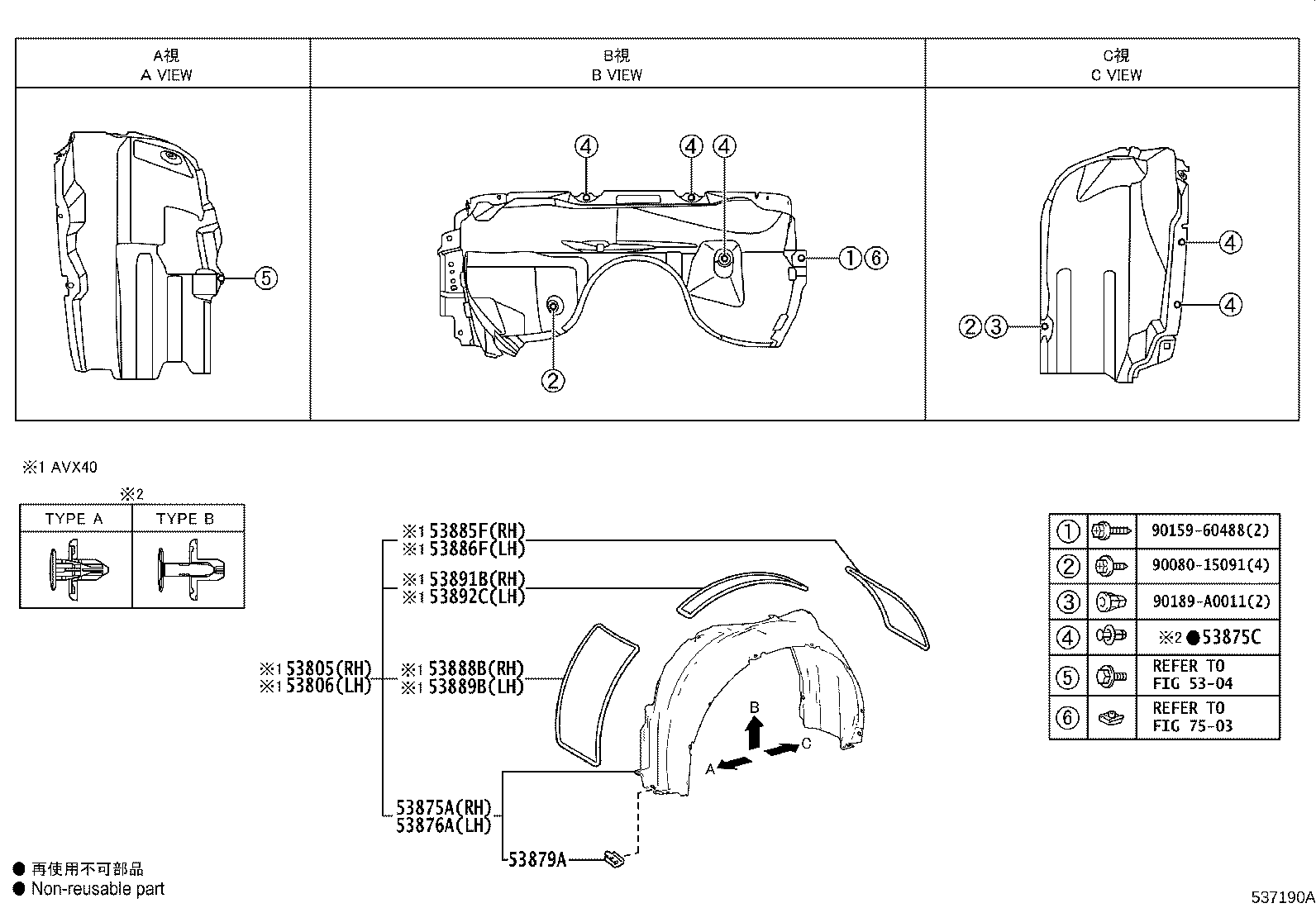

Figure 537187A 537187A 2012-10 → 2015-04 Figure 537188A 537188A 2012-10 → 2015-04 Figure 537189A 537189A 2015-04 → — Figure 537190A 537190A 2015-04 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53811A Panel, Front Fender, RH
53812C Panel, Front Fender, LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53835C Bracket, Front Side Panel, RH
53836B Bracket, Front Side Panel, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882B Seal, Front Fender, RH
53882F Seal, Front Fender
53882N Clip(FOR FRONT FENDER SEAL)
53883B Seal, Front Fender, LH
53885F Shield, Front Fender Splash, Rear RH
53886F Shield, Front Fender Splash, Rear LH
53888B Seal, Front Fender Splash Shield, RH NO.2
53889B Seal, Front Fender Splash Shield, LH NO.2
53891B Seal, Front Fender Splash Shield, Front RH
53892C Seal, Front Fender Splash Shield, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
