Toyota Avalon
2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States
Supported model
Data version 2018-11

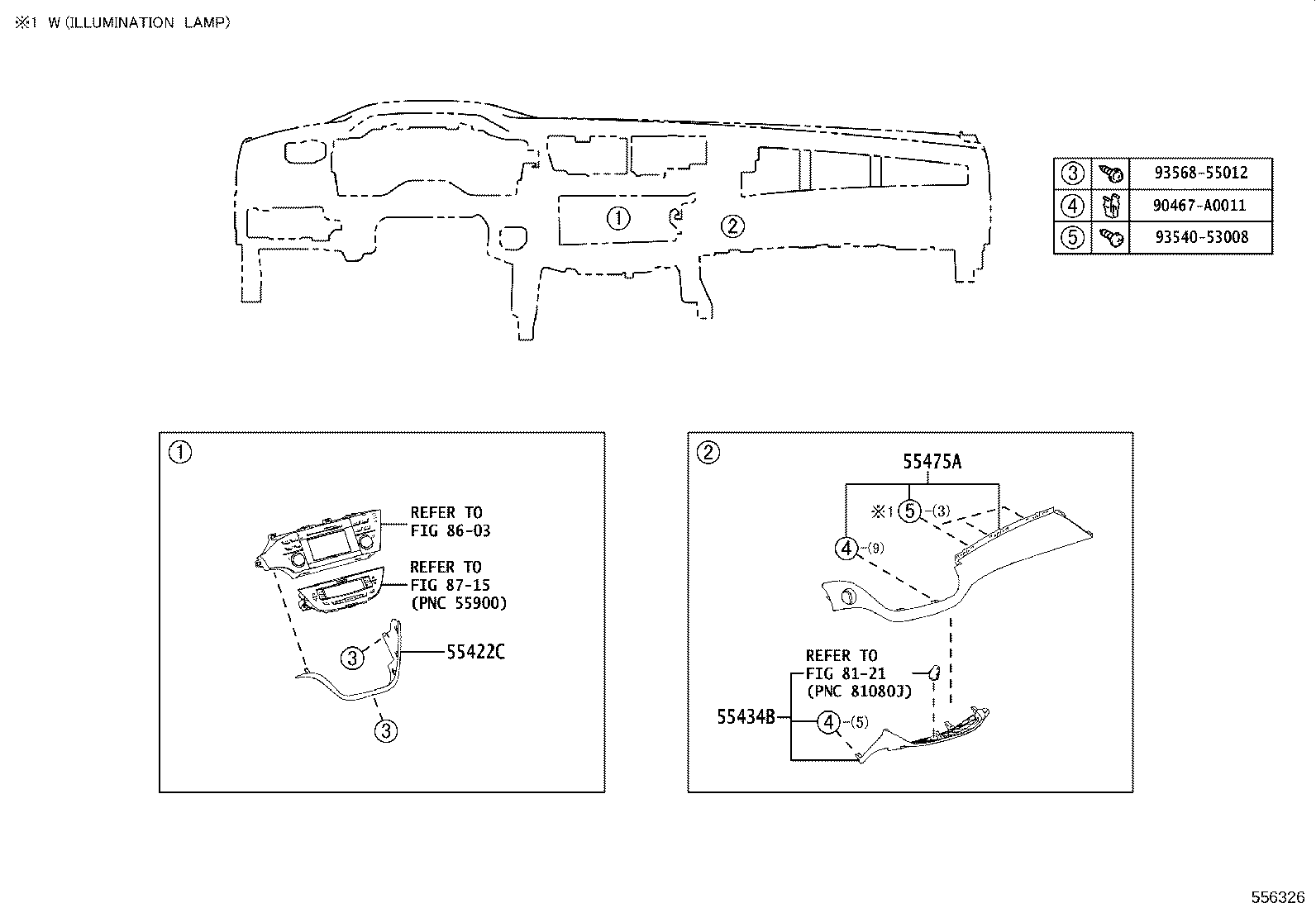

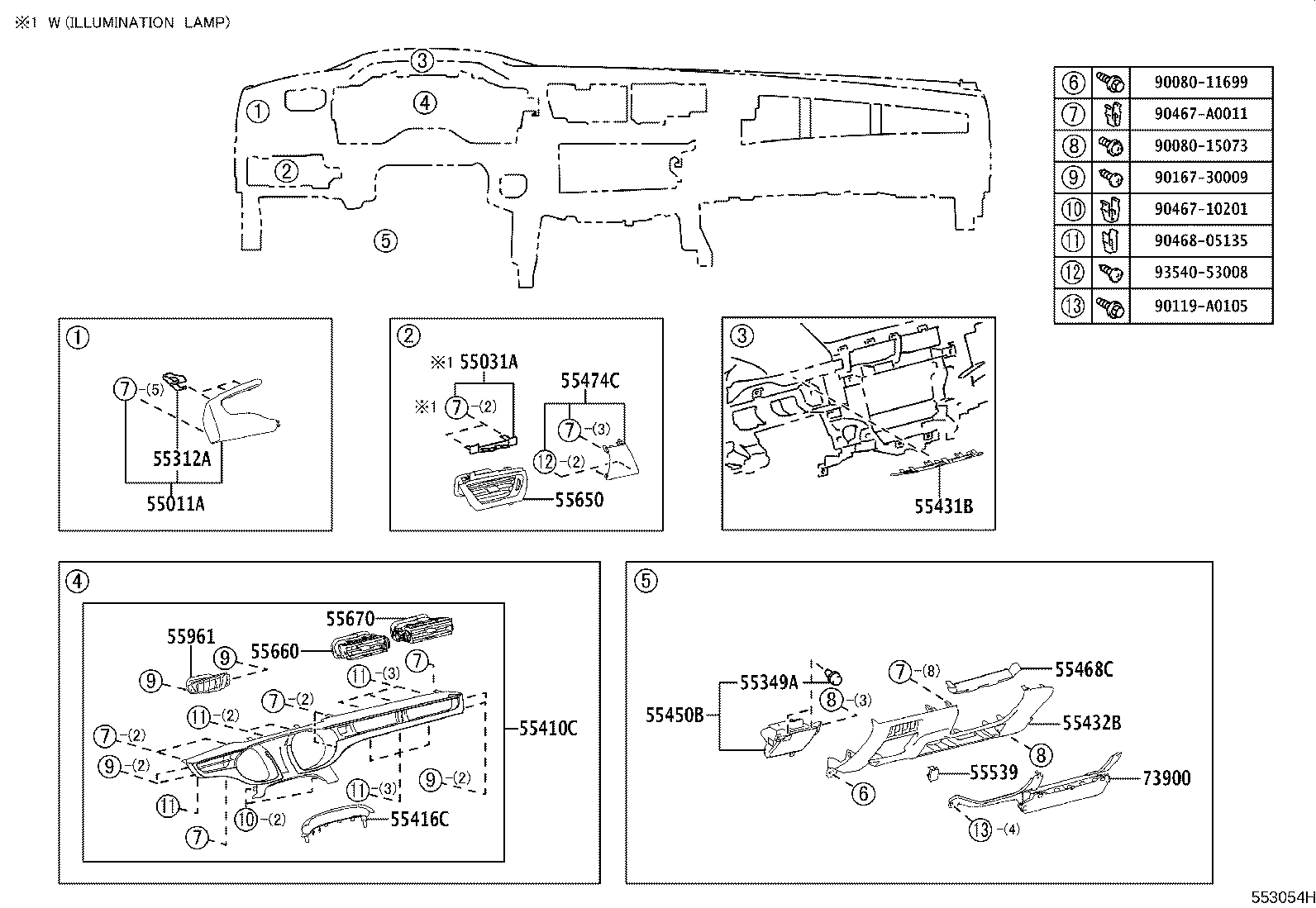

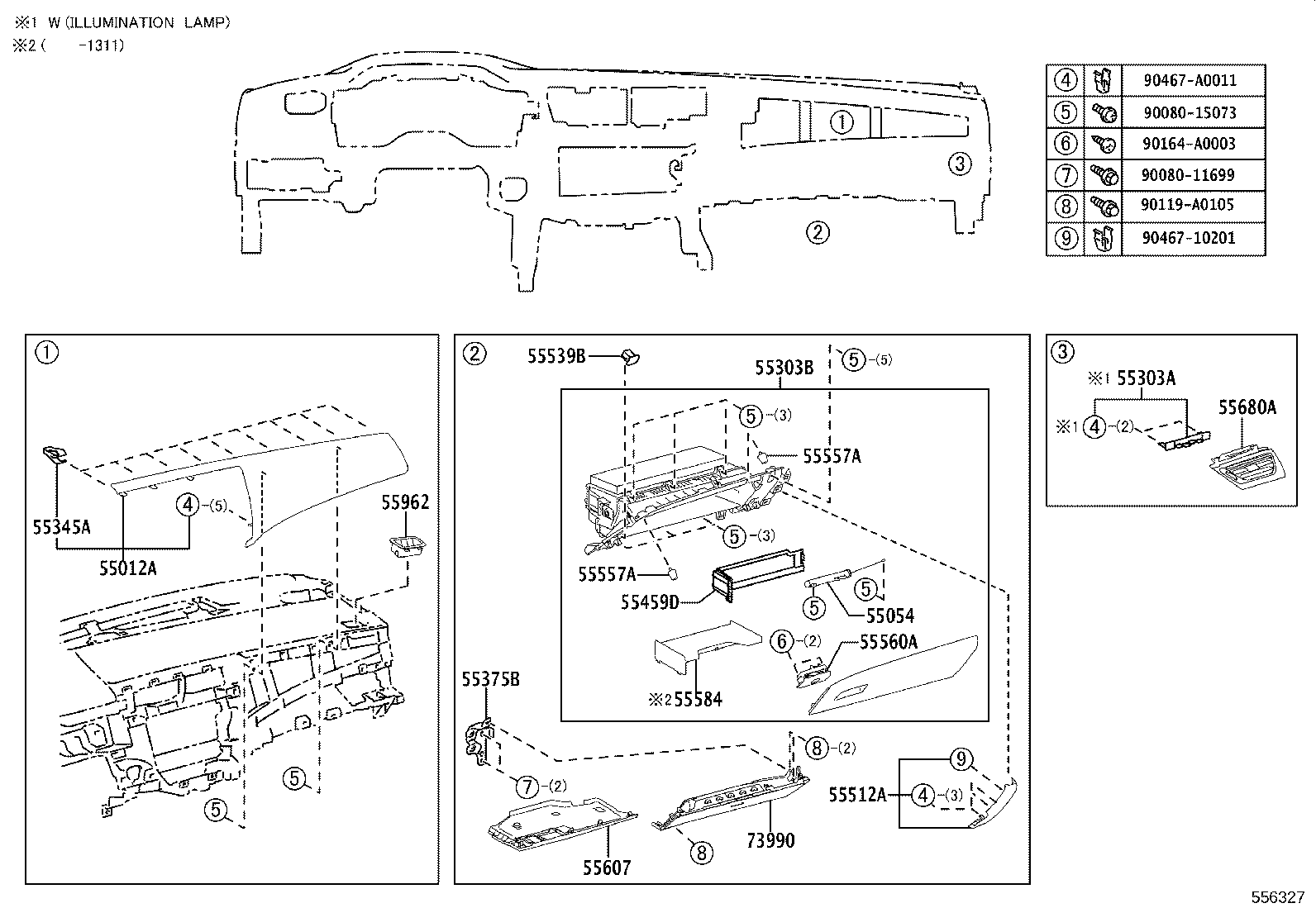

Instrument Panel & Glove Compartment
50 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55011A | Garnish Sub-assy, Instrument Panel, NO.1 |
| 55012A | Garnish Sub-assy, Instrument Panel, NO.2 |
| 55031A | Stay Sub-assy, Instrument Panel, NO.1 |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55303A | Stay Sub-assy, Instrument Panel |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307E | Brace Sub-assy, Instrument Panel, NO.2 |
| 55312A | Clip, Instrument Panel |
| 55315A | Spacer, Instrument Panel, NO.1 |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55349A | Cushion, Instrument Panel |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55394B | Bolt, Instrument Panel |
| 55394C | Bolt, Instrument Panel |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55401F | Clip(FOR SAFETY PAD) |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55416C | Retainer, Instrument Cluster Finish Panel |
| 55422C | Panel, Instrument Cluster Finish, Center Upper |
| 55431B | Panel, Instrument Panel Finish, Upper |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55450B | Box Assy, Coin |
| 55458A | Cap, Instrument Panel Safety Pad |
| 55459D | Cover, Instrument, Lower LH |
| 55468C | Seal, Instrument Cluster Finish Panel, NO.1 |
| 55474C | Garnish, Instrument Cluster Finish Panel, NO.1 |
| 55475A | Garnish, Instrument Cluster Finish Panel, NO.2 |
| 55512A | Plate, Glove Compartment |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55584 | Holder, Map |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 73990 | Airbag Assy, Instrument Panel, Lower NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
