Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 5 illustrations

Illustrations

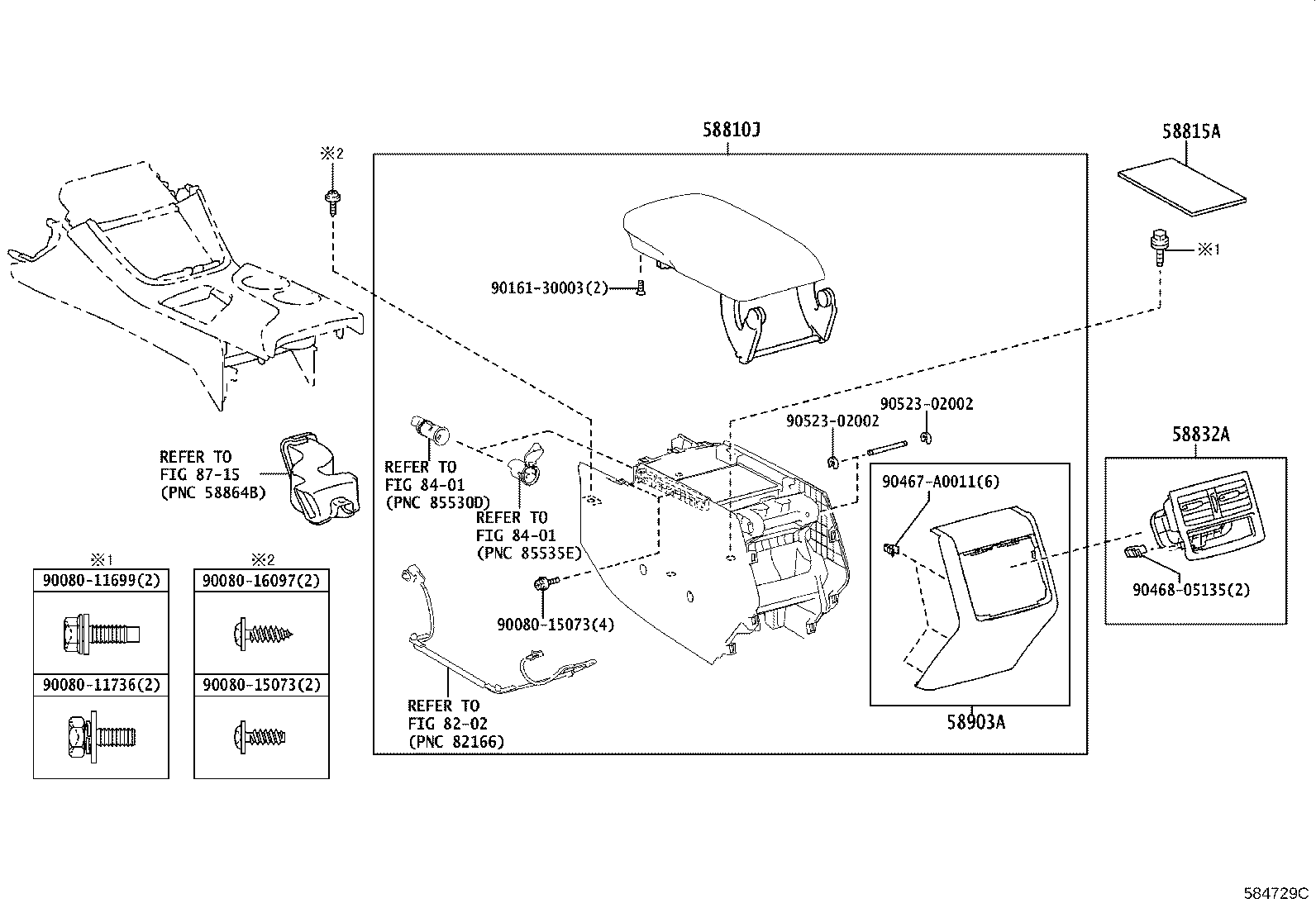

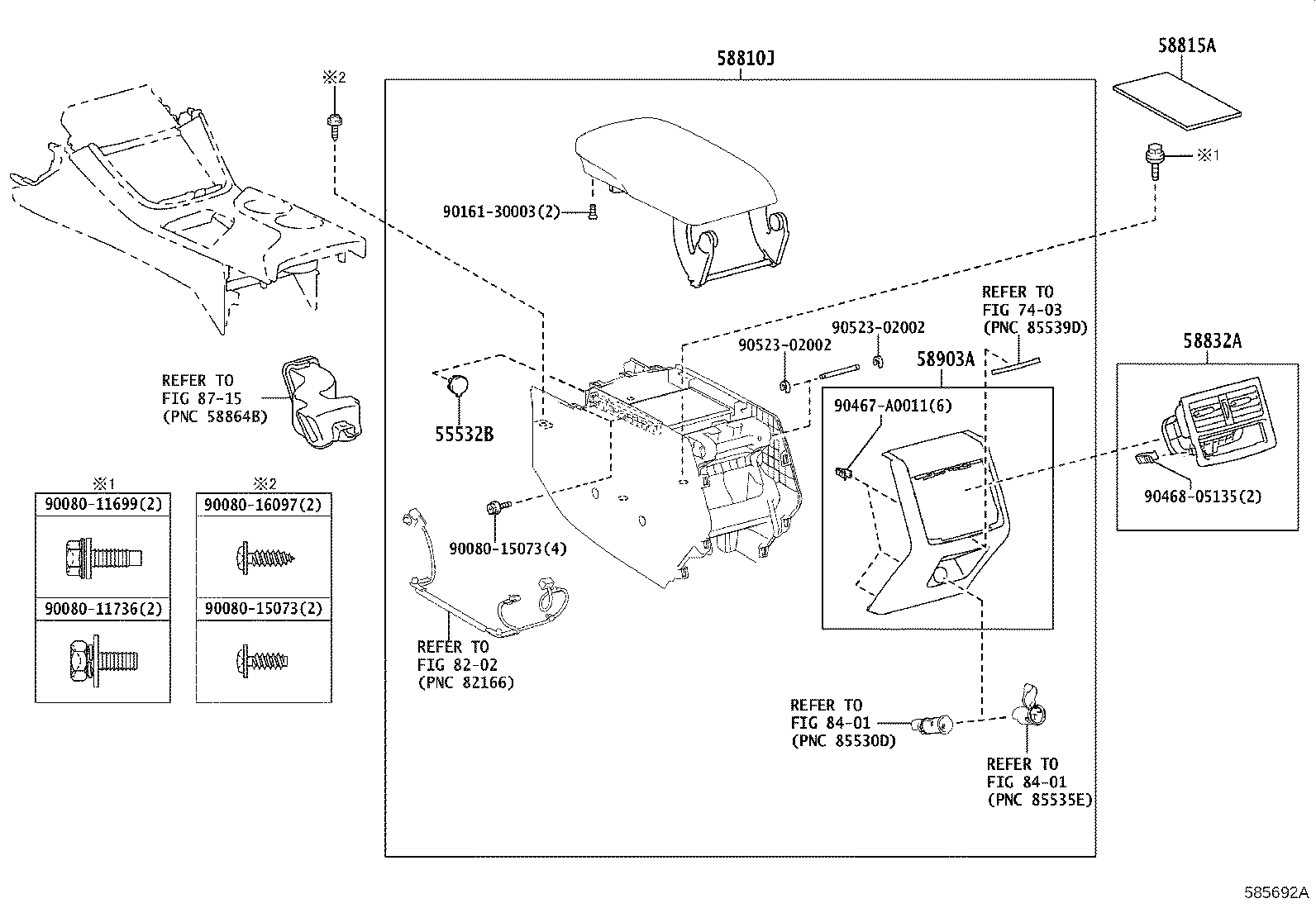

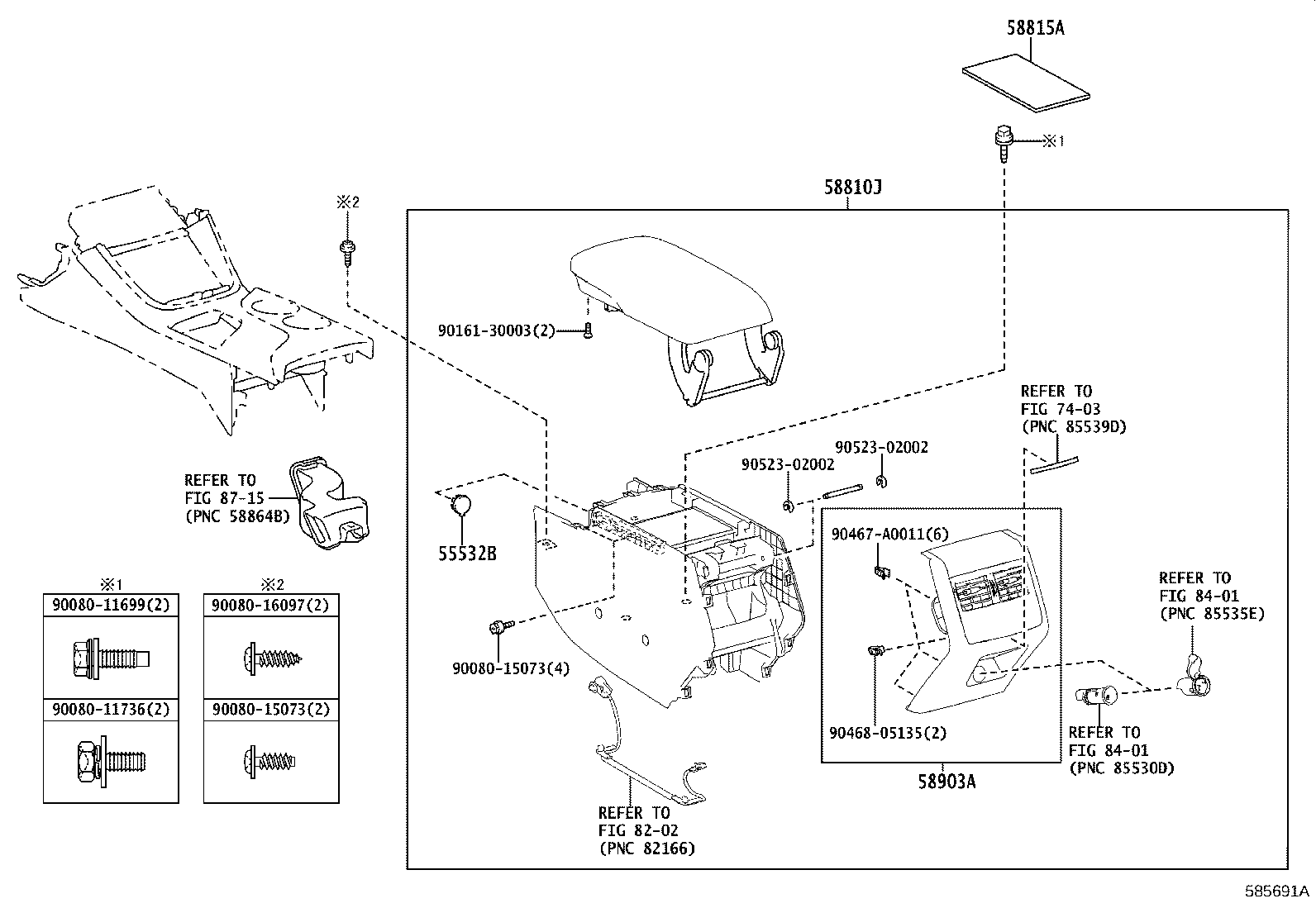

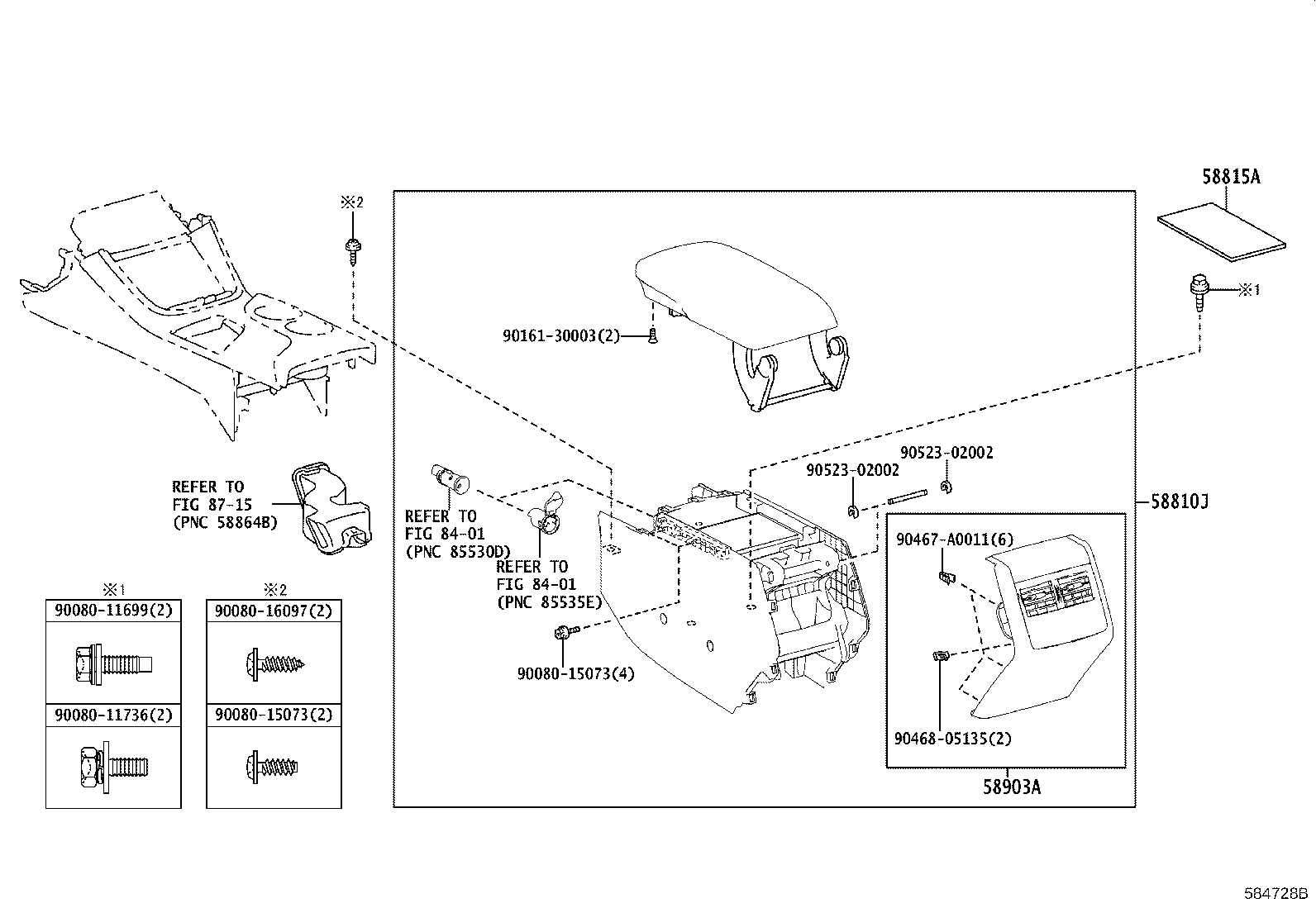

Figure 584727D 584727D 2012-10 → — Figure 584728B 584728B 2012-10 → 2015-10 Figure 584729C 584729C 2012-10 → 2015-10 Figure 585691A 585691A 2015-10 → — Figure 585692A 585692A 2015-10 → —

Part groups

PNCDescription
55532B Cover, Cigar Lighter Hole
55620B Holder, Instrument Panel Cup
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58810J Box Assy, Console
58811A Box, Console, Front
58811D Clip(FOR CONSOLE BOX)
58813 Box, Console, Upper
58815A Carpet, Console Box
58831A Garnish, Console Upper Panel, Front
58832A Garnish, Console Upper Panel, Rear
58835C Ornament, Console Box
58865A Lens, Front Console Box, NO.1
58866A Lens, Front Console Box, NO.2
58881A Ornament, Console Box
58903A Panel Sub-assy, Console Rear End
58910D Clip(FOR CONSOLE BOX)
58967A Spring, Console Door Stopper
58995A Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
