Toyota Avalon

2012-10 → 2018-04 · chassis AVX40,GSX40 · catalogue 361440 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

11 part groups · 3 illustrations

Illustrations

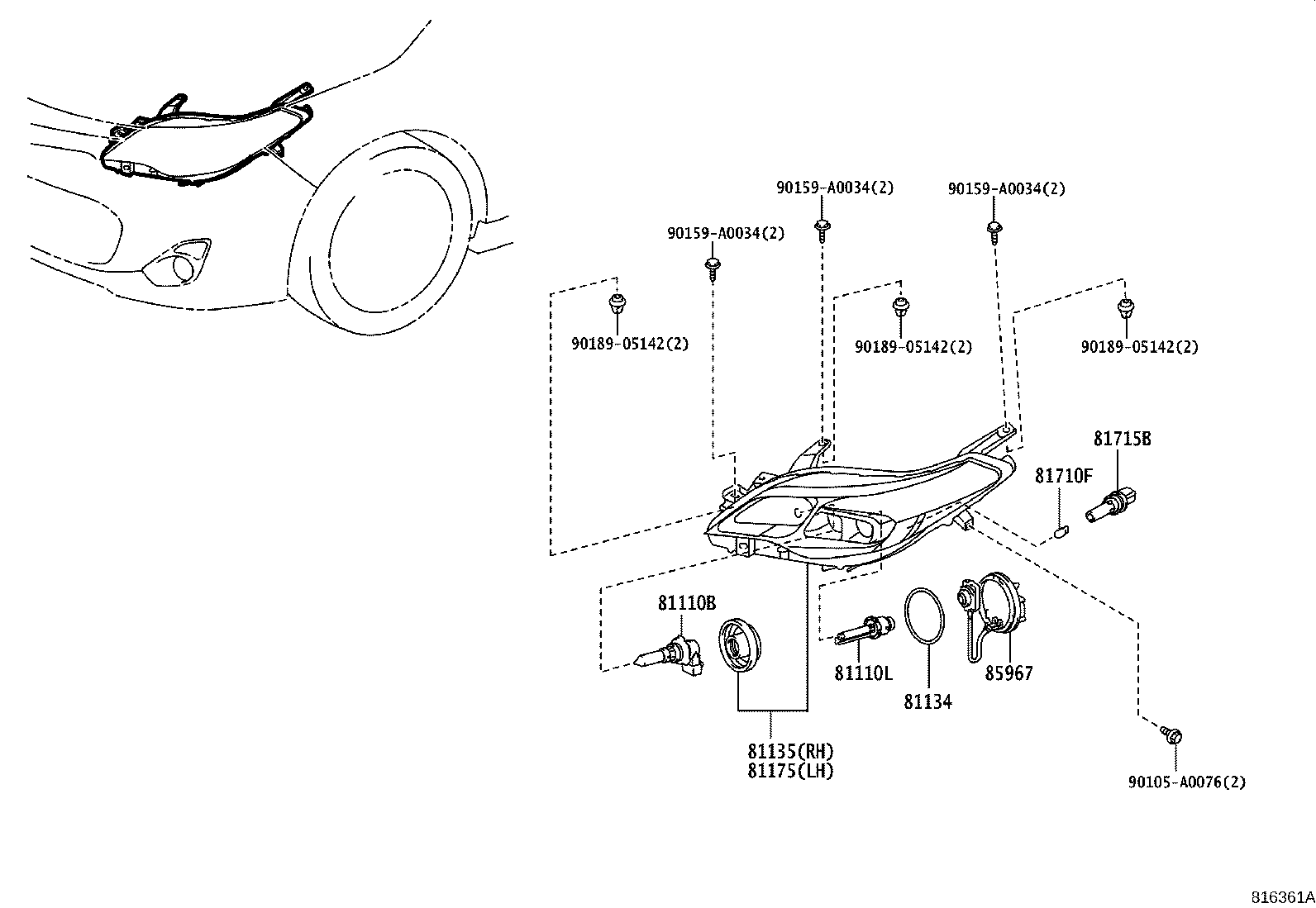

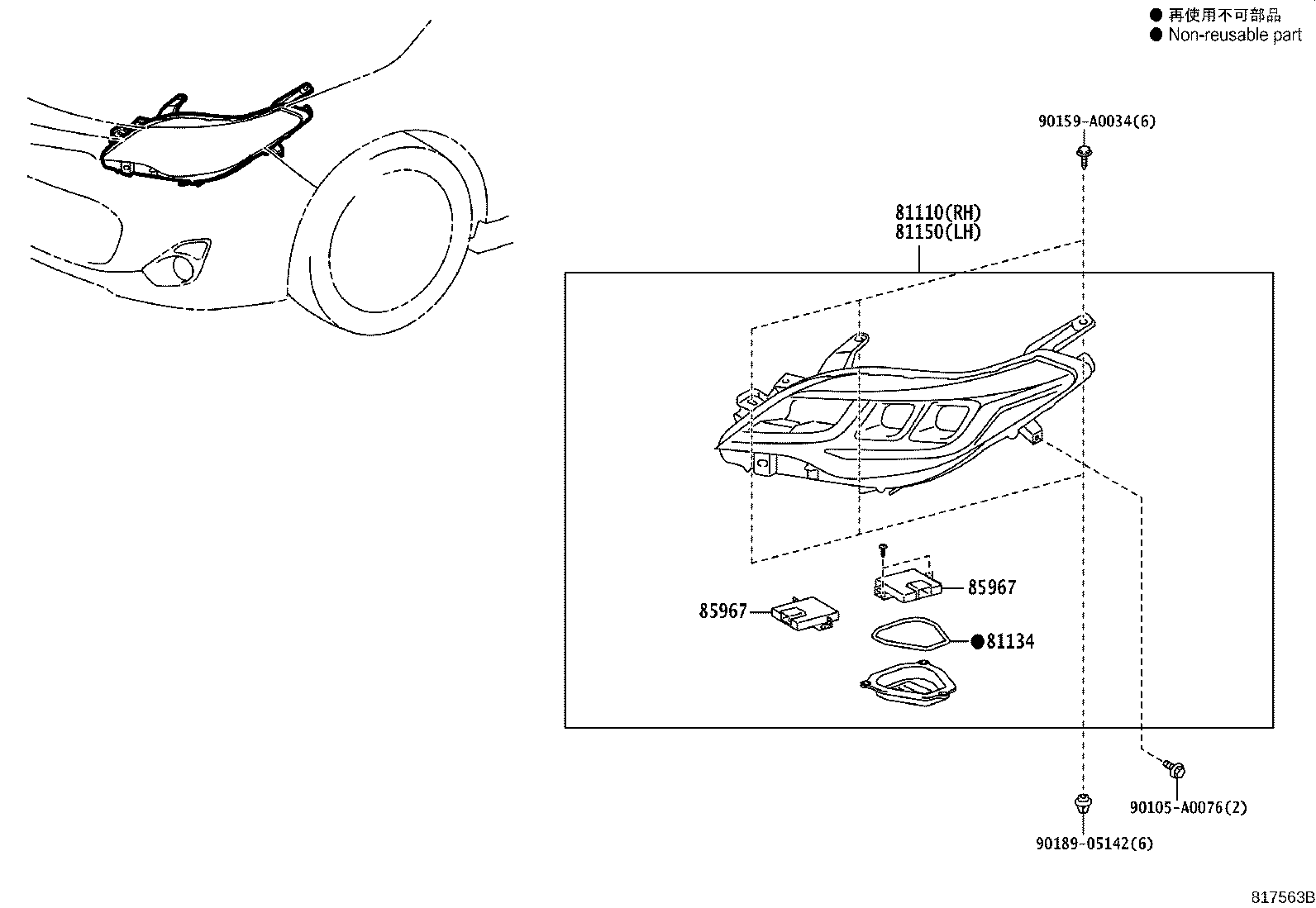

Figure 816360A 816360A 2012-10 → — Figure 816361A 816361A 2012-10 → — Figure 817563B 817563B 2015-10 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81710F Bulb, Front Side Maker Lamp
81715B Socket & Wire, Front Side Marker Lamp
85967 Computer, Light Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
